44GR1KT13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 44GR1KT13

44GR1KT13: DescriptionRESISTOR, TRIMMER, CERMET, 9 TURN(S), 0.25W, 1000ohm, 4 MM, SQUARE, 3 PINS; CategoryPassive components The resistor; File Size121KB，3 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric Compare View All

44GR1KT13 Overview

RESISTOR, TRIMMER, CERMET, 9 TURN(S), 0.25W, 1000ohm, 4 MM, SQUARE, 3 PINS

44GR1KT13 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	TT Electronics plc
package instruction	SMT, 1915
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Actuator direction	HORIZONTAL
Actuator type	SCREW
structure	Trimmer Pot
Installation features	SURFACE MOUNT
Number of terminals	3
number of turns	9
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package height	4.57 mm
Package length	4.83 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	3.91 mm
method of packing	TR, EMBOSSED, 13 INCH
Rated power dissipation(P)	0.25 W
Rated temperature	85 °C
resistance	1000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	1080 deg
series	44
size code	1915
surface mount	YES
technology	CERMET
Temperature Coefficient	-100,100 ppm/°C
Terminal shape	GULL WING
Tolerance	10%
Operating Voltage	300 V
Base Number Matches	1

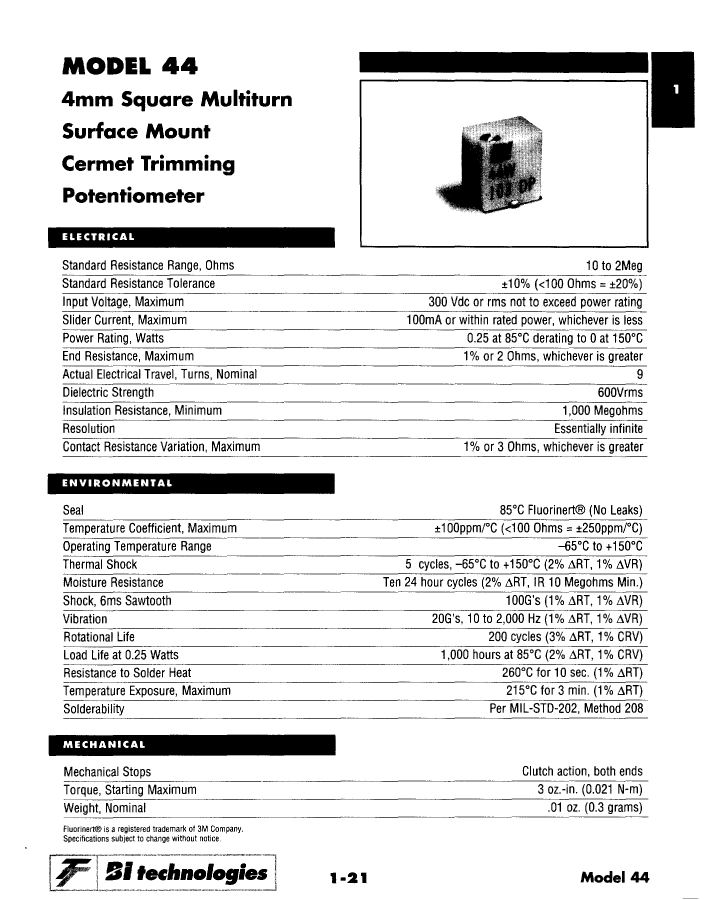

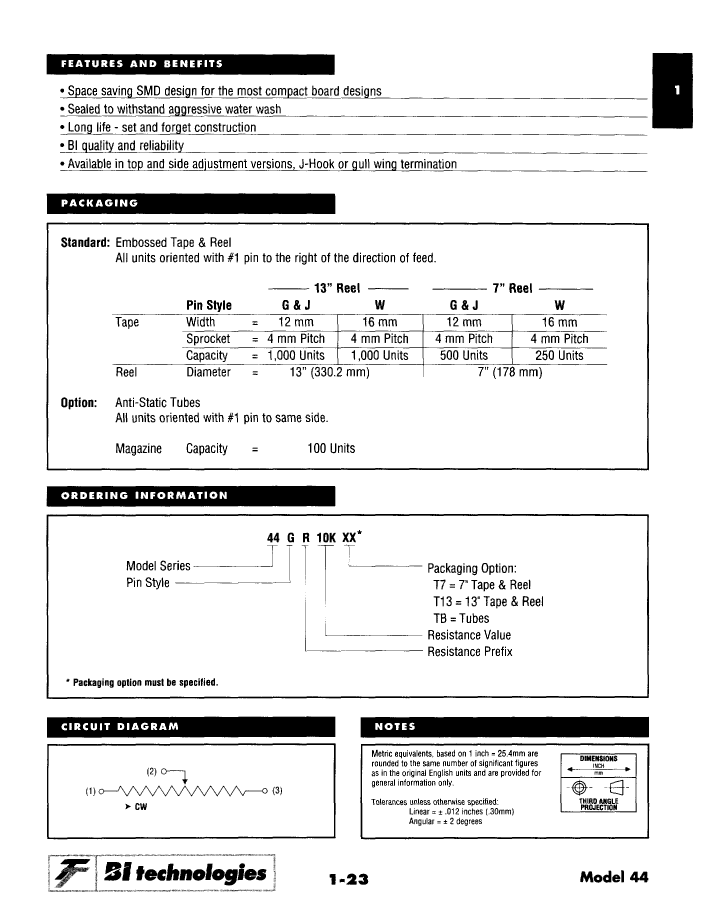

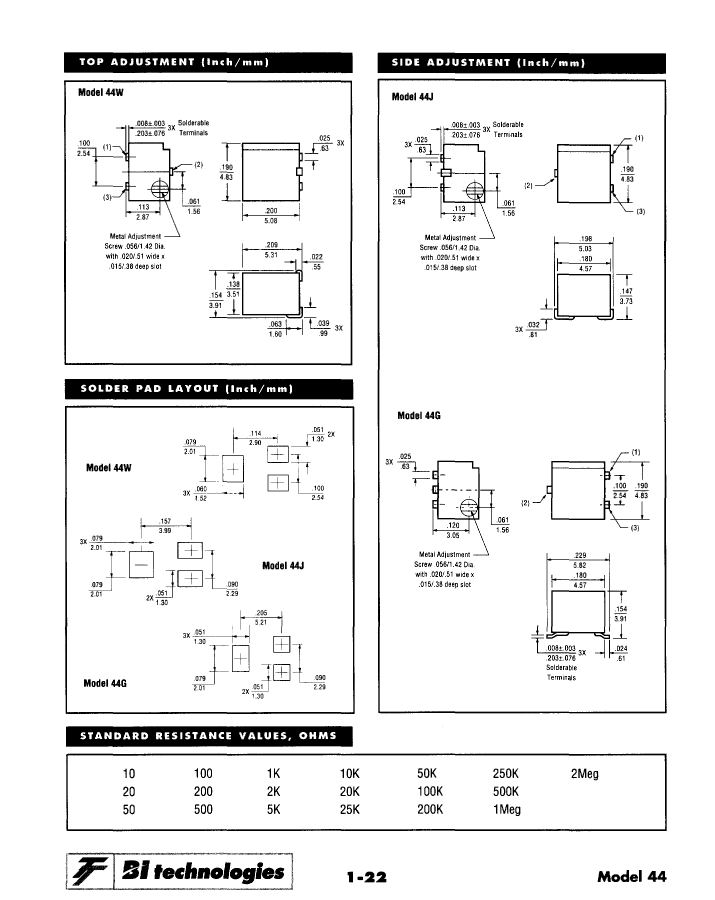

Preview

Download Datasheet

View All

44GR1KT13 Related Products

	44GR1KT13	C4SMB-RGY-CV14QBB2	44GR1MEGT13	44GR1MEGT7
Description	RESISTOR, TRIMMER, CERMET, 9 TURN(S), 0.25W, 1000ohm, 4 MM, SQUARE, 3 PINS	Cree® Screen Master® 4-mm Oval LED	RESISTOR, TRIMMER, CERMET, 9 TURN(S), 0.25W, 1000000ohm, 4 MM, SQUARE, 3 PINS	RESISTOR, TRIMMER, CERMET, 9 TURN(S), 0.25W, 1000000ohm, 4 MM, SQUARE, 3 PINS
Is it lead-free?	Contains lead	-	Contains lead	Contains lead
Is it Rohs certified?	incompatible	-	incompatible	incompatible
Maker	TT Electronics plc	-	TT Electronics plc	TT Electronics plc
package instruction	SMT, 1915	-	SMT, 1915	SMT, 1915
Reach Compliance Code	compliant	-	compliant	compliant
ECCN code	EAR99	-	EAR99	EAR99
Is Samacsys	N	-	N	N
Actuator direction	HORIZONTAL	-	HORIZONTAL	HORIZONTAL
Actuator type	SCREW	-	SCREW	SCREW
structure	Trimmer Pot	-	Trimmer Pot	Trimmer Pot
Installation features	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	3	-	3	3
number of turns	9	-	9	9
Maximum operating temperature	150 °C	-	150 °C	150 °C
Minimum operating temperature	-65 °C	-	-65 °C	-65 °C
Package height	4.57 mm	-	4.57 mm	4.57 mm
Package length	4.83 mm	-	4.83 mm	4.83 mm
Package shape	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	SMT	-	SMT	SMT
Package width	3.91 mm	-	3.91 mm	3.91 mm
method of packing	TR, EMBOSSED, 13 INCH	-	TR, EMBOSSED, 13 INCH	TR, EMBOSSED, 7 INCH
Rated power dissipation(P)	0.25 W	-	0.25 W	0.25 W
Rated temperature	85 °C	-	85 °C	85 °C
resistance	1000 Ω	-	1000000 Ω	1000000 Ω
resistance law	LINEAR	-	LINEAR	LINEAR
Resistor type	TRIMMER	-	TRIMMER	TRIMMER
rotation angle	1080 deg	-	1080 deg	1080 deg
series	44	-	44	44
size code	1915	-	1915	1915
surface mount	YES	-	YES	YES
technology	CERMET	-	CERMET	CERMET
Temperature Coefficient	-100,100 ppm/°C	-	-100,100 ppm/°C	-100,100 ppm/°C
Terminal shape	GULL WING	-	GULL WING	GULL WING
Tolerance	10%	-	10%	10%
Operating Voltage	300 V	-	300 V	300 V
Base Number Matches	1	-	1	1
