11RK-1.25FJN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 11RK-1.25FJN

11RK-1.25FJN: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size158KB，2 Pages; ManufacturerJST

Download Datasheet Parametric View All

11RK-1.25FJN Overview

Board Connector, 11 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle,

11RK-1.25FJN Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	LOW PROFILE
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	FJ
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.25 mm
Termination type	SOLDER
Total number of contacts	11
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

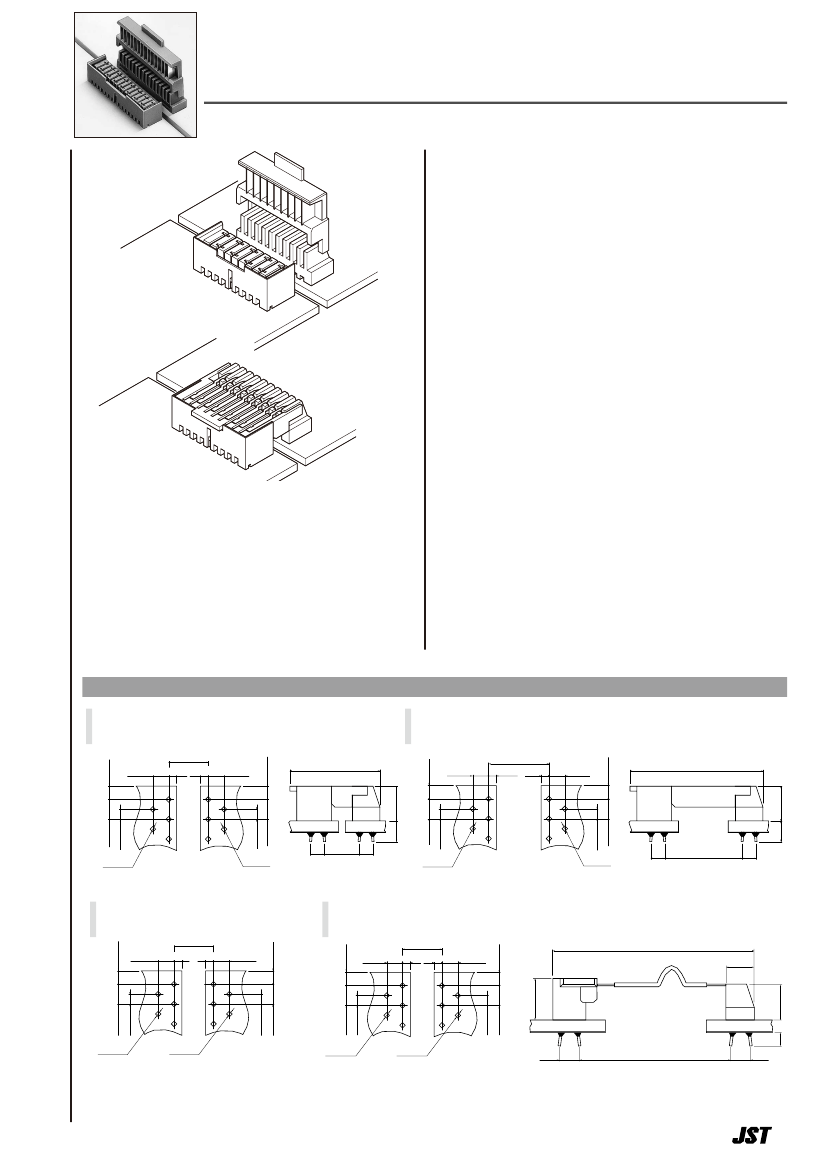

1.25FJ

CONNECTOR

1.25mm pitch/Board-to-board connectors

• Low profile

• Allows connection after mounting

• Assures a reliable connection

Specifications –––––––––––––––––––

• Current rating: 0.5A(1.0A :1.25FJ-N type) AC, DC

• Voltage rating: 50V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance:

Short type………Initial value/40m

Ω

max.

After environmental testing/60m

Ω

max.

Long type……… Initial value/70m

Ω

max.

After environmental testing/90m

Ω

max.

1.25FJ-N type… Initial value/50m

Ω

max.

After environmental testing/100m

Ω

max.

• Insulation resistance:

500M

Ω

min.

• Withstanding voltage: 500V AC/minute

• Applicable PC board thickness: 1.6mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

The 1.25FJ connector is a 1.25mm pitch

board-to-board connector. Its plug

consists of a unique flexible hinge that

absorbs circuit board misalignment.

Board-to-board connection requires less

labor and is more reliable because the

connection can be made without the use

of harnesses after the printed circuit

boards are installed in their enclosures.

Standards ––––––––––––––––––––––

Certified LR20812

Long type

Recognized E60389

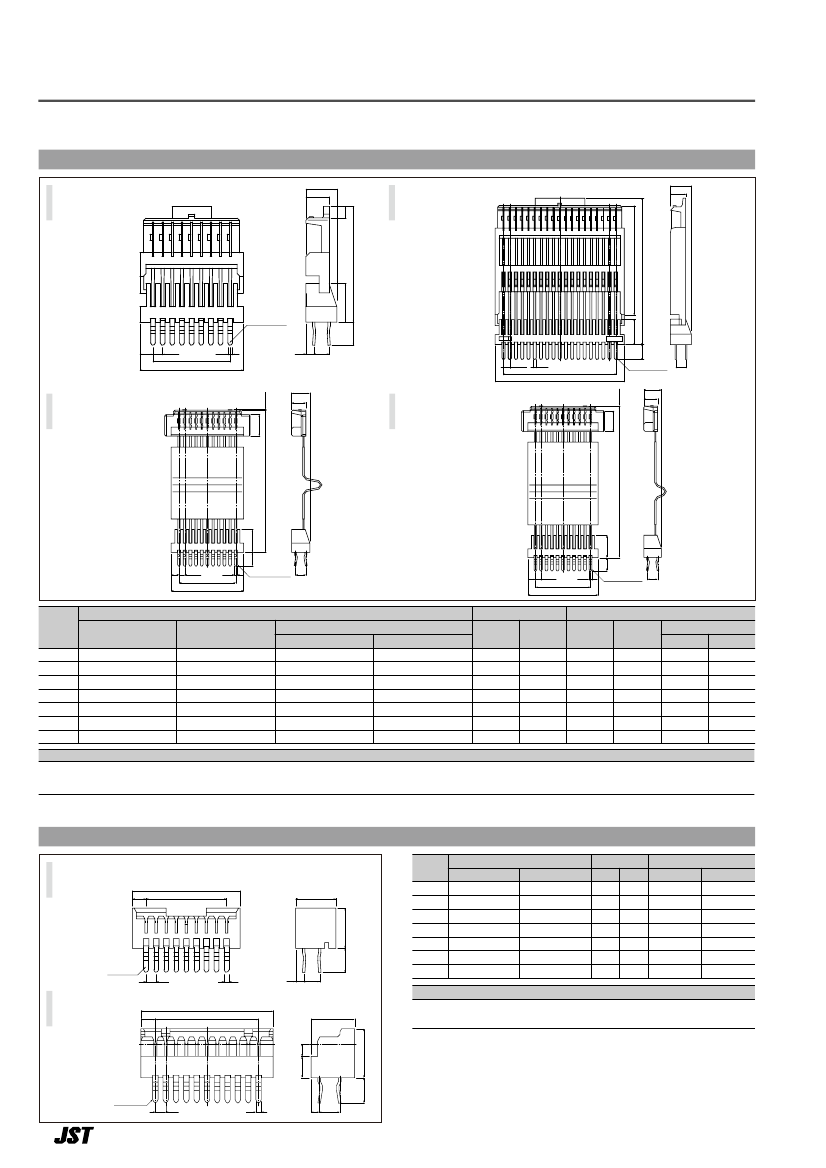

PC board layout (viewed from component side) and Assembly layout

Short type

1.7min.

1.7min

1.7min.

5.0

±0.5

2.0

±0.05

1.0min.

2.0

±0.05

（13.0）

2.0

±0.05

19.5

±0.5

1.0min. 1.0min.

2.0

±0.05

（27.5）

2.5

±0.05

1.25

±0.05

1.25

±0.05

2.5

±0.05

5.0

2.5

±0.05

1.25

±0.05

1.25

±0.05

2.5

±0.05

2.0 （5.0）

2.0

3.0

2.0

＋0.1

φ0.7

＋0.1

φ0.7

（19.5）

2.0

＋0.1

φ0.7

＋0.1

φ0.7

1.25FJ-N type(250)

1.7

min.

1.7

min.

20.5

± 1.5

2.5

±0.05

1.0

min

1.0

min

2.5

±0.05

1.25FJ-N type(280)

1.7

min.

1.7

min.

24.5

±1.5

2.5

±0.05

（31.8）

4.0

1.0

min

1.0

min

2.5

±0.05

5.9

2.5

±0.05

1.25

±0.05

1.25

±0.05

2.5

±0.05

1.25

±0.05

2.5

±0.05

1.25

±0.05

2.5

±0.05

φ0.8

＋0.1

φ0.8

＋0.1

φ0.8

＋0.1

φ0.8

＋0.1

2.5

24.5

2.5

Note: 1. Tolerances are non-cumulative:

0.05mm for all centers.

2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.

3.0

5.0

3.0

5.0
