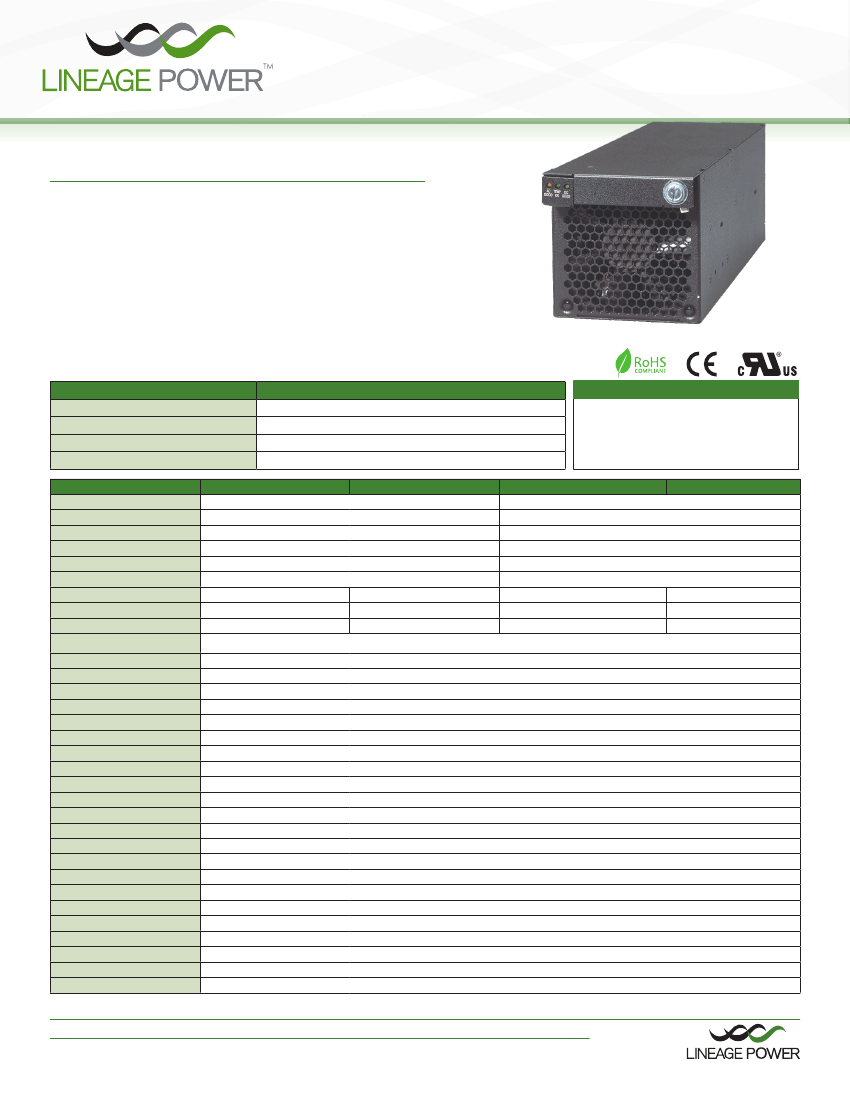

3000 Watt 24 / 48V Rectifier Power Supply
CAR3000T Series
Features:
∎
∎
∎
∎
∎
∎
∎
Hot-swap N+1 Redundancy
Single phase or Three phase Input
Power Factor Correction
Over Voltage, Over Current and Thermal Protection
Visual LED Indicators
19” 3U High / 3-Bay Power Shelf
International Safety Approvals
FEATURES
No minimum load requirements
Modular design
Single phase or three phase inputs
Constant current characteristics
SPECIFICATIONS
Input Voltage Range
Input Current
Inrush Current
Input Fuse
Power Factor
Efficiency
Output Voltage & Current
Adjust Range (Trim Pot)
Over Voltage Protection
OVP Protection Type
Standby Voltage
Line Regulation
Load Regulation
Output Ripple & Noise
Transient Response
Start-up Time
Hold-up Time
Overshoot / Undershoot
Temperature Coefficient
Remote ON/OFF
Power Fail Signal
Over Current Protection
Over Temperature Protection
MTBF
Output Power Good
LED Indicators
Operating Temperature
Cooling
EMI/EMC
Dimensions
Weight
Safety Approvals
rev 100506
Lineage Power
3000 Skyline Dr.
Mesquite, TX 75149
Phone: (972) 284-2000
BENEFITS
Eliminates the need for preload on system backplace
Easy insertion and extraction during hot swap
One stop shopping, breadth of line
Ideal for Network Bus Applications
CAR3010K1T
CAR3010L1TN
Single Phase Input / 180-264 VAC / 47-63 Hz
19Amax
50Amax
Single Fuse 25A 3AG
0.99
90% Typical @ 230 VAC
+27 VDC @ 111A
-54 VDC @ 55.5A
+20~29 V
-40 ~ -58V
+29.5~30.5 VDC
-58.5~59.5 VDC
Recycle AC Input to Reset
KEY MARKET SEGMENTS & APPLICATIONS
∎
Distributed Power
∎
Mid-end servers
∎
Network Storage
∎
Storage Area Networks
∎
Blade Servers
∎
Network Equipment
∎
Test Equipment
CAR3030K1T
CAR3030L1TN
Three Phase Input / 180-264 VAC / 47-63 Hz
11A per phase max.
50A max (per phase)
Single Fuse per Phase 15A 3AG
0.95
90% Typical @ 230 VAC
+27 VDC @ 111A
-54 VDC @ 55.5A
+20~29 V
-40 ~ -58V
+29.5~30.5 VDC
-58.5~59.5 VDC
5VSB @ 500mA
0.5% using remote sense (5% on Stand-by Voltage)
0.5% using remote sense (5% on Stand-by Voltage)
<1% (pk-pk)
3% max deviation 0.50ms recovery time for a 25% load change
2 seconds
>20ms at low line
1% at turn ON/OFF
0.02% per °C
Logic 1 (TTL High) or open enables unit (ON), Logic 0 (TTL Low) or short shuts unit down (OFF)
Signal goes low (TTL Low) 2ms before loss output regulation
110-140% V1, 5VSB < 2.5A. Automatic recovery.
Automatic shutdown with auto recovery. Thermal shutdown point @ 95°C
300,000 hrs per Bellcore standard
TTL High = Power Good, TTL Low = Output out of limits
DC Good: Green LED; Temperature OK: Green LED and AC Good: Amber LED
0°C to 50°C at rated output power. Supply derates linearly from 50°C to 65°C at 2.2% per °C
Self contained ball bearing fan
Meets EN61000-3-2, -3 CISPR22 and FCC Part 15 Class A, Bellcore GR-1089-CORE
12.12 x 5.00 x 5.00” / 333.2 x 127 x 127mm (handle extends additional 1.00” / 25.4mm from faceplate)
11.5 pounds / 5.23 kg
UL1950, CSA 22.2 No. 650, TUV EN0950 & CE Mark
www.lineagepower.com/oem
Lineage Power
2841 Dow Avenue
Tustin, CA 92780 USA
Phone: (714) 544-6665
Lineage Power (China)
1353 Chenqiao Road, Shanghai Sengpu Industrial Park
Shanghai, 201401 China
Phone: 021 6710 8910
CAR3000 SERIES SER
CAR3000
3000 Watt 24 / 48V Rectifier Power Supply

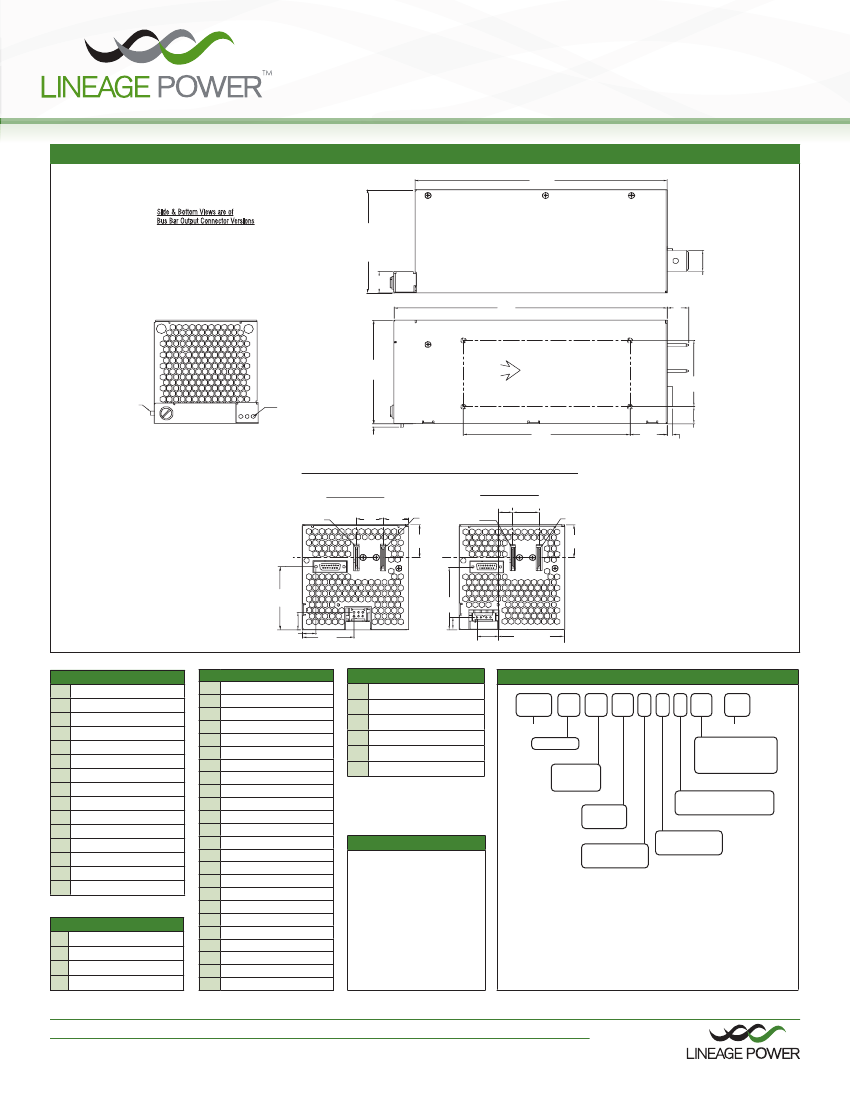

OUTLINE DRAWING:
OUTLINE DRAWING
OUTLINE DRAWING
12.12
12.12
CAR3000T Series
3000 Watt Front End Power Supply 3000 Watt Fro
Side & Bottom Views are of
Bus Bar Output Connector Versions
Side & Bottom Views are of
Bus Bar Output Connector Versions
5.00
5.00
SIDE VIEW
1.00
1 .02
13.12
SIDE VIEW
1.00
1 .02
1.04
1.04
13.12
AIRFLOW
5.00
5.00
BOTTOM VIEW
AIRFLOW
3.20
BOTTOM VIEW
3.20
Latch
3 2 1
LEDs
Latch
3 2 1
LEDs
8.00
0.16
1.79
0.822
8.00
0.25
0.16
1.79
0.25
0.822
REAR PANEL CONNECTIONS: REAR PANEL CONNECTIONS:
Single Phase Input with Bus Bar
V1 Rtn
1.25
1.20
V1
1.56
CAR3010x1
CAR3010x1
Three Phase Input with Bus Bar
Single Phase Input with Bus Bar
0.641
V1 RTN
V1 Rtn
1.25
1.25
1.20
CAR3030x1
Single Phase Input with Positronic
Three Phase Input with Bus Bar
V1
V1
1.56
1.56
0.641
V1 RTN
1.25
V1
1.56
CAR3010x1H
CAR3030x1
Three Phase Input with Positronic
Single Phase Input with Positronic
CAR3030x1H
CAR3010x1H
Three Phase Input with Positronic
CAR3030x1H
3.00
0.84
0.65
2.44
3.00
2.99
2.99
0.84
0.65
0.59
2.44
0.98
3.095
0.59
0.98
3.095
15-PIN D-SUB CONNECTOR1
1
1
5 VSB
5VSB RTN
15-PIN D-SUB
2
CONNECTOR1
1
MODULE PRESENT
1
5 VSB
3
4
POWER GOOD
2
5VSB RTN
5
ON/OFF
3
MODULE PRESENT
6
I SHARE
4
POWER GOOD
7
MOD-ENABLE
8
OVP TEST POINT
5
ON/OFF
9
6
I SHARE
AC FAIL
10
V PROGRAM
7 MOD-ENABLE
11
+ REMOTE SENSE
8
OVP TEST POINT
MONITOR
12
CURRENT
9
AC FAIL
13
TEMPERATURE OK
14
- REMOTE SENSE
10
V PROGRAM
15
NO CONNECTION
11
12
13
14
15
1
LINE 1
21
+ SENSE
with
pins
2
LINE 2
