SAA7120 datasheet, PDF - EEWORLD Datasheet

SAA7120: DescriptionColor Signal Encoder, CMOS, PQFP44,; CategoryOther integrated circuit (IC) Consumption circuit; File Size990KB，28 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric View All

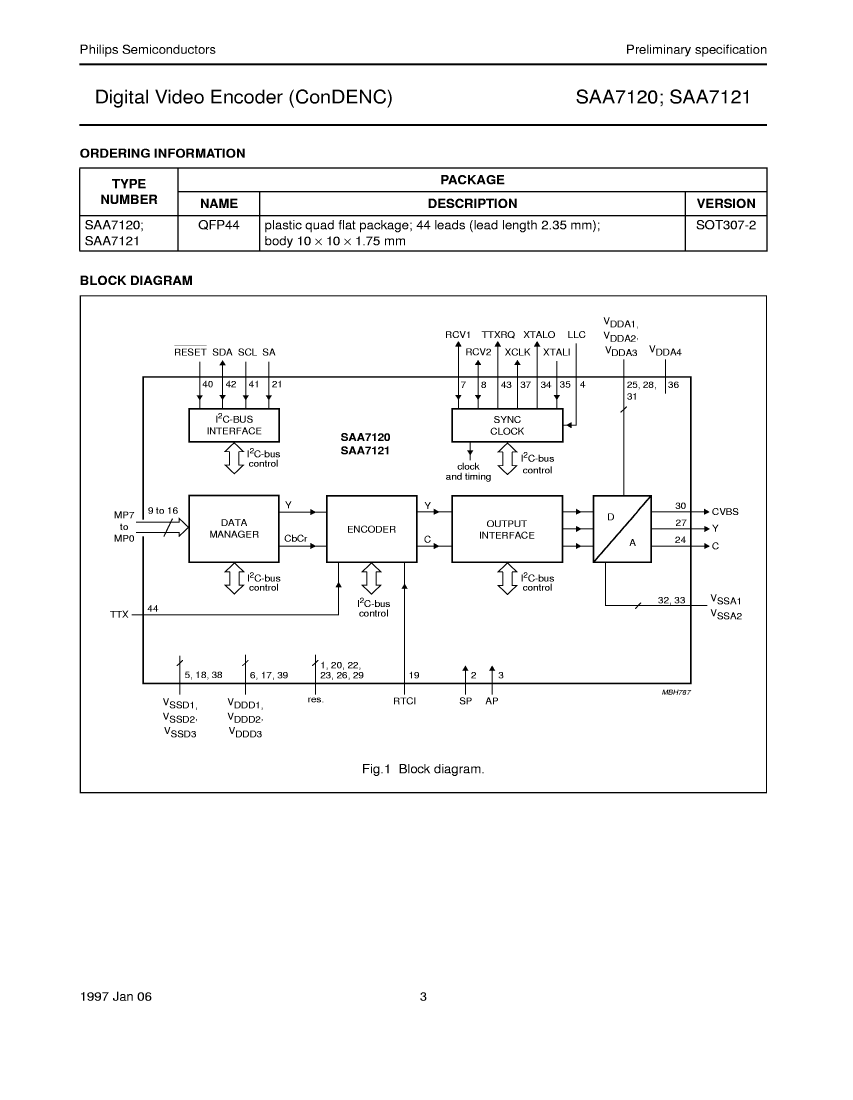

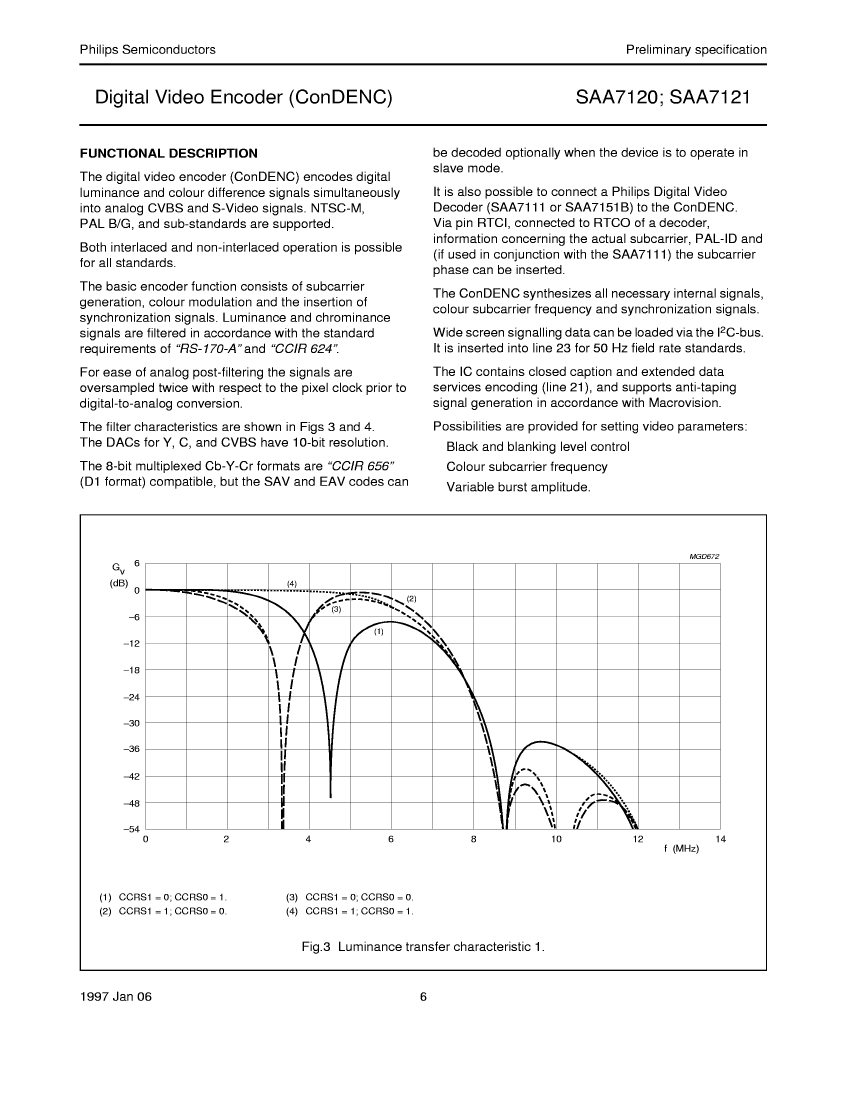

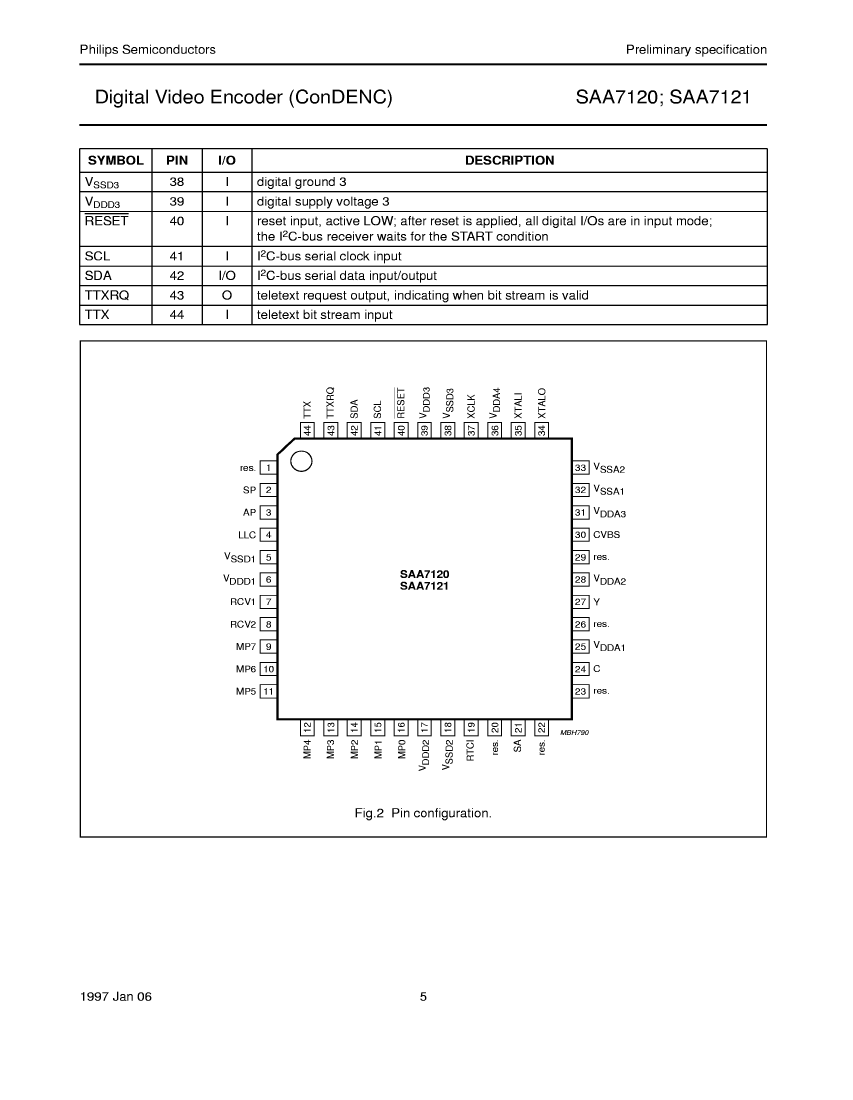

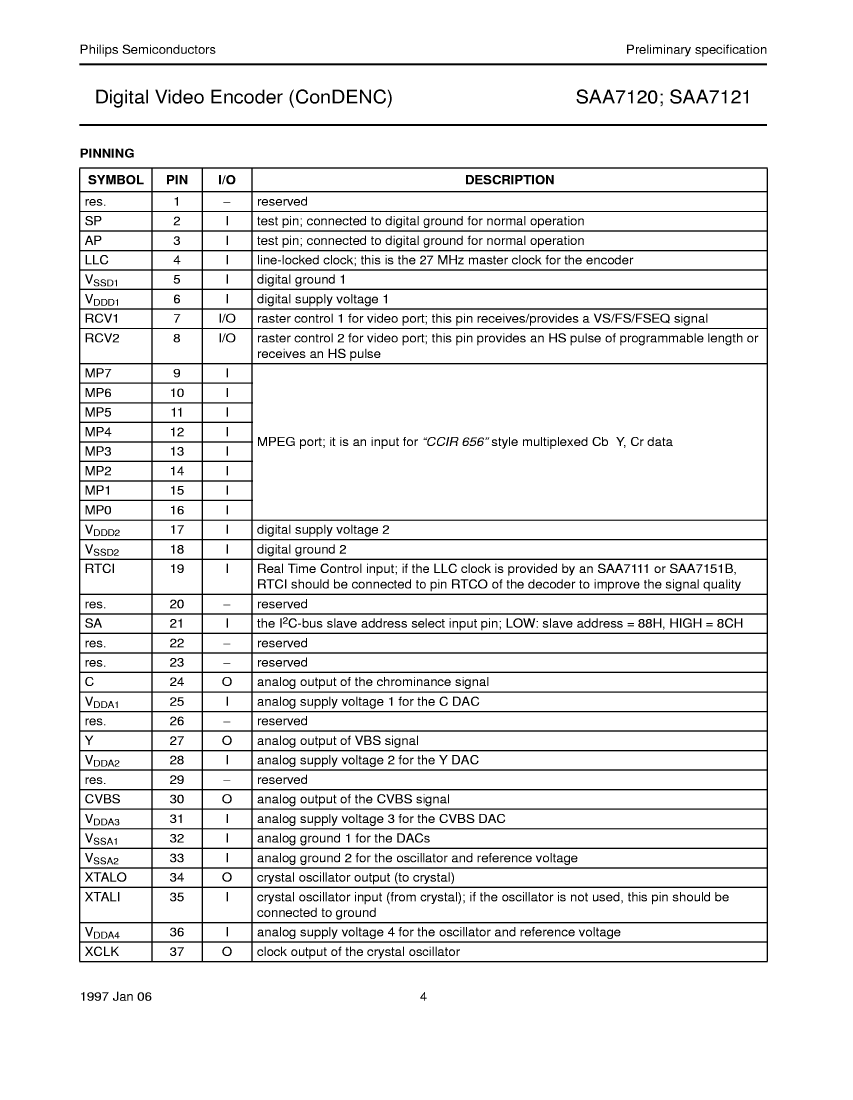

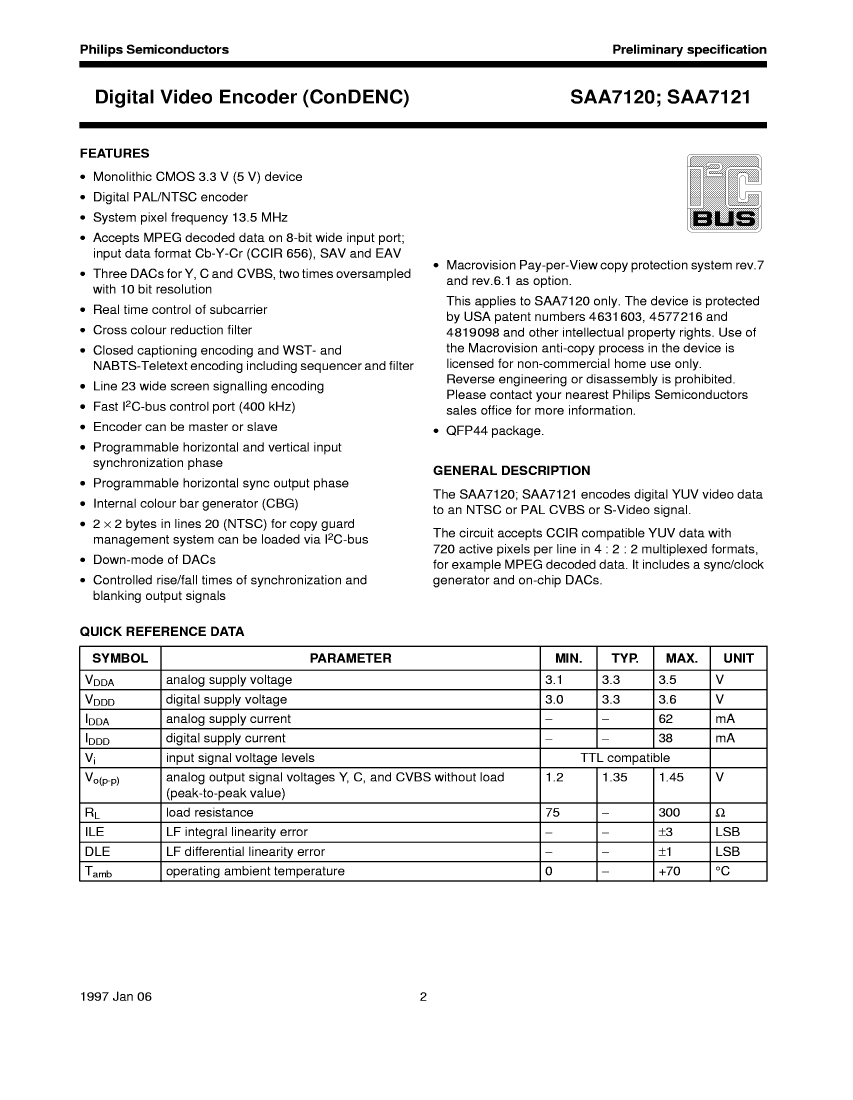

SAA7120 Overview

Color Signal Encoder, CMOS, PQFP44,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	QFP, QFP44,.5SQ,32
Reach Compliance Code	unknown
Is Samacsys	N
Commercial integrated circuit types	COLOR SIGNAL ENCODER
JESD-30 code	S-PQFP-G44
JESD-609 code	e0
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP44,.5SQ,32
Package shape	SQUARE
Package form	FLATPACK
power supply	3.3 V
Certification status	Not Qualified
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer
