U842B-FP datasheet, PDF - EEWORLD Datasheet

U842B-FP: DescriptionAutomotive Analog Circuit, BIPolar, PDSO8,; CategoryOther integrated circuit (IC) The signal circuit; File Size678KB，12 Pages; ManufacturerVishay Telefunken (Vishay); Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

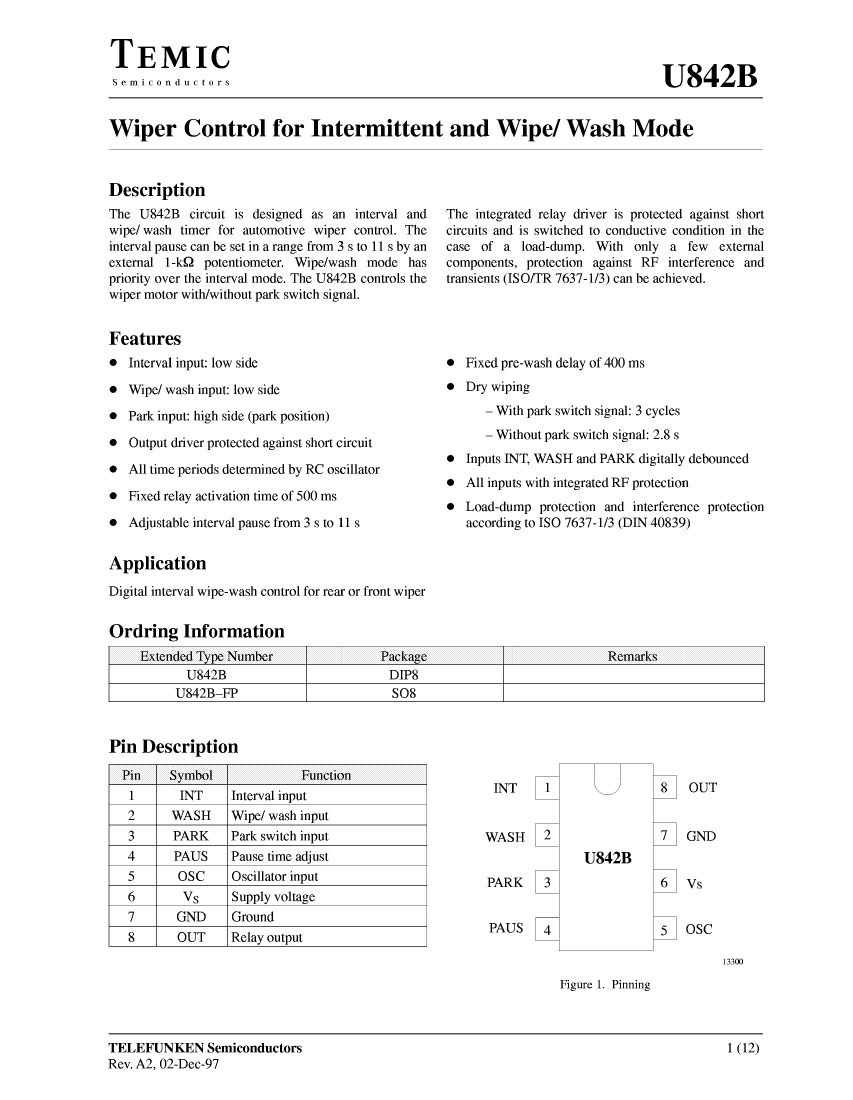

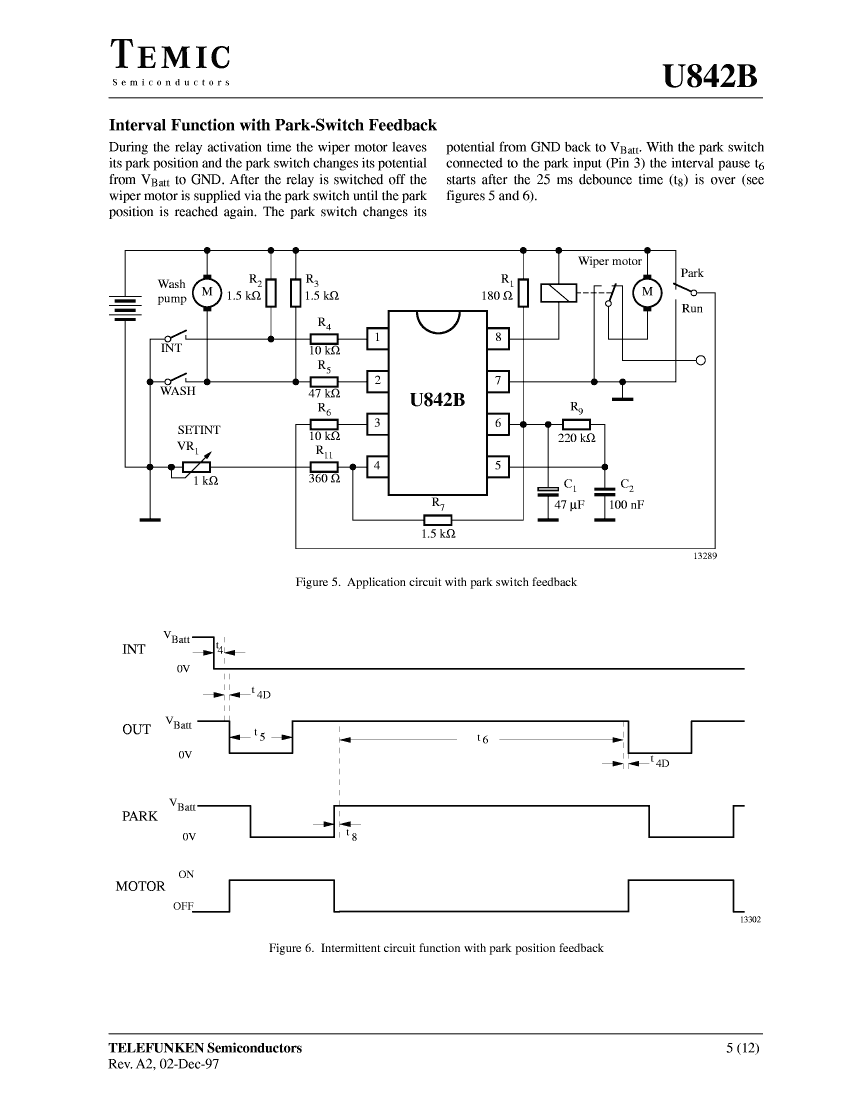

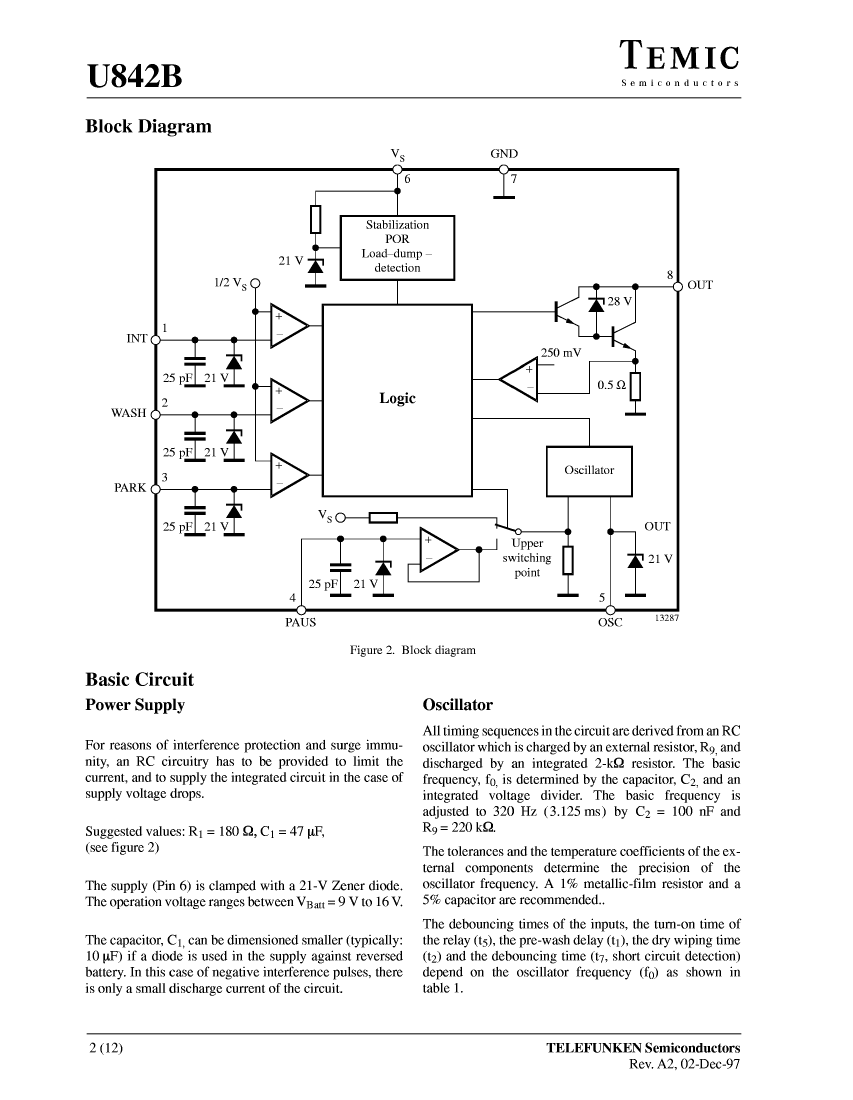

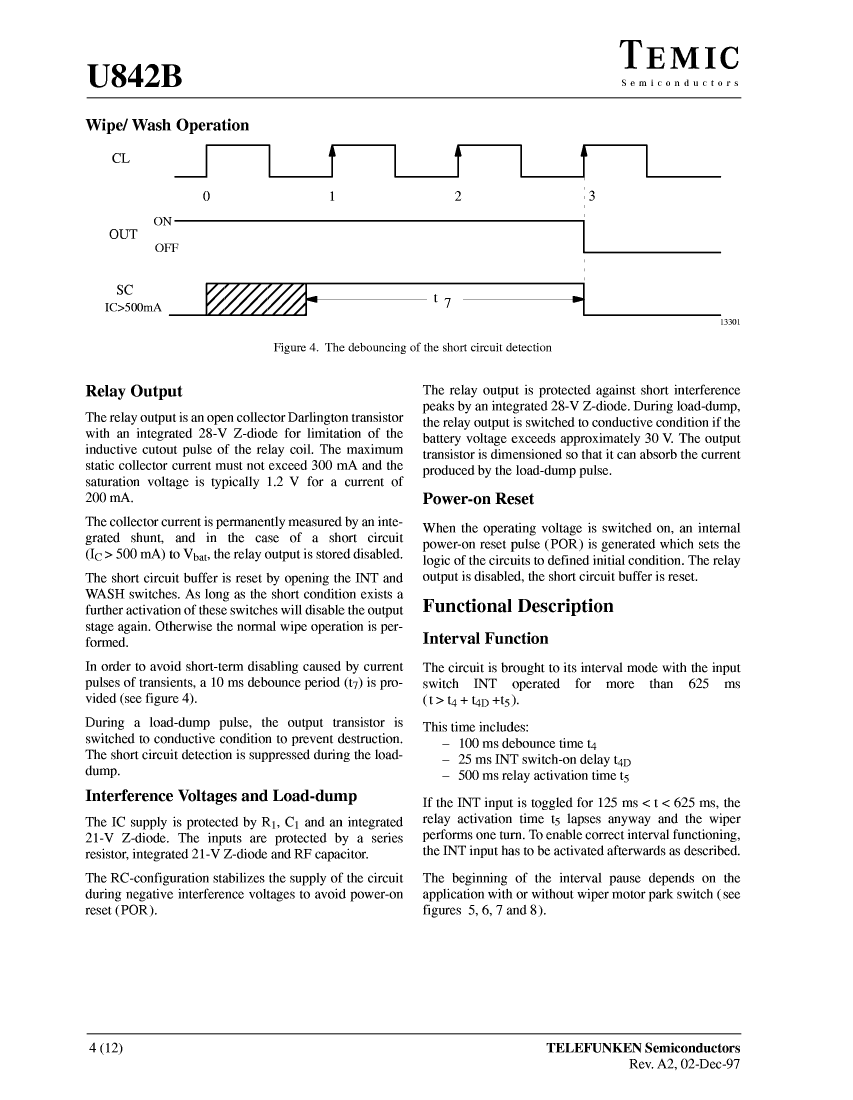

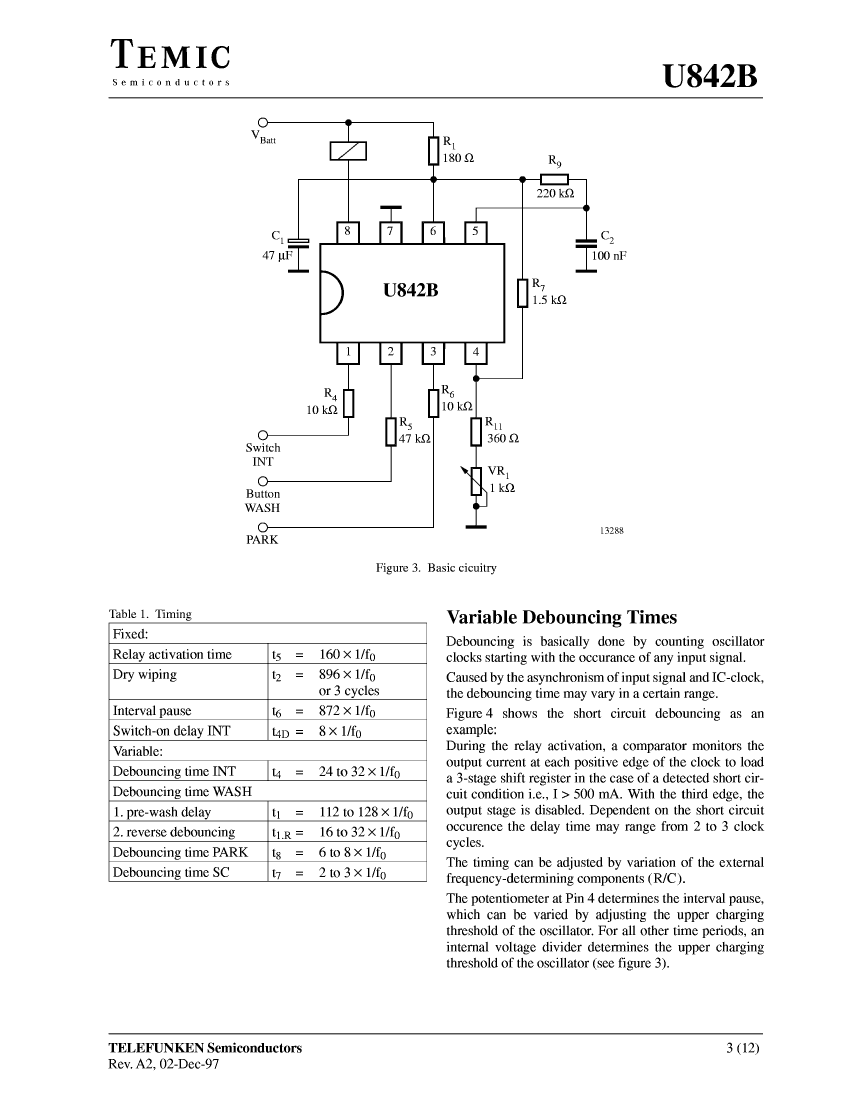

U842B-FP Overview

Automotive Analog Circuit, BIPolar, PDSO8,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay Telefunken (Vishay)
Reach Compliance Code	unknown
Is Samacsys	N
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
Number of terminals	8
Maximum operating temperature	100 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	13.5 V
Certification status	Not Qualified
Maximum supply current (Isup)	3 mA
Nominal supply voltage (Vsup)	13.5 V
surface mount	YES
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

	U842B-FP	U842B
Description	Automotive Analog Circuit, BIPolar, PDSO8,	Automotive Analog Circuit, BIPolar, PDIP8,
Is it Rohs certified?	incompatible	incompatible
Maker	Vishay Telefunken (Vishay)	Vishay Telefunken (Vishay)
Reach Compliance Code	unknown	unknown
Is Samacsys	N	N
JESD-30 code	R-PDSO-G8	R-PDIP-T8
JESD-609 code	e0	e0
Number of terminals	8	8
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-30 °C	-30 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP8,.25	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
power supply	13.5 V	13.5 V
Certification status	Not Qualified	Not Qualified
Maximum supply current (Isup)	3 mA	3 mA
Nominal supply voltage (Vsup)	13.5 V	13.5 V
surface mount	YES	NO
technology	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
