LU1S041ALF

Description
SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS
File Size178KB,2 Pages
ManufacturerBOTHHAND
Websitehttp://www.bothhandusa.com/
Download Datasheet View All

LU1S041ALF Overview

SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS

Bothhand USA
“LAN-MATE” SERIES
email:sales@bothhandusa.com
tel: 978-887-8050
SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS
P/N: LU1S041A LF
Feature
l
l
l
l
l
l
RJ-45 needs to be matched FCC standard
Complies with requirement of IEEE802.3u standards.
RJ 45 connector with 10/100 BASE-TX magnetic.
Comply with RoHS requirements-whole part No Cd, No Hg,
No Cr6+, No PBB and PBDE and No Pb on external pins.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.
Electrical Specifications @ 25°C
Part
Number
LU1S041A LF
Turns Ratio
(±5%)
TX/ RX
1CT:1CT
OCL (uH Min)
@100 KHz/0.1V
with 8mA DC Bias
350
C
W/W
(pF Max)
28
L.L
(uH Max)
0.4
-40
Cross talk
(dB Min)
0.3-30MHz 30-60MHz 60-100MHz
-35
-30
1500
HI-POT
(Vrms)
Page : 1/ 2

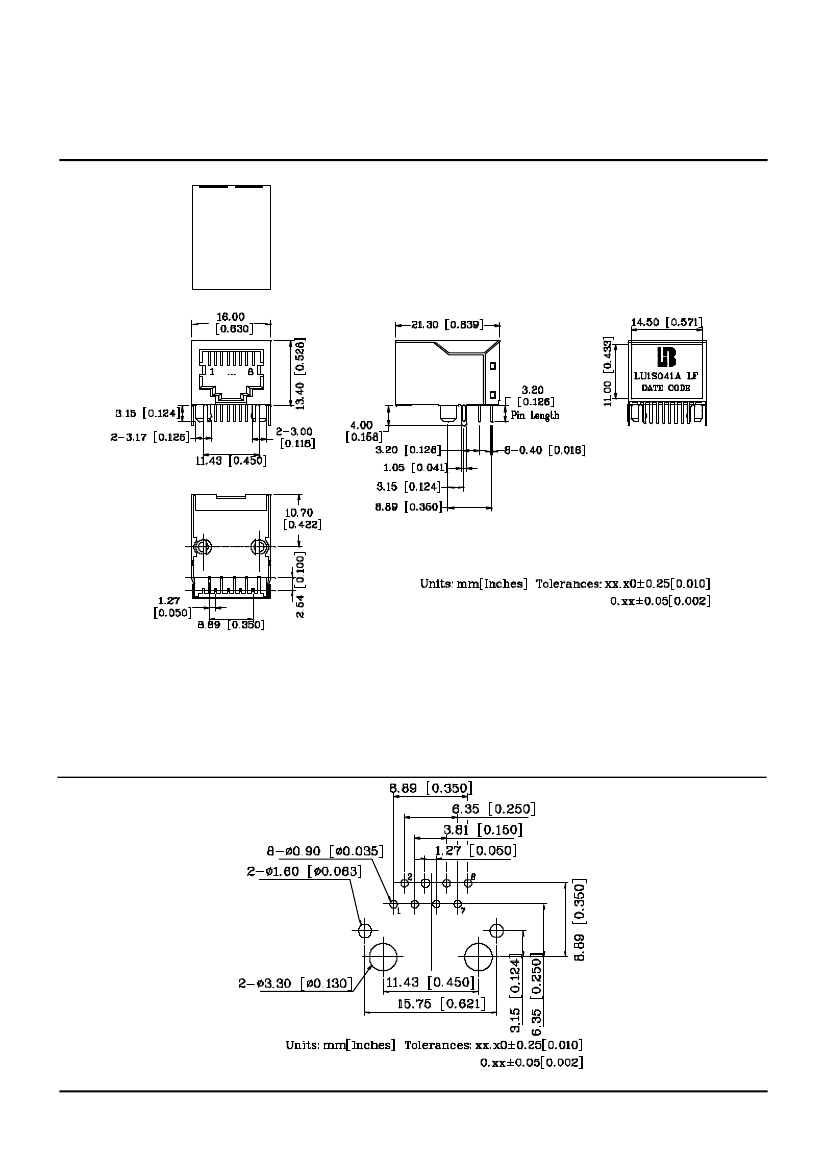

Continue
Part
Number
Insertion Loss
(dB Max)
0.3-100MHz
LU1S041A LF
-1.15
30MHz
-16
40MHz
-14
Return Loss
(dB Min)
50MHz
-13.5
60MHz
-13
80MHz
-10
1-30MHz
-30
CMR
(dB Min)
30-60MHz
-25
60-125MHz
-20

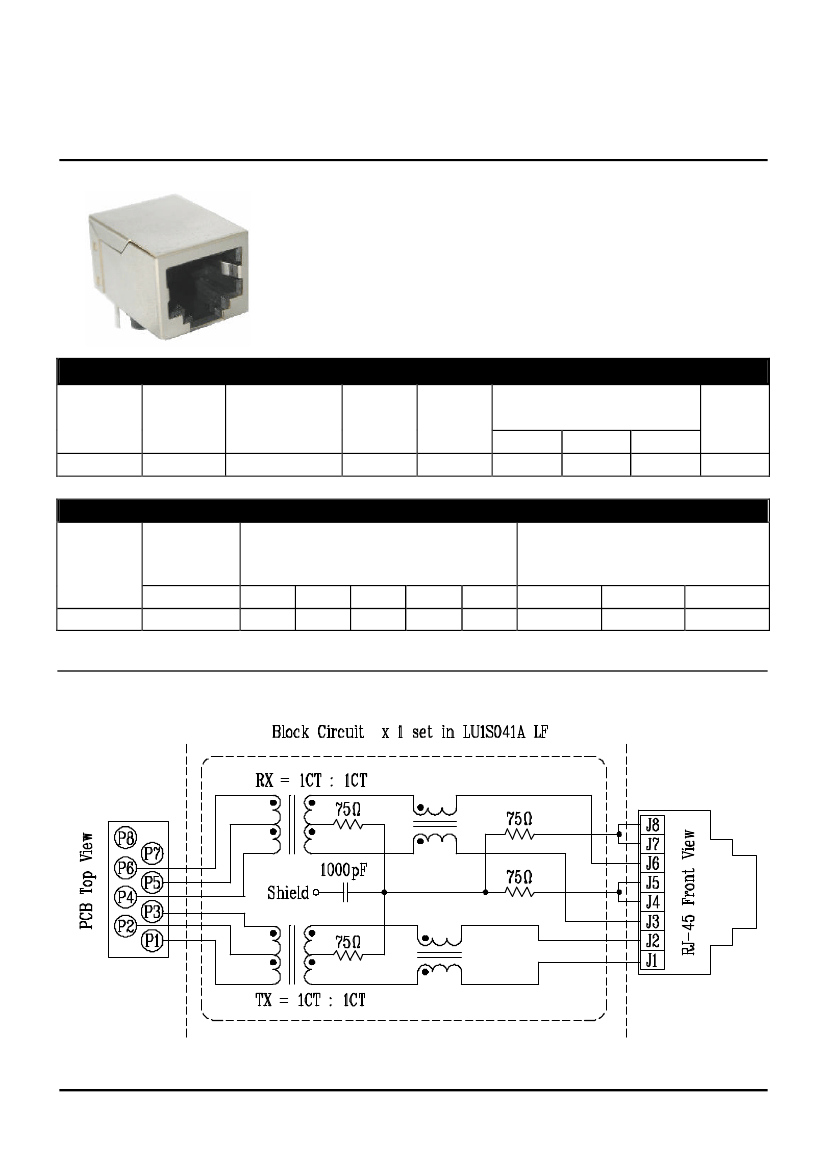

Schematic
462 Boston St,
Topsfield, MA 01983
http://www.bothhandUSA.com
email:sales@bothhandusa.com
A4(08/01)
tel: 978-887-8050
fax: 978-887-5434
