P/N: LU1T516-43 LF
Feature
RJ-45 connector integrated with X’FMR /Impedance
resistor/High voltage capacitor.
Size same as RJ-45 connector to save PCB Board space.
Reduce EMI radiation, Improve EMI performance.
Design for 100 BASE transmission over UTP-5 cable.
Comply with RoHS requirements-whole part No Cd, No Hg,
No Cr6+, No PBB and PBDE and No Pb on external pins.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +85℃.
Recommended panel
Part Number Standard LED Forward*V(Max)
3
YELLOW
2.6V
4
GREEN
2.6V
(TYP)
2.1V
2.2V
.
Turns Ratio
(±5%)
TX
LU1T516-43 LF
1CT:1
RX
1CT:1CT
*with a forward current of 20mA
Electrical Specifications @ 25°C
Insertion Loss
(dB Max)
0.3-100MHz
28
0.4
-1.15
1500
Part
Number
OCL (uH Min)
@ 100KHz/0.1V
with 8mA DC Bias
350
C
W/W
(pF Max)
L.L
(uH Max)
HI-POT
(Vrms)
Continue
Part
Number
LU1T516-43 LF
-16
-14
Return Loss
(dB Min)
Cross talk
(dB Min)
CMR
(dB Min)
30MHz 40MHz 50MHz 60MHz 80MHz 0.3-30MHz 30-60MHz 60-100MHz 1-30MHz 30-60MHz 60-125MHz
-13.5
-13
-10
-40
-35
-30
-30
-25
-20
Schematic
Bothhandusa.com
P/N: LU1T516-43 LF

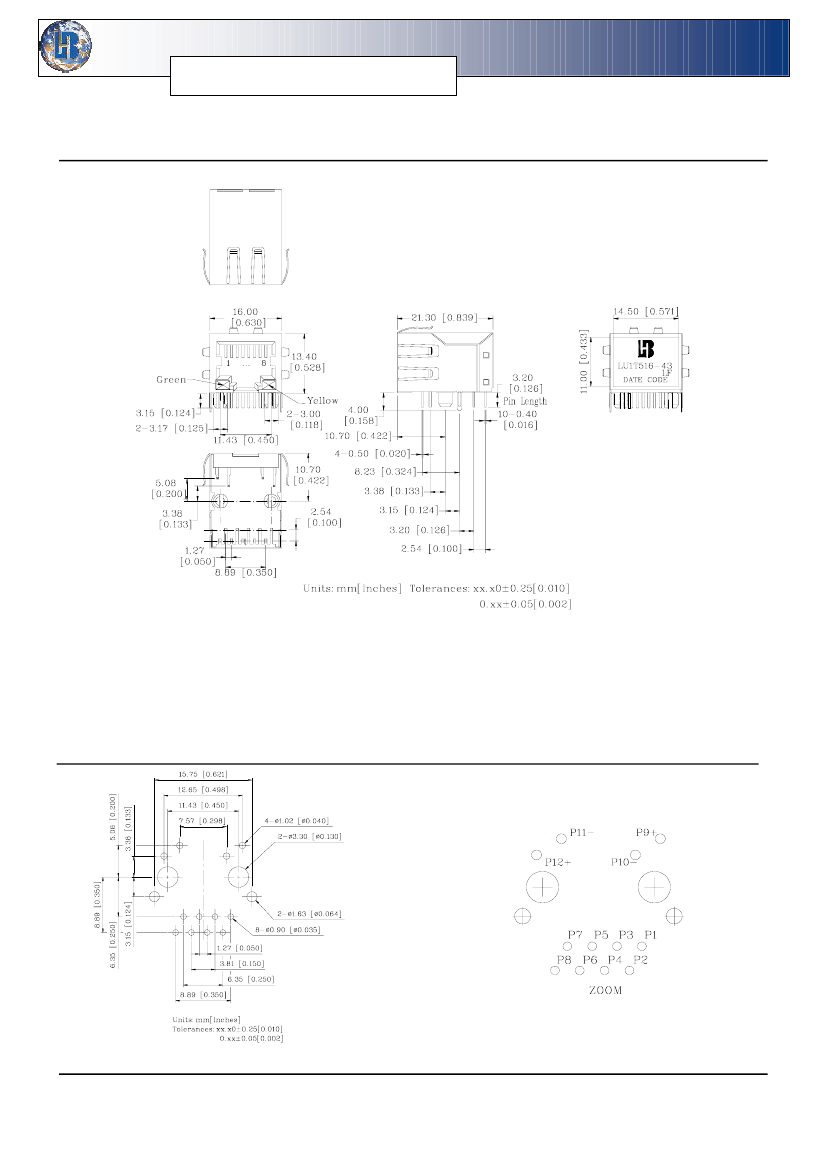

Mechanical
1. Plastic Material
2. Metal Shield
3. Spring Wire
4. Solder Pin
5. Durability
: Thermoplastic (UL 94V-0), Black Housing
: Brass, 20u inches thick Nickel
: Phosphor bronze with selective gold plating
: 0.4x0.4mm, Phosphor bronze with solder Plated
: 750 Mating cycles Min.
PCB Layout Mounting Hole(Top View)
