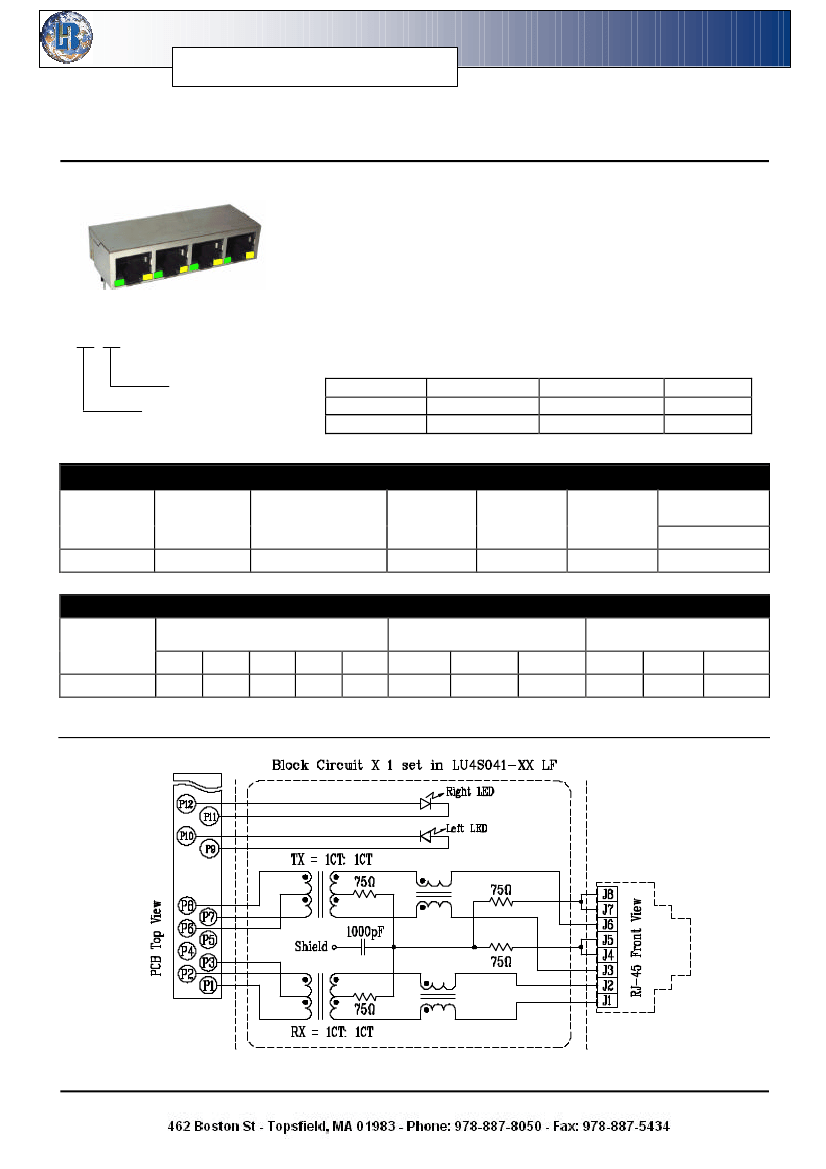

“LAN-MATE” SERIES

1X4 RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS AND LEDS

P/N: LU4S041-XX LF

Page : 1/2

Feature

Example Part Number Format:

X X (Front View)

RJ-45 connector integrated with X’

FMR /impedance

resistor/high voltage capacitor.

Size same as RJ-45 connector to save PCB board space.

Reduced EMI radiation to improve EMI performance.

Design for 100 BASE transmission over UTP-5 cable.

Comply with RoHS requirements-whole part No Cd, No Hg,

No Cr6+, No PBB and PBDE and No Pb on external pins.

Operating temperature range: 0℃ to +70℃.

Storage temperature range: -25℃ to +85℃.

Recommended panel

Part Number Standard LED Forward*V(Max)

YELLOW

2.6V

GREEN

2.6V

*With a forward current 20mA

Electrical Specifications @ 25°C

Right LED

Left LED

(TYP)

2.1V

2.2V

Part

Number

LU4S041-XX LF

Turns Ratio

(±5%)TX/RX

1CT:1CT

OCL (uH Min)

@100 KHz/0.1Vrms

with 8mA DC Bias

350

W/W

(pF Max)

L.L

(uH Max)

0.5

HI-POT

(Vrms)

1500

Insertion Loss

(dB Max)

0.3-100MHz

-1.15

Continue

Part

Number

LU4S041-XX LF

Return Loss

(dB Min)

Cross talk

(dB Min)

CMR

(dB Min)

30MHz 40MHz 50MHz 60MHz 80MHz 0.3-30MHz 30-60 MHz 60-100MHz 1-30MHz 30-60MHz 60-125MHz

-16

-14

-13.5

-13

-10

-40

-35

-30

-25

-20
