“LAN-MATE” SERIES

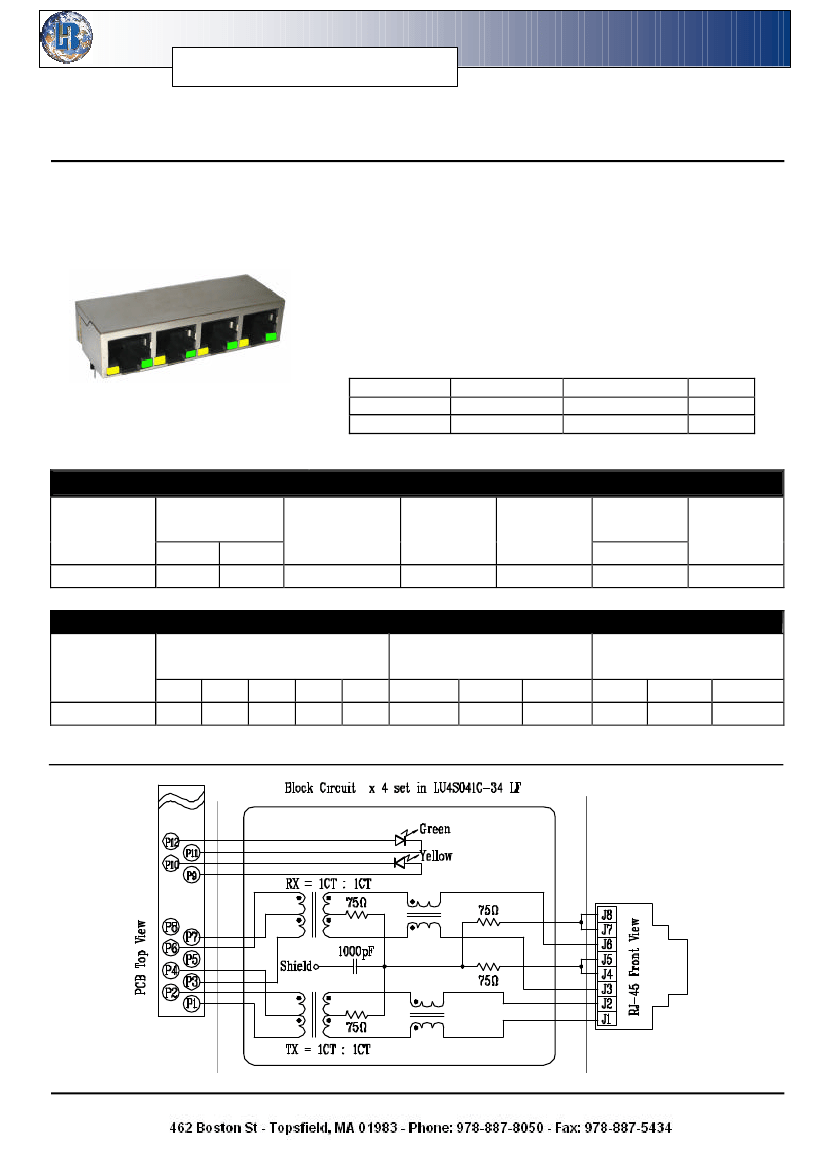

1X4 RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS AND LEDS
P/N: LU4S041C-34 LF
Page : 1/2
Feature
l
l
l
l
l
l
l
l
RJ-45 connector integrated with X’
FMR /impedance
resistor/high voltage capacitor.
Size same as RJ-45 connector to save PCB board space.
Reduced EMI radiation to improve EMI performance.
Design for 100 BASE transmission over UTP-5 cable.
Comply with RoHS requirements-whole part No Cd, No Hg,
No Cr6+, No PBB and PBDE and No Pb on external pins.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +85℃.
Recommended panel
Part Number Standard LED Forward*V(Max)
3
YELLOW
2.6V
4
GREEN
2.6V
*With a forward current 20mA
Electrical Specifications @ 25°C
Part
Number
TX
LU4S041C-34 LF 1CT:1CT
Turns Ratio
(±5%)
RX
1CT:1CT
OCL (uH Min)
@ 100 KHz/0.1V
with 8mA DC Bias
350
28
C
W/W
(pF Max)
L.L
(uH Max)
0.4
Insertion Loss
(dB Max)
0.3-100MHz
-1.15
1500
HI-POT
(Vrms)
(TYP)
2.1V
2.2V
Continue
Part
Number
LU4S041C-34 LF
-16
-14
Return Loss
(dB Min)
Cross talk
(dB Min)
CMR
(dB Min)
30MHz 40MHz 50MHz 60MHz 80MHz 0.3-30MHz 30-60MHz 60-100MHz 1-30MHz 30-60MHz 60-125MHz
-13.5
-13
-10
-40
-35
-30
-30
-25
-20
Schematic
Bothhandusa.com
“LAN-MATE” SERIES
1X4 RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS AND LEDS
P/N: LU4S041C-34 LF

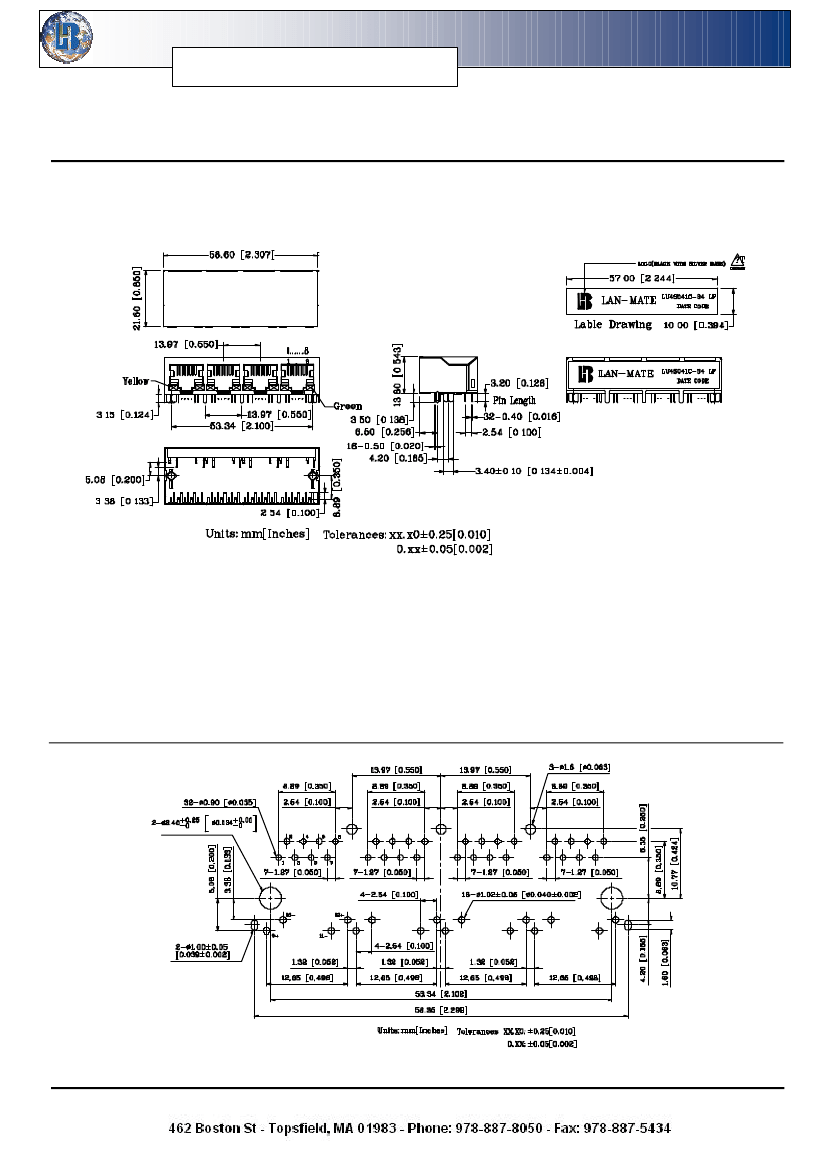

Mechanical
Page : 2/2
1. Plastic Material
2. Metal Shield
3. Spring Wire
4. Solder Pin
5. Durability
: Thermoplastic (UL 94V-0), Black Housing
: Brass, 20u" inches thick Nickel
: Phosphor bronze with selective gold plating
: 0.4x0.4mm, Phosphor bronze with solder Plated.
: 750 Mating cycles Min.
PCB Layout Mounting Hole(Top View)
