Bothhand USA
“LAN-MATE” SERIES
email:sales@bothhandusa.com
tel: 978-887-8050
1X4 RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS
P/N: LU4T041A1 LF
Feature
l
l
l
l
l
l
Turns Ratio
(±5%)
TX/RX
LU4T041A1 LF
1CT:1CT
Page: 1/2
RJ-45 needs to be matched FCC standard
Complies with requirement of IEEE802.3u standards.
RJ 45 connector with 10/100 BASE-TX magnetic.
Comply with RoHS requirements-whole part No Cd, No Hg,
No Cr6+, No PBB and PBDE and No Pb on external pins.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.
Electrical Specifications @ 25°C
Cross talk
(dB Min)
0.3-30MHz 30-60MHz 60-100MHz
28
0.4
-40
-35
-30
1500
Part
Number
OCL (uH Min)
@100KHz/0.1V
with 8mA DC Bias
350
C
W/W
(pF Max)
L.L
(uH Max)
HI-POT
(Vrms)
Continue
Part
Number
LU4T041A1 LF
Insertion Loss
(dB Max)
0.3-100MHz
-1.15
30MHz
-16
40MHz
-14
Return Loss
(dB Min)
50MHz
-13.5
60MHz
-13
80MHz
-10
1-30MHz
-30
CMR
(dB Min)
30-60MHz
-25
60-125MHz
-20

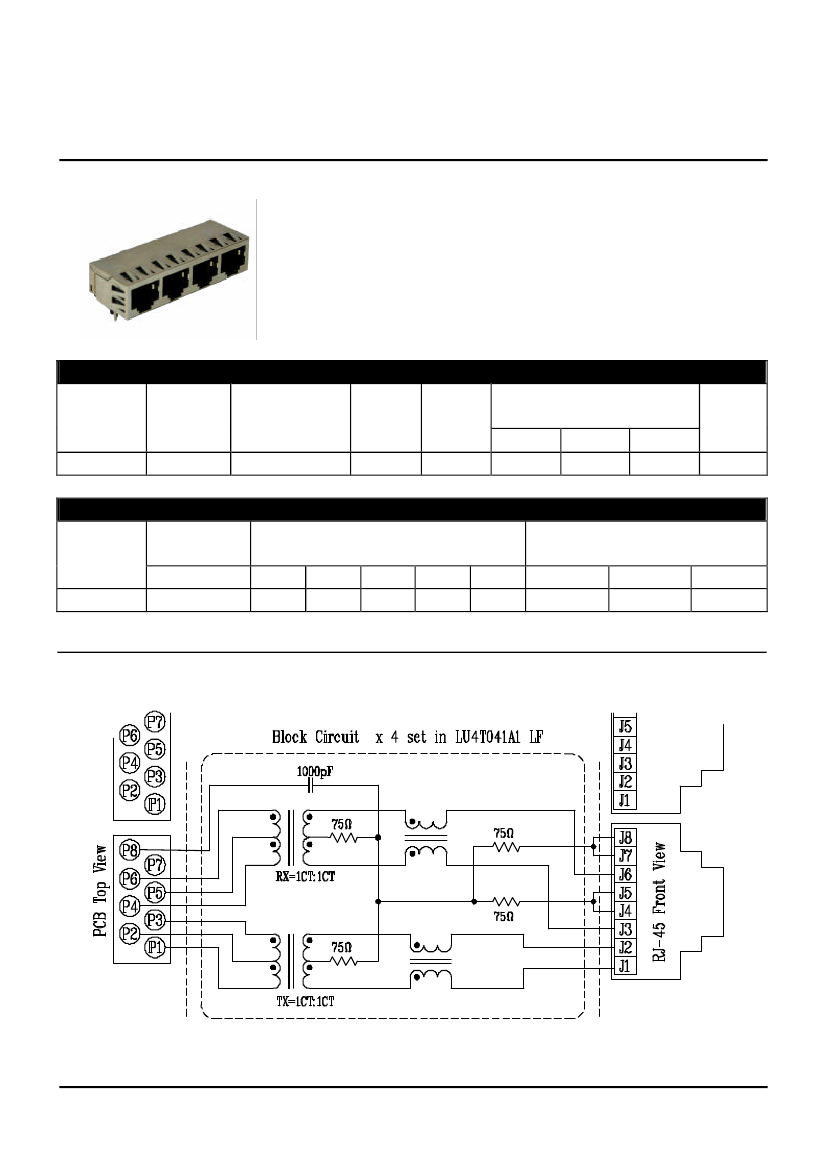

Schematic
462 Boston St,
Topsfield, MA 01983
http://www.bothhandUSA.com
email:sales@bothhandusa.com
A1(08/01)
tel: 978-887-8050
fax: 978-887-5434
Bothhand USA
“LAN-MATE” SERIES
email:sales@bothhandusa.com
tel: 978-887-8050
1X4 RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS
P/N: LU4T041A1 LF
Mechanical
Page: 2/2
﹗
1. Plastic Material
2. Metal Shield
3. Spring Wire
4. Solder Pin
5. Durability
: Thermoplastic (UL 94V-0), Black Housing
: Brass, 20u" inches thick Nickel
: Phosphor bronze with selective gold plating
: 0.4x0.4mm, Phosphor bronze with solder Plated
: 750 Mating cycles Min.

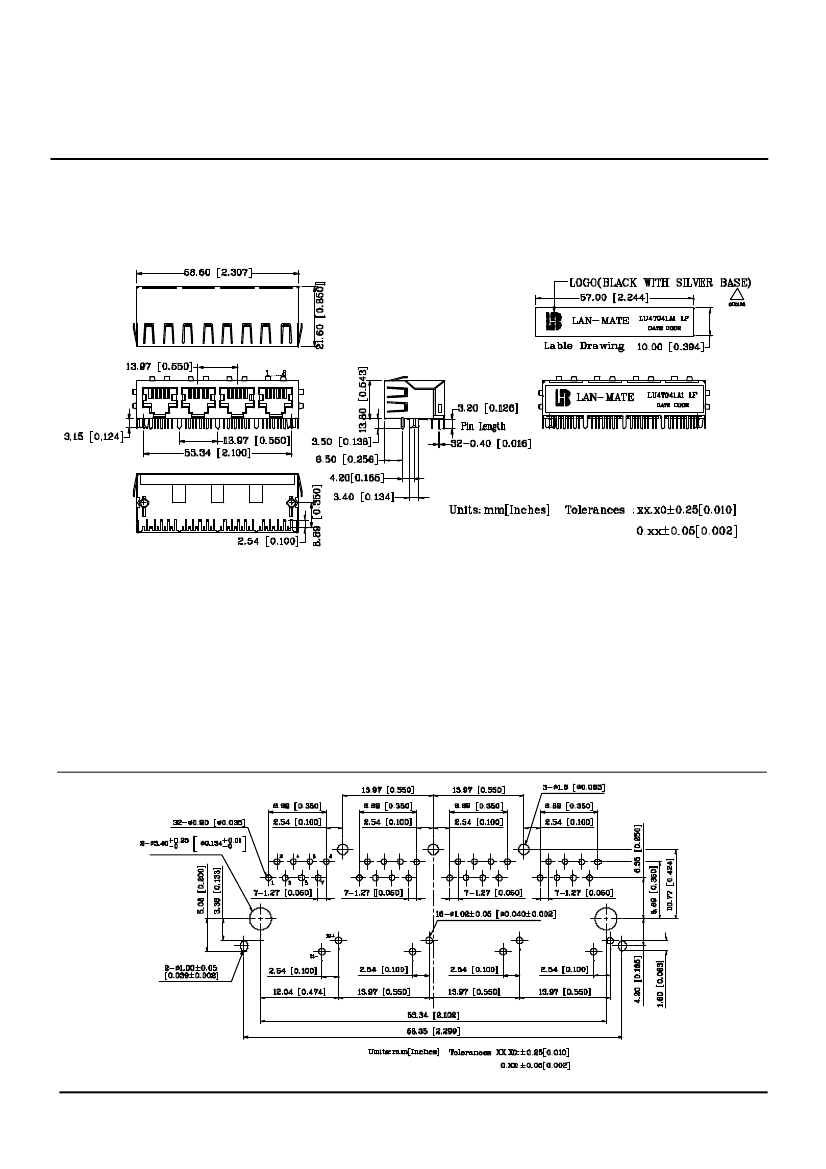

PCB Layout Mounting Hole(Top View)
462 Boston St,
Topsfield, MA 01983
http://www.bothhandUSA.com
email:sales@bothhandusa.com
A1(08/01)
tel: 978-887-8050
fax: 978-887-5434
