Bothhand USA
“LAN-MATE” SERIES
email:sales@bothhandusa.com
tel: 978-887-8050
1X4 RJ45 CONNECTOR MODULE
P/N: LU4Y000 LF
Feature
l
l
l
Page :1/ 2
RJ-45 needs to be matched FCC standard
Lead free for external pins.
Comply with RoHS requirements-whole part No Cd, No Hg,
No Cr6+, No PBB and PBDE and No Pb on external pins.
l
l
Operating temperature range: 0℃ to +70℃
Storage temperature range: -25℃ to +125℃.

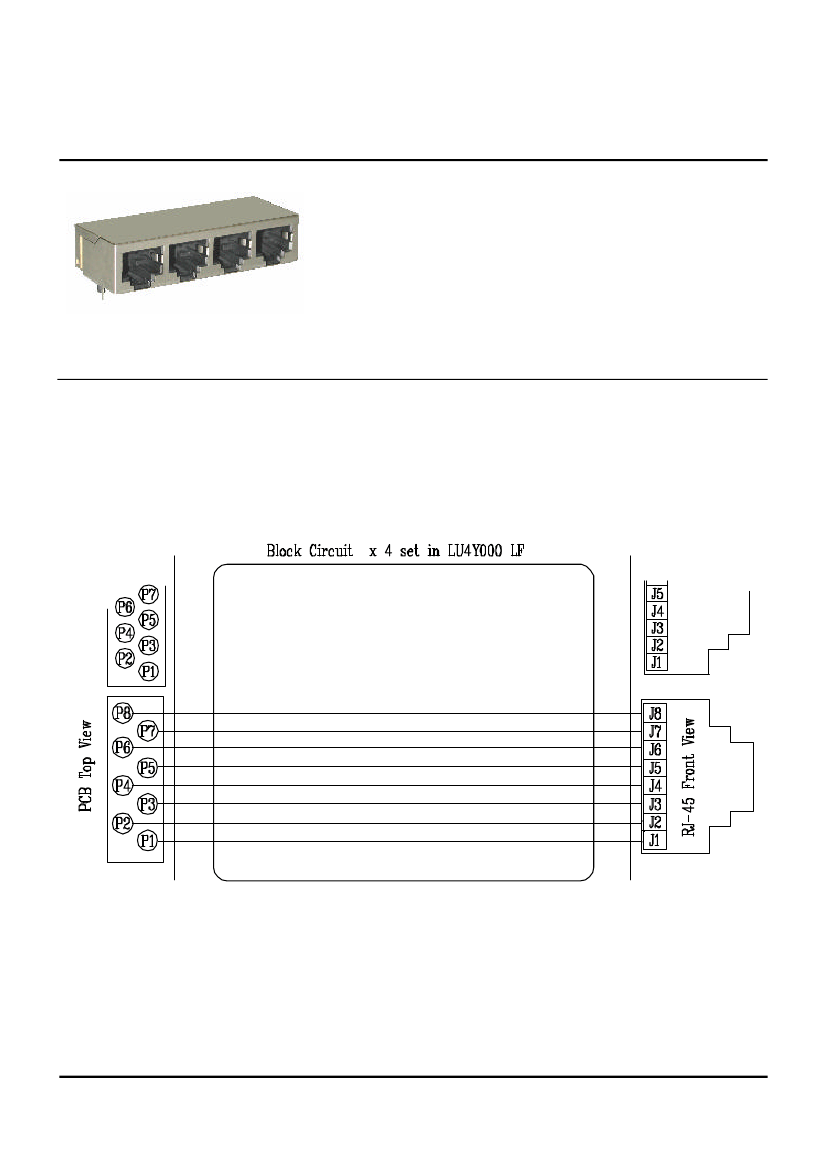

Schematic
462 Boston St,
Topsfield, MA 01983
http://www.bothhandUSA.com
email:sales@bothhandusa.com
A 1(08/ 01)
tel: 978-887-8050
fax: 978-887-5434
Bothhand USA
“LAN-MATE” SERIES
email:sales@bothhandusa.com
tel: 978-887-8050
1X4 RJ45 CONNECTOR MODULE
P/N: LU4Y000 LF

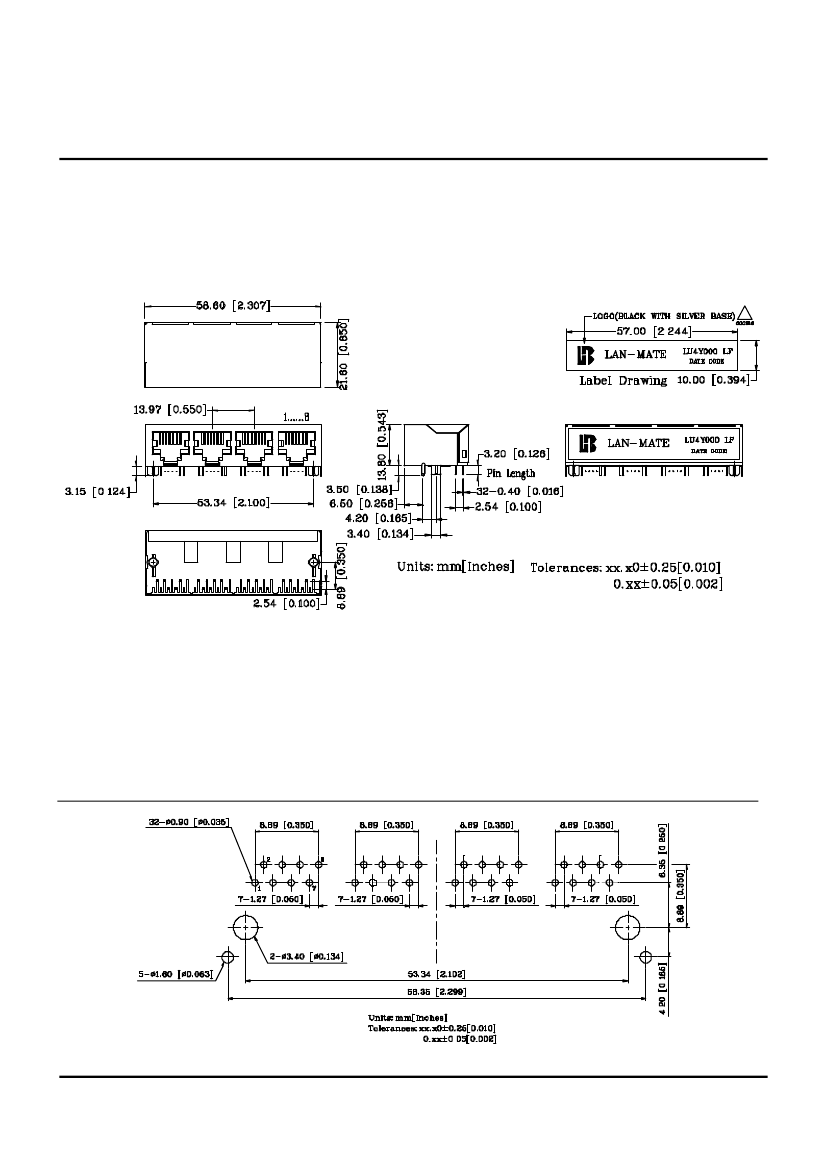

Mechanical
Page :2/ 2
﹗
1.
2.
3.
4.
5.
Plastic Material
Metal Shield
Spring Wire
Solder Pin
Durability
:
:
:
:
:
Thermoplastic (UL 94V-0), Black Housing
Brass, 20u" inches thick Nickel
Phosphor bronze with selective gold plating
0.4x0.4mm, Phosphor bronze with solder Plated
750 Mating cycles Min.
PCB Layout Mounting Hole(Top View)
