1X8 RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS
P/N: LU8S041X LF
Feature
l
l
l
l
l
l
l
l
RJ-45 needs to be matched FCC standard
RJ-45 connector integrated with X’
FMR /Impedance
resistor/High voltage capacitor.
Size same as RJ-45 connector to save PCB Board space.
Reduced EMI radiation to Improve EMI performance.
Design for 100 BASE transmission over UTP-5 cable.
Comply with RoHS requirements-whole part No Cd, No Hg,
No Cr6+, No PBB and PBDE and No Pb on external pins.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.
Page: 1/3
Electrical Specifications @ 25°C
Part
Number
TX
LU8S041X LF
1CT:1CT
Turns Ratio
(±5%)
RX
1CT:1CT
OCL (uH Min )
@ 100KHz/0.1V
with 8mA DC Bias
350
C
W/W
(pF Max)
56
L.L
(uH Max)
0.5
Insertion Loss
(dB Max)
0.3-100MHz
-0.8
1500
HI-POT
(Vrms)
Continue
Part
Number
LU8S041X LF
-16
-14
Return Loss
(dB Min)
Cross talk
(dB Min)
CMR
(dB Min)
30MHz 40MHz 50MHz 60MHz 80MHz 0.3-30MHz 30-60MHz 60-100MHz 1-30MHz 30-60MHz 60-125MHz
-13.5
-13
-10
-40
-35
-30
-30
-25
-20

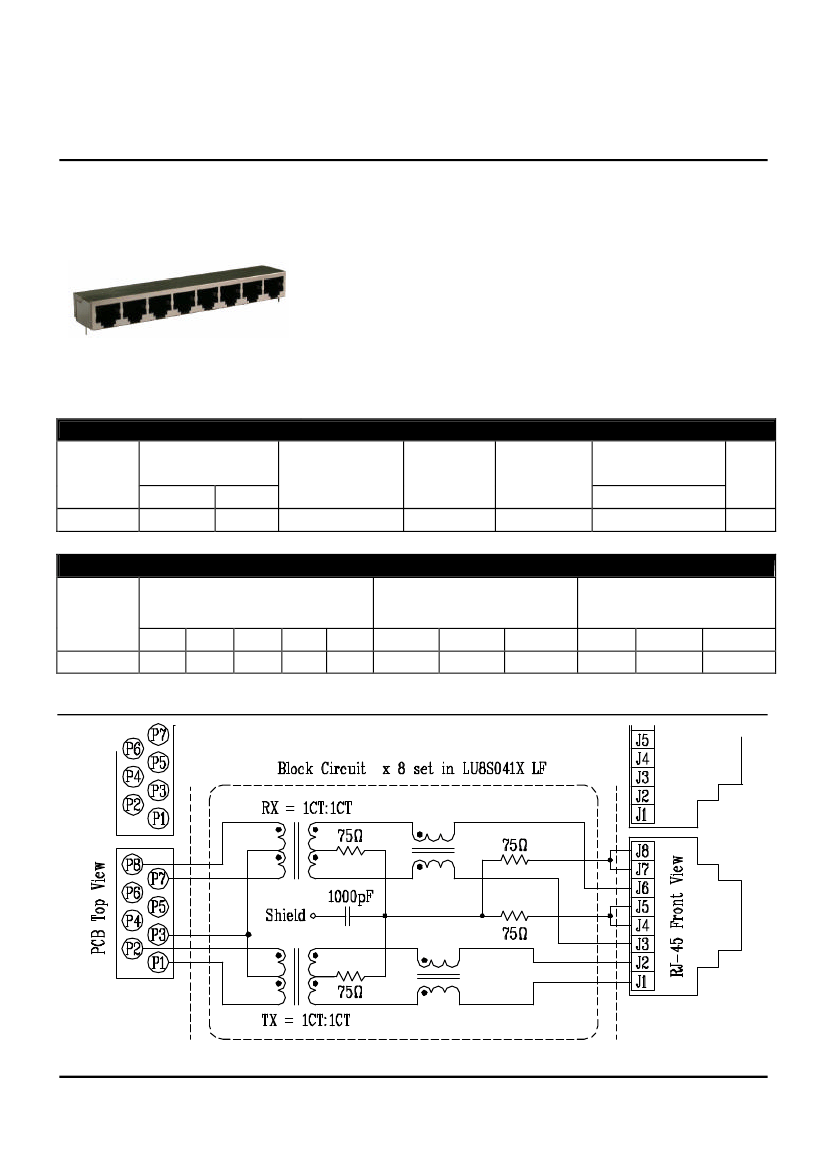

Schematic
462 Boston St,
Topsfield, MA 01983
http://www.bothhandUSA.com
email:sales@bothhandusa.com
A 1(08/ 01)
tel: 978-887-8050
fax: 978-887-5434
Bothhand USA
“LAN-MATE” SERIES
email:sales@bothhandusa.com
tel: 978-887-8050
1X8 RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS
P/N: LU8S041X LF

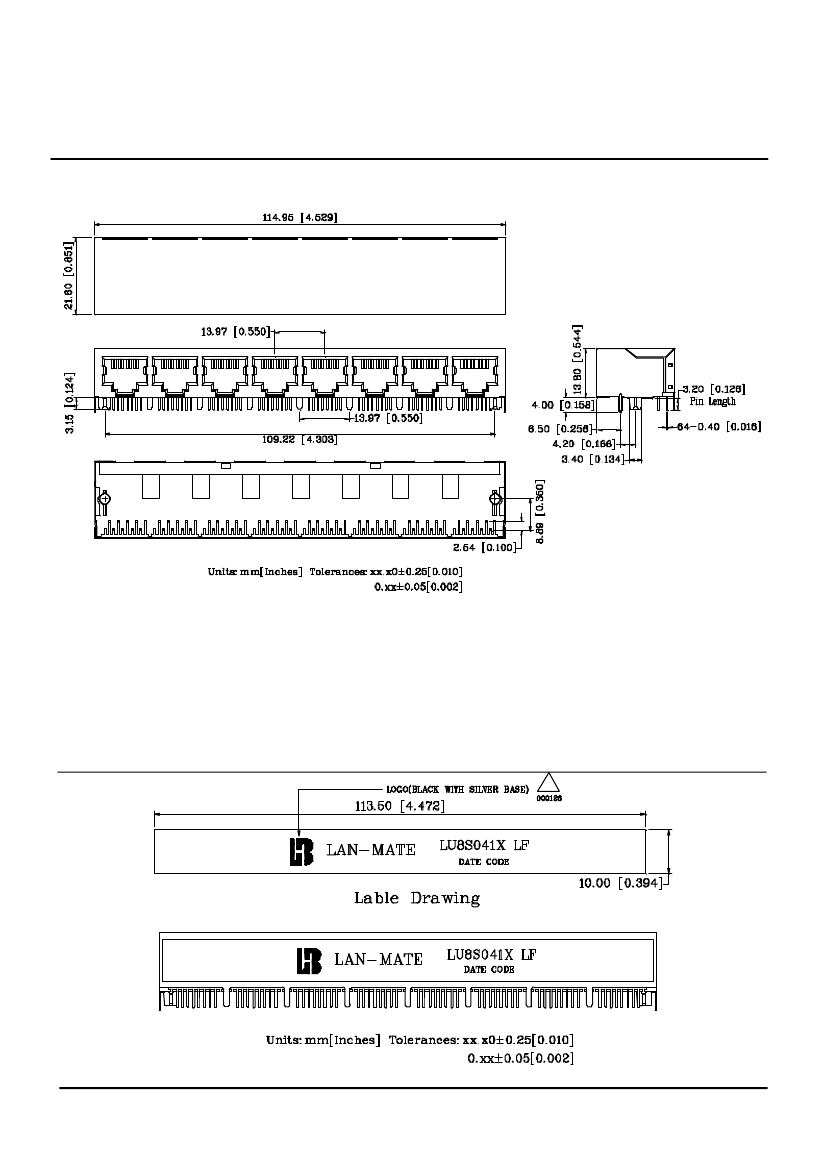

Mechanical
Page: 2/3
1. Plastic Material
2. Metal Shield
3. Spring Wire
4. Solder Pin
5. Durability
: Thermoplastic (UL 94V-0), Black Housing
: Brass, 20u" inches thick Nickel
: Phosphor bronze with selective gold plating
: 0.4x0.4mm, Phosphor bronze with solder Plated
: 750 Mating cycles Min.
Label position
﹗
462 Boston St,
Topsfield, MA 01983
http://www.bothhandUSA.com
email:sales@bothhandusa.com
A 1(08/ 01)
tel: 978-887-8050
fax: 978-887-5434
Bothhand USA
“LAN-MATE” SERIES
email:sales@bothhandusa.com
tel: 978-887-8050
1X8 RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS
P/N: LU8S041X LF

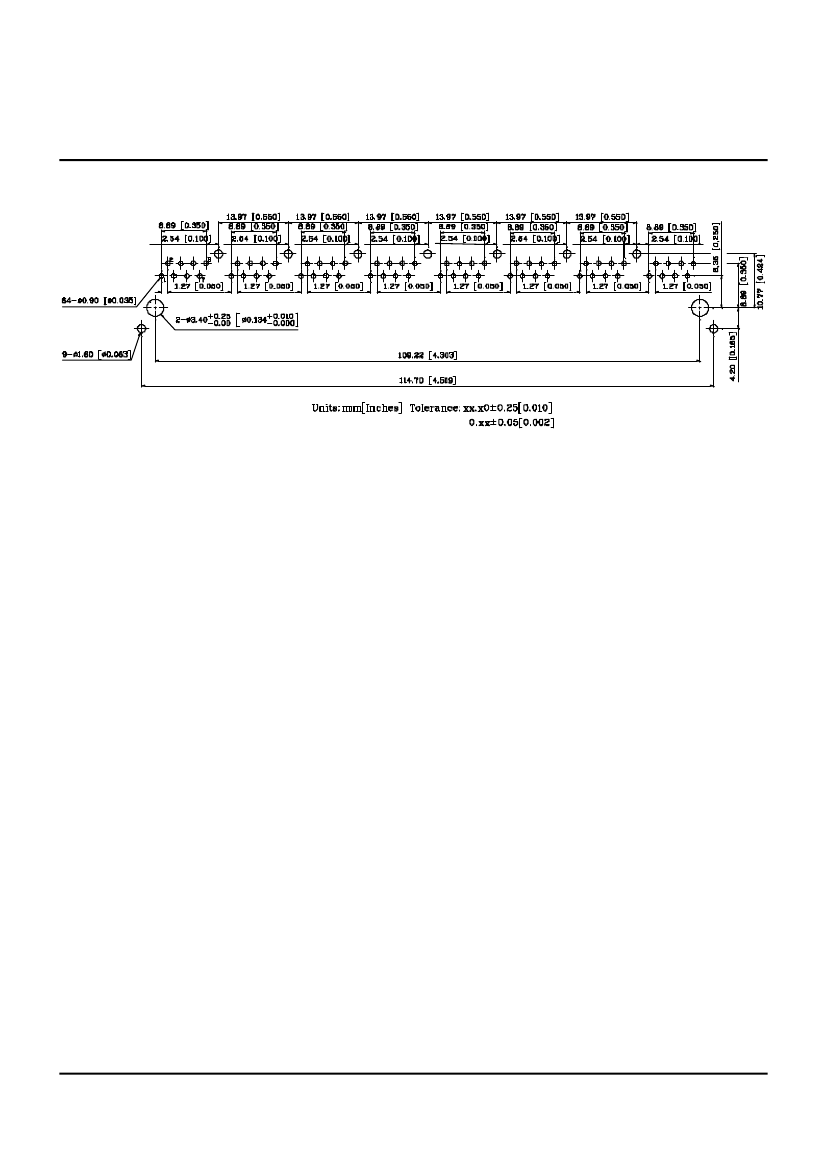

PCB Layout Mounting Hole(Top View)
