LU5S041CLF: Description1X5 RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS; File Size194KB，3 Pages; ManufacturerBOTHHAND; Websitehttp://www.bothhandusa.com/

Download Datasheet View All

LU5S041CLF Overview

1X5 RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS

Preview

Download Datasheet

View All

Bothhand USA

“LAN-MATE” SERIES

email:sales@bothhandusa.com

tel: 978-887-8050

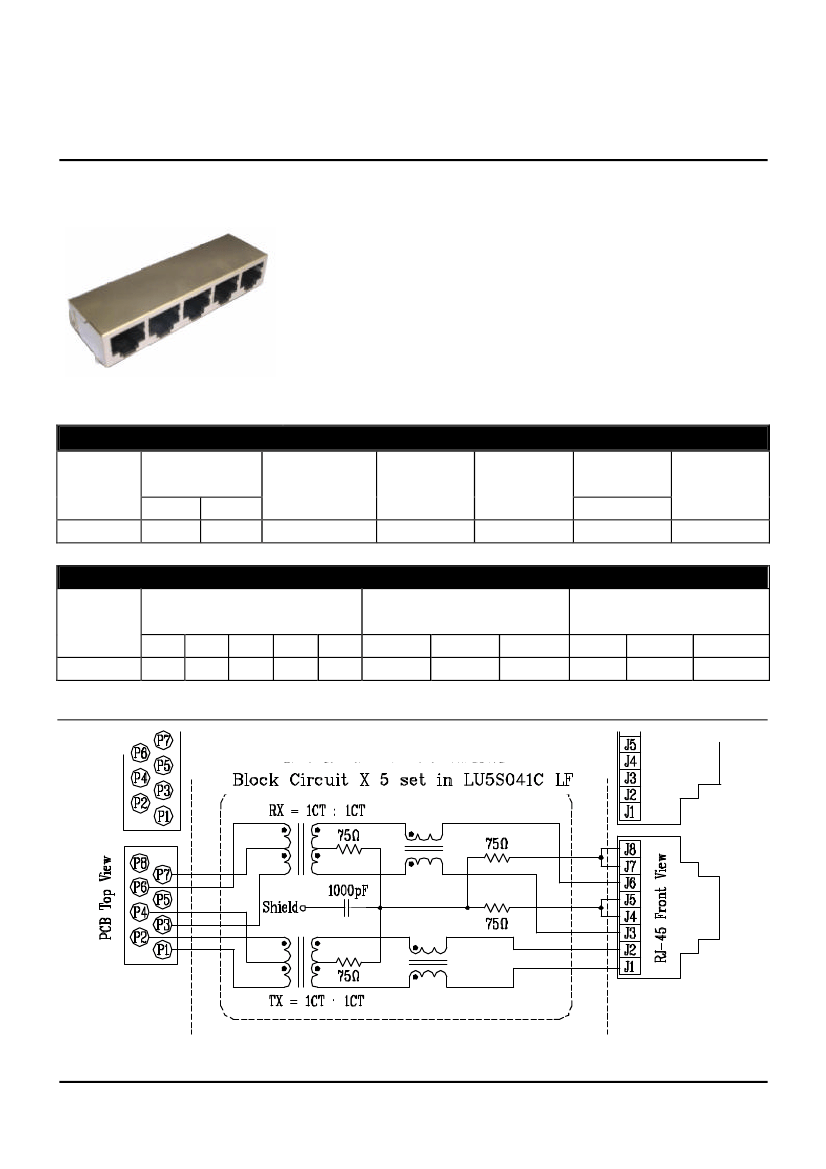

1X5 RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS

P/N: LU5S041C LF

Page : 1/3

Feature

RJ-45 needs to be matched FCC standard

RJ-45 connector integrated with X’

FMR / Impedance

Resistor/High Voltage Capacitor.

Size same as RJ-45 connector to save PCB board pace.

Reduced EMI radiation to improve EMI performance.

Design for 100 base transmission over UTP-5 CABLE.

Comply with RoHS requirements-whole part No Cd, No Hg,

No Cr6+, No PBB and PBDE and No Pb on external pins.

Operating temperature range: 0℃ to +70℃.

Storage temperature range: -25℃ to +125℃.

Electrical Specifications @ 25°C

Part

Number

Turns Ratio

(±5%)

OCL (uH Min)

@ 100KHz/0.1V

with 8mA DC Bias

350

W/W

(pF Max)

L.L

(uH Max)

0.4

Insertion Loss

(dB Max)

0.3-100MHz

-1.15

1500

HI-POT

(Vrms)

LU5S041C LF 1CT:1CT 1CT:1CT

Continue

Part

Number

LU5S041C LF

-16

-14

Return Loss

(dB Min)

Cross talk

(dB Min)

CMR

(dB Min)

30MHz 40MHz 50MHz 60MHz 80MHz 0.3-30MHz 30-60MHz 60-100MHz 1-30MHz 30-60MHz 60-125MHz

-13.5

-13

-10

-40

-35

-30

-25

-20

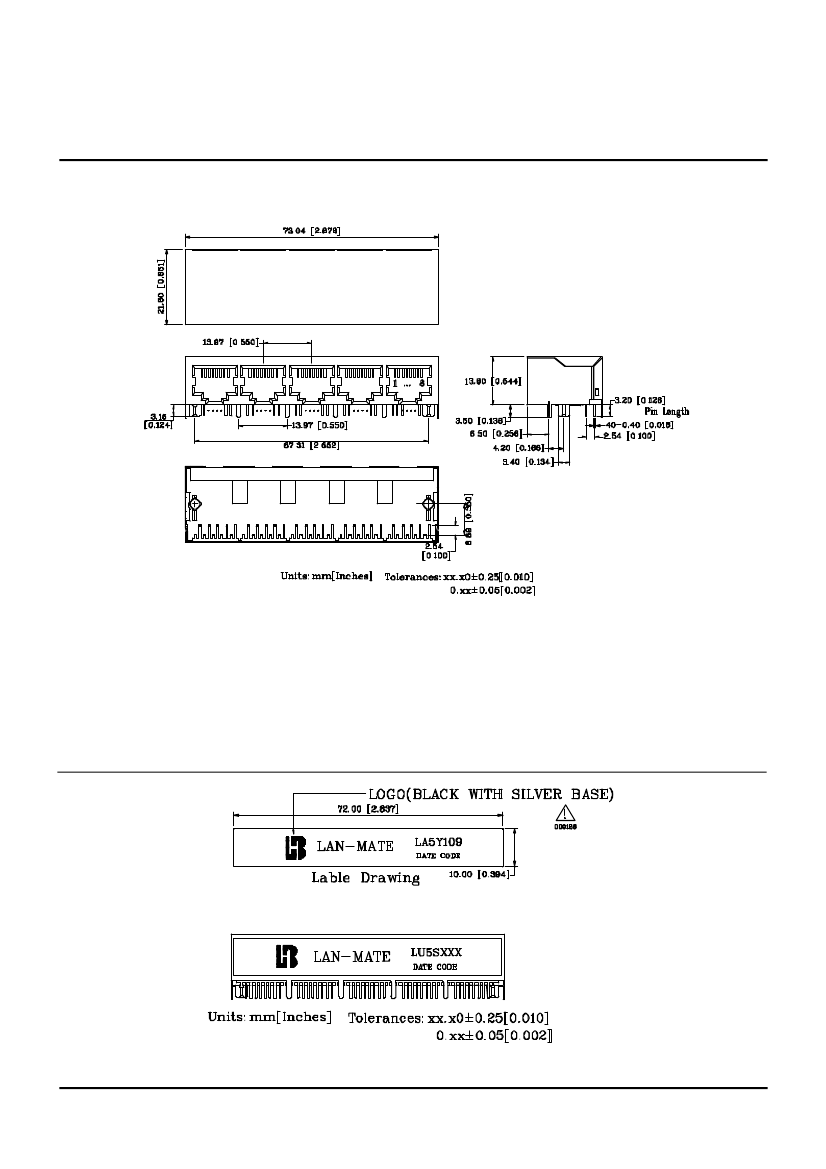

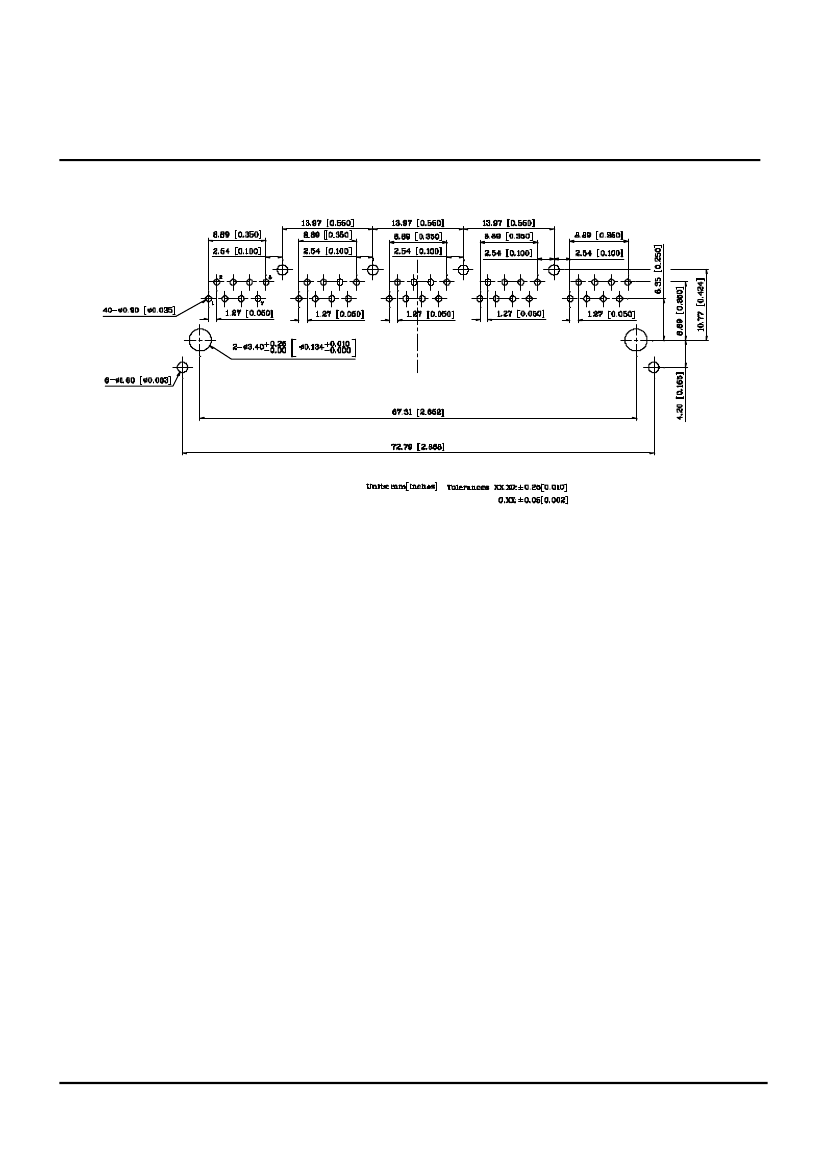

Schematic

462 Boston St,

Topsfield, MA 01983

http://www.bothhandUSA.com

email:sales@bothhandusa.com

A1(08/01)

tel: 978-887-8050

fax: 978-887-5434
