10/100 PC CARD LAN MAGNETICS SOLUTIONS

Page : 1/1

P/N: NS0013A DATA SHEET

Feature

Half port and single port designs for maximum layout

flexibility .

Low profile packages from 0.094 Inch(2.39mm) to 0.078

Inch(1.98mm) for PC card and card bus applications .

Compatible package with INTEL,TDK,QSI, and ICS

Transformer

Operating temperature range: 0°C to +70°C.

Storage temperature range: -25°C to +125°C.

Electrical Specifications @ 25°C

DCR

(Ù Max)

Pin(16-15/7-8)

0.4

0.9

1500

Part

Number

Turns Ratio

(±3%)

1CT:1CT

OCL (uH Min)

@ 100KHz/0.2V

Pin(16-15 / 7-8)

440

Cw/w

(pF Max)

L.L

(uH Max)

HI- POT

(Vrms)

NS0013A

1CT:1CT

Continue

Part

Number

NS0013A

Insertion Loss

(dB Max)

0.3-100 MHz

-1.1

0.3-30MHz

-18

Return Loss

(dB Min)

40MHz

-15.5

50MHz

-13.5

60-80MHz

-10

Cross talk

(dB Min)

0.3-100MHz

-38

DCMR

(dB Min)

0.3-100MHz

-28

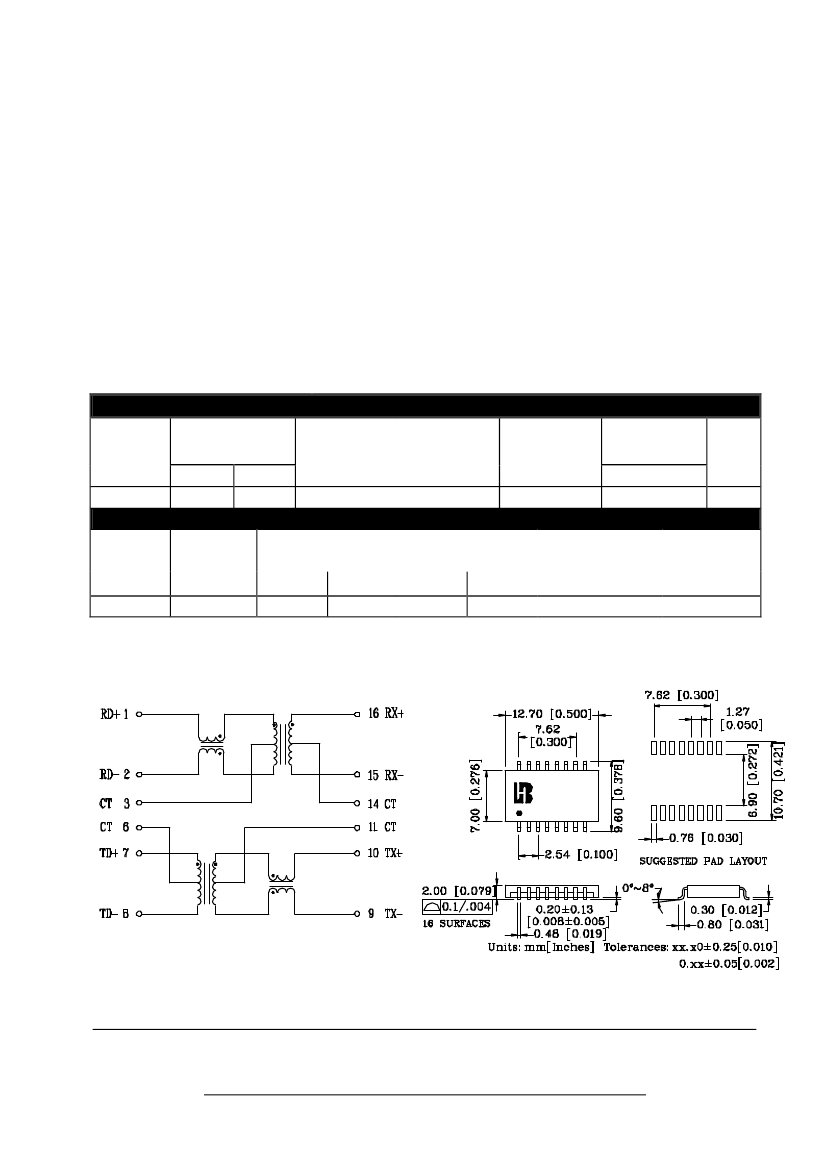

Schematic

Mechanical

NS0013A

DATE CODE

462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434

A1(02/06)
