NS0068

Description
10/100/1000 BASE-T LAN MAGNETICS
File Size70KB,1 Pages
ManufacturerBOTHHAND
Websitehttp://www.bothhandusa.com/
Download Datasheet View All

NS0068 Overview

10/100/1000 BASE-T LAN MAGNETICS

Bothhandusa.com

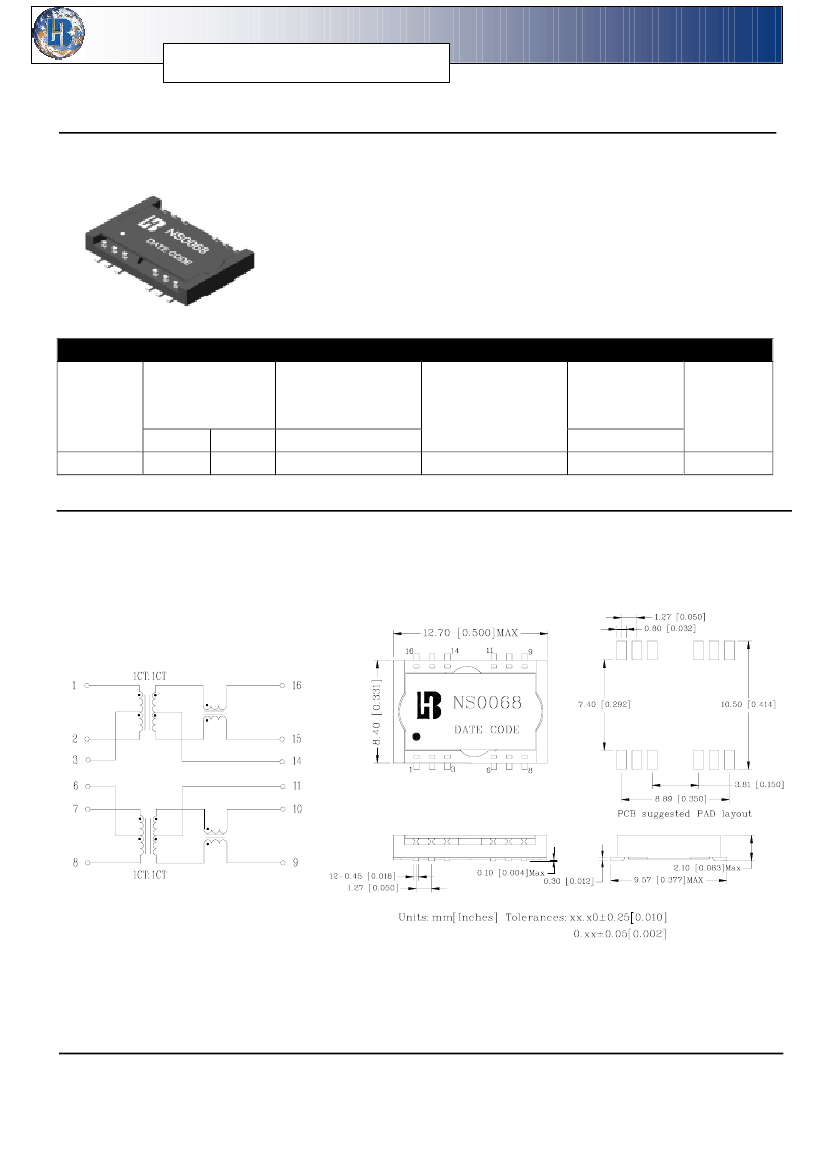

P/N: NS0068 DATA SHEET
Feature
Half port and single port designs for maximum layout
flexibility.
Greater than 350 uH(100kHZ) at DC current Bias 8mA.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.
Page : 1/1
Electrical Specifications @ 25°C
Part
Number
RX
NS0068
1CT:1CT
Turns Ratio
(±3%)
TX
1CT:1CT
OCL (uH Min)
@ 100KHz/0.1V
with 8mA DC Bias
16-15 / 10-9
350
25
C
W/W
(pF Max)
Insertion Loss
(dB Max)
0.1-125MHz
-1.0
1500
HI-POT
(Vrms)
Schematic
Mechanical
