NS0068LF Overview

10/100/1000 BASE-T LAN MAGNETICS

Bothhandusa.com

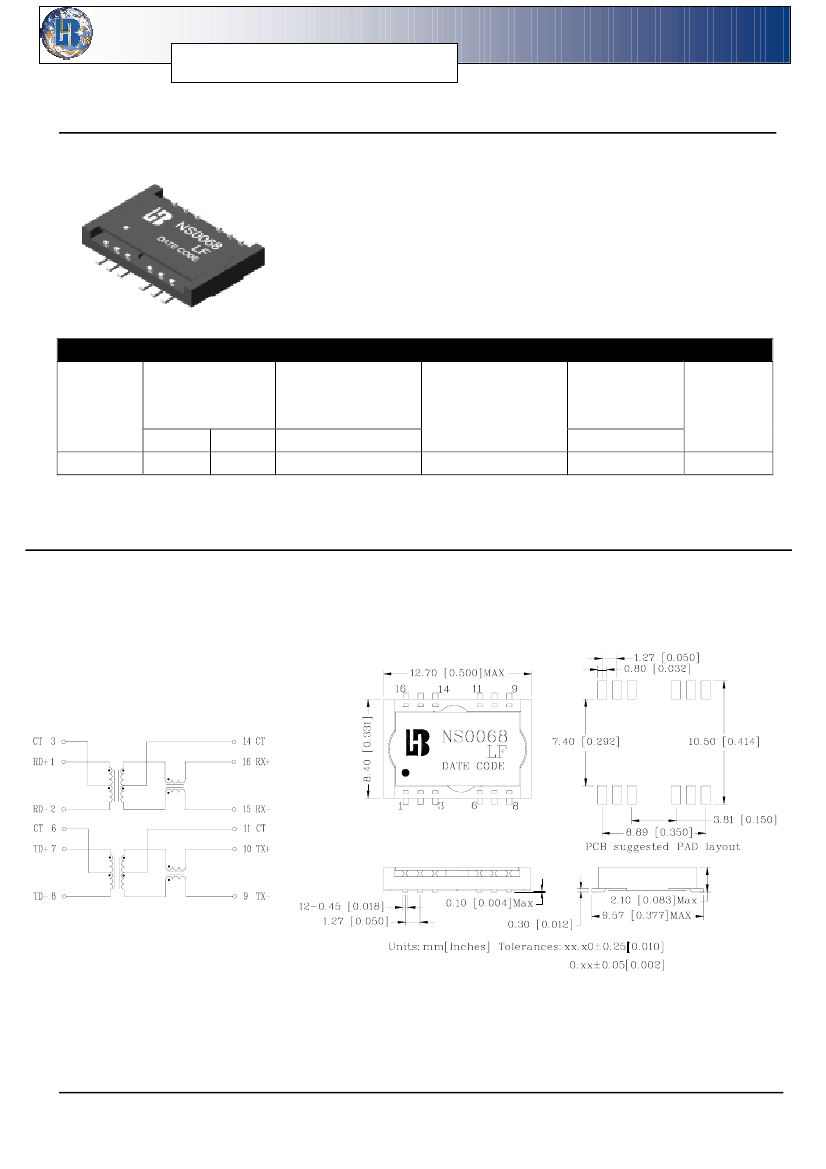

P/N: NS0068 LF DATA SHEET
Feature
Half port and single port designs for maximum layout
flexibility.
Greater than 350 uH(100KHz) at DC current Bias 8mA.
Lead free for external pins.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.
Page : 1/1
Electrical Specifications @ 25°C
Part
Number
RX
NS0068 LF
1CT:1CT
Turns Ratio
(±3%)
TX
1CT:1CT
OCL (uH Min)
@ 100KHz/0.1V
with 8mA DC Bias
16-15 / 10-9
350
25
C
W/W
(pF Max)
Insertion Loss
(dB Max)
0.3-100MHz
-1.0
1500
HI-POT
(Vrms)
Schematic
Mechanical
