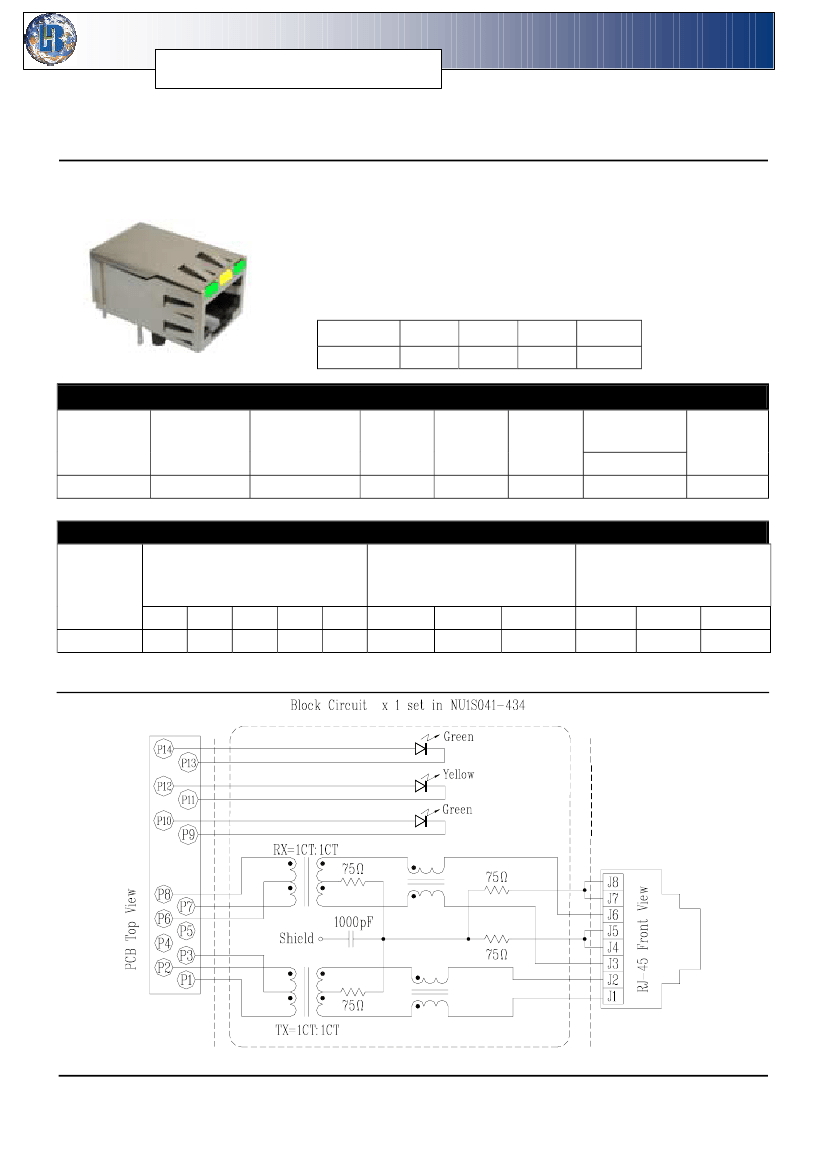

“LAN-MATE” SERIES

SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS AND LEDS

Feature

RJ-45 connector integrated with X’FMR / Impedance

Resistor/High Voltage Capacitor

Size same as RJ-45 connector to save PCB board space.

Reduced EMI radiation to improve EMI performance.

Design for 100 base transmission over UTP-5 CABLE.

Operating temperature range: 0℃ to +70℃.

Storage temperature range: -25℃ to +85℃.

Code

LED Color

Red

Yellow

Green

Empty

No LED

Electrical Specifications @ 25°C

Part

Number

NU1S041-434

Turns Ratio

(±5%)

TX/RX

1CT:1CT

OCL(uH Min)

@ 100KHz/0.1V

with 8mA DC Bias

350

W/W

(pF Max)

L.L

(uH Max)

0.4

Rise Time

10-90%

(nS Typ)

2.5

Insertion Loss

(dB Max)

0.3-100MHz

-1.15

HI-POT

(Vrms)

1500

Continue

Part

Number

Return Loss

(dB Min) TX/RX

Cross talk

(dB Min)

CMR

(dB Min)

30MHz 40MHz 50MHz 60MHz 80MHz 0.3-30MHz 30-60MHz 60-100MHz 1-30MHz 30-60MHz 60-125MHz

NU1S041-434

-16

-14

-13.5

-13

-10

-40

-35

-30

-25

-20

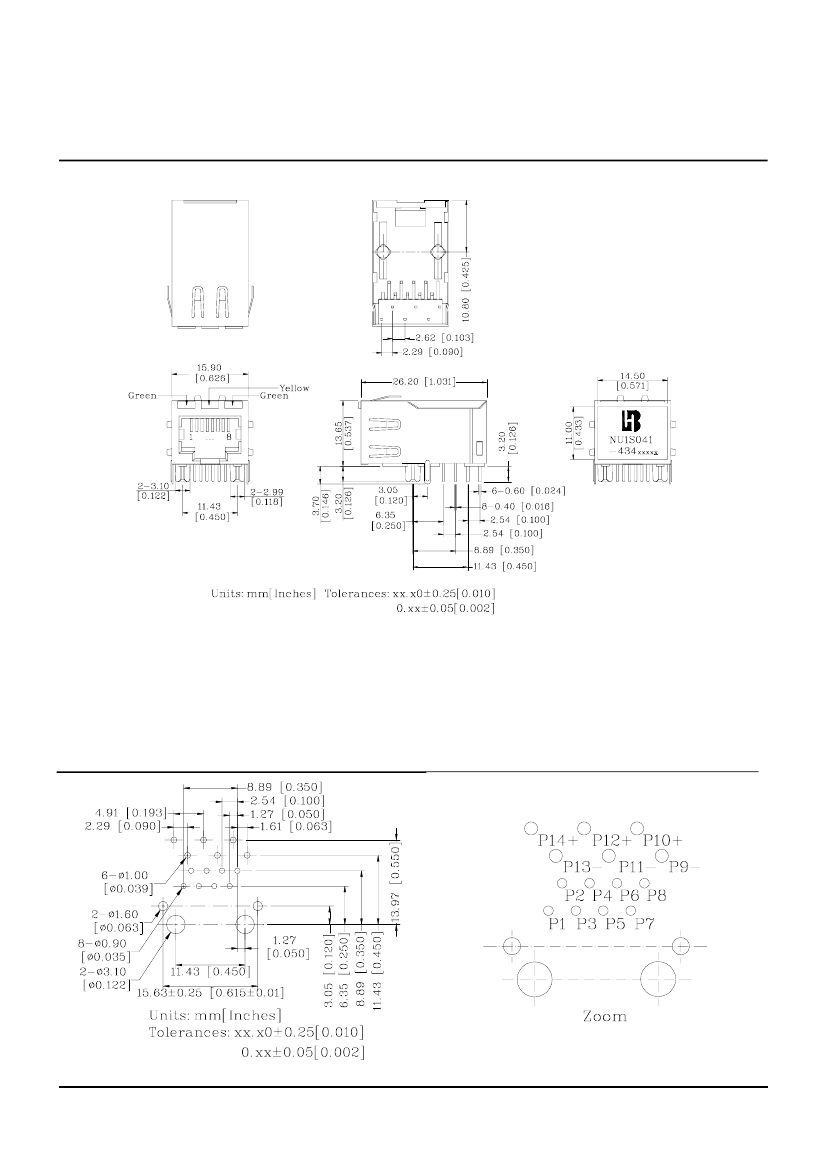

Schematic

A1(04/03)
