S1219: DescriptionT1/F1/CIPT/ISDN-PRI INTERFACE MODULES; File Size69KB，1 Pages; ManufacturerBOTHHAND; Websitehttp://www.bothhandusa.com/

Download Datasheet View All

S1219 Overview

T1/F1/CIPT/ISDN-PRI INTERFACE MODULES

Preview

Download Datasheet

View All

Bothhandusa.com

Feature

T1/F1/CIPT/ISDN-PRI INTERFACE MODULES

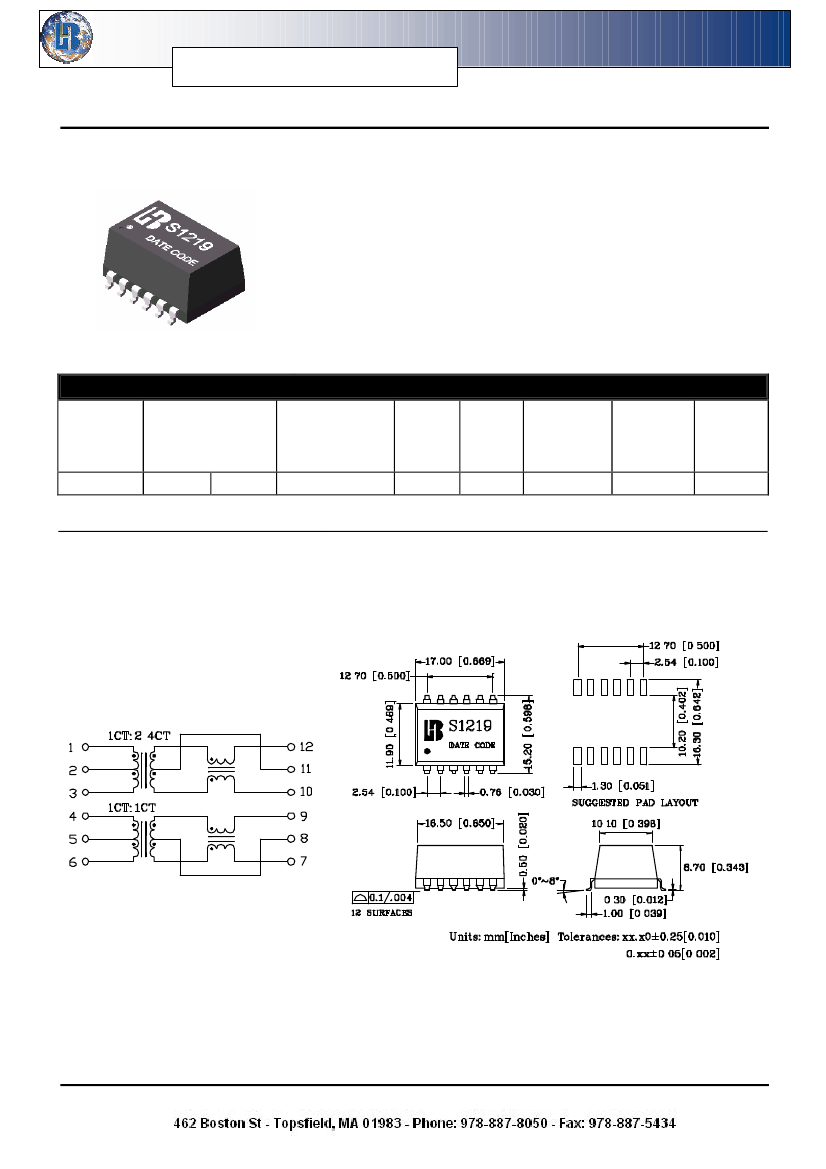

P/N: S1219 DATA SHEET

Page : 1/ 1

Optimized for enhanced EMC performance.

Extended temperature range.

Dual SMT package contains transformers with Common

Mode Chokes on both transmit and receive channels.

Models matched to leading transceiver ICS.

Patented interlock Base construction for high reliability.

Operating temperature range: 0℃ to +70℃.

Storage temperature range: -25℃ to +125℃.

Electrical Specifications @ 25°C

Part

Number

S1219

Turns Ratio

Pri: Sec (±2%)

1CT:2.4CT 1CT:1CT

Secondary OCL

(mH Min)

@ 25℃

1.20

0.60

0.90

(1-3)&(4-6)

1500

Cw/w

(pF Max)

L.L

(uH Max)

Pri DCR

(Ω Max)

Primary

Pins

HI-POT

(Vrms)

Schematic

Mechanical
