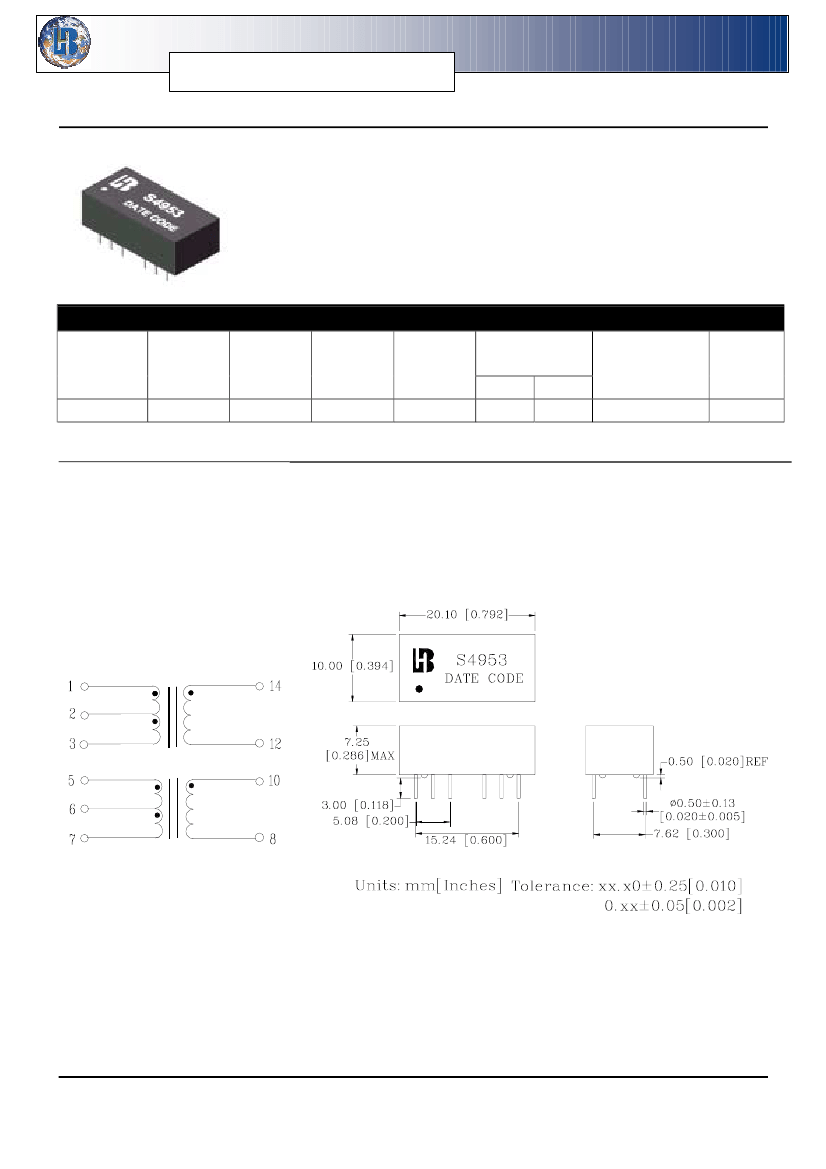

P/N: S4953 DATA SHEET
Feature
!
!
!
!
!
Dual SMT package contains both transmit and receive transformers.
Models matched to leading transeiver ICs.
Isolation Voltage:1500Vrms.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.
Electrical Specifications @ 25°C
Part
Number
S4953
Turns Ratio
(pri: sec ±5%)
1:2CT
OCL
(mH Min)
2.00
L.L
(uH Max)
0.6
C
W/W
(pF Max)
50
DCR
(Ω Max)
PRI
1.00
SEC
2.00
PRI Pins
HI-POT
(Vrms)
1500
(14-12)&(10-8)
Schematic
Mechanical
