Agilent 81150A
Pulse Function Arbitrary Noise Generator
Data Sheet, Version 1.1
81150A
A high precision pulse generator
enhanced with versatile signal
generation, modulation and
distortion capabilities for:
• Accurate signals to test your
device and not your signal
source
• Versatile waveform and noise
generation to be ready for
today‘s and tommorrow‘s stress
test challenges
• Optional pattern generator to
test in addition to analog, digital
and mixed signal devices
• Integrated into one instrument
to minimize cabling, space and
test time
Function
Arbitrary
Noise
When signal fidelity matters – test with confidence.
Accurate and accelerated insight into your device
through ideal and real-world signals.
Pulse
The 81150A Pulse Function
Arbitrary Noise Generator
at a Glance
• 1 µHz – 120 MHz pulse generation with variable rise/fall time
• 1 µHz – 240 MHz sine waveform output
• 14-bit, 2 GSa/s arbitrary waveforms
• 512k samples deep arbitrary waveform memory per channel
• Pulse, sine, square, ramp, noise and arbitrary waveforms
• Noise, with an adjustable crest factor, and signal repetition time of 26 days
• FM, AM, PM, PWM, FSK modulation capabilities
• 1 or 2 channel, coupled and uncoupled
• Differential outputs
• Two selectable output amplifiers:
◦ High bandwidth amplifier
Amplitude: 50 mVpp to 5 Vpp; 50 Ω into 50 Ω
100 mVpp to 10 Vpp; 50 Ω into open
Voltage window: ± 5 V; 50 Ω into 50 Ω
± 10 V; 50 Ω into open
± 9 V; 5 Ω into 50 Ω
◦ High voltage amplifier
Amplitude: 100 mVpp to 10 Vpp; 50 Ω into 50 Ω, 200 m pp to 20 Vpp;
5 Ω into 50 Ω, or 50 Ω into open
Voltage window: ± 10 V; 50 Ω into 50 Ω
± 20 V; 5 Ω into 50 Ω or 50 Ω into open
• Glitch free change of timing, parameters
(delay, frequency, transition time, width, duty cycle)
• Programming language compatible with Agilent 81101A, 81104A, 81105A
• ISO 17025 and Z540 calibration
• LXI class C compliant
• Optional pattern generator:
◦ Ideal and arbitrary bit shaped pattern up to 120 Mbit/s
◦ Three level signals
◦ PRBS up to 2^31
◦ 16 Mbit Pattern Memory
◦ Pass through pattern for combined and physical and protocol test up to 10 Mbit/s
2

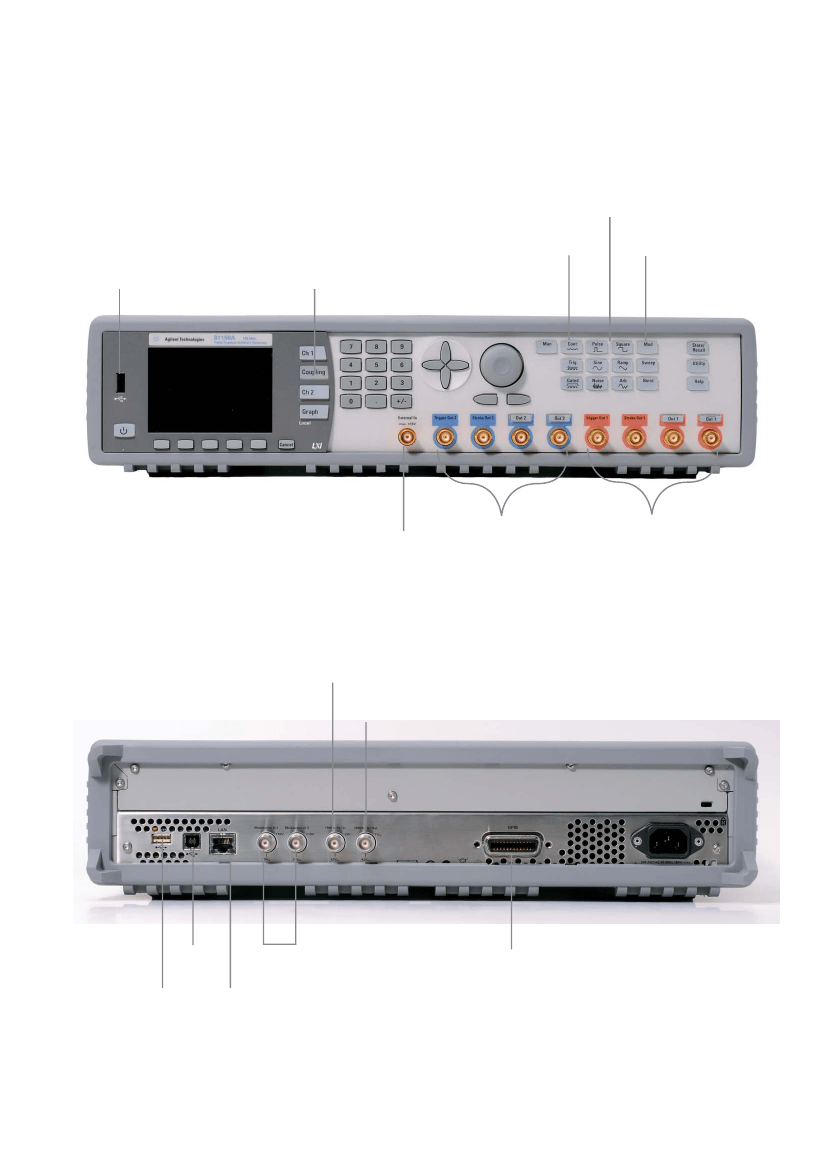

Front Panel
Waveform type
Trigger mode
USB 2.0A
Couple / uncouple channels
Advanced mode
External In
Channel 2:
Trigger out
Strobe out
Differential output
Channel 1:
Trigger out
Strobe out
Differential output
Back Panel
10 MHz Ref in
10 MHz Ref out
USB 2.0 B
Modulation in 1, 2
GPIB
USB 2.0A
LAN
3
Today‘s Challenges Require
a New Generation of Test
Instruments
You are under pressure to get products to market faster and faster, with shrinking design
schedules and increasing quality goals. The pressure is never ending. Because differentia-
tion means survival in the marketplace, you often have to test unique functionality. Being
confident in your results takes highly adaptable and efficient testing.
Such challenges require a new generation of test instruments, which are:
• Accurate, to test your device and not your source
• Versatile, to be ready for today’s and tomorrows test challenges
• Plug and play solutions, with minimal cabling, low space overhead and
have many functions built-in
Whichever way you look at it, this starts with accurate, versatile and uncompromising
signal sources.
Just test — with the signal you need.
Quad versatility - Optimum signal fidelity
Agilent’s offering
The Agilent 81150A pulse function arbitrary noise generator sets the standard for the next
generation of lab: for fast, accurate insight into your design or device under test.
• A pulse generator with precise signals for performance verification and characterization
• A function arbitrary generator
◦ For versatile signal generation to optimize testing
◦ For modulation to shape the signal the DUT needs
• A noise generator to distort signals to build up worst case scenarios
• An optional Pattern Generator to test in addition to analog, digital and mixed signal
devices with ideal and real-world conditions
The new Agilent 81150A pulse function arbitrary noise generator is an indispensable
contributor to accelerate ideal and real-world testing.

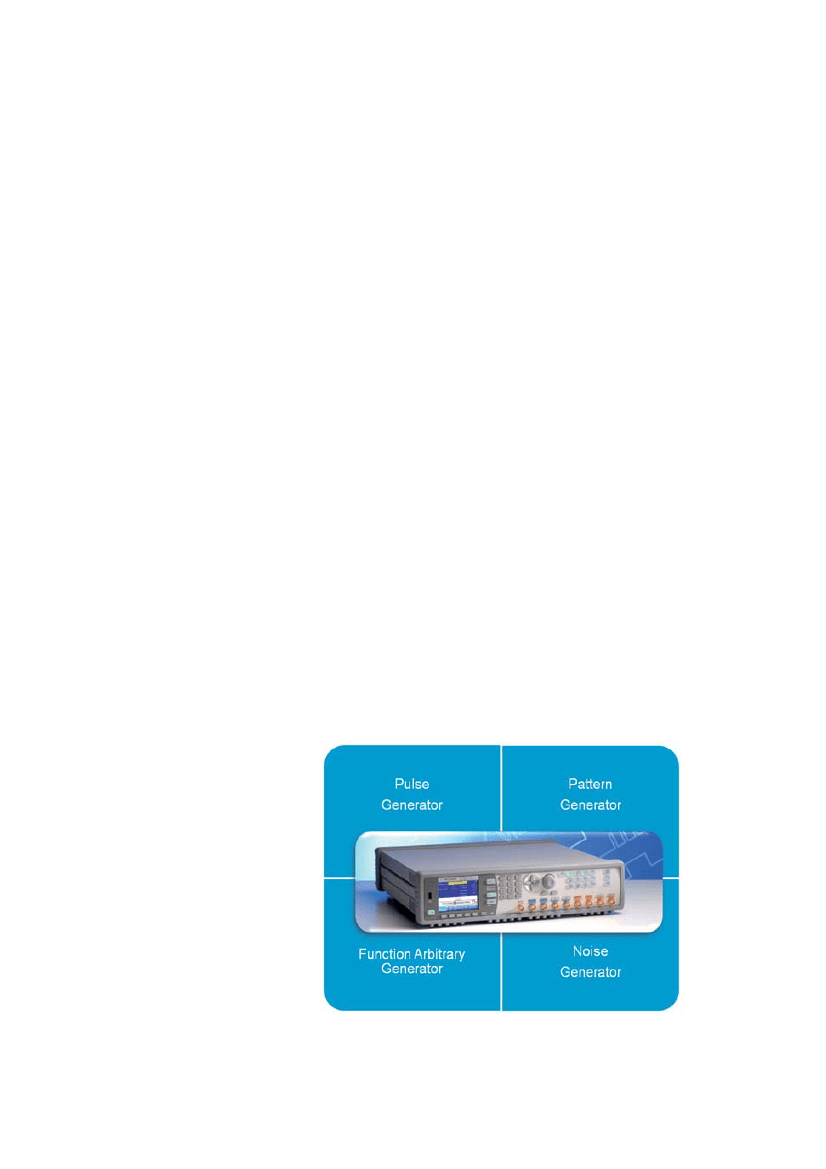

Figure 1. Agilent 81150A pulse function arbitrary noise generator
4
Pulse Generator – Test
Your Device and Not Your
Source
Superior precision pulses with unbeatable timing stability guarantee reproducible tests.
The signal quality and trigger functionality provide everything you need for trigger or
system clock applications.
You can change the timing parameters (delay, frequency, transition time, width, duty cy-
cle) without dropouts or glitches. This patented, industry-leading feature means continu-
ous operation without having to reboot or reset your device under test, for example when
you are characterizing a device by sweeping the clock frequency. Apart from full control of
the timing parameters, you can also adjust levels and edges as needed.

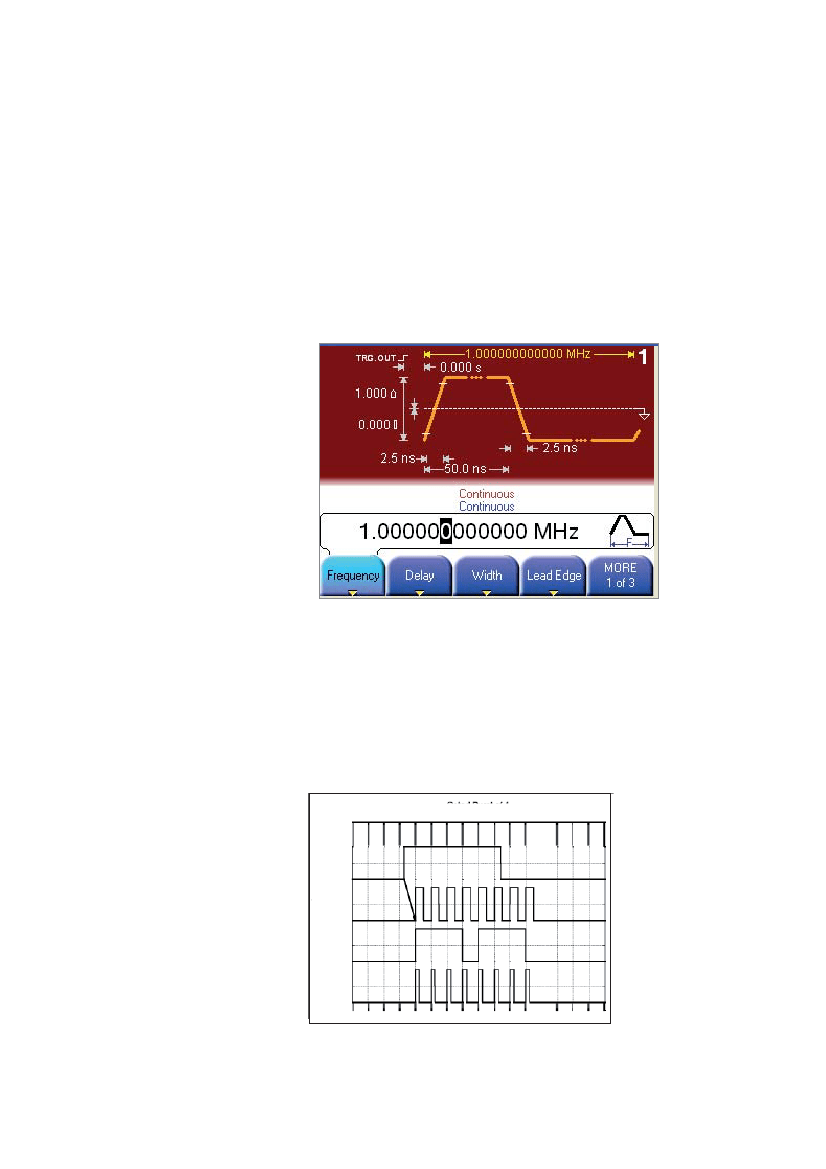

81150A channel 1 pulse setup
Set up complex measurements
The Agilent 81150A pulse function arbitrary noise generator is available in a 1 or 2
channel version. On the two channel version, the channels can be uncoupled, to work
independently, or coupled, for example, with a defined delay between them.
Each channel provides trigger out, strobe out and differential outputs: the basis for many
complex test set ups.
Measurement using strobe and trigger
Gated Burst of 4
External In
Trigger Out
Strobe Out
Out
5
