Film capacitors – Power Factor Correction
MKV capacitors
Series/Type:
Ordering code:
Date:
Version:
MKV400-D-10-02/MKV440-D-12-02-02
B25836B4197A305
September 2008
2
Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the
table and then change the color to "white". This ensures that the table disappears (invisible) for the customer PDF.
Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it!
Identification/Classification 1
(header 1 + top left bar):
Identification/Classification 2
(header 2 + bottom left header bar):
Ordering code: (top right header bar)
Series/Type: (top right header bar)
Preliminary data (optional):
(if necessary)
Department:
Date:
Version:
FK PC OH RD
September 2008
2
Film capacitors – Power Factor Correction
MKV capacitors
B25836B4197A305
MKV400-D-10-02/MKV440-D-12-02-02
©
EPCOS AG 2008. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited
Film capacitors – Power Factor Correction
MKV capacitors
B25836B4197A305
MKV400-D-10-02/MKV440-D-12-02-02

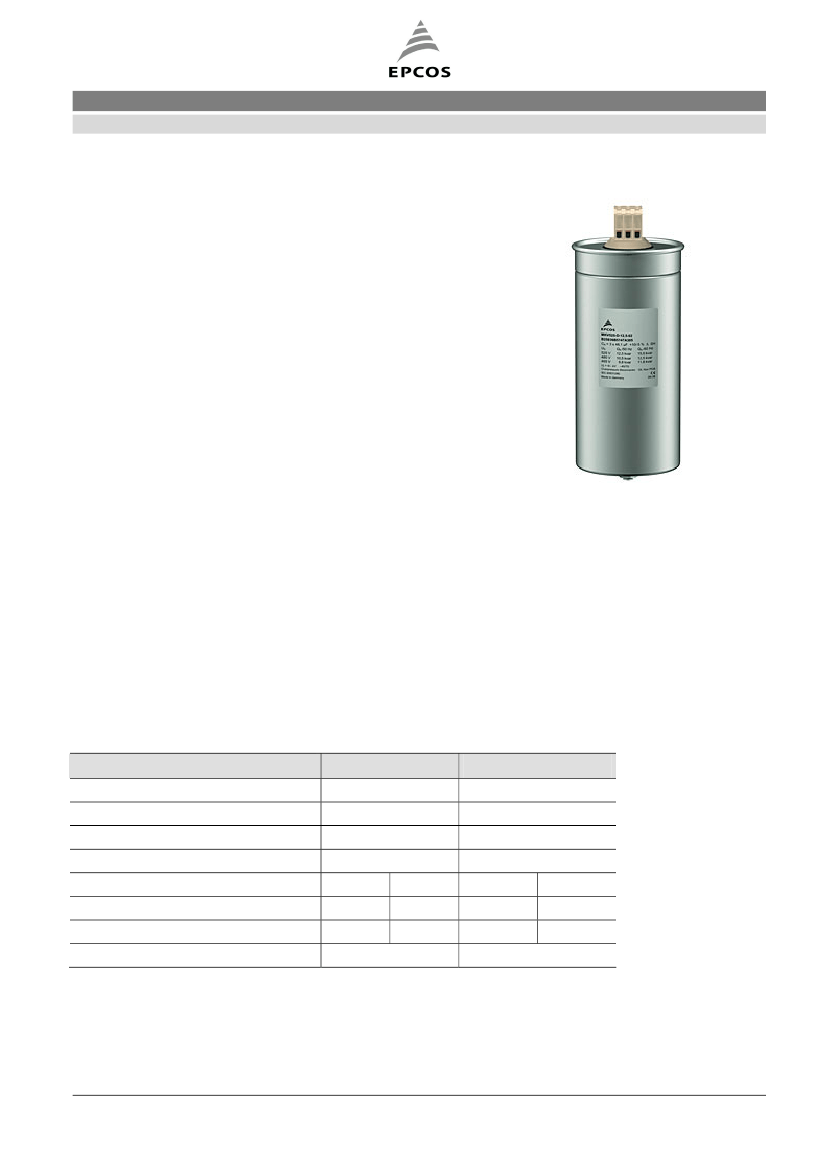

Construction
Dielectric: Polypropylene film with paper
as electrode carrier
Oil impregnated
Extruded round aluminium can with stud
Discharge resistors included
Double safety system
Features
Three phase, delta connected
Self-healing technology
Naturally air cooled (or forced air cooling)
Indoor mounting
Typical applications
For Power Factor Correction
Terminals
SIGUT terminals
Mounting
Threaded stud at bottom of can
(max. torque = 10 Nm for M12)
Technical data and specifications
Characteristics
Rated capacitance C
R
Tolerance
Connection
Rated voltage V
R
Rated frequency f
R
Output
Rated current I
R
tan
δ
(dielectric)
MKV400-D-10-02
3 × 66.3 µF
–5/+10%
D (Delta)
400 V AC
50 Hz
10 kvar
14.4 A
0.2 W/kvar
60 Hz
12 kvar
17.3 A
MKV440-D-10-02
3 × 66.3 µF
–5/+10%
D (Delta)
440 V AC
50 Hz
12 kvar
16 A
0.2 W/kvar
60 Hz
14.4 kvar
19 A
FK PC OH RD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 9
September 2008
Film capacitors – Power Factor Correction
MKV capacitors
B25836B4197A305
MKV400-D-10-02/MKV440-D-12-02-02
Maximum ratings
V
max
(up to 8 h daily)
V
max
(up to 1 min)
I
max
I
S
480 V AC
570 V AC
3 x 55 A (T
A
= 60 °C, V
R
)
11 kA
Test data
V
TT
V
TC
tan
δ
(50 Hz)*
*without discharge resistors
950 V AC/50 Hz during 10 s
3000 V AC/50 Hz during 10 s
≤
0.3 W/kvar (total)
Climatic category
T
min
T
max
Humidity H
rel
Maximum altitude
–40 ºC
+70 ºC
max. 95%
4000 m
Mean life expectancy
t
LD
up to 300 000 h at temperature class -40/D
max. 20 000 switchings per year according to IEC 60831-1+/2
max. 50 000 switchings per year according to IEC 60831-1+/2 in case
standard PFC reactors are applied

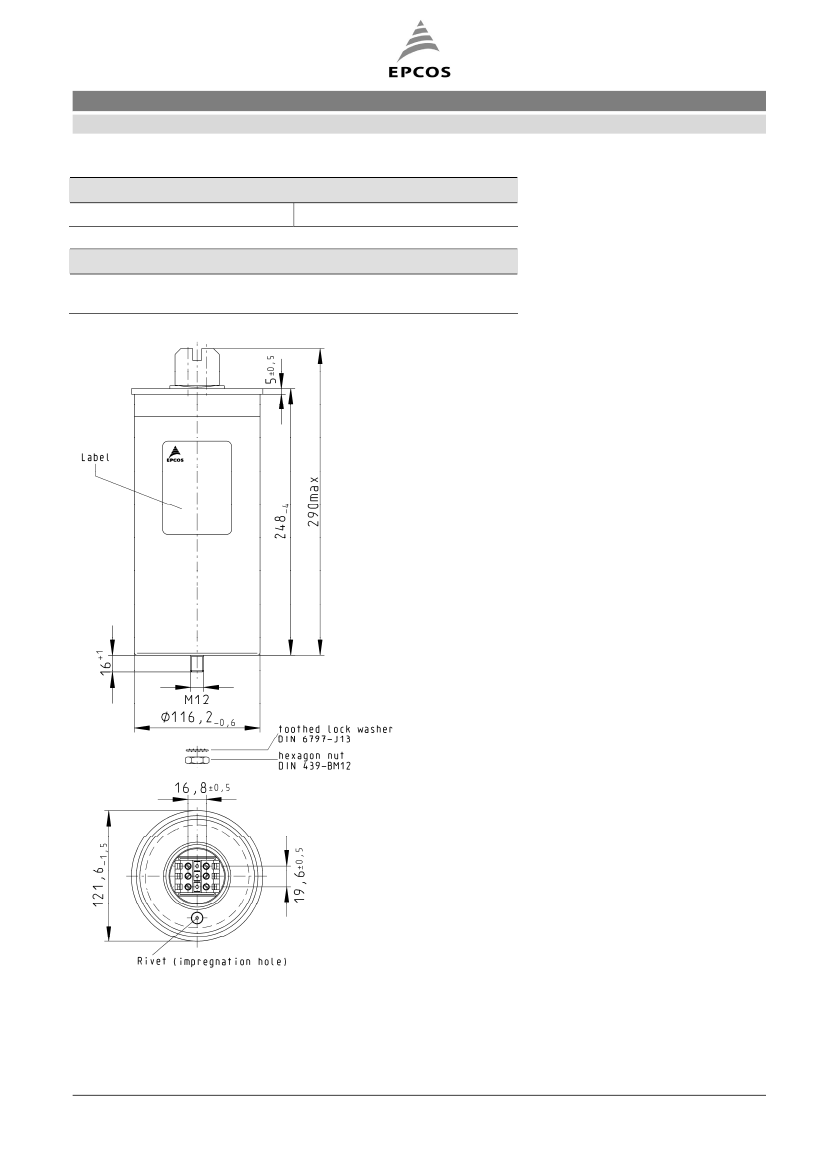

Design data
Dimensions (∅ × l)
Weight approx
Impregnation
Fixing
Max. torque (Al can stud)
Mounting position
116.2 × 248 mm
3.1 kg
Oil
Threaded bolt M12
10 Nm
Upright/horizontal
Terminals
Degree of protection
Max. torque
Terminal cross section
Maximum terminal current
Creepage distance
Clearance
Isolated terminals, IP20
1.2 Nm
16 mm
2
(5 AWG)
55 A
12.7 mm
9.6 mm
FK PC OH RD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 9
September 2008
Film capacitors – Power Factor Correction
MKV capacitors
B25836B4197A305
MKV400-D-10-02/MKV440-D-12-02-02
Safety
Mechanical safety
Overpressure disconnector
Reference standards
IEC 60831-1/2, EN 60831-1: 1996+A1:2003 + EN 60831-1: 1996,
VDE 560-46+47
FK PC OH RD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 9
September 2008

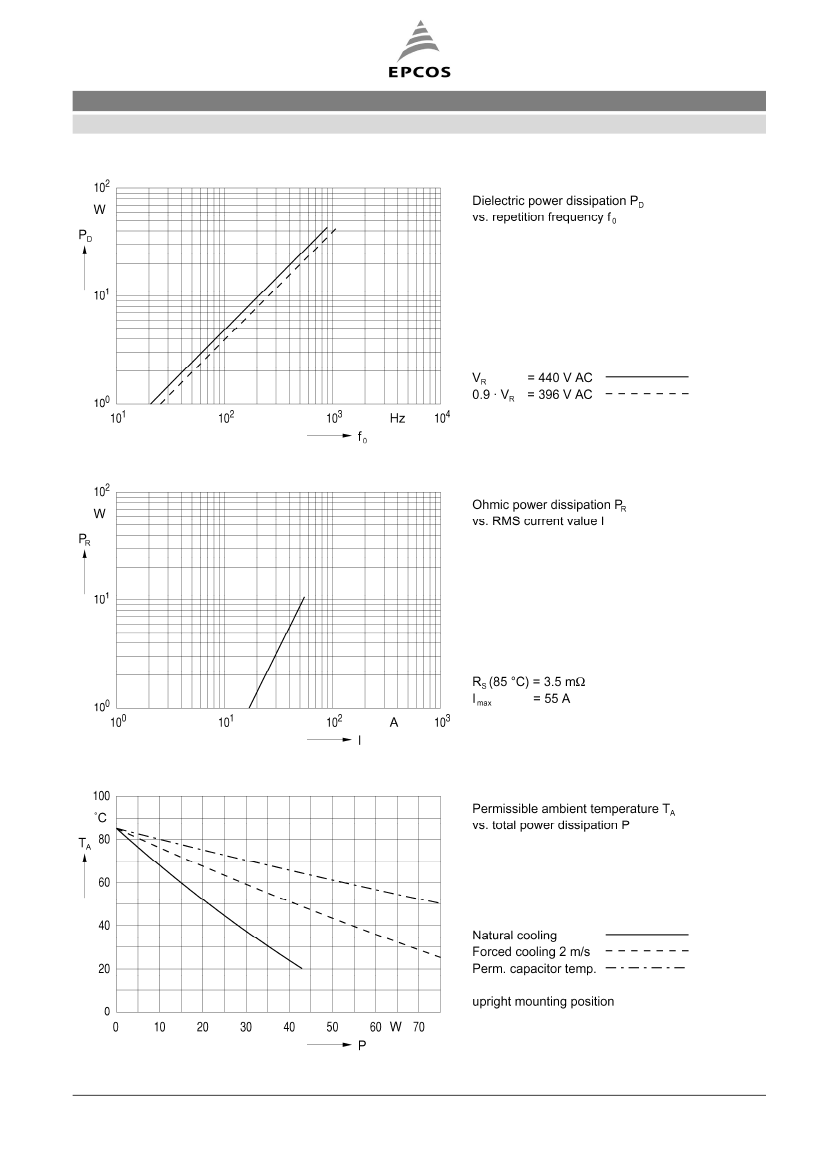

Film capacitors – Power Factor Correction
MKV capacitors
B25836B4197A305
MKV400-D-10-02/MKV440-D-12-02-02
FK PC OH RD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 9
September 2008
