CY7C65642
HX2VL – Very Low Power USB 2.0
TetraHub™ Controller
Features
■
■
High-performance, low-power USB 2.0 hub, optimized for
low- cost designs with minimum bill-of-material (BOM).
USB 2.0 hub controller
❐
Compliant with USB2.0 specification
❐
Up to four downstream ports support
❐
Downstream ports are backward compatible with FS, LS
❐
Multiple translator (TT), one per downstream port for
maximum performance.
Very low-power consumption
❐
Supports bus-powered and self-powered modes
❐
Auto switching between bus-powered and self-powered
❐
Single MCU with 2 K ROM and 64 byte RAM
❐
Lowest power consumption.
Highly integrated solution for reduced BOM cost
❐
Internal regulator - single power supply 5 V required.
❐
Provision of connecting 3.3 V with external regulator.
❐
Integrated upstream pull-up resistor
❐
Integrated pull-down resistors for all downstream ports
❐
Integrated upstream/downstream termination resistors
❐
Integrated port status indicator control
12-MHz +/-500 ppm external crystal with drive level 600
W
(integrated PLL) clock input with optional 27/48-MHz
oscillator clock input.
❐
Internal power failure detection for ESD recovery
❐
■
■
Downstream port management
❐
Support individual and ganged mode power management
❐
Overcurrent detection within 8 mS.
❐
Two status indicators per downstream port
❐
Slew rate control for EMI management
Maximum configurability
❐
VID and PID are configurable through external EEPROM
❐
Number of ports, removable/non-removable ports are
configurable through EEPROM and I/O pin configuration
❐
I/O pins can configure gang/individual mode power
switching, reference clock source and polarity of power
switch enable pin
❐
Configuration options also available through mask ROM
Available in space saving 48-pin (7 × 7 mm) TQFP and
28-pin (5 × 5 mm) QFN packages
Supports 0
C
to +70
C
temperature range
■
■
■
■

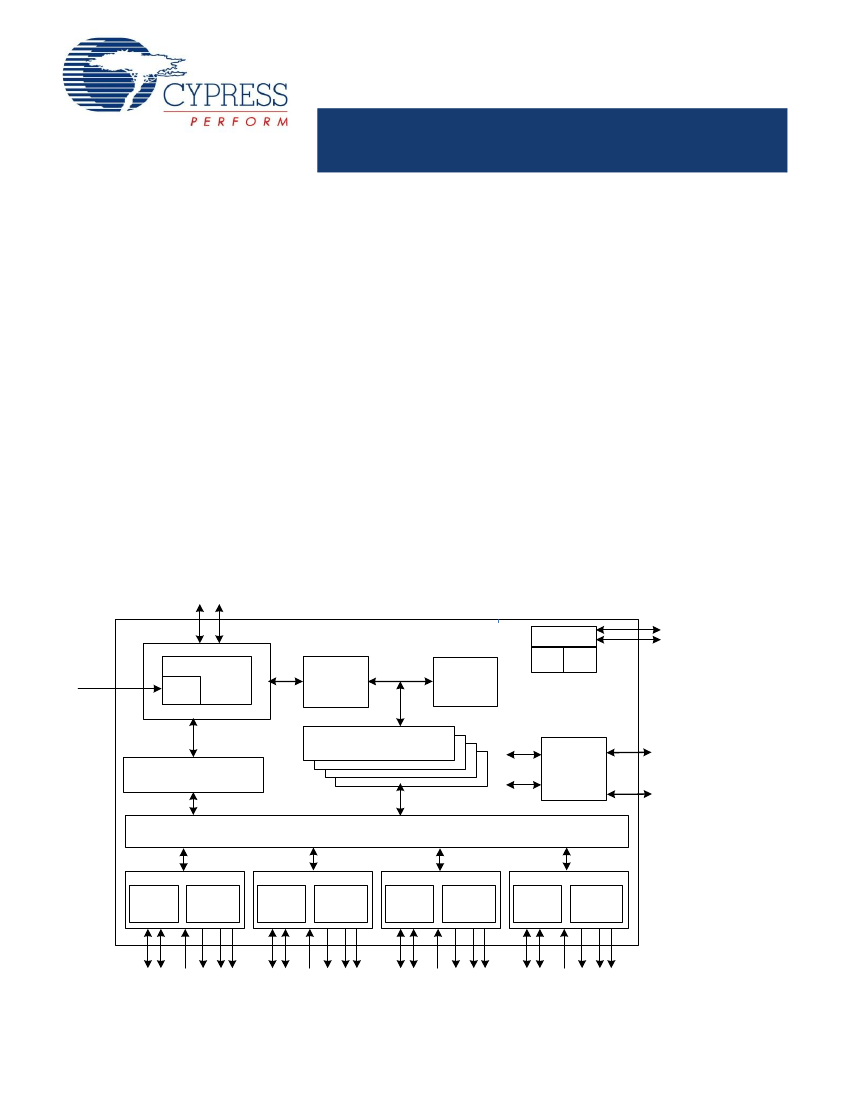

Block Diagram
D+
12/27/48
MHz
OSC-in
OR 12
MHz
Crystal
D-
MCU
RAM
Serial
Interface
Engine
HS USB
Control Logic
ROM
I2C /
SPI
USB 2.0 PHY
PLL
USB Upstream Port
Transaction Translator x 4
1.8 V
Hub Repeater
3.3 V
Regulator
5 V i/p (for internal
regulator)
NC (for external regulator)
Routing Logic
3.3 V i/p (with ext. reg. & 28-QFN
NC (with ext. reg. & 48-TQFP)
3.3 V o/p (for int. reg.)
USB Downstream Port 1
USB 2.0
PHY
Port
Control
USB Downstream Port 2
USB 2.0
PHY
Port
Control
USB Downstream Port 3
USB 2.0
PHY
Port
Control
USB Downstream Port 4
USB 2.0
PHY
Port
Control
P W R # [1]
O V R # [1]
P W R # [2]
P W R # [3]
P W R # [4]
O V R # [2]
O V R # [3]
D+ D-
LED
D+ D-
LED
D+ D-
LED
O V R # [4]
D+ D-
LED
Cypress Semiconductor Corporation
Document Number: 001-65659 Rev. *B
•
198 Champion Court
•
San Jose
,
CA 95134-1709
•
408-943-2600
Revised July 27, 2011
CY7C65642
Contents
Introduction ....................................................................... 3
n USB Serial Interface Engine ..................................... 3
n HS USB Control Logic .............................................. 3
n Hub Repeater ........................................................... 3
n MCU ......................................................................... 3
n Transaction Translator ............................................. 3
n Port Control .............................................................. 3
n Applications ................................................................... 3
n Functional Overview ..................................................... 4
n System Initialization .................................................. 4
n Upstream Port .......................................................... 4
n Downstream Ports .................................................... 4
n Power Switching ....................................................... 4
Figure 2. Pin Description for 48-Pin TQFP Package ..... 8
1. Pin Description for 28-Pin QFN Package ................. 10
Table 2. EEPROM Configuration Options .................... 12
Table 2. Pin Configuration Options .............................. 13
Table 2. Power ON Reset ......................................... 13
Table 2. Gang/Individual Power Switching Mode ...... 13
Table 2. Power Switch Enable Pin Polarity ............... 13
Table 2. Port Number Configuration .......................... 13
Table 2. Non Removable Ports Configuration ........... 13
Table 2. Reference Clock Configuration ................... 13
Table 2. Electrical Characteristics ................................ 14
Table 2. Absolute Maximum Ratings ......................... 14
Table 2. Operating Conditions ................................... 14
Table 2. .................................................................... 14
Table 2. DC Electrical Characteristics ....................... 14
Table 2. AC Electrical Characteristics ....................... 15
Table 4. Ordering Information ....................................... 16
Table 4. Ordering Code Definition ............................. 16
Table 4. Package Diagram ............................................. 17
Figure 4. Acronyms ........................................................ 19
Table 5. Document Conventions ................................... 19
Table 5. Units of Measure ......................................... 19
Table 6. Document History Page ................................... 20
Table 6. Sales, Solutions, and Legal Information ........ 21
Table 6. Worldwide Sales and Design Support ......... 21
Table 6. Products ...................................................... 21
Table 6. PSoC Solutions ........................................... 21
Document Number: 001-65659 Rev. *B
Page 2 of 21
CY7C65642
Introduction
HX2VL is Cypress’s next generation family of high- performance,
very low-power USB 2.0 hub controllers. HX2VL has integrated
upstream and downstream transceivers; a USB serial interface
engine (SIE); USB hub control and repeater logic; and
transaction translator (TT) logic. Cypress has also integrated
external components such as voltage regulator and
pull-up/pull-down resistors, reducing the overall BOM required to
implement a USB hub system.
The CY7C65642 is a part of the HX2VL portfolio with four
downstream ports and an independent TT dedicated for each
downstream port. This device option is for low-power but
high- performance applications that require up to four
downstream ports. The CY7C65642 is available in 48-pin TQFP
and 28-pin QFN package options.
All device options are supported by Cypress’s world class
reference design kits, which include board schematics, BOM,
Gerber files, Orcad files, and thorough design documentation.
■
Ensures orderly entry into and out of ‘Suspend’ state, including
proper handling of remote wakeups.
MCU
The HX2VL has MCU with 2 K ROM and 64 byte RAM. The MCU
operates with a 12 MHz clock to decode USB commands from
host and respond to the host. It can also handle GPIO settings
to provide higher flexibility to the customers and control the read
interface to the EEPROM which has extended configuration
options.
Transaction Translator
The TT translates data from one speed to another. A TT takes
high-speed split transactions and translates them to full or
low-speed transactions when the hub is operating at high-speed
(the upstream port is connected to a high speed host controller)
and has full or low- speed devices attached. The operating speed
of a device attached on a downstream port determines whether
the routing logic connects a port to the TT or to hub repeater.
When the upstream host and downstream device are functioning
at different speeds, the data is routed through the TT. In all other
cases, the data is routed through the repeater. For example, If a
full or low-speed device is connected to the high-speed host
upstream through the hub, then the data transfer route includes
TT. If a high-speed device is connected to the high-speed host
upstream through the hub, the transfer route includes the
repeater. When the hub is connected to a full-speed host
controller upstream, then high-speed peripheral does not
operate at its full capability. These devices only work at full
speed. Full and low-speed devices connected to this hub operate
at their normal speed.
HX2VL Architecture
The
“Block Diagram”
on page 1 shows the HX2VL TetraHub™
architecture.
USB Serial Interface Engine
The SIE allows HX2VL to communicate with the USB host. The
SIE handles the following USB activities independently of the
Hub Control Block.
■
■
■
■
Bit stuffing and unstuffing
Checksum generation and checking
TOKEN type identification
Address checking.
Port Control
The downstream ‘Port Control’ block handles the
connect/disconnect and over current detection as well as the
power enable and LED control. It also generates the control
signals for the downstream transceivers.
HS USB Control Logic
‘Hub Control’ block co-ordinates enumeration, suspend and
resume. It generates status and control signals for host access
to the hub. It also includes the frame timer that synchronizes the
hub to the host. It has status/control registers which function as
the interface to the firmware in the MCU.
Applications
Typical applications for the HX2VL device family are:
■
■
■
■
■
■
■
Docking stations
Standalone hubs
Monitor hubs
Multi-function printers
Digital televisions
Advanced port replicators
Keyboard hubs
Hub Repeater
The hub repeater manages the connectivity between upstream
and downstream facing ports that are operating at the same
speed. It supports full or low-speed connectivity and high-speed
connectivity. According to the USB 2.0 specification, the hub
repeater provides the following functions:
■
Sets up and tears down connectivity on packet boundaries
Document Number: 001-65659 Rev. *B
Page 3 of 21
CY7C65642
Functional Overview
The Cypress CY7C65642 USB 2.0 Hubs are low-power hub
solutions for USB which provide maximum transfer efficiency
with no TT multiplexing between downstream ports. The
CY7C65642 USB 2.0 Hubs integrate 1.5 k upstream pull-up
resistors for full speed operation and all downstream 15 k
pull-down resistors and series termination resistors on all
upstream and downstream D+ and D– pins. This results in
optimization of system costs by providing built-in support for the
USB 2.0 specification.
Downstream D+ and D– pull-down resistors are incorporated in
CY7C65642 for each port. Before the hubs are configured, the
ports are driven Single Ended Zero, ((SE0) where both D+ and
D– are driven low) and are set to the unpowered state. When the
hub is configured, the ports are not driven and the host may
power the ports by sending a SetPortPower command for each
port. After a port is powered, any connect or disconnect event is
detected by the hub. Any change in the port state is reported by
the hubs back to the host through the Status Change Endpoint
(endpoint 1). On receipt of SetPortReset request for a port with
a device connected, the hub does as follows:
■
■
■
System Initialization
On power up, CY7C65642 has an option to enumerate from the
default settings in the mask ROM or from reading an external
EEPROM for configuration information. At the most basic level,
this EEPROM has the Vendor ID (VID) and the Product ID (PID),
for the customer's application. For more specialized
applications, other configuration options can be specified. See
EEPROM Configuration Options
for more details. CY7C65642
verifies the checksum before loading the EEPROM contents as
the descriptors.
Performs a USB Reset on the corresponding port
Puts the port in an enabled state
Enables babble detection after the port is enabled.
Babble consists of a non idle condition on the port after EOF2. If
babble is detected on an enabled port, that port is disabled. A
ClearPortEnable request from the host also disables the
specified port.
Downstream ports can be individually suspended by the host
with the SetPortSuspend request. If the hub is not suspended, a
remote wakeup event on that port is reflected to the host through
a port change indication in the Hub Status Change Endpoint. If
the hub is suspended, a remote wakeup event on this port is
forwarded to the host. The host may resume the port by sending
a ClearPortSuspend command.
Enumeration
The device checks if VBUSPOWER (connected to up-stream
V
BUS
) is high, CY7C65642 enables the pull-up resistor on D+ to
indicate its presence to the upstream hub, after which a USB Bus
Reset is expected. After a USB Bus Reset, CY7C65642 is in an
unaddressed, unconfigured state (configuration value set to’0’).
During the enumeration process, the host sets the hub's address
and configuration. After the hub is configured, the full hub
functionality is available.
Power Switching
The CY7C65642 includes interface signals for external port
power switches. Both ganged and individual (per-port)
configurations are supported by pin strapping, see
“Pin
Configuration Options”
on page 13.
After enumerating, the host may power each port by sending a
SetPortPower request for that port. Power switching and
overcurrent detection are managed using respective control
signals (PWR#[n] and OVR#[n]) which are connected to an
external power switch device. Both High/Low enabled power
switches are supported and the polarity is configured through
GPIO setting, see
“Pin Configuration Options”
on page 13.
Multiple Transaction Translator Support
After TetraHub is configured in a high speed system, it is in single
TT mode. The host may then set the hub into multiple TT mode
by sending a SetInterface command. In multiple TT mode, each
full speed port is handled independently and thus has a full 12
Mbps bandwidth available. In Single TT mode, all traffic from the
host destined for full or low-speed ports are forwarded to all of
those ports. This means that the 12 Mbps bandwidth is shared
by all full and low-speed ports.
Upstream Port
The upstream port includes the transmitter and the receiver state
machine. The transmitter and receiver operate in high speed and
full speed depending on the current hub configuration. The
transmitter state machine monitors the upstream facing port
while the Hub Repeater has connectivity in the upstream
direction. This machine prevents babble and disconnect events
on the downstream facing ports of this hub from propagating and
causing the hub to be disabled or disconnected by the hub to
which it is attached.
Overcurrent Detection
The OVR#[n] pins of the CY7C65642 series are connected to the
respective external power switch's port overcurrent indication
(output) signals. After detecting an overcurrent condition, hub
reports overcurrent condition to the host and disables the
PWR#[n] output to the external power device.
Port Indicators
The USB 2.0 port indicators are also supported directly by
CY7C65642. According to the specification, each downstream
port of the hub optionally supports a status indicator. The
presence of indicators for downstream facing ports is specified
by bit 7 of the wHubCharacteristics field of the hub class
descriptor. The default CY7C65642 descriptor specifies that the
port indicators are supported. The CY7C65642 port indicators
has two modes of operation: automatic and manual.
Page 4 of 21
Downstream Ports
The CY7C65642 supports a maximum of four downstream ports,
each of which may be marked as usable or removable in the
EEPROM configuration, see
EEPROM Configuration Options.
Additionally, number of downstream ports can also be configured
by pin strapping, see
Pin Configuration Options.
Document Number: 001-65659 Rev. *B
CY7C65642
On power up the CY7C65642 defaults to automatic mode, where
the color of the Port Indicator (green, amber, off) indicates the
functional status of the CY7C65642 port. The LEDs are turned
off when the device is suspended.
5 V to 3.3 V
Regulator
5 V to 3.3 V
Regulator
NC
NC
NC
Port Status
Indicator
LED
VREG
VCC
VREG
VCC
CY7C65642
48 Pin
CY7C65642
28 Pin
VCC_A
VCC_D
Note
Pin-strapping GREEN#[1] and GREEN#[2] enables
proprietary function that may affect the normal functionality of
HX2VL. Configuring Port #1 and #2 as non-removable by
pin-strapping should be avoided
VCC_A
VCC_D
External Regulation Scheme
Internal Regulation Scheme
When the built-in internal regulator is chosen, then the VCC pin
has to be connected to a 5 V, in both 48-pin and 28-pin packages.
Internally, the built-in regulator generates a 3.3 V and 1.8 V for
the chip’s internal usage. Also a 3.3 V output is available at
VREG pin, that has to be connected externally to VCC_A and
VCC_D.
Power Regulator
CY7C65642 requires 3.3 V source power for normal operation of
internal core logic and USB physical layer (PHY). The integrated
low-drop power regulator converts 5 V power input from USB
cable (Vbus) to 3.3 V source power. The 3.3 V power output is
guaranteed by an internal voltage reference circuit when the
input voltage is within the 4 V - 5.5 V range. The regulator’s
maximum current loading is 150 mA, which provides tolerance
margin over CY7C65642’s normal power consumption of below
100 mA. The on chip regulator has a quiescent current of 28 uA.
External Regulation Scheme
CY7C65642 supports both external regulation and internal
regulation schemes. When an external regulation is chosen,
then for the 48-pin package, VCC and VREG are to be left open
with no connection. The external regulator output 3.3 V has to be
connected to VCC_A and VCC_D pins. This connection has to
be done externally, on board. For the 28-Pin package, the 3.3 V
output from the external regulator has to be connected to VREG,
VCC_A and VCC_D. The V
CC
pin has to be left open with no
connection. From the external input 3.3 V, 1.8 V is internally
generated for the chip’s internal usage.
3.3 V
5 V
3.3 V
5 V
VREG
VCC
VREG
VCC
CY7C65642
48 Pin
VCC_A
VCC_D
CY7C65642
28 Pin
VCC_A
VCC_D
Internal Regulation Scheme
Document Number: 001-65659 Rev. *B
Page 5 of 21
京公网安备 11010802033920号
EEWORLD
