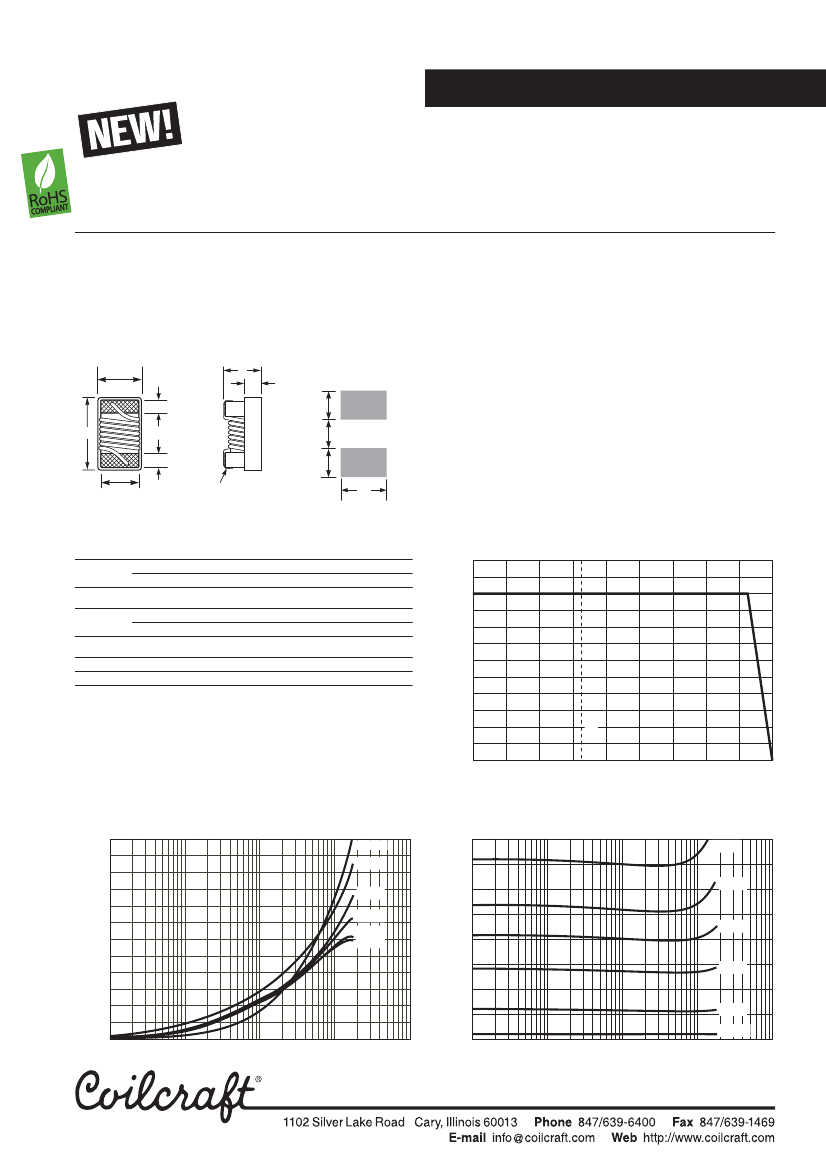

Chip Inductors - 0402HP Series (1005)
•
•
•
•
Higher Q and lower DCR than other 0402 inductors
Very high SRF values – as high as 16 GHz
Excellent current handling capability – up to 2300 mA
52 inductance values from 1.0 to 220 nH
B
overall
F
A
G
F
E
terminal
Terminal wraparound:
approx 0.007/0,18 both ends
C
D
I
J
I
H
Core material
Ceramic
Terminations
RoHS compliant silver-palladium-platinum-glass frit.
Other terminations available at additional cost.
Weight
0.7 – 1.0 mg
Ambient temperature
–40°C to +125°C with
Irms
current, +125°C
to +140°C with derated current
Storage temperature
Component: –40°C to +140°C.
Packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +125 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
One per billion hours / one billion hours, calculated per Telcordia SR-332
Packaging
2000 per 7″ reel. Paper tape: 8 mm wide, 0.66 mm thick,
2 mm pocket spacing
PCB washing
Only pure water or alcohol recommended
Recommended
Land Pattern
A max
0.043
1,09
A max
0.044
1,12
E
0.020
0,51
F
0.008
0,20
B
0.026 ±0.002
0,66 ±0,051
B
0.026 ±0.002
0,66 ±0,051
G
0.024
0,61
H
0.026
0,66
C max
0.024
0,61
C max
0.026
0,66
I
0.014
0,36
Current Derating
120
110
100
0402HP
inches
mm
Percent of rated
I
rms
0402HPH
D
0.010
0,25
inches
mm
J
0.020
0,51
inches
mm
90
80
70
60
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100
120 140
Ambient temperature (°C)
Typical Q vs Frequency
120
110
100
90
80
70
60
50
40
30
20
10
0
1
10
100
1000
2.0 nH
11 nH
Typical L vs Frequency
80
70
68 nH
51 nH
Inductance (nH)
27 nH
39 nH
51 nH
68 nH
60
50
Q Factor
25°C
39 nH
40
30
20
10
0
11 nH
2.0 nH
27 nH
10000
1
10
100
1000
10000
Frequency (MHz)
Specifications subject to change without notice.
Please check our website for latest information.
Frequency (MHz)
Document 526-1
Revised 07/16/09
© Coilcraft, Inc. 2009
Document 526-2
0402HP Series (1005)
Part number
1
0402HP-1N0XJL_
0402HP-2N0XJL_
0402HP-2N2XJL_
0402HP-2N4X_L_
0402HP-2N7X_L_
0402HP-3N3X_L_
0402HP-3N6X_L_
0402HP-3N9X_L_
0402HP-4N3X_L_
0402HP-4N7X_L_
0402HP-5N1X_L_
0402HP-5N6X_L_
0402HP-6N2X_L_
0402HP-6N8X_L_
0402HP-7N5X_L_
0402HP-8N2X_L_
0402HP-8N7X_L_
0402HP-9N0X_L_
0402HP-9N5X_L_
0402HP-10NX_L_
0402HP-11NX_L_
0402HP-12NX_L_
0402HP-13NX_L_
0402HP-15NX_L_
0402HP-16NX_L_
0402HP-18NX_L_
0402HP-19NX_L_
0402HP-20NX_L_
0402HP-21NX_L_
0402HP-22NX_L_
0402HP-23NX_L_
0402HP-24NX_L_
0402HP-25NX_L_
0402HP-26NX_L_
0402HP-27NX_L_
0402HP-30NX_L_
0402HP-33NX_L_
0402HP-36NX_L_
0402HP-37NX_L_
0402HP-39NX_L_
0402HP-40NX_L_
0402HP-43NX_L_
0402HP-47NX_L_
0402HP-51NX_L_
0402HPH-56NX_L_
0402HPH-68NX_L_
0402HPH-82NX_L_
0402HPH-R10X_L_
0402HPH-R12X_L_
0402HPH-R15X_L_
0402HPH-R18X_L_
0402HPH-R22X_L_
Inductance
2
Percent
(nH)
tolerance
3
1.0
5
2.0
5
2.2
5
2.4
5,2
2.7
5,2
3.3
5,2
3.6
5,2
3.9
5,2
4.3
5,2
4.7
5,2
5.1
5,2
5.6
5,2
6.2
5,2
6.8
5,2
7.5
5,2
8.2
5,2
8.7
5,2
9.0
5,2
9.5
5,2
10
5,2
11
5,2
12
5,2
13
5,2
15
5,2
16
5,2
18
5,2
19
5,2
20
5,2
21
5,2
22
5,2
23
5,2
24
5,2
25
5,2
26
5,2
27
5,2
30
5,2
33
5,2
36
5,2
37
5,2
39
5,2
40
5,2
43
5,2
47
5,2
51
5,2
56
5,2
68
5,2
82
5,2
100
5,2
120
5,2
150
5,2
180
5,2
220
5,2
Test freq
(MHz)
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
100
100
100
Designer’s Kits C403A
and
B
contain 20 each of 5% values
Designer’s Kits C403A-2
and
B-2
contain 20 each of 2% values
900 MHz
L typ
Q typ
4
0.97
46
1.96
58
2.17
60
2.37
60
2.66
62
3.26
66
3.56
65
3.87
64
4.26
63
4.67
58
5.07
54
5.56
73
6.18
73
6.78
68
7.49
60
8.10
68
8.73
66
8.99
67
9.52
64
9.98
62
11.0
68
12.0
66
13.1
62
15.1
62
16.2
57
18.2
58
19.2
61
20.3
58
21.3
48
22.3
60
23.3
60
24.5
55
25.5
57
26.6
56
27.3
62
30.8
61
34.0
61
37.1
59
38.2
57
40.5
56
41.3
56
45.0
52
49.0
48
49.1
52
58.8
56
72.2
56
89.7
52
–
–
–
–
–
–
–
–
–
–
1.7 GHz
L typ
Q typ
4
0.99
72
1.98
85
2.17
86
2.38
83
2.68
85
3.28
95
3.58
94
3.91
98
4.33
90
4.74
83
5.16
76
5.66
105
6.25
100
6.97
94
7.77
82
8.40
95
9.04
95
9.21
92
9.97
90
10.4
90
11.6
98
12.6
100
13.9
82
16.0
85
17.3
77
19.5
74
20.7
88
22.0
76
23.2
62
24.4
74
25.5
77
27.1
71
28.3
73
29.3
74
29.5
86
35.0
87
38.3
80
42.2
76
44.0
72
47.0
84
47.4
75
54.1
68
58.9
62
58.8
59
72.2
64
91.4
64
–
–
–
–
–
–
–
–
–
–
–
–
SRF typ
5
(GHz)
16.0
15.2
15.1
14.0
13.0
12.8
11.7
9.50
7.15
6.85
6.80
6.50
5.80
5.80
5.40
5.40
5.00
5.00
4.70
4.70
4.70
4.40
4.20
3.90
3.70
3.55
3.50
3.50
1.70
3.30
3.30
3.15
3.15
3.15
3.20
2.90
2.80
2.80
2.70
2.60
2.60
2.50
2.40
2.30
2.07
1.84
1.75
1.58
1.25
1.14
1.08
0.96
DCR max
6
Irms
7
(Ohms)
(mA)
0.030
2300
0.038
2100
0.038
2100
0.042
2000
0.056
1500
0.045
1700
0.045
1700
0.045
1700
0.040
1600
0.060
1500
0.100
1200
0.048
1600
0.050
1600
0.055
1500
0.080
1400
0.054
1500
0.058
1500
0.070
1400
0.075
1400
0.085
1300
0.065
1400
0.070
1200
0.140
870
0.078
1100
0.130
850
0.120
900
0.145
850
0.155
780
0.460
450
0.160
800
0.160
800
0.170
700
0.170
700
0.170
700
0.275
450
0.275
450
0.330
490
0.360
480
0.480
470
0.430
450
0.430
450
0.520
450
0.580
420
0.700
360
0.900
330
1.00
320
1.10
315
1.20
310
1.20
310
2.0
240
2.1
240
3.1
160
1. When ordering, specify
tolerance, termination
and
packaging
codes:
0402HP-82NXJLW
Tolerance: G
= 2%
J
= 5% (Table shows stock tolerances in bold.)
Termination: L
= RoHS compliant silver-palladium-platinum-glass frit.
Special order: T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: W
= 7″ machine-ready reel. EIA-481 punched paper tape
(2000 parts per full reel).
U
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter W instead.
2. Inductance measured at test frequency using a Coilcraft SMD-F fixture in
an Agilent/HP 4286 impedance analyzer with Coilcraft-provided
correlation pieces.
3. Tolerances in bold are stocked for immediate shipment.
4. Q measured using an Agilent/HP 4287A with an Agilent/HP 16197 test
fixture.
5. SRF measured using an Agilent/HP 8722ES network analyzer and a
Coilcraft SMD-D test fixture.
6. DCR measured on a micro-ohmmeter and a Coilcraft CCF858 test
fixture.
7. Current that causes a 15°C temperature rise from 25°C ambient.
8. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Specifications subject to change without notice.
Please check our website for latest information.
Document 526-2
Revised 07/16/09
© Coilcraft, Inc. 2009
