The FullFlex™ dual port SRAM families consist of 2-Mbit, 9-Mbit,
18-Mbit, and 36-Mbit synchronous, true dual port static RAMs
that are high speed, low power 1.8 V or 1.5 V CMOS. Two ports
are provided, enabling simultaneous access to the array.
Simultaneous access to a location triggers deterministic access
control. For FullFlex72 these ports operate independently with
72-bit bus widths and each port is independently configured for
two pipelined stages. Each port is also configured to operate in
pipelined or flow through mode.
The advanced features include the following:
■
True dual port memory enables simultaneous access the
shared array from each port
Synchronous pipelined operation with single data rate (SDR)
operation on each port
❐
SDR interface at 200 MHz
❐
Up to 28.8 Gb/s bandwidth (200 MHz × 72-bit × 2 ports)
Selectable pipelined or flow-through mode
1.5 V or 1.8 V core power supply
Commercial and Industrial temperature
IEEE 1149.1 JTAG boundary scan
Available in 484-ball PBGA (× 72) and 256-ball FBGA (× 36
and × 18) packages
FullFlex72 family
❐
36-Mbit: 512 K × 72 (CYD36S72V18)
❐
18-Mbit: 256 K × 72 (CYD18S72V18)
❐
9-Mbit: 128 K × 72 (CYD09S72V18)
FullFlex36 family
❐
36-Mbit: 1 M × 36 (CYD36S36V18)
❐
18-Mbit: 512 K × 36 (CYD18S36V18)
❐
9-Mbit: 256 K × 36 (CYD09S36V18)
❐
2-Mbit: 64 K × 36 (CYD02S36V18)
FullFlex18 family
❐
36-Mbit: 2 M × 18 (CYD36S18V18)
❐
18-Mbit: 1 M × 18 (CYD18S18V18)
❐
9-Mbit: 512 K × 18 (CYD09S18V18)
Built in deterministic access control to manage address
collisions
❐
Deterministic flag output upon collision detection
❐
Collision detection on back-to-back clock cycles
❐
First busy address readback
Advanced features for improved high speed data transfer and
flexibility
❐
Variable impedance matching (VIM)
❐
Echo clocks
❐
Selectable LVTTL (3.3 V), Extended HSTL (1.4 V to 1.9 V),
1.8 V LVCMOS, or 2.5 V LVCMOS IO on each port
❐
Burst counters for sequential memory access
❐
Mailbox with interrupt flags for message passing
❐
Dual chip enables for easy depth expansion
■
■
■
■
■
■
Built in deterministic access control to manage address
collisions during simultaneous access to the same memory
location
Variable impedance matching (VIM) to improve data
transmission by matching the output driver impedance to the
line impedance
Echo clocks to improve data transfer
■
■
■
To reduce the static power consumption, chip enables power
down the internal circuitry. The number of latency cycles before
a change in CE
0
or CE
1
enables or disables the databus
matches the number of cycles of read latency selected for the
device. For a valid write or read to occur, activate both chip
enable inputs on a port.
Each port contains an optional burst counter on the input address
register. After externally loading the counter with the initial
address, the counter increments the address internally.
Additional device features include a mask register and a mirror
register to control counter increments and wrap around. The
counter interrupt (CNTINT) flags notify the host that the counter
reaches maximum count value on the next clock cycle. The host
reads the burst counter internal address, mask register address,
and busy address on the address lines. The host also loads the
counter with the address stored in the mirror register by using the
retransmit functionality. Mailbox interrupt flags are used for
message passing, and JTAG boundary scan and asynchronous
Master Reset (MRST) are also available. The
Logic Block
Diagram on page 2
shows these features.
The FullFlex72 is offered in a 484-ball plastic BGA package. The
FullFlex36 and FullFlex18 are available in 256-ball fine pitch
BGA package except the 36-Mbit devices which are offered in
484-ball plastic BGA package.
■
■
■
Cypress Semiconductor Corporation
Document Number: 38-06082 Rev. *M
•
198 Champion Court
•
San Jose
,
CA 95134-1709
•
408-943-2600
Revised October 28, 2011
[+] Feedback
CYDXXS72V18
CYDXXS36V18
CYDXXS18V18

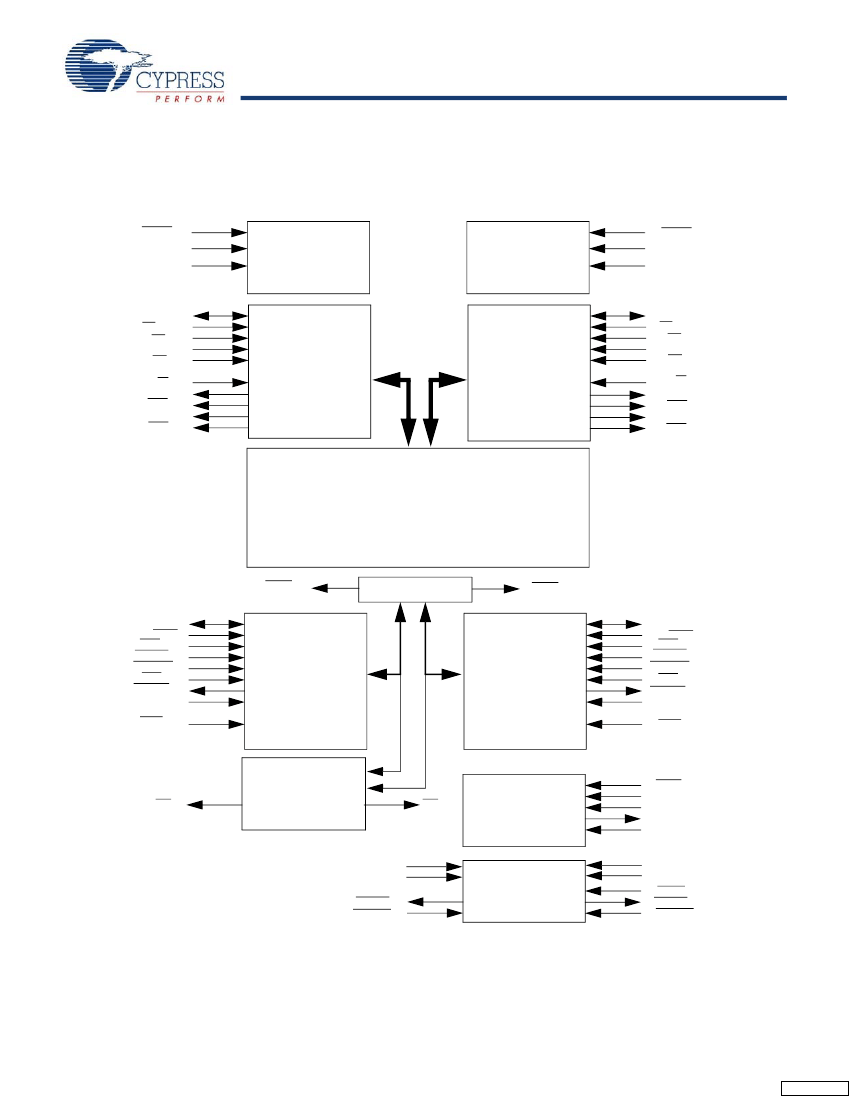

Logic Block Diagram
The Logic Block Diagram for FullFlex72, FullFlex36, and FullFlex18 family follows:
[1, 2, 3]
FTSEL
L
CQEN
L
PORTSTD[1:0]
L
CONFIG Block
CONFIG Block
FTSEL
R
CQEN
R
PORTSTD[1:0]
R
DQ[71:0]
L
BE
[7:0]
L
CE
0
L
CE1
L
OE
L
R/
W
L
CQ1
L
CQ1
L
CQ0
L
CQ0
L
IO
Control
IO
Control
DQ [71:0]
R
BE
[7:0]
R
CE
0
R
CE1
R
OE
R
R/
W
R
CQ1
R
CQ1
R
CQ0
R
CQ0
R
Dual Port Array
BUSY
L
Collision Detection Logic
BUSY
R
A [20:0]
L
CNT/
MSK
L
ADS
L
CNTEN
L
CNTRST
L
RET
L
CNTINT
L
C
L
WRP
L
Address &
Counter Logic
Address &
Counter Logic
A [20:0]
R
CNT/
MSK
R
ADS
R
CNTEN
R
CNTRST
R
RET
R
CNTINT
R
C
R
WRP
R
Mailboxes
INT
L
INT
R
JTAG
TRST
TMS
TDI
TDO
TCK
ZQ0
L
ZQ1
L
READY
L
LowSPD
L
RESET
LOGIC
ZQ0
R
ZQ1
R
MRST
READY
R
LowSPD
R
Notes
1. The CYD36S18V18 device has 21 address bits. The CYD36S36V18 and CYD18S18V18 devices have 20 address bits. The CYD36S72V18, CYD18S36V18, and
CYD09S18V18 devices have 19 address bits. The CYD18S72V18 and CYD09S36V18 devices have 18 address bits. The CYD09S72V18 device has 17 address bits.
The CYD02S36V18 has 16 address bits.
2. The FullFlex72 family of devices has 72 data lines. The FullFlex36 family of devices has 36 data lines. The FullFlex18 family of devices has 18 data lines.
3. The FullFlex72 family of devices has eight byte enables. The FullFlex36 family of devices has four byte enables. The FullFlex18 family of devices has two byte enables.
