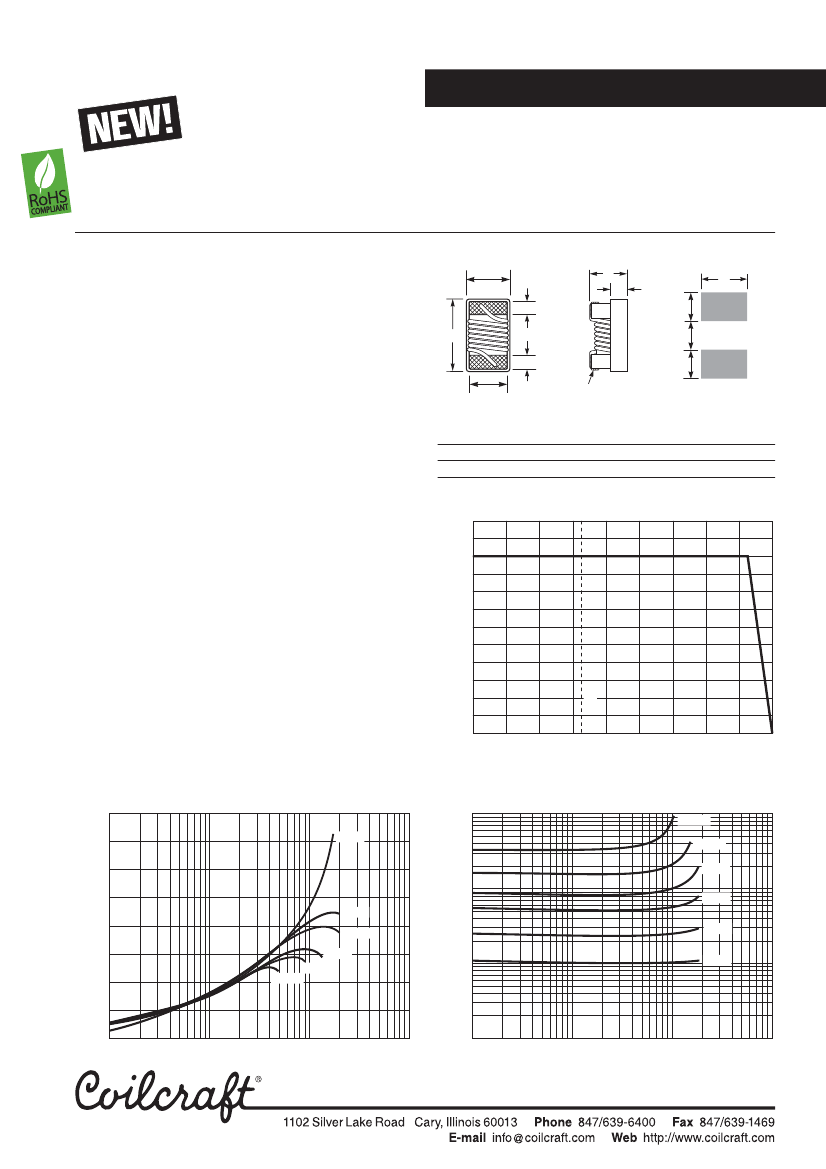

Chip Inductors – 0603HP Series (1608)
•
•
•
•
Higher Q and lower DCR than other 0603 inductors
Highest SRF values – as high as 16 GHz
Excellent current handling capability – up to 2100 mA
54 inductance values from 1.8 to 390 nH
B
overall
F
A
G
F
E
terminal
Terminal wraparound:
approx 0.01/0,24 both ends
C
D
I
J
I
H
Core material
Ceramic
Terminations
RoHS compliant silver-palladium-platinum-glass frit.
Other terminations available at additional cost.
Weight
2.0 – 3.2 mg
Ambient temperature
–40°C to +125°C with
Irms
current, +125°C
to +140°C with derated current
Storage temperature
Component: –40°C to +140°C.
Packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +125 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Recommended
Land Pattern
A
B
C
max min
–
max max
D
E
F
G
H
I
J
0.069 0.034 – 0.043 0.034 0.015 0.029 0.013 0.038 0.040 0.027 0.028 inches
1,75
0,86 – 1,09
0,86
0,38 0,74 0,33
0,96 1,02 0,69 0,71 mm
Current Derating
120
110
100
Percent of rated
I
rms
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
One per billion hours / one billion hours, calculated per Telcordia SR-332
Packaging
2000 per 7″ reel. Paper tape: 8 mm wide, 1 mm thick,
4 mm pocket spacing
PCB washing
Only pure water or alcohol recommended
90
80
70
60
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100
120 140
25°C
Ambient temperature (°C)
Typical Q vs Frequency
160
140
120
10 nH
Typical L vs Frequency
1000
330 nH
150 nH
82 nH
Inductance (nH)
100
Q Factor
100
24 nH
80
60
40
20
0
10
100
1000
10000
330 nH
51 nH
82 nH
150 nH
51 nH
24 nH
10 nH
10
1
10
100
1000
10000
Frequency (MHz)
Specifications subject to change without notice.
Please check our website for latest information.
Frequency (MHz)
Document 537-1
Revised 05/18/09
© Coilcraft, Inc. 2009
Document 537-2
0603HP Series (1608)
Part number
1
0603HP-1N8XJL_
0603HP-2N2XJL_
0603HP-3N3X_L_
0603HP-3N6X_L_
0603HP-3N9X_L_
0603HP-4N3X_L_
0603HP-4N7X_L_
0603HP-5N1X_L_
0603HP-5N6X_L_
0603HP-6N0X_L_
0603HP-6N8X_L_
0603HP-7N2X_L_
0603HP-7N5X_L_
0603HP-8N2X_L_
0603HP-8N7X_L_
0603HP-9N1X_L_
0603HP-9N5X_L_
0603HP-10NX_L_
0603HP-11NX_L_
0603HP-12NX_L_
0603HP-15NX_L_
0603HP-16NX_L_
0603HP-18NX_L_
0603HP-22NX_L_
0603HP-23NX_L_
0603HP-24NX_L_
0603HP-27NX_L_
0603HP-30NX_L_
0603HP-33NX_L_
0603HP-36NX_L_
0603HP-39NX_L_
0603HP-43NX_L_
0603HP-47NX_L_
0603HP-51NX_L_
0603HP-56NX_L_
0603HP-68NX_L_
0603HP-72NX_L_
0603HP-75NX_L_
0603HP-82NX_L_
0603HP-91NX_L_
0603HP-R10X_L_
0603HP-R11X_L_
0603HP-R12X_L_
0603HP-R15X_L_
0603HP-R18X_L_
0603HP-R20X_L_
0603HP-R21X_L_
0603HP-R22X_L_
0603HP-R25X_L_
0603HP-R27X_L_
0603HP-R30X_L_
0603HP-R33X_L_
0603HP-R36X_L_
0603HP-R39X_L_
Inductance
2
Percent
(nH)
tol
1.8
5
2.2
5
3.3
5,2
3.6
5,2
3.9
5,2
4.3
5,2
4.7
5,2
5.1
5,2
5.6
5,2
6.0
5,2
6.8
5,2
7.2
5,2
7.5
5,2
8.2
5,2
8.7
5,2
9.1
5,2
9.5
5,2
10
5,2
11
5,2
12
5,2
15
5,2
5,2
16
18
5,2
22
5,2
23
5,2
24
5,2
27
5,2
30
5,2
33
5,2
36
5,2
39
5,2
43
5,2
47
5,2
51
5,2
56
5,2
68
5,2
72
5,2
75
5,2
82
5,2
91
5,2
100
5,2
110
5,2
120
5,2
150
5,2
180
5,2
200
5,2
210
5,2
220
5,2
250
5,2
270
5,2
300
5,2
330
5,2
360
5,2
390
5,2
L test
Q typ
freq
at
(MHz) 250 MHz
250
23
250
13
250
32
250
40
250
35
250
30
250
26
250
40
250
48
250
49
250
42
250
48
250
41
250
46
250
46
250
40
250
49
250
49
250
41
250
37
250
48
250
45
250
41
250
44
250
40
250
42
250
44
250
49
250
45
250
44
250
48
250
45
200
47
200
49
200
50
200
46
150
46
150
46
150
45
150
45
150
49
150
47
150
47
150
47
100
48
100
47
100
48
100
47
100
45
100
46
100
47
100
46
100
47
100
47
Designer’s Kits C406A
and
B
contain 10 each of all 5% values
Designer’s Kits C406A-2
and
B-2
contain 10 each of all 2% values
900 MHz
L typ
Q typ
3
1.77
40
2.14
25
3.28
67
3.59
70
3.88
68
4.29
58
4.65
48
5.08
84
5.60
87
5.92
94
6.83
88
7.25
96
7.55
81
8.21
96
8.73
97
9.18
76
9.56
98
10.16
90
11.06
78
12.26
69
15.41
83
16.37
77
18.56
76
22.7
77
24.0
69
24.9
77
28.4
74
31.5
82
34.9
76
38.5
69
41.5
78
45.7
83
50.6
77
54.6
73
60.3
74
75.5
73
80.8
69
84.6
71
94.0
62
103.0
64
114.0
69
126.2
63
142.4
61
188.8
57
232.2
50
265.0
47
288.0
45
315.0
41
—
—
—
—
—
—
—
—
—
—
—
—
1.7 GHz
L typ
Q typ
3
1.77
65
2.12
35
3.32
104
3.62
116
3.95
108
4.31
91
4.71
75
5.12
140
5.73
145
6.12
154
7.05
143
7.38
139
7.85
112
8.39
148
9.00
149
9.64
109
9.99
149
10.64
142
11.82
108
13.20
91
17.20
124
18.70
116
20.90
100
25.90
88
29.53
80
28.90
91
34.00
84
37.90
82
42.90
80
50.00
64
51.90
74
58.10
76
66.90
72
71.30
62
79.90
56
113.3
49
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
SRF
typ
4
(GHz)
16.0
15.0
9.60
9.70
7.50
7.50
7.90
8.90
6.60
6.00
5.80
5.40
5.30
5.90
5.50
5.10
4.90
4.30
4.10
4.10
3.60
3.50
3.30
3.15
3.00
2.95
2.80
2.80
2.70
2.50
2.45
2.45
2.30
2.30
2.20
2.00
1.90
1.90
1.80
1.65
1.70
1.60
1.55
1.35
1.30
1.25
1.20
1.10
1.05
1.05
0.99
0.93
0.93
0.88
DCR
max
5
(Ohms)
0.033
0.180
0.024
0.031
0.039
0.080
0.100
0.036
0.036
0.036
0.042
0.052
0.080
0.054
0.054
0.037
0.053
0.048
0.042
0.088
0.078
0.085
0.066
0.140
0.150
0.074
0.150
0.130
0.170
0.225
0.19
0.17
0.24
0.28
0.30
0.33
0.42
0.52
0.46
0.58
0.54
0.58
0.72
0.82
1.50
2.00
2.00
2.00
3.00
2.25
2.80
3.60
4.00
4.00
Irms
6
(mA)
2100
900
1900
1900
1600
1300
1100
1700
1700
1700
1400
1400
1300
1400
1400
1400
1400
1400
1400
1100
1200
1100
1200
850
850
1100
780
920
680
720
680
810
680
660
610
600
550
500
510
440
470
440
420
390
310
280
280
280
240
260
220
180
170
170
Color
code
Black
Yellow
Blue
Red
Brown
Orange
Violet
Green
Black
White
Red
Green
Brown
Orange
Yellow
Black
Blue
Orange
Gray
Yellow
Green
White
Blue
Violet
Orange
Black
Gray
Brown
White
Red
Black
Orange
Brown
Blue
Red
Orange
Yellow
Violet
Green
White
Blue
Violet
Gray
White
Black
Green
Gray
Brown
Violet
Red
Green
Blue
Gray
Yellow
1. When ordering, please specify
tolerance, termination
and
packaging
codes:
0603HP-R39XJLW
Tolerance: G
= 2%
J
= 5% (Table shows stock tolerances in bold.)
Termination: L
= RoHS compliant silver-palladium-platinum-glass frit.
Special order: T
= RoHS tin-silver-copper (95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: W
= 7″ machine-ready reel. EIA-481 punched paper tape
(2000 parts per full reel).
U
= Less than full reel. In tape, but not machine ready. To
have a leader and trailer added ($25 charge), use code
letter W instead.
2. Inductance tested at listed frequency using an Agilent/HP 4286A impedance
analyzer with a Coilcraft SMD-A fixture and Coilcraft-provided correlation
pieces.
3. Q measured using an Agilent/HP 16197 test fixture in an Agilent/HP 4291
impedance analyzer.
4. SRF measured using an Agilent/HP 8722ES network analyzer and a Coilcraft
SMD-D test fixture.
5. DCR measured on a micro-ohmmeter and a Coilcraft CCF858 test fixture.
6. Current that causes a 15°C temperature rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Specifications subject to change without notice.
Please check our website for latest information.
Document 537-2
Revised 05/18/09
© Coilcraft, Inc. 2009
Special Edition for Assessment Centres
