1-103640-9

Description
HEADER CONNECTOR,CABLE MNT,20 CONTACTS,SKT,0.1 PITCH,CRIMP TERMINAL,POLARIZED LCK,BLACK
CategoryThe connector    The connector
File Size166KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

1-103640-9 Overview

HEADER CONNECTOR,CABLE MNT,20 CONTACTS,SKT,0.1 PITCH,CRIMP TERMINAL,POLARIZED LCK,BLACK

1-103640-9 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid300345460
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.098 inch
subject depth0.6 inch
body length1.998 inch
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance15 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage600VAC V
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialPOLYETHYLENE
Plug contact pitch0.1 inch
Installation option 1POLARIZED LCK
Installation typeCABLE
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-65 °C
Plating thickness15u inch
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Termination typeCRIMP
Total number of contacts20
Maximum wire diameter26 AWG
Minimum wire diameter30 AWG

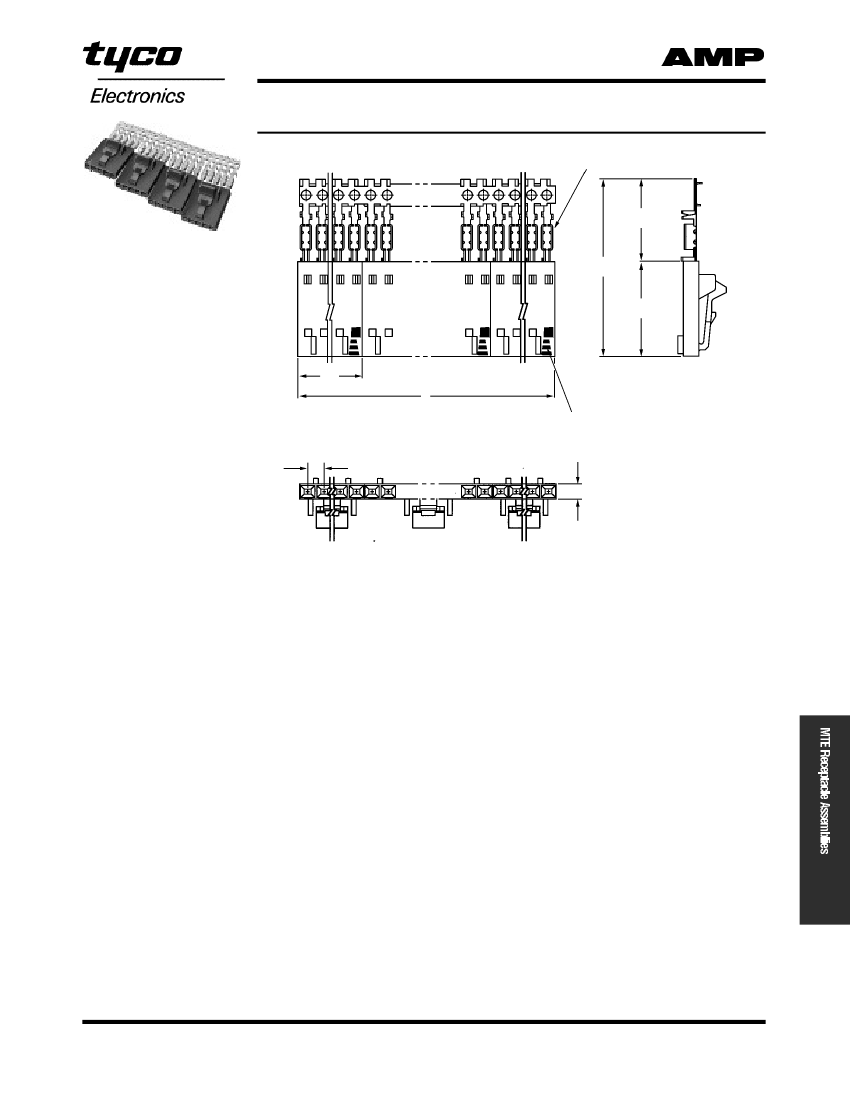

AMPMODU Interconnection System
MTE Receptacle Assemblies—Polarized/Latching,
Single-Row, .100 [2.54] Centerline
Receptacle Contacts
(See Note 1)
.520
[13.21]
Preassembled housings in strip
form are available in positions
2 thru 12. For ease of handling,
positions 2 thru 5 are
recommended when using the Tyco
Electronics Manual Pistol Grip
Tool.
1.120
[28.45]
.600
[15.24]
Material and Finish:
Housing—Black
thermoplastic,
94V-0 rated
Contacts—Phosphor
Bronze, plated as
follows:
Plating A—Duplex
plated .000030
[0.00076] gold on contact area, .000050
[0.00127] min. tin-lead in crimp area,
with entire contact underplated .000050
[0.00127] nickel
Plating B—Duplex
plated .000015
[0.00038] gold on contact area, .000050
[0.00127] min. tin-lead in crimp area,
with entire contact underplated .000050
[0.00127] nickel
Plating C—.000100
[0.00254] bright
tin-lead over .000050 [0.00127] nickel on
entire contact
Note:
Insulation displacement contacts
accept an insulation diameter of .030 [0.76]
min. to .054 [1.37] max. with an
insulation wall thickness of .015 [0.38]
max. Mating post length for preloaded
housings is .200 [5.08] min., .250 [6.35]
max.
B
Typ.
A
Position No. 1 Indicator
(Farside)
.100
[2.54] Typ.
.098
[2.49]
Related Product Data:
Mateable AMPMODU Products:
Pin Assemblies
(Polarized/Latching)—
pages 253, 254
Pin Assemblies with Guide
Ribs (installed in Panel Mount
Pin Shroud)—pages
255, 256, 259
Headers (Polarized/Latching)—
pages 261-270
Interchangeable Crimp Contacts
(Short Point)––page 272
Application Tooling—pages
291, 292
Performance Specifications—
page 242
5
247
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Technical Documents
(pages
295, 296):
Product Specification
108-25034
Application Specification
114-25026
Catalog 1307819
Revised 6-04
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
