Part Number

Search

78097-105

Description
Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle
CategoryThe connector    The connector
File Size126KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

78097-105 Overview

Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Locking Mech, Receptacle

78097-105 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
Is SamacsysN
Other featuresLOW PROFILE, SHROUDED
body width0.536 inch
subject depth0.954 inch
body length0.705 inch
Body/casing typeRECEPTACLE
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationGOLD FLASH (30) OVER PALLADIUM NICKEL
Contact completed and terminatedGOLD FLASH (30) OVER PALLADIUM NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance35 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Durability1000 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
Insulator colorGRAY
insulator materialPOLYCARBONATE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number78097
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation option 1LOCKING MECH
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number3
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Shell materialPOLYCARBONATE
Terminal length0.13 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts6
UL Flammability Code94V-0
Base Number Matches1

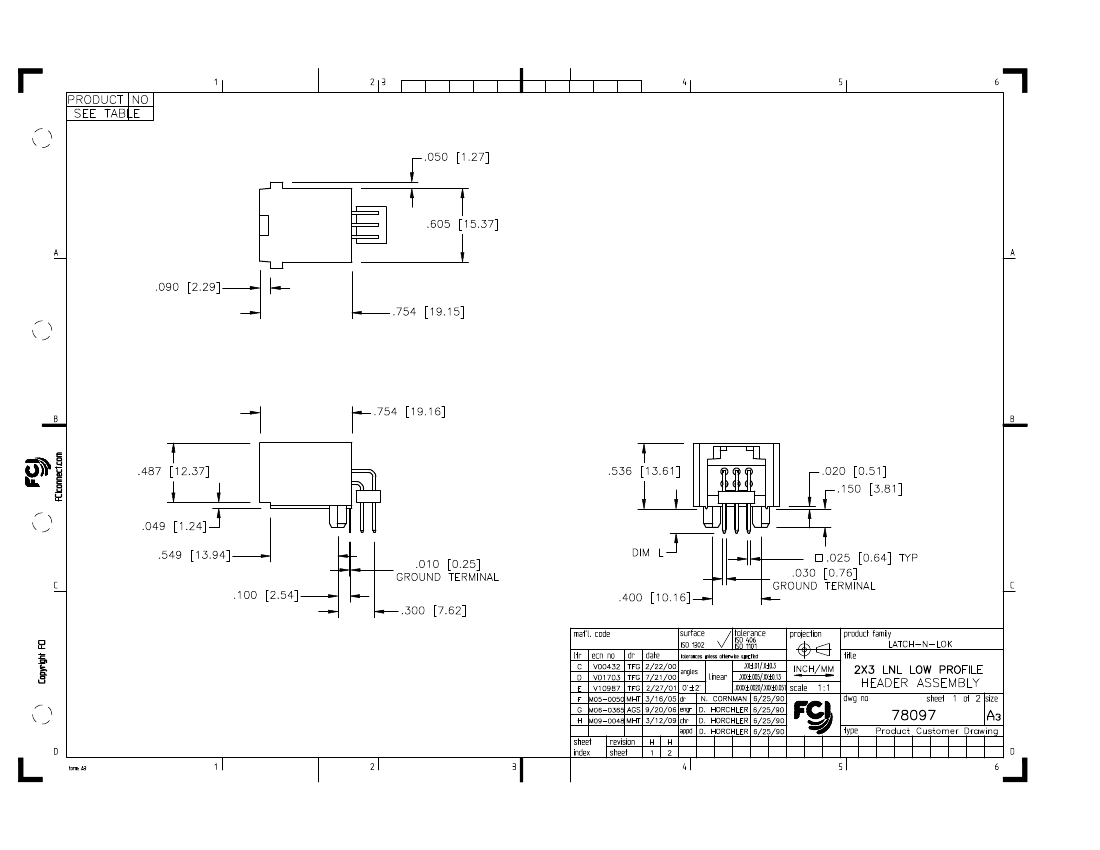

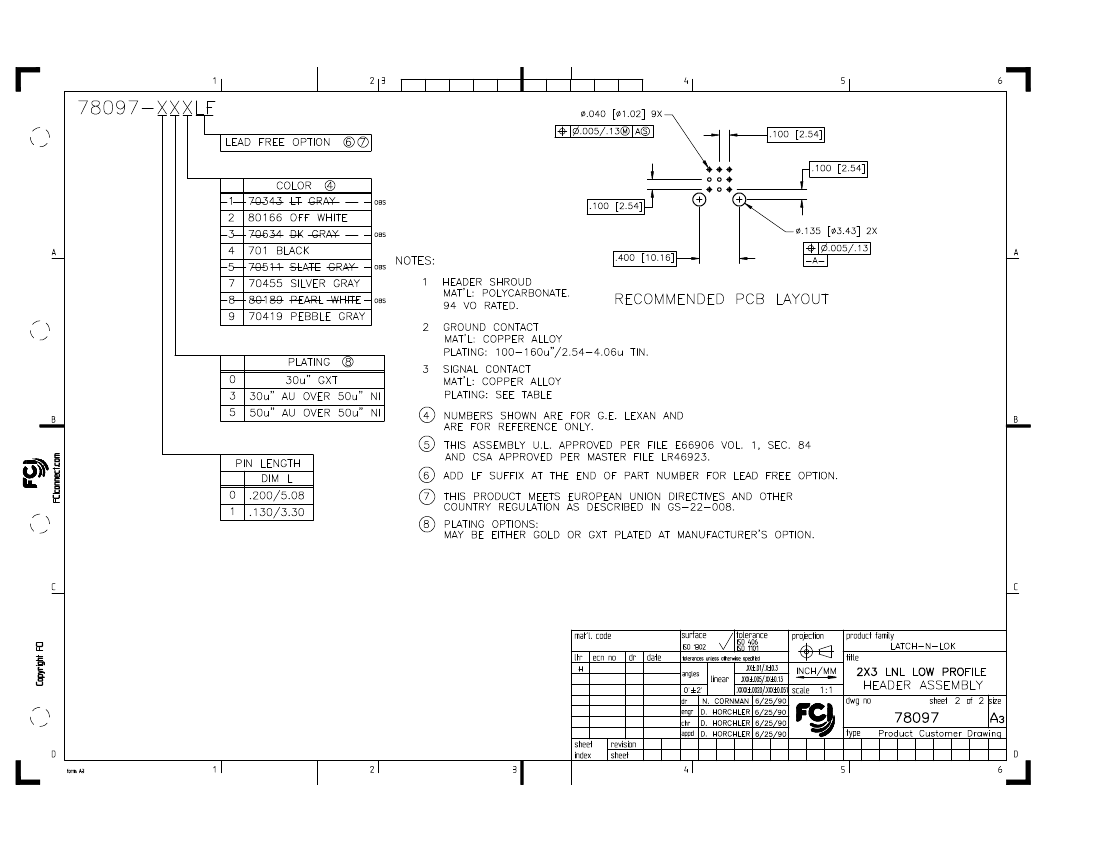

PDM: Rev:H
STATUS:
Released
Printed: Feb 20, 2010
.
