046283021012868+: DescriptionCONNECTOR, 21 CONTACT(S), MALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT, ROHS COMPLIANT; CategoryThe connector The connector; File Size119KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric View All

046283021012868+ Overview

CONNECTOR, 21 CONTACT(S), MALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT, ROHS COMPLIANT

046283021012868+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kyocera
Reach Compliance Code	unknown
Is Samacsys	N
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.3 mm
Termination type	SURFACE MOUNT
Total number of contacts	21
Base Number Matches	1

Preview

Download Datasheet

View All

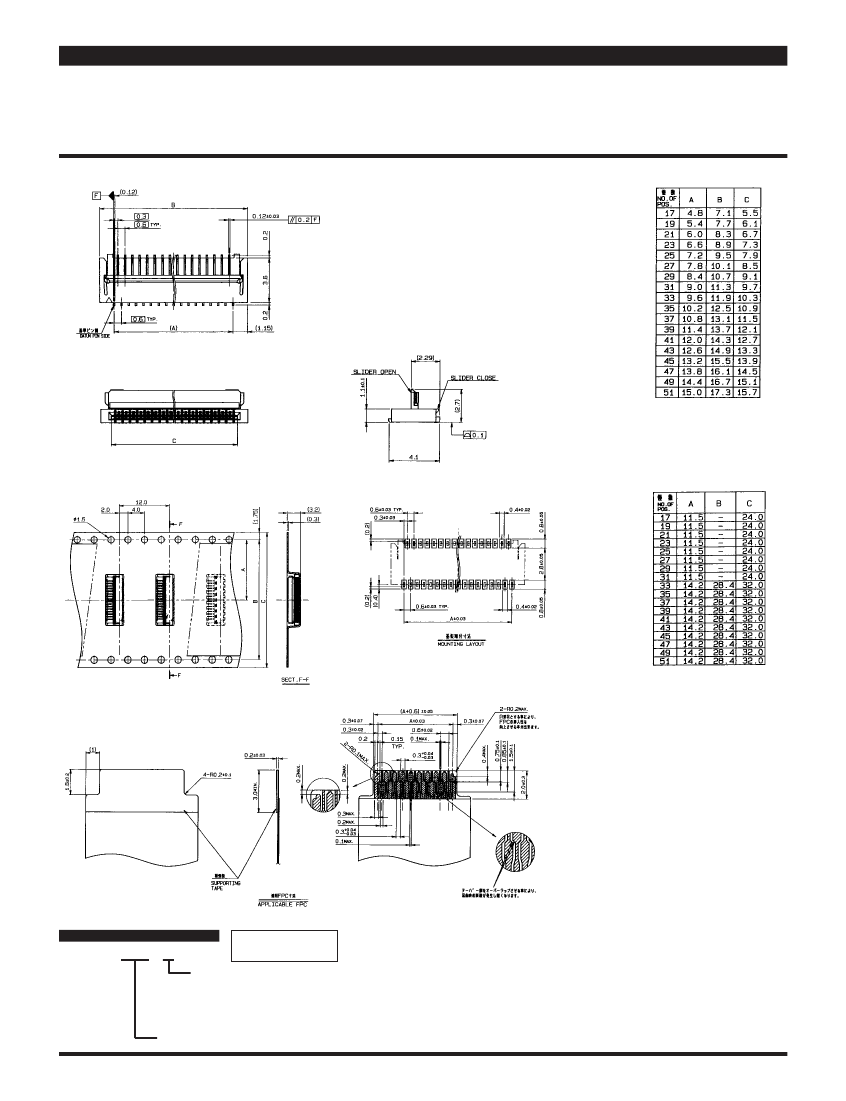

0.3mm Pitch

SERIES

6283

0.3mmピッチ RA SMT

上接点ワンタッチロック

0.3mmPitch RA SMT Top contact One- touch lock

R shape for

easy FPC

insertion.

生産対応可½極数につい

ては、営業部にご確認願

います。

Feel free to contact

our sales department

for available numbers

of positions.

注文コード

ORDERING CODE

04 6283 0XX 0X2 868+

RoHS 対応品

RoHS Compliant Product

For prevention against an open

circiut in being bent, the

tapered areas shall be laid as

indicated.

0 or 1

極数によりスライダー材質が異なります。

恐れ入りますが弊社営業まで御確認願います。

Feel free to contact our sales department for tha material of the actuator,

because the material differs according to the number of positions.

極数

NUMBER OF POSITIONS

梱包数量 2000個/リール

PACKING QUANTITY：2000/Reel
