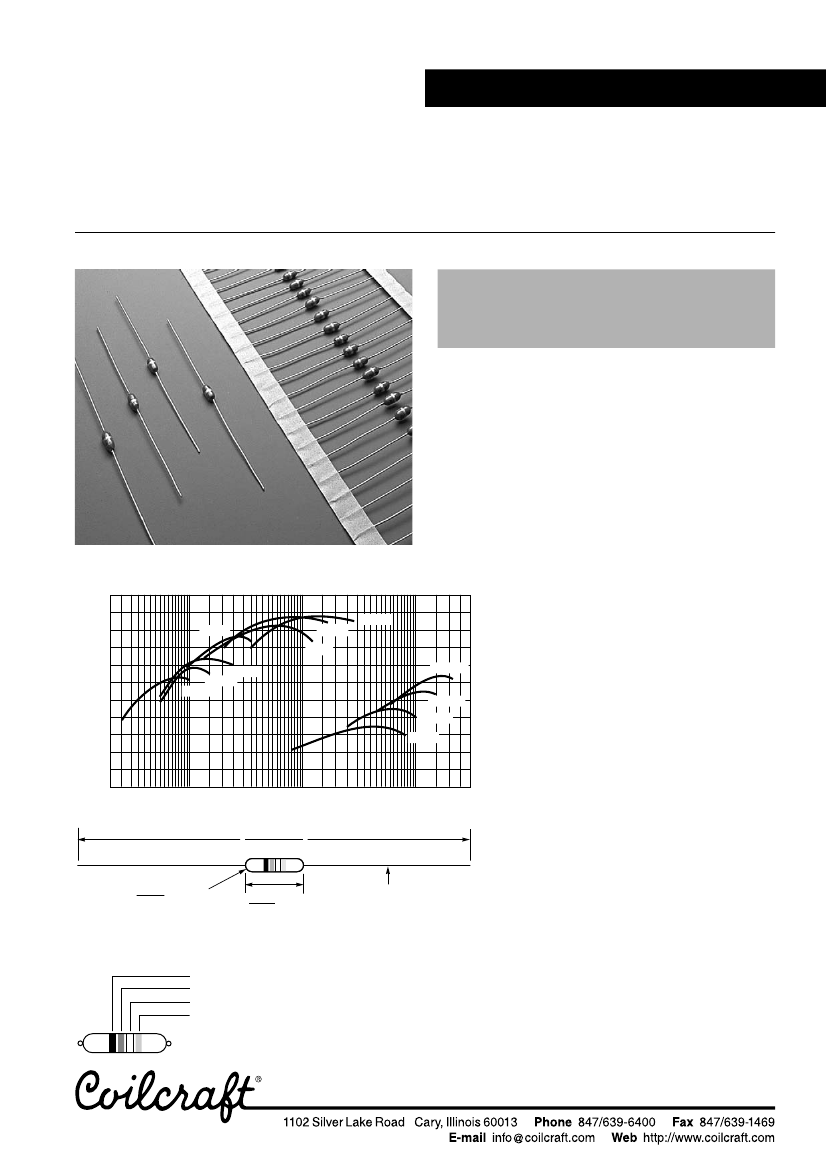

Document 115-1
Axial Lead Chokes – 90 Series
This series was discontinued on
December 31, 2006. An RoHS-compliant
version will not be made.
Coilcraft’s axial lead chokes are totally encapsulated in a
durable epoxy coating. Their low cost compared to molded
type chokes makes them particularly attractive to high
volume users. Coilcraft chokes are available in the stan-
dard values listed here as well as in custom values to meet
your specific requirements.
Typical Q vs Frequency
125
22 µH
100
3.3 µH
10 µH
68 µH
150 µH
1000 µH
0.10 µH
0.22 µH
0.47 µH
1.0 µH
25
0
0.2
1
10
100
2.2 µH
Features
•
No molding stress to break wire
•
10% inductance tolerance standard, 5%
•
•
•
•
•
available
Temperature coefficient compatible with
N030-N080 capacitors through part
number 90-30
Standard EIA color coding
Significant savings for high volume users
Available bulk packed in conventional tape
and reel or “ammo packs.” Custom lead
forming also available
Offered in 49 standard values or in custom
values
Q-Factor
75
50
Frequency (MHz)
2.52 ±0.080
64 ±2,03
0.118
max dia
2,997
0.300
max
7,62
24 AWG tinned copper
Weight:
171 – 201 mg
Color Coding – Inductance in μH
Significant digit / Decimal point
Significant digit / Decimal point
Significant digit / Multiplier
Tolerance
Black
Brown
Red
Orange
Yellow
Green
Blue
=
=
=
=
=
=
=
0
1
2
3
4
5
6
Violet =
Gray =
White =
Gold =
7
8
9
Decimal point
Tolerance: Silver = 10%
Gold = 5%
Notes:
A gold stripe in the 1st or 2nd
location represents a decimal point.
When a decimal point is used, there
is no multiplier.
The inductance value indicated is in
microHenries.
Specifications subject to change without notice.
Please check our website for latest information.
Document 115-1
Revised 12/31/06
© Coilcraft, Inc. 2009
Document 115-2
Axial Lead Chokes – 90 Series
Part
number
1
90-01
90-02
90-03
90-04
90-05
90-06
90-07
90-08
90-09
90-10
90-11
90-12
90-13
90-14
90-15
90-16
90-17
90-18
90-19
90-20
90-21
90-22
90-23
90-24
90-25
90-26
90-27
90-28
90-29
90-30
90-31
90-32
90-33
90-34
90-35
90-36
90-37
90-38
90-39
90-40
90-41
90-42
90-43
90-44
90-45
90-46
90-47
90-48
90-49
Inductance
2
±10%
(µH)
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
Q
3
min
38
38
38
35
33
33
30
30
30
30
28
28
25
60
60
60
60
50
50
50
40
40
40
40
35
60
60
60
50
50
50
50
50
50
50
50
50
60
60
60
60
60
60
60
60
60
60
60
60
Test freq
(MHz)
25
25
25
25
25
25
25
25
25
25
25
25
25
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
0.79
DCR max
(Ohms)
0.08
0.09
0.11
0.12
0.14
0.16
0.22
0.30
0.35
0.50
0.60
0.85
1.00
0.15
0.16
0.20
0.29
0.40
0.42
0.60
0.66
0.70
0.90
1.00
1.10
1.62
1.75
1.85
2.0
2.1
2.2
2.3
2.4
3.0
3.4
3.8
4.1
6.5
8.3
8.9
10.1
11.0
12.4
13.6
18.4
20.3
22.3
25.0
27.4
SRF min
(MHz)
680
640
600
550
510
460
410
365
330
310
280
260
240
150
140
125
115
100
90
80
60
45
40
28
24
20
17
16
14
12
10
9.5
9.0
7.8
7.0
6.7
6.1
4.8
4.1
4.0
3.6
3.3
3.1
2.9
2.4
2.2
2.0
1.9
1.8
Irms
4
(mA)
1380
1300
1230
1120
1040
975
830
710
660
550
500
420
390
620
560
480
415
355
285
263
239
195
185
160
144
160
157
149
144
140
130
125
110
100
92
88
84
66
61
57
52
47
45
40
36
35
30
29
28
Core
material
Phenolic
Phenolic
Phenolic
Phenolic
Phenolic
Phenolic
Phenolic
Phenolic
Phenolic
Phenolic
Phenolic
Phenolic
Phenolic
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
Ferrite
1. 5% tolerance part available as special order. Add –5 to end of the part
number: e.g. 90-49-5.
2. Inductance measured with a Coilcraft AXL-A test fixture and Agilent/HP
4192/4286 Impedance Analyzers.
3. Q measured on Agilent/HP 4192/4286 with AXL-A, direct-connected to
Agilent/HP 4342 Q-Meter.
4. Temperature rise at rated current and 90°C ambient
0.10 – 1.0 µH: 35°C
1.2 – 1000 µH: 15°C
5. Operating temperature range
0.10 – 1.0 µH:
−40°C
to +125°C
1.2 – 1000 µH:
−40°C
to +105°C
6. Electrical specifications at 25°C.
7. Color coding per MIL-C-15305C
8. Epoxy coating: flame resistant 94 VO
9. Designed to meet requirements of Military Specifications MS75083,
MS75084 and MS75085.
Specifications subject to change without notice.
Please check our website for latest information.
Document 115-2
Revised 12/31/06
© Coilcraft, Inc. 2009
