057-060-133V: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerPANCON CONNECTORS

Download Datasheet Parametric View All

057-060-133V Overview

Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator

057-060-133V Parametric

Parameter Name	Attribute value
Maker	PANCON CONNECTORS
Reach Compliance Code	unknown
Is Samacsys	N
body width	0.347 inch
subject depth	0.354 inch
body length	3.3 inch
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1400VAC V
Durability	250 Cycles
Insulation resistance	1000000000 Ω
Insulator color	GRAY
Manufacturer's serial number	057
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	60
Base Number Matches	1

Preview

Download Datasheet

View All

2

1

4

3

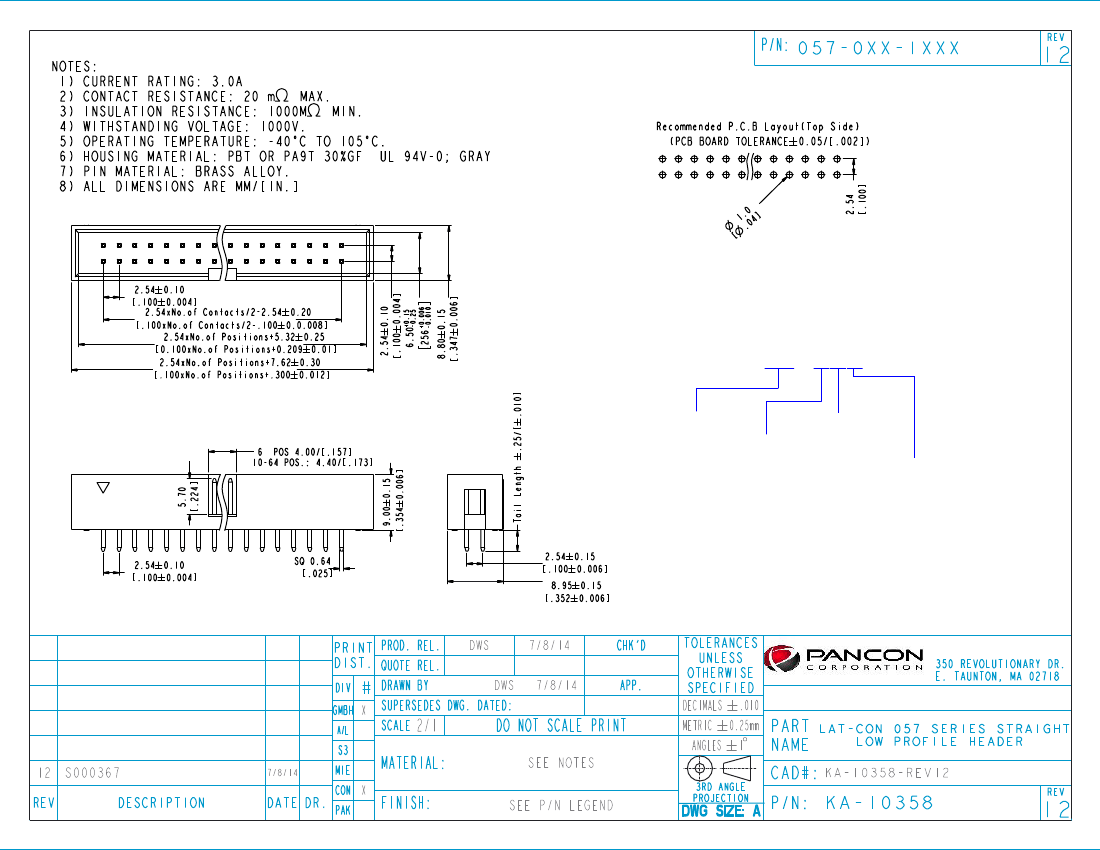

P/N LEGEND

057-0XX-1XXX

No.of Pins

Tail Length

2 = 4.5/[.177]

06

Performance

3 = 2.9/ [.114]

10

14

16

20

26

30

34

40

50

60

64

3 = Class A:

250 Mating Cycles

4 = Gold Flash

5 = Class D:

50 Mating Cycles

Packaging

Blank = Trays

T = Tubes

U = Reel with Cap

V = Tube with Cap
