SMT inductors
SIMID series, SIMID 0805-B
Series/Type:
Date:
B82498B
March 2008
7f
fÁRspp
©
EPCOS AG 2008. Reproduction, publication and dissemination of this publication, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
SMT inductors, SIMID series
SIMID 0805-B
Size 0805 (EIA) and/or 2012 (IEC)
Rated inductance 2.7 nH to 4700 nH
Rated current 90 mA to 1000 mA
Construction
■
Cubic coil with ceramic core
■
Winding partially plastic-sealed
■
Winding ends welded to terminals
B82498B
Features
■
■
■
■
■
High Q factor
High resonance frequency
Close inductance tolerance
Suitable for lead-free reflow soldering
RoHS-compatible
Applications
Resonant circuits, impedance matching for
■
Antenna amplifiers
■
Multimedia
■
Car access systems
■
TPMS (Tire Pressure Monitoring System)
■
Wireless communication systems
■
GPS (Global Positioning System)
Terminals
■
Base material Al
2
O
3
ceramic or ferrite
■
Thick-film coating of Ag/Pd/Pt
Marking
■
No marking on component
■
Minimum data on reel:
Manufacturer, ordering code, L value,
quantity, date of packing
Delivery mode and packing unit
■
8-mm blister tape, wound on 180-mm
∅
reel
■
Packing unit: 3000 pcs./reel
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
03/08
SMT inductors, SIMID series
SIMID 0805-B

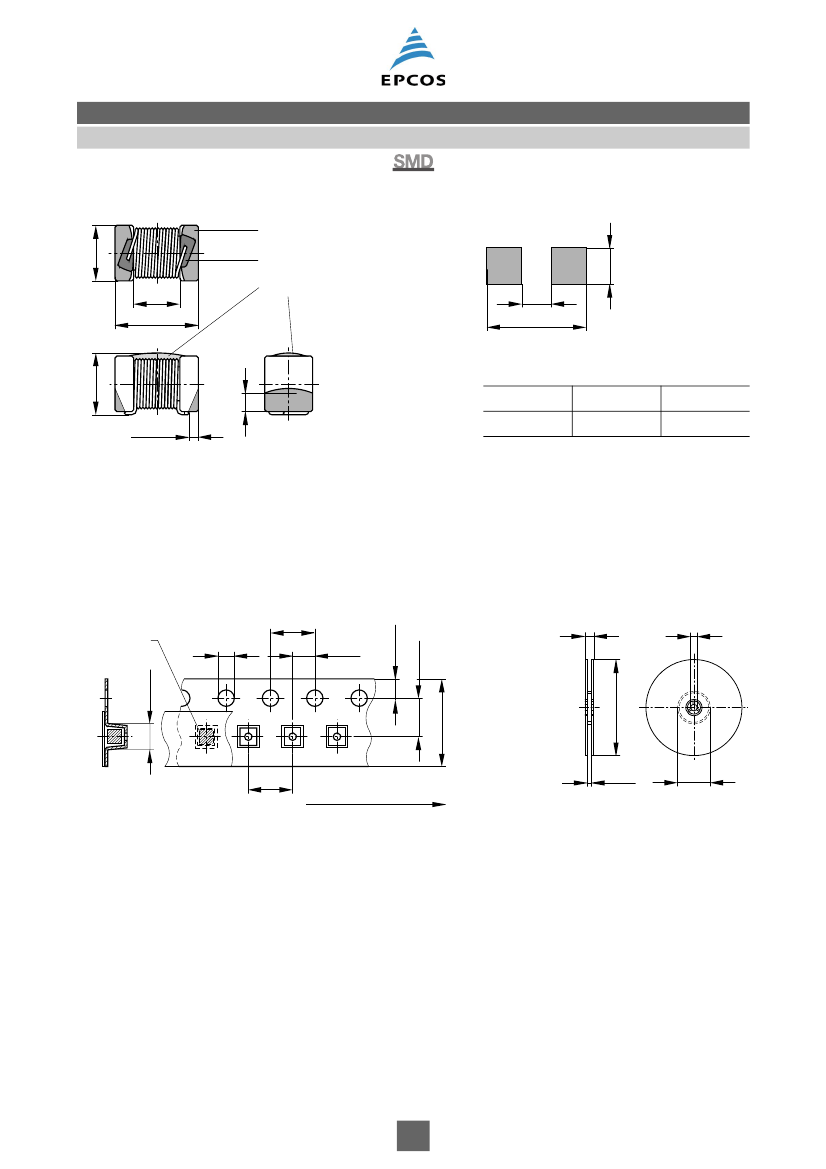

Dimensional drawing and layout recommendation
1.4 max.
Metallization
A
B82498B
Welding area
1)
1.2
_
0.1
2.2 max.
Acrylic plastics
C
B
IND0041-C
1.45 max.
0.5±0.3
A
1.1
±0.2
B
3.4
±0.4
C
1.1
±0.1
0.25 min.
1) This area (30% of contact area) should not be used
to assess solderability
IND0047-U-E
Dimensions in mm
Taping and packing
Blister tape
_
0
1.5
+0.1
Reel
1.75±0.1
4±0.1
14.4 max.
3.5±0.05
13±0.25
Component
2±0.05
2.35±0.1
8±0.3
4±0.1
Direction of unreeling
IND0594-Q-E
_
0
8.4
+1.5
178±2
ø60 min.
IND0581-C
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
03/08
SMT inductors, SIMID series
SIMID 0805-B
Technical data and measuring conditions
Rated inductance L
R
Q factor Q
min
,
Q
typ
B82498B
Measured with RF LCR meter Agilent 4286A and test
fixture Agilent 16193A at frequency f
L
, 0.1 V, 20 °C
Measured with RF LCR meter Agilent 4286A and test
fixture Agilent 16193A, 20 °C
Q
min
measured at frequency f
Q
85
°C
Maximum permissible DC with inductance decrease
ΔL/L
0
≤
10% and temperature increase of
≤
20 K
at rated temperature
Measured with network analyzer Agilent 8753D, 20 °C
Measured at 20 °C
Sn95.5Ag3.8Cu0.7: (245
±5)
°C, (5
±0.3)
s
Wetting of soldering area
≥
90%
(based on IEC 60068-2-58)
260
°C,
20 s (as referenced in JEDEC J-STD 020C)
55/125/56 (to IEC 60068-1)
Mounted: –55 °C … +125 °C
Packaged: –25 °C … +40 °C,
≤
75% RH
Approx. 8.5 mg
Rated temperature T
R
Rated current I
R
Self-resonance frequency f
res,min
DC resistance R
max
Solderability (lead-free)
Resistance to soldering heat
Climatic category
Storage conditions
Weight
Characteristics and ordering codes
L
R
nH
Core material: ceramic
2.7
5.6
6.8
8.2
10
12
15
18
22
27
±5%
^
Tolerance
Q
min
Q
typ
(at
800 MHz)
50
60
70
75
80
85
85
90
85
90
f
L
; f
Q
MHz
250
250
250
250
250
250
250
250
250
250
I
R
mA
1000
900
800
700
700
700
670
670
600
600
R
max
Ω
0.03
0.04
0.05
0.06
0.06
0.06
0.07
0.07
0.09
0.09
f
res,min
MHz
6000
6000
5500
5000
4500
4000
3500
3300
2600
2500
Ordering code
±10%
±20%
^
^
K
M
20
25
30
35
B82498B3279M000
B82498B3569M000
B82498B3689K000
B82498B3829M000
B82498B3100J000
B82498B3120J000
B82498B3150J000
B82498B3180J000
B82498B3220J000
B82498B3270J000
J
40
40
40
45
45
50
Closer tolerances on request.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
03/08
SMT inductors, SIMID series
SIMID 0805-B
Characteristics and ordering codes
L
R
nH
Core material: ceramic
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
Core material: ferrite
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
±2%
±5%
^
^
B82498B
Tolerance
Q
min
Q
typ
(at
800 MHz)
80
90
85
60
60
60
50
45
40
30
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
f
L
; f
Q
MHz
250
250
200
200
200
150
150
150
100
100
100
100
100
100
100
100
25.2
25.2
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
I
R
mA
520
560
500
480
410
390
350
270
270
260
240
180
180
130
115
100
250
240
250
220
200
190
130
120
100
95
90
R
max
Ω
0.12
0.10
0.13
0.14
0.19
0.21
0.26
0.44
0.44
0.47
0.55
1.0
1.0
1.9
2.4
3.2
0.50
0.55
0.50
0.65
0.75
0.85
1.7
2.0
3.3
3.6
3.8
f
res,min
MHz
2150
2050
1900
1700
1550
1430
1310
1210
1120
1030
950
870
800
730
660
600
450
400
350
300
250
250
200
200
200
150
150
Ordering code
1)
±5%
^
J
45
50
45
B82498B3330J000
B82498B3390J000
B82498B3470J000
B82498B3560+000
B82498B3680+000
B82498B3820+000
B82498B3101+000
B82498B3121+000
B82498B3151+000
B82498B3181+000
B82498B3221+000
B82498B3271+000
B82498B3331+000
B82498B3391+000
B82498B3471+000
B82498B3561+000
B82498B1681+000
B82498B1821+000
B82498B1102+000
B82498B1122+000
B82498B1152+000
B82498B1182+000
B82498B1222+000
B82498B1272+000
B82498B1332+000
B82498B1392+000
B82498B1472+000
±2%
±5%
^
^
G
J
45
45
40
40
40
35
35
35
35
35
35
35
35
G
J
20
20
20
20
20
20
20
20
20
20
20
Closer tolerances on request.
1) Replace the + by the code letter for the required inductance tolerance.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
03/08
