THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANCON.
"A"
"B"
PCB LAYOUT
.25(6.4)
.32(8.2)
"C"
.100
(2.54)
.100(2.54)
.100(2.54)
.100
(2.54)
.040 .003
DIA
(1.02 .08)
"C"
.236(6.0)
.36(9.1)
.24 (6.1)
"D"
.025 SQ. PIN
[6.35] SQ. PIN
X
Pb
RoHS
Compliant
Bolingbrook, Illinois
TM
LAT-CON

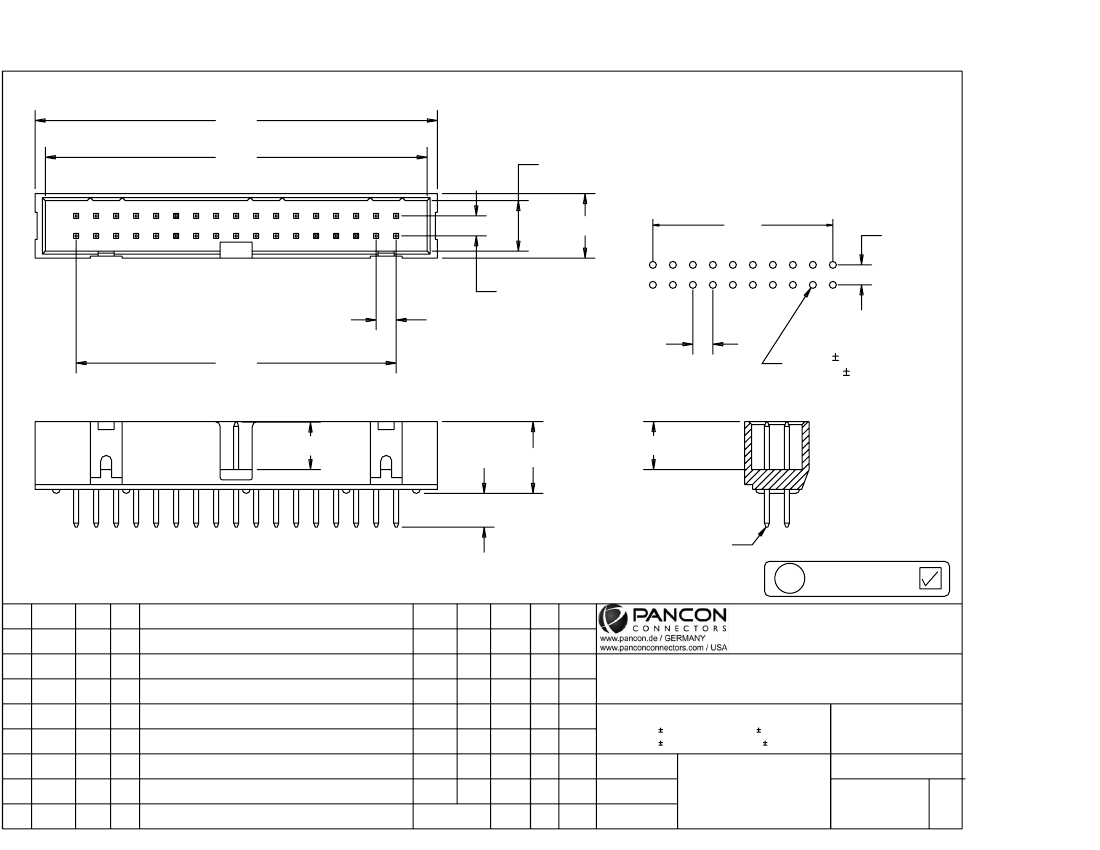

057 SERIES HEADER
STRAIGHT SOLDER TAIL LOW PROFILE
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE:
UNLESS OTHERWISE SPEC-
IFIED, ALL DIMENSIONS
ARE GIVEN IN INCHES.
THIRD ANGLE PROJECTION.
S C A L E
(.X)
(.XX)
D R A W N
(.XXX)
ANGLES
.02(.5)
B Y
MAT'L
.010(0.25)
WJH
10
6/7
SHC
/11
BY
CHK
2 : 1
N O.
ADDED PDNI PLATING
DESCRIPTION
2330
CN - R
CUST
SUP
D A T E
D R A W I N G
7-29-87
C H K'D
SEE NOTES
DWG.
REV DATE
JAF
KA-10358
SHT 1 OF 2
A
SIZE
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANCON.
*
057-0XX-1XXH
SERIES
DESIGNATION FOR 10 CIRCUIT
MILITARY STYLE KEYING ONLY
TAIL LENGTH
2: .177" [4.5]
3: .144" [2.9]
PLATING
1= 200m" TIN
3= 30m" GOLD OR
GOLD FLASH OVER 24m" PDNI
5= 15m" GOLD OR
GOLD FLASH OVER 12m" PDNI
- STANDARD HOUSING
H HIGH TEMP. HSG.
NUMBER OF CIRCUITS:
6,10,14,16,20,26,
34,40,50,60,64
NUMBER OF
CIRCUITS
6
10
14
16
20
26
34
40
50
60
64
DIMENSIONS
"A"
.61 (15.5)
.81 (20.6)
1.01 (25.7)
1.11 (28.2)
1.31 (33.3)
1.61 (40.9)
2.01 (51.1)
2.31 (58.7)
2.81 (71.4)
3.31 (84.1)
3.51 (89.2)
"B"
.51 (12.9)
.71 (18.0)
.91 (23.1)
1.01 (25.6)
1.21 (30.7)
1.51 (38.3)
1.91 (48.5)
2.21 (56.1)
2.71 (68.8)
3.21 (81.5)
3.41 (86.6)
"C"
.20 ( 5.1)
.40 (10.2)
.60 (15.2)
.70 (17.8)
.90 (22.9)
1.20 (30.5)
1.60 (40.6)
1.90 (48.3)
2.40 (61.0)
2.90 (73.7)
3.10 (78.7)
NOTES:
1. PART NUMBER : SEE PART NUMBER CODE(ABOVE)
2. POST MATERIAL: BRASS ALLOY; W/GOLD OR
PALLADIUM NICKEL W/GOLD FLASH IN MATING
AREA AND TIN PLATING OVER NICKEL ON
SOLDER TAILS.
BRIGHT TIN OVER NI OVERALL FOR -1- PARTS.
HOUSING: GLASS FILLED POLYESTER
U.L. 94 V-0
3. ALL DIMENSIONS IN INCHES AND (mm).
X
Pb
TM
RoHS
Compliant
Bolingbrook, Illinois
LAT-CON
057 SERIES HEADER
STRAIGHT SOLDER TAIL LOW PROFILE
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE:
UNLESS OTHERWISE SPEC-
IFIED, ALL DIMENSIONS
ARE GIVEN IN INCHES.
THIRD ANGLE PROJECTION.
S C A L E
(.X)
(.XX)
D R A W N
(.XXX)
ANGLES
.02(.5)
B Y
MAT'L
.010(0.25)
WJH
2 : 1
N O.
10
REV DATE
SHC
BY
CHK
SEE SHEET 1
DESCRIPTION
CN - R
CUST
SUP
D A T E
D R A W I N G
7-29-87
C H K'D
SEE NOTES
DWG.
JAF
KA-10358
SHT 2 OF 2
A
SIZE
