Part Number

Search

B82745C0002A013

Description
Power line chokes
CategoryPassive components    inductor
File Size171KB,7 Pages
ManufacturerEPCOS (TDK)
Environmental Compliance
Download Datasheet Parametric Compare View All

B82745C0002A013 Overview

Power line chokes

B82745C0002A013 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerEPCOS (TDK)
Reach Compliance Codecompli
ECCN codeEAR99
core materialFERRITE
DC Resistance0.00028 Ω
Nominal inductance(L)120 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberB82745C
Number of functions3
Number of terminals6
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Maximum rated current200 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountNO
Terminal surfaceNickel (Ni)
Terminal locationRADIAL
Terminal shapeFLEXIBLE LEAD
Test frequency0.1 MHz
Tolerance30%

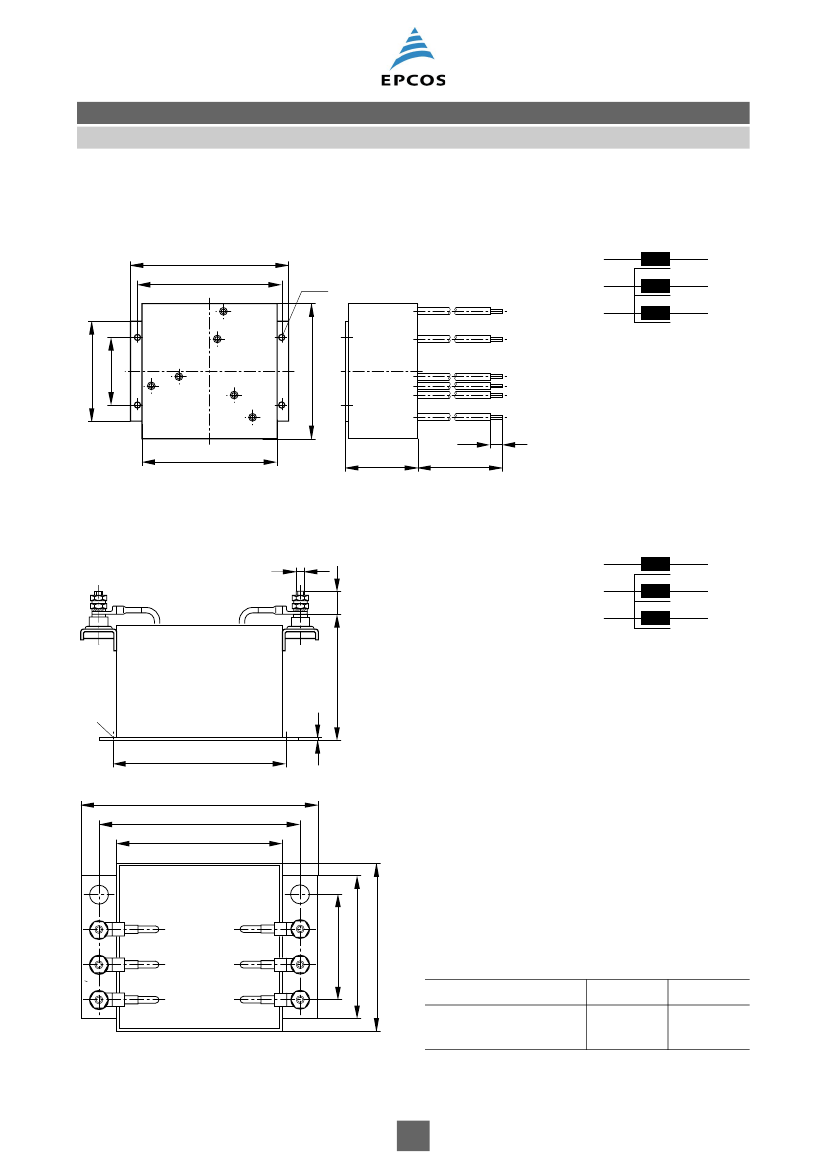

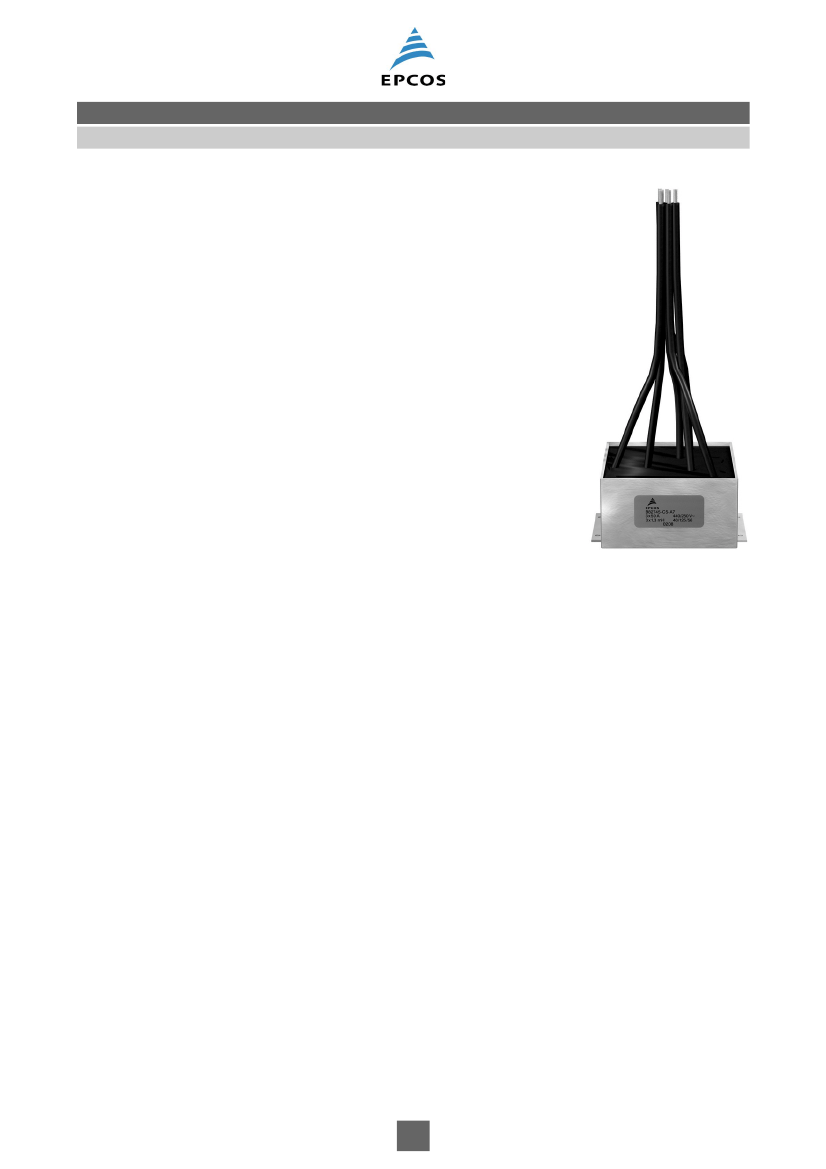

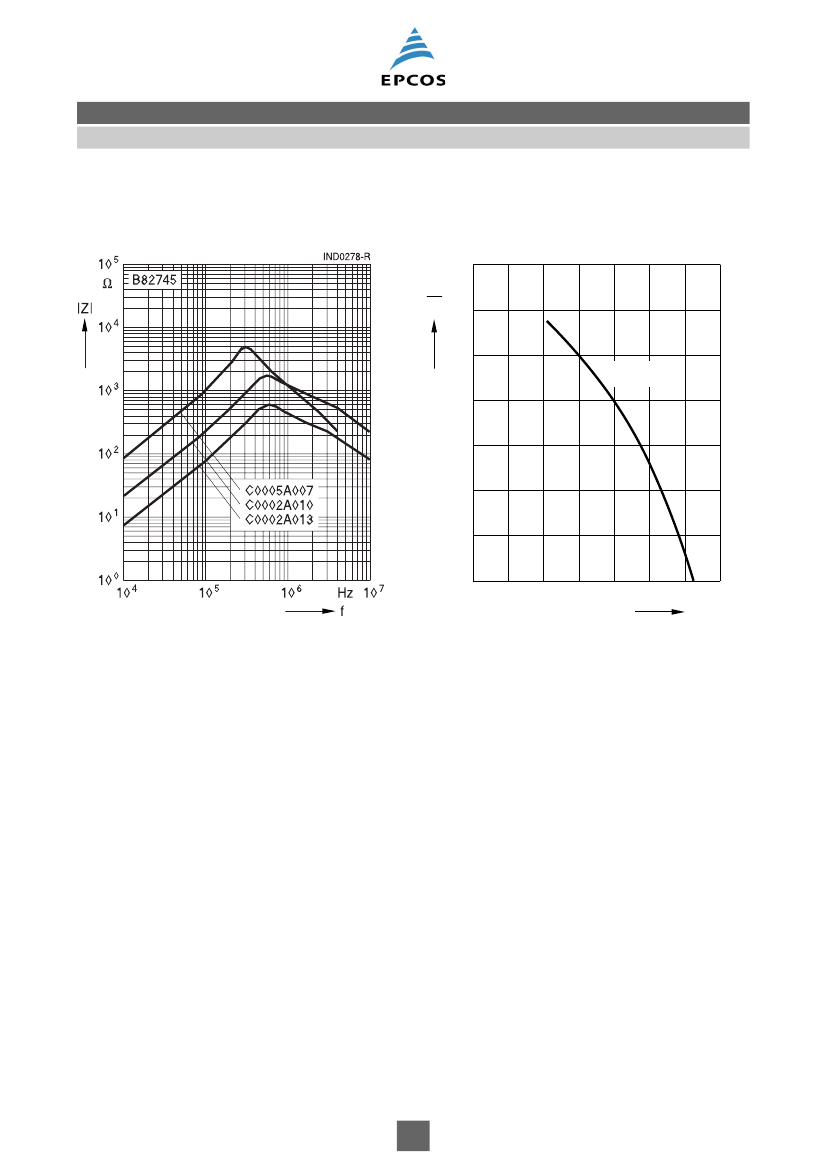

Power line chokes
Current-compensated ring core triple chokes
440/250 V AC, 50 … 200 A, 0.12 … 1.3 mH
Series/Type:
B82745C
October 2008
7f…fÁRspp…
Date:
©
EPCOS AG 2008. Reproduction, publication and dissemination of this publication, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.

B82745C0002A013 Related Products

B82745C0002A013 B82745C0005A007 B82745C B82745C0002A010
Description Power line chokes Power line chokes Power line chokes Power line chokes
Is it lead-free? Lead free Lead free - Lead free
Is it Rohs certified? conform to conform to - conform to
Maker EPCOS (TDK) EPCOS (TDK) - EPCOS (TDK)
Reach Compliance Code compli compli - compli
ECCN code EAR99 EAR99 - EAR99
core material FERRITE FERRITE - FERRITE
DC Resistance 0.00028 Ω 0.00375 Ω - 0.00065 Ω
Nominal inductance(L) 120 µH 1300 µH - 330 µH
Inductor Applications POWER INDUCTOR POWER INDUCTOR - POWER INDUCTOR
Inductor type GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR - GENERAL PURPOSE INDUCTOR
Manufacturer's serial number B82745C B82745C - B82745C
Number of functions 3 3 - 3
Number of terminals 6 6 - 6
Maximum operating temperature 125 °C 125 °C - 125 °C
Minimum operating temperature -40 °C -40 °C - -40 °C
Maximum rated current 200 A 50 A - 100 A
Shape/Size Description RECTANGULAR PACKAGE RECTANGULAR PACKAGE - RECTANGULAR PACKAGE
shield NO NO - NO
surface mount NO NO - NO
Terminal surface Nickel (Ni) Copper (Cu) - Nickel (Ni)
Terminal location RADIAL RADIAL - RADIAL
Terminal shape FLEXIBLE LEAD FLEXIBLE LEAD - FLEXIBLE LEAD
Test frequency 0.1 MHz 0.01 MHz - 0.1 MHz
Tolerance 30% 30% - 30%
