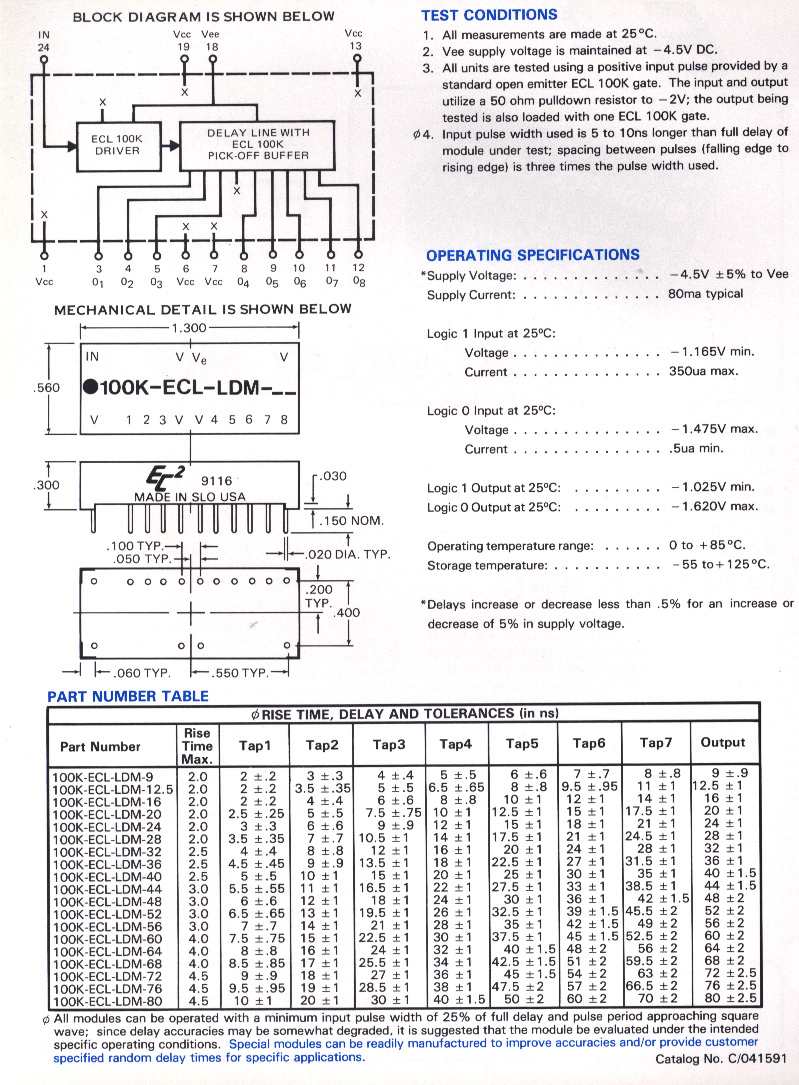

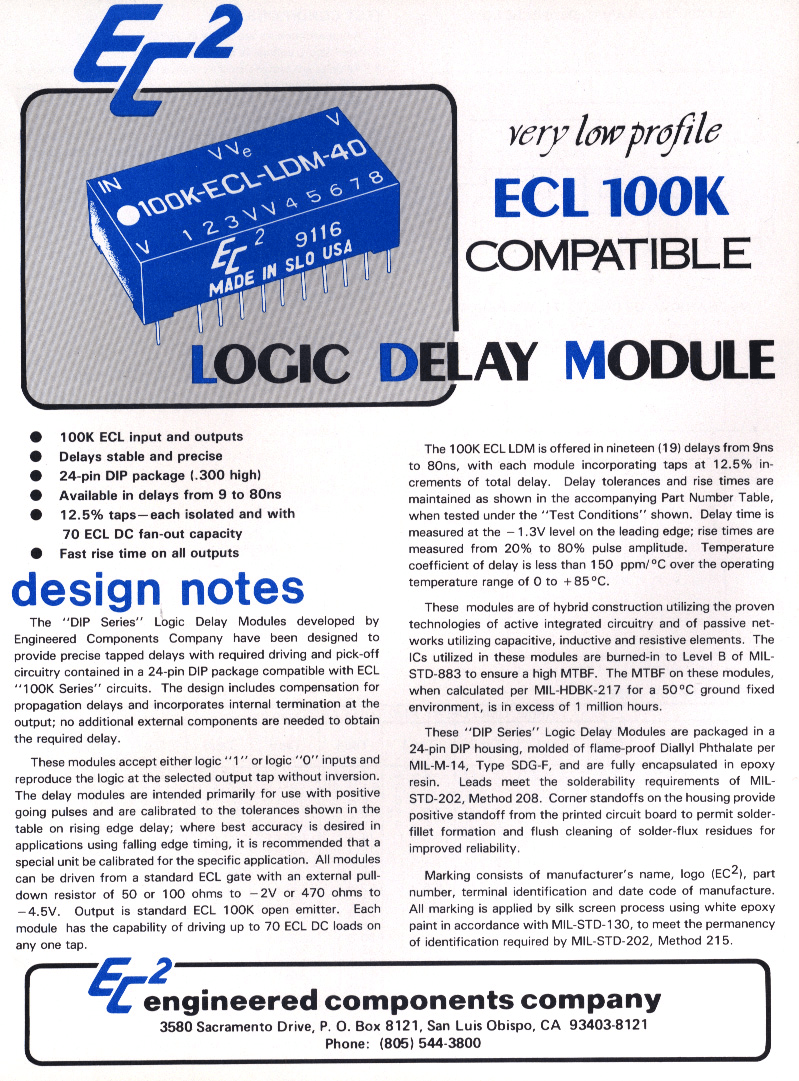

Active Delay Line, 1-Func, 7-Tap, True Output, ECL, .300 INCH HEIGHT, DIP-24
| Parameter Name | Attribute value |
| Maker | Engineered Components Co. |
| Parts packaging code | DIP |
| package instruction | QIP, DIP24,.4 |
| Contacts | 24 |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Other features | BURNED-IN TO LEVEL B OF MIL-STD-883; TYP. ICC = 80MA; MAX RISE TIME & TEMP. COEFF. CAPTURED |
| series | 100K |
| JESD-30 code | R-XDIP-P15 |
| Logic integrated circuit type | ACTIVE DELAY LINE |
| Number of functions | 1 |
| Number of taps/steps | 7 |
| Number of terminals | 15 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | |
| Output characteristics | OPEN-EMITTER |
| Output polarity | TRUE |
| Package body material | UNSPECIFIED |
| encapsulated code | QIP |
| Encapsulate equivalent code | DIP24,.4 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | -4.5 V |
| programmable delay line | NO |
| Prop。Delay @ Nom-Sup | 64 ns |
| Certification status | Not Qualified |
| Maximum seat height | 7.62 mm |
| surface mount | NO |
| technology | ECL |
| Temperature level | OTHER |
| Terminal form | PIN/PEG |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Total delay nominal (td) | 64 ns |
| Base Number Matches | 1 |
