SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 1
MULTILAYER CHIP INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
MH1608□□□□L□-□□□
Ⅰ﹒CONFIGURATION
& DIMENSIONS：
A
A
B
B
C
D
D
:
:
:
:
1.60±0.15
0.80±0.15
0.80±0.15
0.30±0.20
m/m
m/m
m/m
m/m
Ⅱ﹒SCHEMATIC
DIAGRAM：
Ⅲ﹒FEATURES：
a﹒Monolithic structure ensuring high performance and reliability.
b﹒High frequency applications up to 6GHz.
c﹒Terminal：Ag/Cu/Ni/Sn
d﹒Remark：Products comply with RoHS' requirements
Ⅳ﹒APPLICATIONS：
a﹒RF modules for telecommunication systems including
GSM, PCS,DECT,WLAN,Bluetooth,etc.
Peak Temp：260℃ max.
Max time above 230℃
：50sec
max.
Max time above 200℃
：70sec
max.
Temperature
Rising Area
+4.0
℃
/ sec max.
Preheat Area
150 ~ 200
℃
/ 60 ~ 120sec
Reflow Area
+2.0 ~ 4.0
℃
/ sec max.
Forced Cooling Area
-(1.0 ~ 5.0)
℃
/ sec max.
Peak Temperature:
260
℃
50sec max.
230
℃
Ⅴ﹒GENERAL
SPECIFICATION：
a﹒Storage temp.：-55℃---- +125℃
b﹒Operating temp.：-55℃ ---- +125℃
c﹒Solderability：Preheat 150℃. 60 sec
Solder：H63A
Solder temp.：230±5℃
Flux：Rosin
Dip time：4±1 sec
Temperature (
℃
)
C
250
200
150
70sec max.
100
50
0
50
100
150
Time ( seconds )
200
250
AR-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 2
MULTILAYER CHIP INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
MH1608□□□□L□-□□□
Ⅵ﹒ELECTRICAL
CHARACTERISITCS：
DWG No.
MH16081N0DL□ -□□□
MH16081N2DL□ -□□□
MH16081N5DL□ -□□□
MH16081N8DL□ -□□□
MH16082N2DL□ -□□□
MH16082N7DL□ -□□□
MH16083N3DL□ -□□□
MH16083N9DL□ -□□□
MH16084N7DL□ -□□□
MH16085N6DL□ -□□□
MH16086N8JL□ -□□□
MH16088N2JL□ -□□□
MH160810NJL□ -□□□
MH160812NJL□ -□□□
MH160815NJL□ -□□□
MH160818NJL□ -□□□
MH160822NJL□ -□□□
MH160827NJL□ -□□□
MH160833NJL□ -□□□
MH160839NJL□ -□□□
MH160847NJL□ -□□□
MH160856NJL□ -□□□
MH160868NJL□ -□□□
MH160882NJL□ -□□□
MH1608R10JL□ -□□□
MH1608R12JL□ -□□□
MH1608R15JL□ -□□□
MH1608R18JL□ -□□□
Inductance
( nH )
1.0 ± 0.3
1.2 ± 0.3
1.5 ± 0.3
1.8 ± 0.3
2.2 ± 0.3
2.7 ± 0.3
3.3 ± 0.3
3.9 ± 0.3
4.7 ± 0.3
5.6 ± 0.3
6.8 ± 5%
8.2 ± 5%
10.0 ± 5%
12.0 ± 5%
15.0 ± 5%
18.0 ± 5%
22.0 ± 5%
27.0 ± 5%
33.0 ± 5%
39.0 ± 5%
47.0 ± 5%
56.0 ± 5%
68.0 ± 5%
82.0 ± 5%
100.0 ± 5%
120.0 ± 5%
150.0 ± 5%
180.0 ± 5%
Q
min
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
10
10
10
10
10
12
12
12
12
12
8
8
8
L/Q
Test Freq.
( MHz )
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
50
50
50
SRF
( MHz )
nom
>17000
>17000
>17000
13000
12000
8600
6500
6300
5400
4600
4500
3800
3700
3200
2900
2100
2100
2000
1600
1500
1200
1100
1000
850
750
700
650
550
RDC
(
Ω
)
max
0.10
0.10
0.10
0.15
0.15
0.20
0.25
0.25
0.30
0.30
0.35
0.40
0.45
0.50
0.55
0.60
0.65
0.70
0.80
0.85
1.00
1.10
1.20
1.80
2.00
2.30
2.40
2.70
IDC
( mA )
max
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
1).
□：Packaging
Information… A：Bulk B：Taping Reel
2)."-
□□□
":Reference code
AR-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 3
MULTILAYER CHIP INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
MH1608□□□□L□-□□□

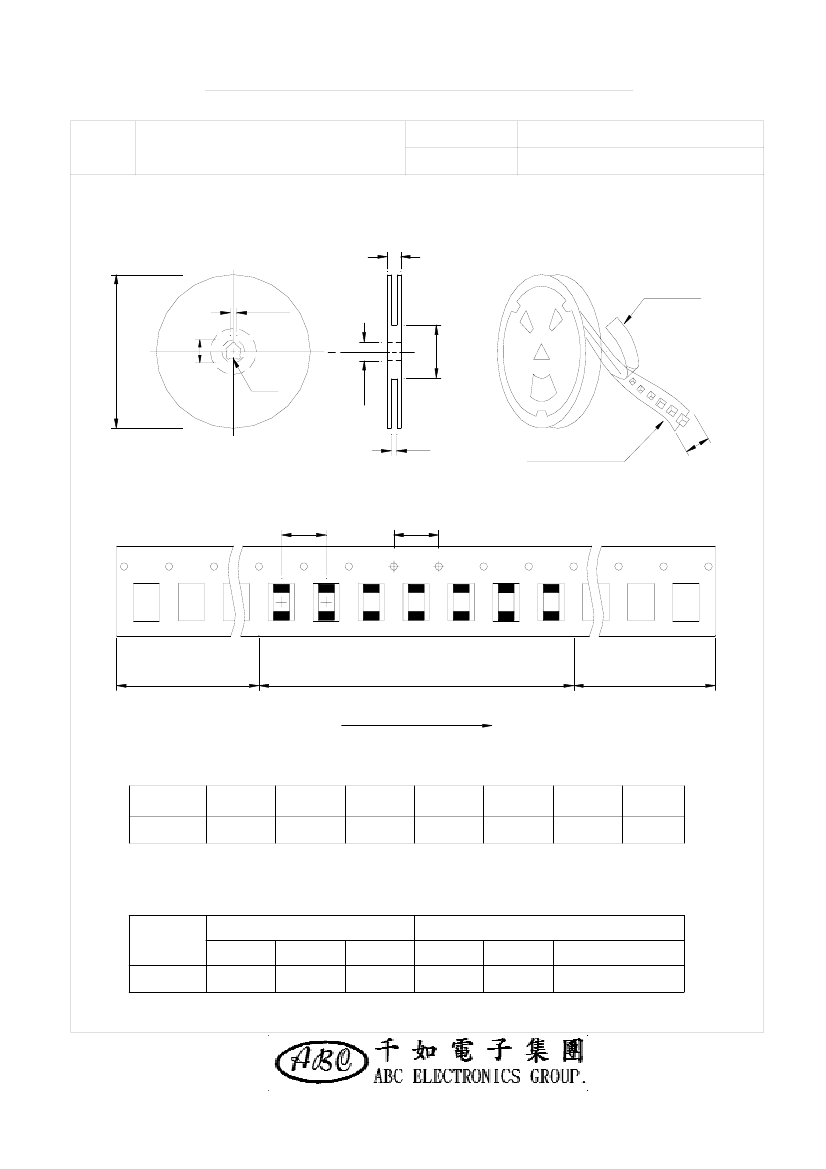

Ⅶ﹒PACKAGING
INFORMATION：
( 1 ) Configuration
T
Cover Tape
2.0±0.5
A
∮
C
∮
C
N
B
G
D
Embossed Carrier
※
Carrier tape width : D
P:4 m/m
End
4 m/m
Start
Leader
no component
200 m/m min.
Components
User direction of feed
Trailer
no component
400 m/m min.
( 2 ) Dimensions
Style
07 - 08
A
178
B
21±0.8
C
13
D
8
G
10 +0
N
50 -0
Unit:m/m
T
12.5
( 3 ) Q'TY & G.W. Per package
Inner : Reel
Series
MH1608
Q'TY (pcs)
G.W. (gw)
Style
Q'TY (pcs)
Outer : Carton
G.W. (Kg)
Size (cm)
4,000
90
07 - 08
200,000
7.0
41 x 39 x 22
AR-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 4
MULTILAYER CHIP INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
MH1608□□□□L□-□□□

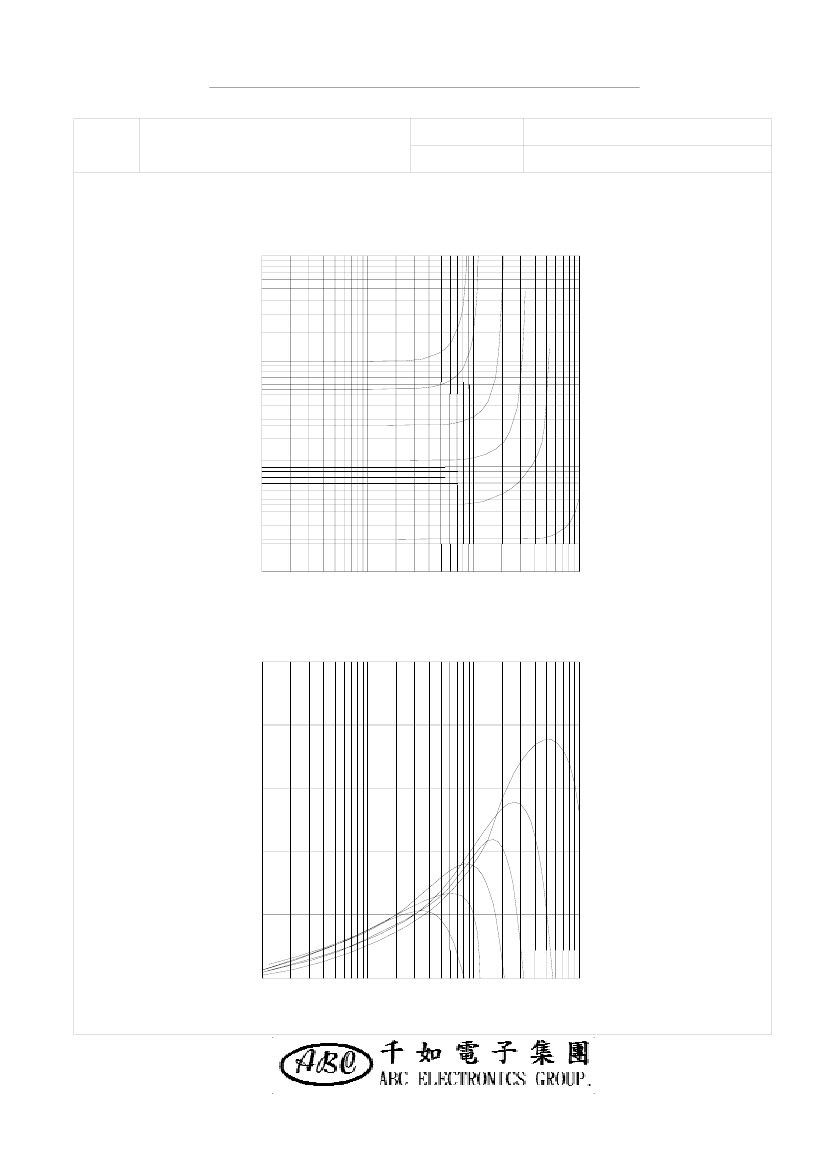

Ⅷ﹒L
/ Q VS. FREQ. CURVE：
L vs. Frequency
1000
100
R10
56N
Inductance ( nH )
27N
12N
10
4N7
2N2
1
1.0 e-02
Frequency ( GHz )
10
Q vs. Frequency
100
80
2N2
60
4N7
Q
12N
40
27N
56N
20
R10
0
1.0 e-02
Frequency ( GHz )
10
AR-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 5
MULTILAYER CHIP INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
MH1608□□□□L□-□□□
Ⅸ﹒DWGING
NUMBER EXPRESSION：
M H
1
6
0
8
Reference code
Appendix code 2 : Package
Appendix code 1 : Classification
Tolerance code
Electrical code
Dimension code
Type code
Appendix code 1：Product Classification
L：Lead Free Standard products comply with RoHS' requirements
1 ~ 9：Lead Free Special products comply with RoHS' requirements
Appendix code 2：Package Information
Code
A
B
Inner package
T.B.D.
T / R ( Reel package )
Inner package Q'TY
T.B.D.
4000
pcs
Remark
AR-001A
