1N6677UR-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N6677UR-1

1N6677UR-1: DescriptionRectifier Diode, Schottky, 1 Element, 0.2A, Silicon, DO-213AA, HERMETIC SEALED, GLASS, LL34, MELF-2; CategoryDiscrete semiconductor diode; File Size481KB，2 Pages; ManufacturerCompensated Devices Inc.

Download Datasheet Parametric Compare View All

1N6677UR-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N6677UR-1	-	-	View	Buy Now

1N6677UR-1 Overview

Rectifier Diode, Schottky, 1 Element, 0.2A, Silicon, DO-213AA, HERMETIC SEALED, GLASS, LL34, MELF-2

1N6677UR-1 Parametric

Parameter Name	Attribute value
Maker	Compensated Devices Inc.
package instruction	HERMETIC SEALED, GLASS, LL34, MELF-2
Reach Compliance Code	unknown
Is Samacsys	N
Other features	METALLURGICALLY BONDED
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-213AA
JESD-30 code	O-LELF-R2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Maximum output current	0.2 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
surface mount	YES
technology	SCHOTTKY
Terminal surface	TIN LEAD
Terminal form	WRAP AROUND
Terminal location	END
Base Number Matches	1

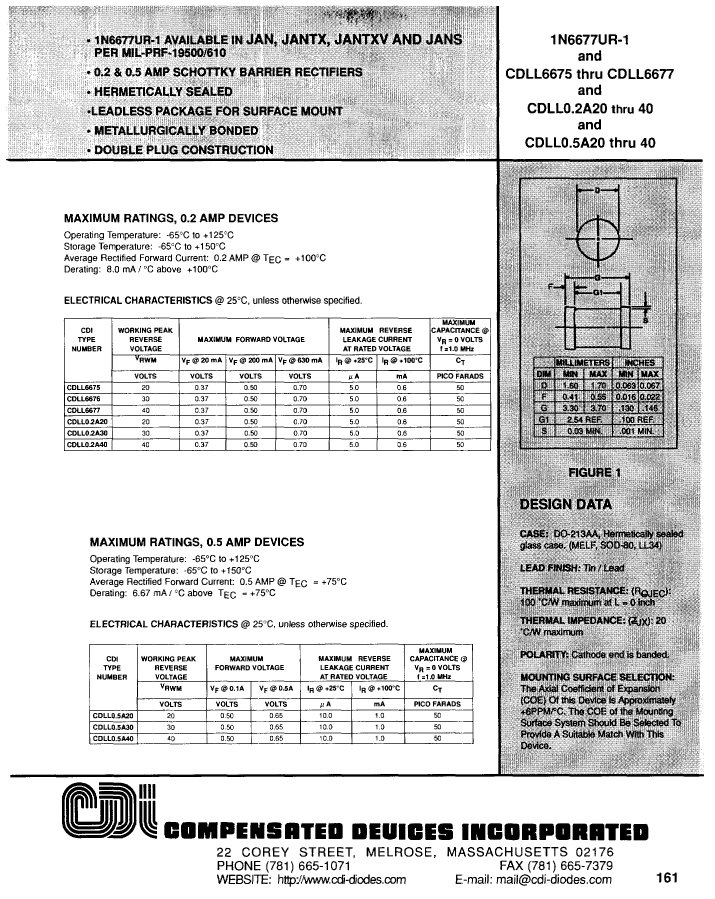

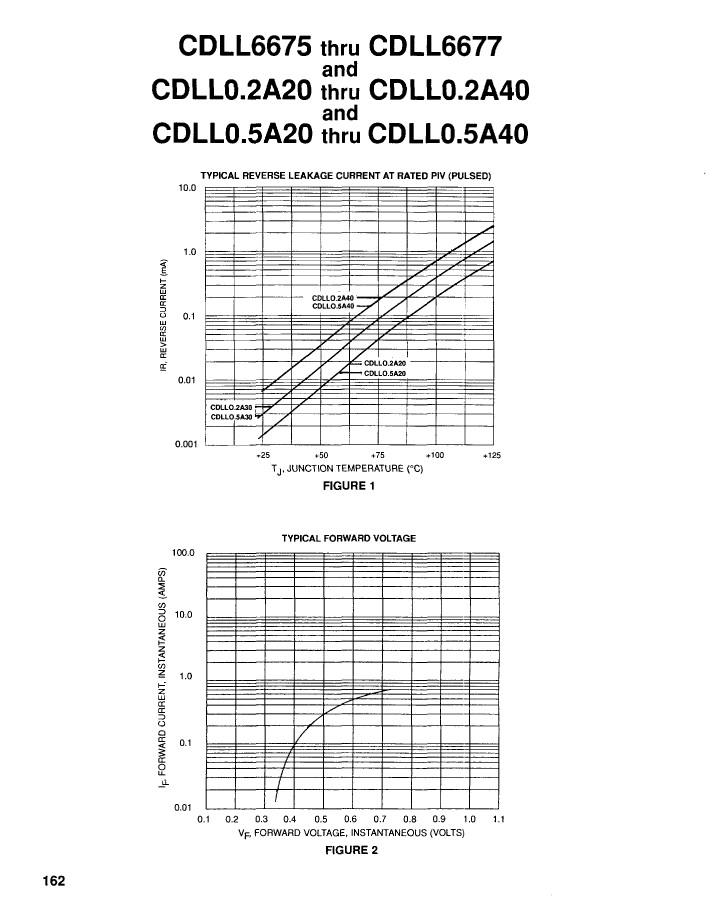

Preview

Download Datasheet

View All

1N6677UR-1 Related Products

	1N6677UR-1	JANTX1N6677UR-1	JANTXV1N6677UR-1	JANS1N6677UR-1	JAN1N6677UR-1
Description	Rectifier Diode, Schottky, 1 Element, 0.2A, Silicon, DO-213AA, HERMETIC SEALED, GLASS, LL34, MELF-2	Rectifier Diode, Schottky, 1 Element, 0.2A, Silicon, DO-213AA, HERMETIC SEALED PACKAGE-2	Rectifier Diode, Schottky, 1 Element, 0.2A, Silicon, DO-213AA, HERMETIC SEALED PACKAGE-2	Rectifier Diode, Schottky, 1 Element, 0.2A, Silicon, DO-213AA, HERMETIC SEALED PACKAGE-2	Rectifier Diode, Schottky, 1 Element, 0.2A, Silicon, DO-213AA, HERMETIC SEALED PACKAGE-2
Maker	Compensated Devices Inc.	Compensated Devices Inc.	Compensated Devices Inc.	Compensated Devices Inc.	Compensated Devices Inc.
package instruction	HERMETIC SEALED, GLASS, LL34, MELF-2	HERMETIC SEALED PACKAGE-2	HERMETIC SEALED PACKAGE-2	O-XELF-R2	HERMETIC SEALED PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Is Samacsys	N	N	N	N	N
Other features	METALLURGICALLY BONDED	METALLURGICALLY BONDED	METALLURGICALLY BONDED	METALLURGICALLY BONDED	METALLURGICALLY BONDED
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-213AA	DO-213AA	DO-213AA	DO-213AA	DO-213AA
JESD-30 code	O-LELF-R2	O-XELF-R2	O-XELF-R2	O-XELF-R2	O-XELF-R2
Number of components	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Package body material	GLASS	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND
Terminal location	END	END	END	END	END
Base Number Matches	1	1	1	1	1
Guideline	-	MIL-19500/610E	MIL-19500/610E	MIL-19500/610E	MIL-19500/610E
