SPECIFICATION FOR APPROVAL
REF : 20070414-A
PROD.
NAME
ABC'S DWG NO.
PAGE: 1
SB1806□□□□L□-□□□
SMD POWER INDUCTOR
ABC'S ITEM NO.

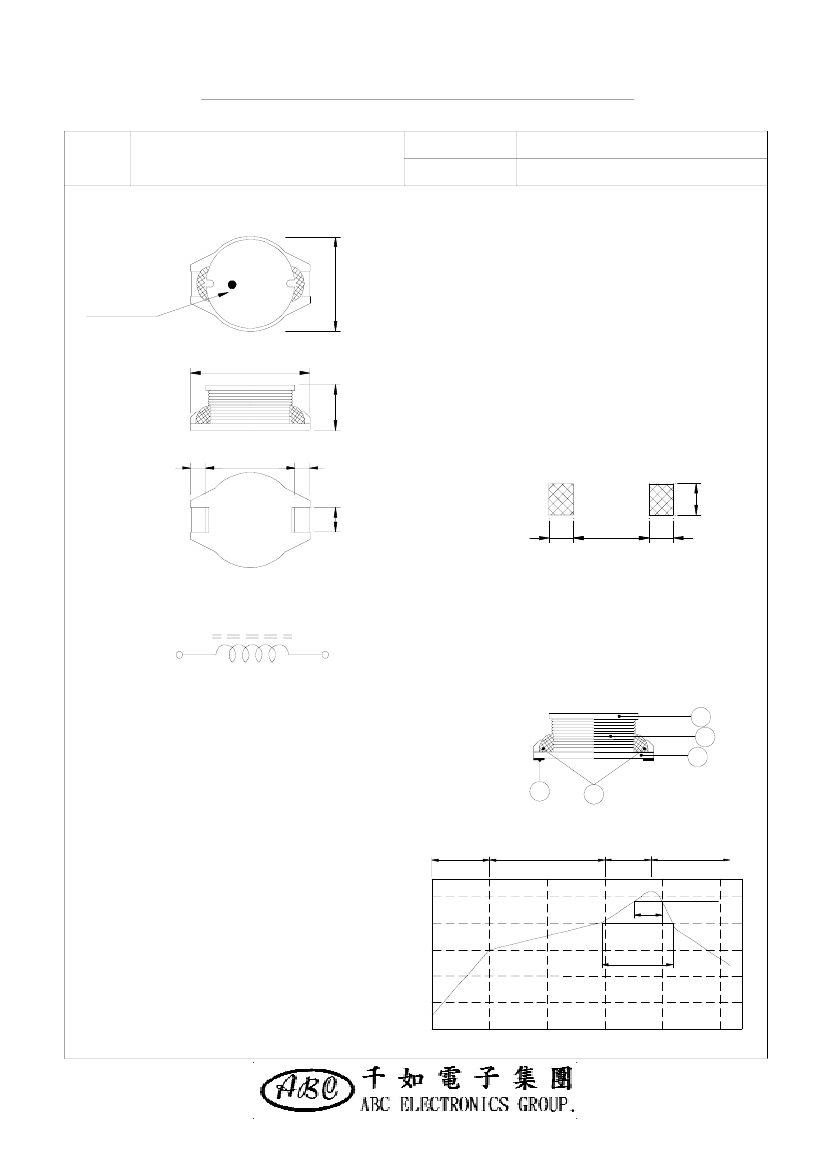

Ⅰ﹒CONFIGURATION
& DIMENSIONS：
A
B
C
D
E
F
G
H
I
: 14.0±0.5
: 18.2±0.5
:
6.6±0.5
:
2.5±0.2
:
2.6±0.2
: 13.0±0.3
: 12.7 ref.
:
2.9 ref.
:
3.2 ref.
m/m
m/m
m/m
m/m
m/m
m/m
m/m
m/m
m/m
100
Marking
black dot is start
winding & Inductance code
B
C
D
F
D
A
E
I
G
I
（
PCB Pattern
）
Ⅱ﹒SCHEMATIC
DIAGRAM：
Ⅲ﹒MATERIALS：
a﹒Core：Ferrite DR core
b﹒Wire：Enamelled copper wire
（class
F）
c﹒Base：LCP E4008
d﹒Terminal：Cu/Ni/Sn
e﹒Adhesive：Epoxy resin
f﹒Solder wire：Sn97/Cu3 Alloys
g﹒Remark：Products comply with RoHS'
requirements
Temperature (
℃
)
d
Peak Temp：260℃ max.
Max time above 230℃
：50sec
max.
Max time above 200℃
：70sec
max.
Temperature
Rising Area
+4.0
℃
/ sec max.
Preheat Area
150 ~ 200
℃
/ 60 ~ 120sec
f
Reflow Area
Forced Cooling Area
+2.0 ~ 4.0
℃
-(1.0 ~ 5.0)
℃
/ sec max.
/ sec max.
Peak Temperature:
260℃
50sec max.
230℃
250
Ⅳ﹒GENERAL
SPECIFICATION：
a﹒Temp. rise
：40℃
max.
b﹒Storage temp.：-40℃ ~ +125℃
c﹒Operating temp.：-40℃ ~ +105℃
d﹒Resistance to solder heat：260℃. 10 secs.
AR-001A
200
150
70sec max.
100
50
0
50
100
150
Time ( seconds )
200
H
a
b
c
250
SPECIFICATION FOR APPROVAL
REF :
20070414-A
PROD.
NAME
PAGE: 2
ABC'S DWG NO.
ABC'S ITEM NO.
SB1806□□□□L□-□□□
SMD POWER INDUCTOR
Ⅴ﹒ELECTRICAL
CHARACTERISITCS：
DWG No.
SB18061R0ML□-□□□
SB18062R2ML□-□□□
SB18063R3ML□-□□□
SB18065R6ML□-□□□
SB1806100ML□-□□□
SB1806150ML□-□□□
SB1806220ML□-□□□
SB1806330ML□-□□□
SB1806470ML□-□□□
SB1806680ML□-□□□
SB1806101KL□-□□□
SB1806151KL□-□□□
SB1806221KL□-□□□
SB1806331KL□-□□□
SB1806471KL□-□□□
SB1806681KL□-□□□
SB1806102KL□-□□□
Inductance
( µH )
1.0 ±20%
2.2 ±20%
3.3 ±20%
5.6 ±20%
10.0 ±20%
15.0 ±20%
22.0 ±20%
33.0 ±20%
47.0 ±20%
68.0 ±20%
100.0 ±10%
150.0 ±10%
220.0 ±10%
330.0 ±10%
470.0 ±10%
680.0 ±10%
1000.0 ±10%
SRF
( MHz )
typ.
100.0
55.0
40.0
30.0
25.0
17.0
13.0
11.0
9.0
8.0
7.0
5.0
4.5
3.5
3.0
2.5
2.0
RDC
( mΩ )
max.
4.0
6.8
9.8
15.0
25.0
35.0
45.0
68.0
95.0
130.0
190.0
270.0
420.0
580.0
820.0
1200.0
1800.0
Irms
(A)
10.00
9.00
7.60
6.40
5.30
4.30
3.60
3.00
2.50
2.10
1.70
1.40
1.10
1.00
0.80
0.70
0.50
Isat
(A)
30.00
22.00
17.00
12.80
10.00
8.00
6.70
5.40
4.60
3.80
3.20
2.60
2.20
1.80
1.50
1.20
1.00
1).
□：Packaging
information … A：Bulk B：Taping Reel
2)."-
":Reference code
3). Inductance Test Freq. at 100KHz / 0.1V.
4). Irms base on
△
T = 40
℃
max.
5). Isat base on
△L/L0A
= 10％ typ.
@ Inductance VS. DC Current Curve
103
7
5
3
2
102
10 3
7
5
3
2
101
10 2
7
5
3
2
10 1
7
5
3
2
10 0
101
102
101
100
□□□
@ DC Current VS. Temp. Rise Curve
Inductance（uH）
3
2
101
7
5
3
2
100
10 1
100
（℃）
102
7
5
2
3
5 7 10 2
2
3
5 7 10 3
2
3
5 7 104
2
3
5 7 102
2
3
5 7 103
2
3
5 7 10 4
DC Current (mA)
DC Current (mA)
AR-001A
SPECIFICATION FOR APPROVAL
REF :
20070414-A
PROD.
NAME
ABC'S DWG NO.
PAGE: 3
SB1806□□□□L□-□□□
SMD POWER INDUCTOR
ABC'S ITEM NO.

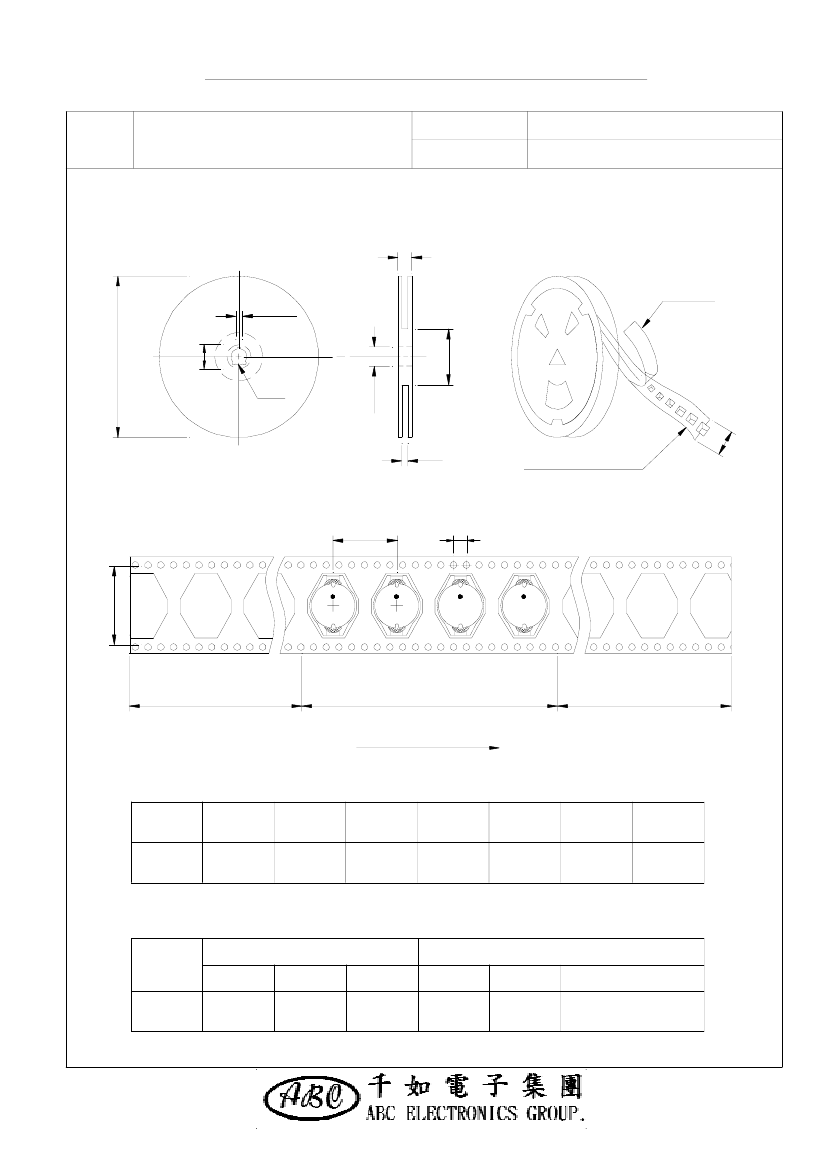

Ⅵ﹒PACKAGING
INFORMATION：
1. Configuration :
T
Cover tape
2.0±0.5
A
B
∮
C
∮
C
N
G
Embossed carrier
※Carrier
tape width：D
P:20 m/m
4 m/m
Start
End
28m/m
Leader
no component
200 m/m min.
Components
User direction of feed
Trailer
no component
400 m/m min.
2. Dimensions : (m/m)
Style
13 - 32
A
330
B
21±0.8
C
13±0.5
D
32
G
34
+0
N
100
-0
T
38.4
3. Q'TY & G.W. Per package :
Inner : Reel
Series
SB1806
Q'TY (pcs)
G.W. (gw)
Style
Q'TY (pcs)
Outer : Carton
G.W. (kg)
Size (cm)
250
1,250
13 - 32
1,000
6.8
40 x 40 x 24
AR-001A
D
100
100
100
100
REF :
20070414-A
PROD.
NAME
ABC'S DWG NO.
PAGE: 4
SB1806□□□□L□-□□□
SMD POWER INDUCTOR
ABC'S ITEM NO.
Ⅶ﹒DWGING
NUMBER EXPRESSION：
S
B
1
8
0
6
Reference code
Appendix code 2 : Package
Appendix code 1 : Classification
Tolerance code
Electrical code
Dimension code
Type code
Appendix code 1：Product Classification
L：Lead Free Standard products comply with RoHS' requirements
1 ~ 9：Lead Free Special products comply with RoHS' requirements
Appendix code 2：Package Information
Code
A
B
T.B.D.
Inner package
Inner Package Q'TY
T.B.D.
250
pcs
Remark
T / R ( Reel package )
AR-001A
SPECIFICATION FOR APPROVAL
REF :
20070414-A
PAGE: 5
ABC'S DWG NO.
ABC'S ITEM NO.
SB1806□□□□L□-□□□
PROD.
NAME
SMD POWER INDUCTOR
Ⅷ﹒RELIABILITY
TEST：
Test item
Specification
More than 90% of the
terminal electrode
Shall be covered
With fresh solder.
Test condition
Preheat : 150±25
℃
for 60 seconds
Solder : Sn96.5 / Ag3 / Cu0.5 or equivalent
Solder temp. : 235±5℃
Flux : Rosin
Dip time : 4±1 seconds
Solderability
Thermal shock test
( Temp. cycle )
Inductance shall
not change more
than ±20%
Room temp.
15 minutes
Room temp.
15 minutes
Total : 50 cycles
-25±2
℃
30 minutes
85±2
℃
30 minutes
Humidity
Resistance test
Temperature : 40±2℃
Humidity : 90 ~ 95%
Applied current : Per spec.
Time : 500 hours
High temp.
Resistance test
Temperature : 105±2℃
Applied current : Per spec.
Time : 500 hours
AR-001A
