954-101-5206F30BP: DescriptionFiber Optic SC Connector, 126um, Single Mode, Duplex, Plug; CategoryThe connector The connector; File Size125KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

954-101-5206F30BP Overview

Fiber Optic SC Connector, 126um, Single Mode, Duplex, Plug

954-101-5206F30BP Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Body/casing type	PLUG
Connection Type	DUPLEX
Connector type	FIBER OPTIC SC CONNECTOR
Coupling type	SNAP
DIN compliance	NO
Fiber size	126um
IEC compliance	NO
Insertion loss	0.3 dB
MIL compliance	NO
Manufacturer's serial number	954
model	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

!"!"!"!"!"!"!"!

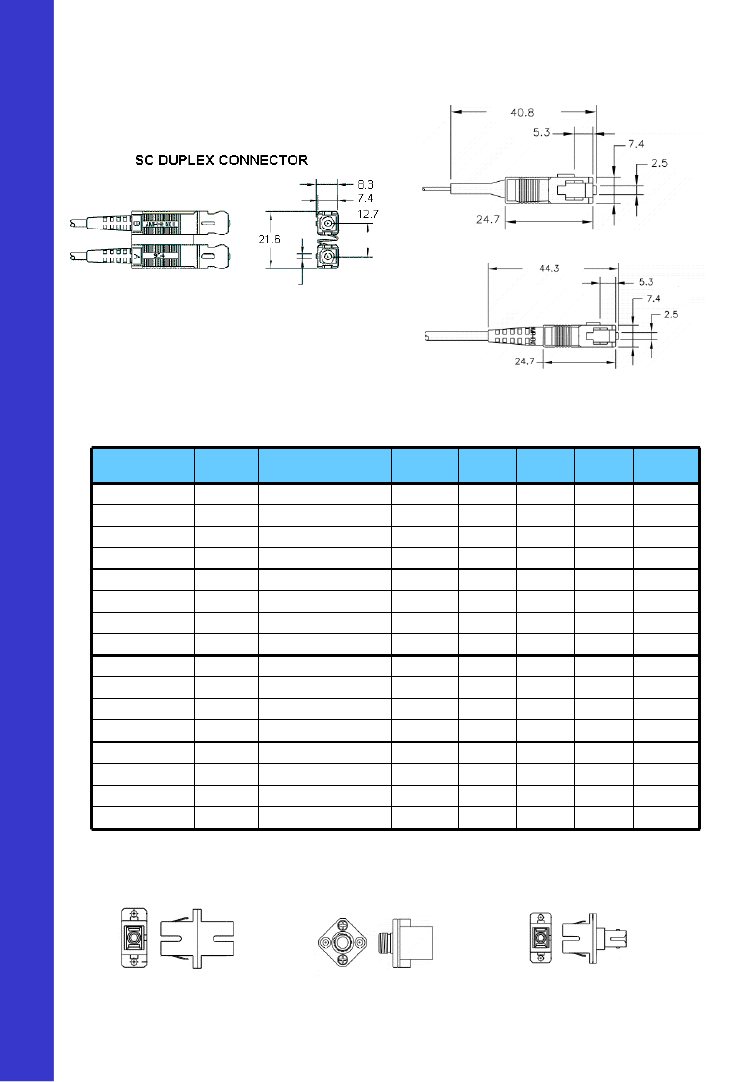

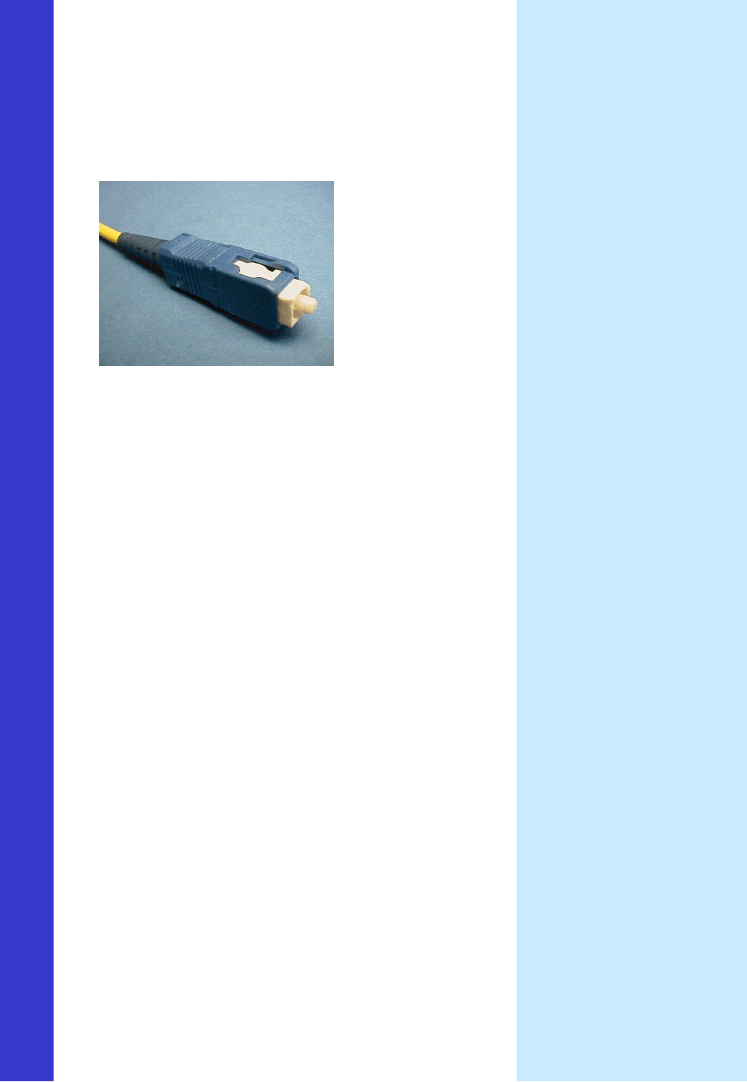

Singlemode & Multimode

Connectors

SC/PC

954 Series

Features

MAIN CHARACTERISTICS

The push-pull locking

system simplifies the

insertion and

removal of the

connector. This

makes it ideal for high

density interconnect

applications.

The high precision manufactured ceramic ferrules

are preradiused to reduce the insertion loss and back

reflection.

The connector and adapter body are made of molded

polymer.

The one piece SC

connector is widely

spread

in

all

telecommunication and

videocommunication

networks requirements.

The Amphenol Socapex

SC is intermateable with

the SC standard.

Technical description

• Typical insertion loss :

- Singlemode fiber : 0,3 dB at 1300 nm and 1550 nm

- Multimode fiber : 0,3 dB

• Typical back reflection (single mode fiber) :

< - 45 dB (super PC, Amphenol Socapex cabling)

• Reproductibility : ± 0,1 dB

• Durability : 500 mating/unmating cycles

• Cable retention by crimping : >10 daN (Ø3 mm)

• Operating temperature : -20°C, +70°C

• Connector materials :

- Zirconia ceramic ferrule

- Polymer body

• Push-pull locking system

• Spring loaded connector for physical contact butt

coupling

• Termination by epoxy polish with polishing machines

• Termination by epoxy polish with field tool kit in 5 minutes

Applications

• Telecommunication and

CATV : FTTB, FTTC,

FTTH installations

• Computer local area

networks

• Sensors

• Instrumentation

and

Amphenol

Amphenol Socapex

Promenade de l’Arve -B.P.29 - 74311 THYEZ - FRANCE - Tel. :33 (0) 4 50 89 28 53 - Fax : 33 (0) 4 50 89 28 23

Specifications are subject to change without notice. All statements, information and data system given herein are believed to be accurate and

reliable but are presented without garanty. No reproduction without agreement. E551/A . Printed in France by Amphenol Socapex.
