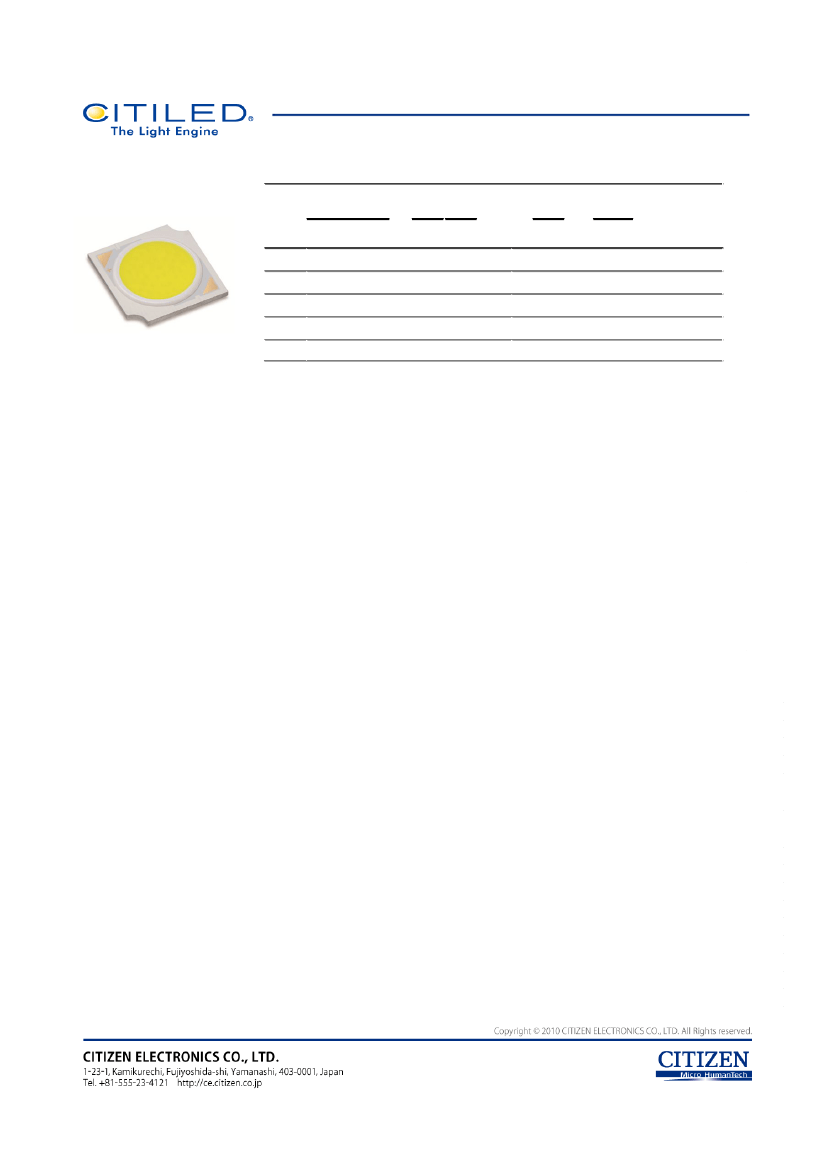

Product Nomenclature
CLU026 - 12 04 C1 - 27 3 M2 G2
[1]
[1]
[2]
[3]
[4]
[5]
Product shape
Die count in series
Die count in parallel
Nominal CCT
CRI (Ra)
[2]
[3]
[4]
CLU026
12
04
2700K
Min.80
[5]
1. Introduction
1-1. Product Description
CITIZEN ELECTRONICS is the first COB manufacture. Our advanced knowledge and packaging technology for many
years has excellent reliability and high quality of our products. CITILED COB Series covers a wide range of luminous flux
from a 10W incandescent bulb to a 300W mercury lamp in general lighting sources. The element arrangement of LED
package is capable of utilizing light more effectively and higher performance.
The new version of CITILED COB series increase the performance significantly from previous version. New version
creates more options to match luminaire's products design (ex. High performance , Cost effective , Small Light Emitting
Surface(LES), Increased allowable max. If). Emitted light density of the LED package is improved higher for suitable use of
light-condensing products. The outline and LES size is the same as for previous version. Thus existing parts of 3rd
parties are compatible in mechanical characteristics. All of specs are at hot binning (Tj=85
℃
).
1-2. Features
・
Mechanical Dimensions
・
Package Structure
・
Reference Assembly
・
CRI (Ra)
・
Nominal CCT
・
Chromaticity Range
13.5×13.5×1.4 (mm)
Aluminum Base Chip on Board
M3 screw, Connector
80Min., 70Min.
2,700K, 3,000K, 3,500K, 4,000K, 5,000K ,6,500K ( CRI(Ra) 80Min. )
3,000K, 4,000K, 5,000K ( CRI(Ra) 70Min. )
: 3-step MacAdam Ellipse, the center refers to ANSI C78.377:2011. ( CRI(Ra) 80Min. )
ANSI C78.377:2011. compliant ( CRI(Ra) 70Min. )
: 1.7C/W
: 920mA
:
:
:
:
:
・
Thermal Resistance
・
Maximum drive current
・
RoHS compliant
・
Better die arrangement for optics
・
Wide range of luminous flux and high efficacy
・
Improved lumen density compared with previous version
2
Ref.CE-P3079 04/15
2. Performance Characteristics
2-1. Electro Optical Characteristics
( Tj=85C )
Nominal
CCT
CRI
Ra
Min.
CLU026-1204C1-273M2G2
CLU026-1204C1-303M2G2
CLU026-1204C1-353M2G2
CLU026-1204C1-403M2G2
CLU026-1204C1-503M2G2
CLU026-1204C1-653M2G2
CLU026-1204C1-30AL7G4
CLU026-1204C1-40AL7G4
CLU026-1204C1-50AL7G4
Notes :
1. Citizen Electronics maintains forward voltage +/-3%, luminous flux +/-10%,Ra and R9 +/-1.
*Values of Luminous flux at Tc=25C are provided as reference only.
2700K
3000K
3500K
4000K
5000K
6500K
3000K
4000K
5000K
80
80
80
80
80
80
70
70
70
R9
Min.
0
0
0
0
0
0
-
-
-
Luminous flux
( lm )
Efficacy Forward
( lm/W ) Current
Tc=25C*
( mA )
Typ.
Typ.
1,733
1,816
1,854
1,877
1,904
1,942
1,961
2,026
2,056
128
134
137
139
141
143
145
150
152
360
360
360
360
360
360
360
360
360
Voltage
( V)
Min.
31.8
31.8
31.8
31.8
31.8
31.8
31.8
31.8
31.8
Typ.
34.6
34.6
34.6
34.6
34.6
34.6
34.6
34.6
34.6
Max.
37.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
Thermal
Resistance
Rj-c
(
C/W )
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
Product code
T½=85C
Min.
1,405
1,472
1,503
1,521
1,543
1,574
1,590
1,642
1,666
Typ.
1,597
1,673
1,708
1,729
1,754
1,789
1,807
1,867
1,894
2-2. Absolute Maximum Ratings
Absolute Maximum Ratings
Parameter
Input Power (W)
Forward Current (mA)
Minimum Current (mA)
Reverse Current (mA)
Operating Temperature (C)
Storage Temperature (C)
Case Temperature (C)
Junction Temperature (C)
Symbol
Pi
If
If min
Ir
Top
Tst
Tc
Tj
Rating
39.2
920
20
1
-40 ~ +100
-40 ~ +100
105
140
*2
*3
*1
*1
*1. Input power and forward current are the values when the LED is used within the range of the derating
curve in this data sheet.

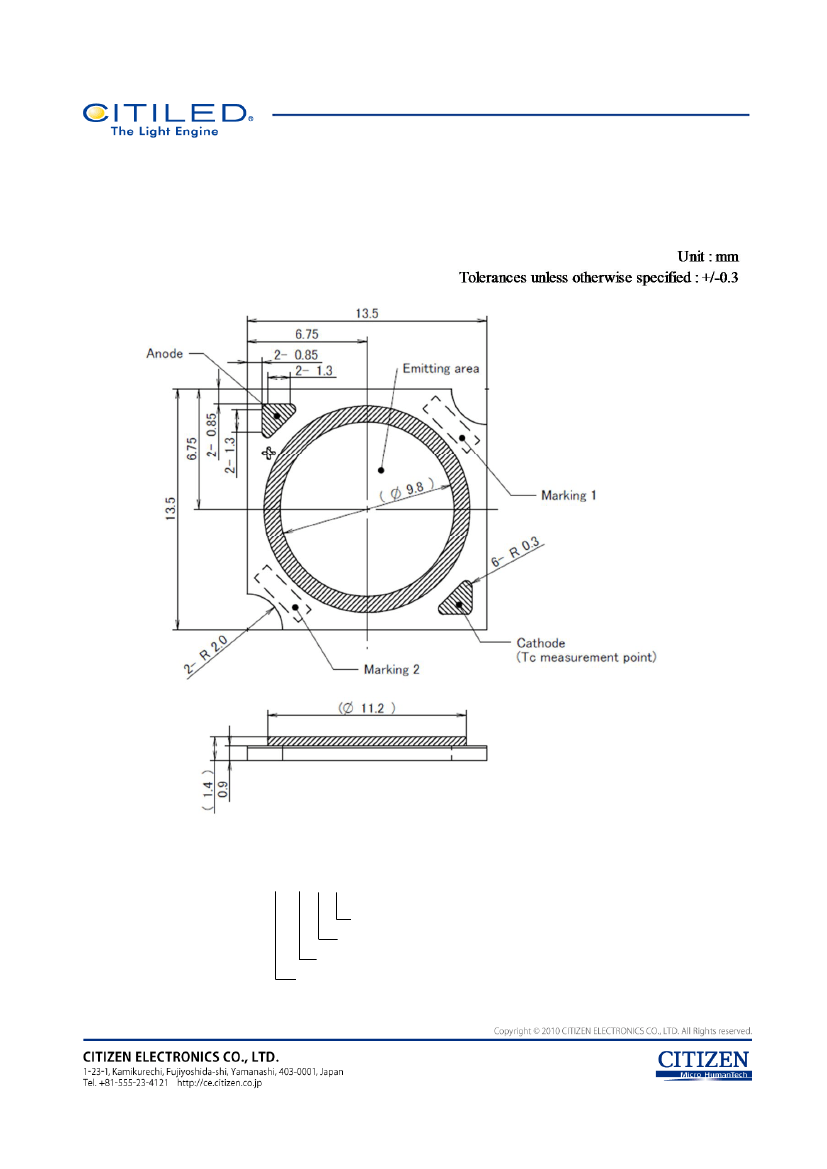

*2. Refer to 3. Outline drawing for Tc measurement point.
*3. D.C. Current : Tj = Tc + Rj-c
×
Pi
3
Ref.CE-P3079 04/15
2-3. Chromaticity Characteristics
( Rated current, Tj=85C )
Oval parameter
Color Region
Nominal
CCT
2700K
3000K
3-step MacAdam ellipse
3500K
4000K
5000K
6500K
Nominal
CCT
3000K
ANSI C78. 377:2011
4000K
5000K
Center Point
( x, y )
( 0.4577 , 0.4098 )
( 0.4339 , 0.4032 )
( 0.4078 , 0.3929 )
( 0.3818 , 0.3796 )
( 0.3446 , 0.3551 )
( 0.3123 , 0.3283 )
Center Point
( x, y )
( 0.4339 , 0.4032 )
( 0.3818 , 0.3796 )
( 0.3446 , 0.3551 )
Major Axis
a
0.00774
0.00834
0.00951
0.00939
0.00822
0.00669
Minor Axis
b
0.00411
0.00408
0.00417
0.00402
0.00354
0.00285
ANSI parameter
a
( x, y )
b
( x, y )
c
( x, y )
d
( x, y )
Ellipse
Rotation Angle
θ
57.28
53.17
52.97
54.00
59.62
58.38
Color Region
0.4561 0.4259 0.4302 0.4171 0.4149 0.3820 0.4373 0.3892
0.4003 0.4034 0.3737 0.3879 0.3671 0.3583 0.3895 0.3708
0.3550 0.3752 0.3375 0.3619 0.3366 0.3372 0.3514 0.3480
* Color region stay within MacAdam 3-step ellipse from the chromaticity center.
* The chromaticity center refers to ANSI C78.377:2011.
Please refer to ANSI C78. 377 for the chromaticity center.
* θ is the angle between the major axis of the ellipse and the x-axis, and a and b are the major and minor semi-axes of an ellipse.
(Ref. IEC 60081:1997 AnnexD)

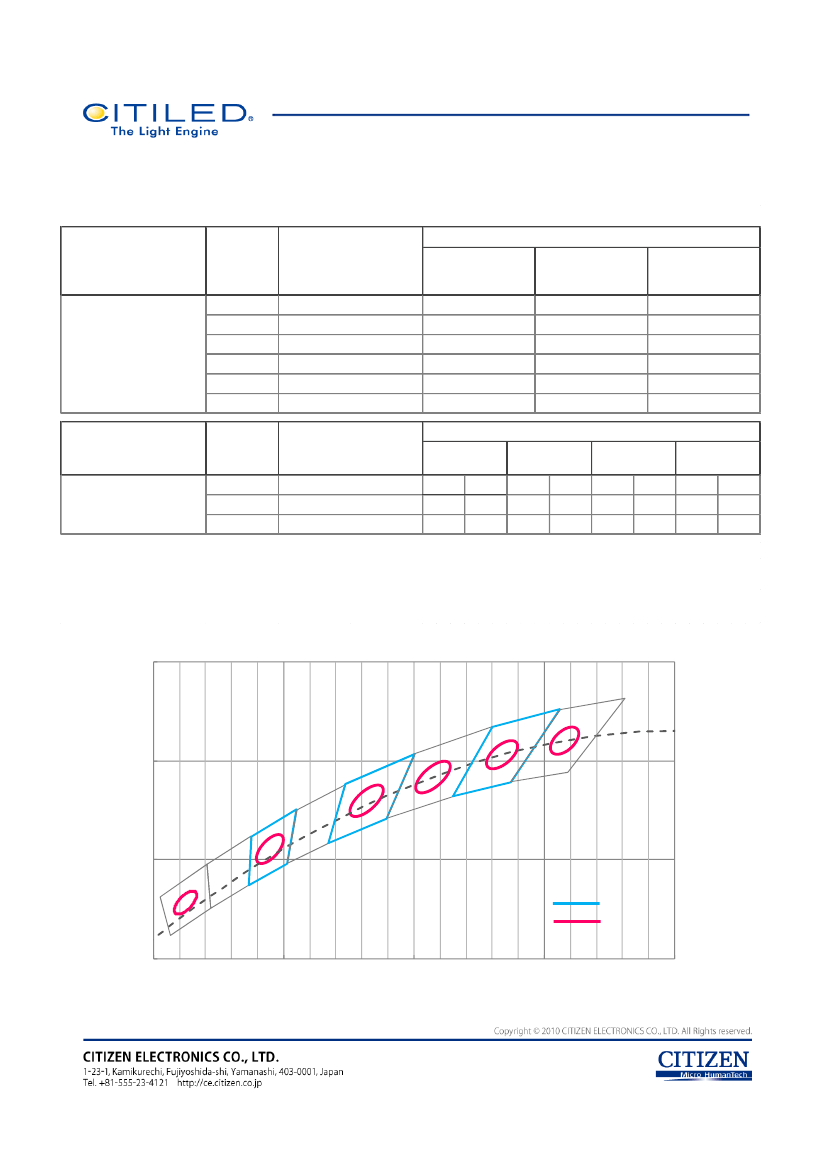

0.45
x-y chart CIE1931
3,000K
3,500K
2,700K
0.40
4,000K
5,000K
Black
Body
Locus
y
0.35
6,500K
ANSI
3-step
0.30
0.30
0.35
0.40
x
0.45
0.50
Note : Citizen Electronics maintains chromaticity ( x, y ) +/-0.005
4
Ref.CE-P3079 04/15
