Datasheet> All Categories > Discrete semiconductor> diode> 1N5826

Preview

1N5826: DescriptionRectifier, Schottky; Max Peak Repetitive Reverse Voltage: 15; Max TMS Bridge Input Voltage: 20; Max DC Reverse Voltage: 2000; Package: DO-4; CategoryDiscrete semiconductor diode; File Size1MB，3 Pages; ManufacturerDigitron; Websitehttp://www.digitroncorp.com

Download Datasheet Parametric Compare View All

1N5826 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N5826	-	-	View	Buy Now

1N5826 Overview

Rectifier, Schottky; Max Peak Repetitive Reverse Voltage: 15; Max TMS Bridge Input Voltage: 20; Max DC Reverse Voltage: 2000; Package: DO-4

1N5826 Parametric

Parameter Name	Attribute value
Maker	Digitron
package instruction	O-MUPM-D1
Reach Compliance Code	unknown
Is Samacsys	N
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.67 V
JEDEC-95 code	DO-4
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	600 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	15 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Maximum reverse current	2000 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

High-reliability discrete products

and engineering services since 1977

FEATURES



1N5826-1N5828

15A SCHOTTKY RECTIFIERS

Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.

Available as non-RoHS (Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix.

MAXIMUM RATINGS

Symbol

T

STG

T

J

R

θJC

R

θJS

Characteristics

Storage Temperature Range

Operating Junction Temperature Range

Maximum Thermal Resistance

Typical Thermal Resistance (greased)

Mounting Torque

Weight

Value

-55 to +175°C

-55 to +150°C

1.6°C/W Junction to case

0.5°C/W Case to sink

12-15 inch pounds

0.2 ounces (6.0 grams) typical

ELECTRICAL CHARACTERISTICS

(T

A

= 25°C unless otherwise specified)

Symbol

I

F(AV)

I

FSM

I

R(OV)

V

FM

V

FM

V

FM

I

RM

C

J

Characteristic

Average Forward Current

Maximum Surge Current

Maximum Repetitive Peak Reverse Current

Maximum Peak Forward – 1N5826

Maximum Peak Forward – 1N5827

Maximum Peak Forward – 1N5828

Maximum Peak Reverse Current

Typical Junction Capacitance

Conditions

T

C

= 117°C, square wave, R

θJC

= 1.6°C/W

8.3ms, half-sine T

J

= 150°C

f = 1 KHz, 25°C, 1 µsec square wave

I

FM

= 40A, T

J

= 25°C*

I

FM

= 40A, T

J

= 25°C*

I

FM

= 40A, T

J

= 25°C*

V

RRM

= T

J

= 25°C

V

R

= 5.0 V, T

J

= 25°C

Value

15 A

600 A

2A

.67 V

.77 V

.87 V

2 mA

1200 pF

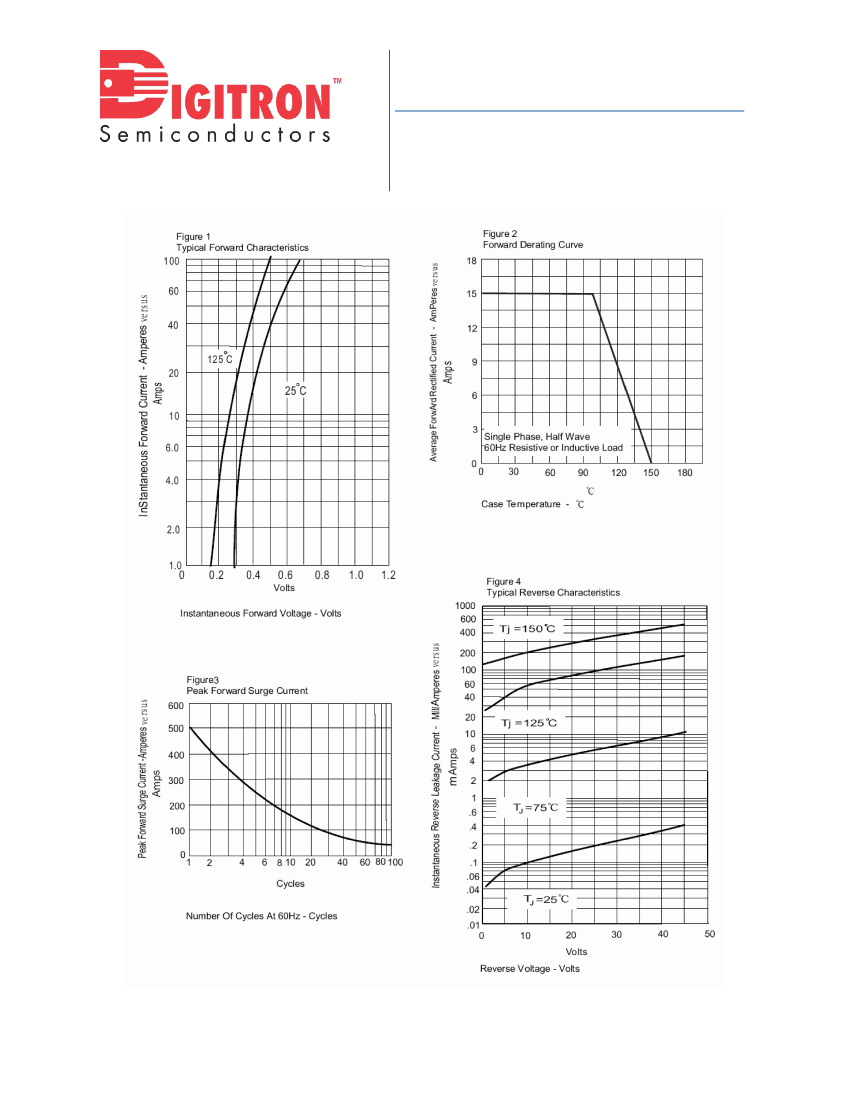

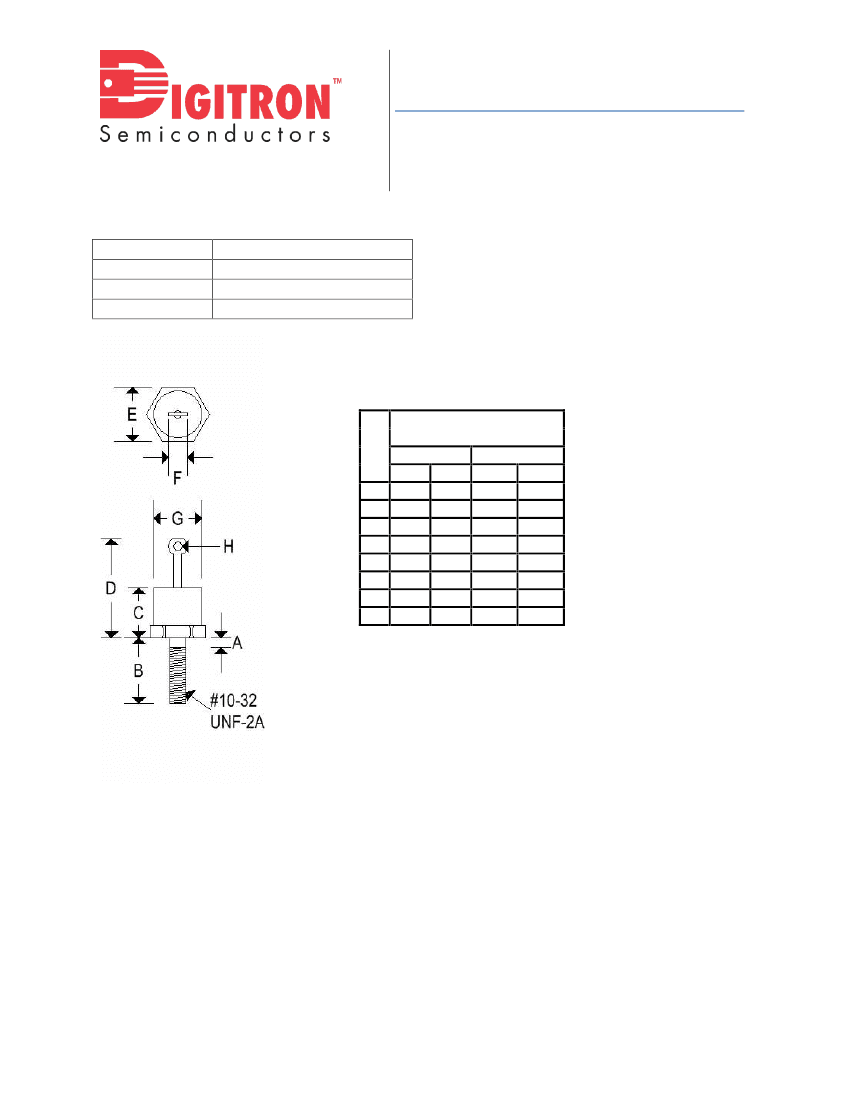

Rev. 20150317
