TS7008 Overview

10 BASE-T SMD TRANSFORMER

Preview

Download Datasheet

View All

Bothhandusa.com

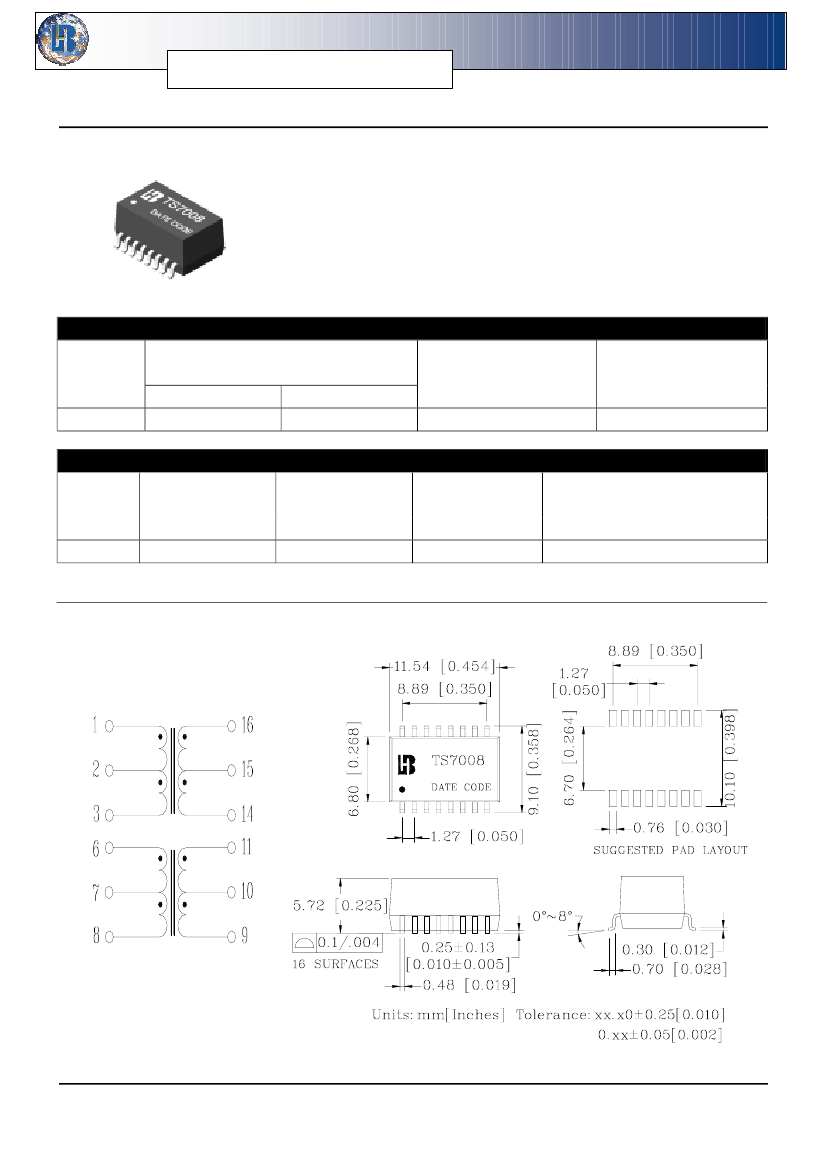

P/N: TS7008 DATA SHEET

Feature

16 PIN SMD isolation modules to meet the isolation and

impedance matching requirements of IEEE 802.3 for 10

BASE-T.

Operating temperature range : 0℃ to +70℃.

Storage temperature range: -25℃ to +125℃.

Page : 1/1

Electrical Specifications @ 25°C

Part

Number

TS7008

1-3:16-14

1CT: 1CT

Turns Ratio

(±3%)

6-8:11-9

1CT: 1CT

OCL

(uH±20%)

100

HI-POT

(Vrms)

2000

Continue

Part

Number

TS7008

W/W

(pF Max)

L.L

(uH Max)

0.30

DCR PRI

(Ω Max)

0.30

Insulation

Resistance (MΩ)

10,000

Schematic

Mechanical
