Bothhand USA.
e-mail: sales@bothhandusa.com http://www.bothhandusa.com

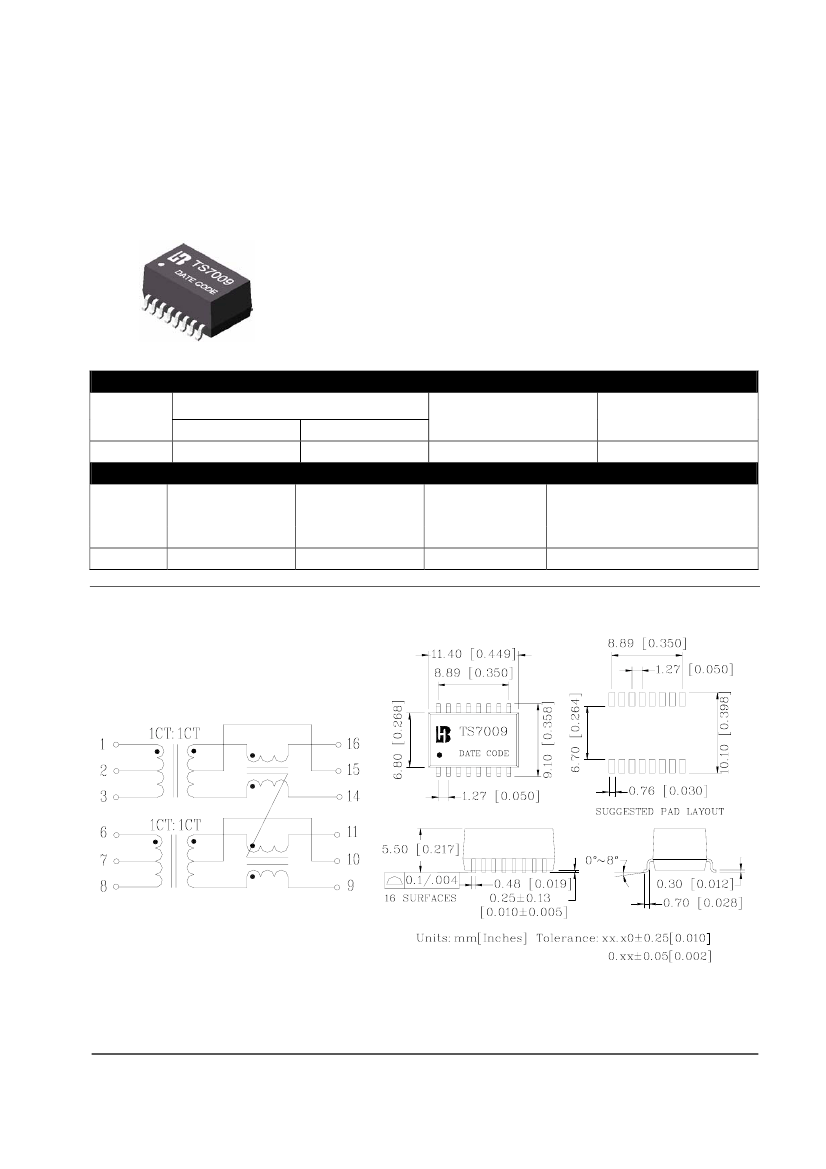

10 BASE-T SMD TRANSFORMER
Page : 1/1
P/N: TS7009 DATA SHEET
Feature
16 PIN SMD isolation modules to meet the isolation and
impedance matching requirements of IEEE 802.3 for10
BASE-T.
Operating temperature range : 0℃ to +70℃.
Storage temperature range: -25℃to +125℃.
Electrical Specifications @ 25°C
Part
Number
TS7009
Turns Ratio (±3%)
1-3:16-14
1CT: 1CT
6-8:11-9
1CT: 1CT
OCL
(uH±20%)
100
HI-POT
(Vrms)
2000
Continue
Part
Number
TS7009
C
W/W
(pF Max)
L.L
(uH Max)
DCR PRI
(Ω Max)
Insulation
Resistance(MΩ)
9
Schematic
0.30
0.30
Mechanical
10,000
462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434
A3(02/06)
