142-0694-016 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 142-0694-016

Preview

142-0694-016: DescriptionCONNECTOR, CABLE TERMINATED, MALE, SMA CONNECTOR, SOLDER, PLUG; CategoryThe connector The connector; File Size79KB，1 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric Compare View All

142-0694-016 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	142-0694-016	-	-	View	Buy Now

142-0694-016 Overview

CONNECTOR, CABLE TERMINATED, MALE, SMA CONNECTOR, SOLDER, PLUG

142-0694-016 Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
Reach Compliance Code	unknown
Is Samacsys	N
Other features	INSERTION LOSS MAX AT 16 GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.12 dB
insulator material	PTFE FLUOROCARBON/PFA
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SMA
Plug information	NO
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	26.5 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.17
Base Number Matches	1

Preview

Download Datasheet

View All

SMA - 50 Ohm Connectors

For Semi-Rigid Cable

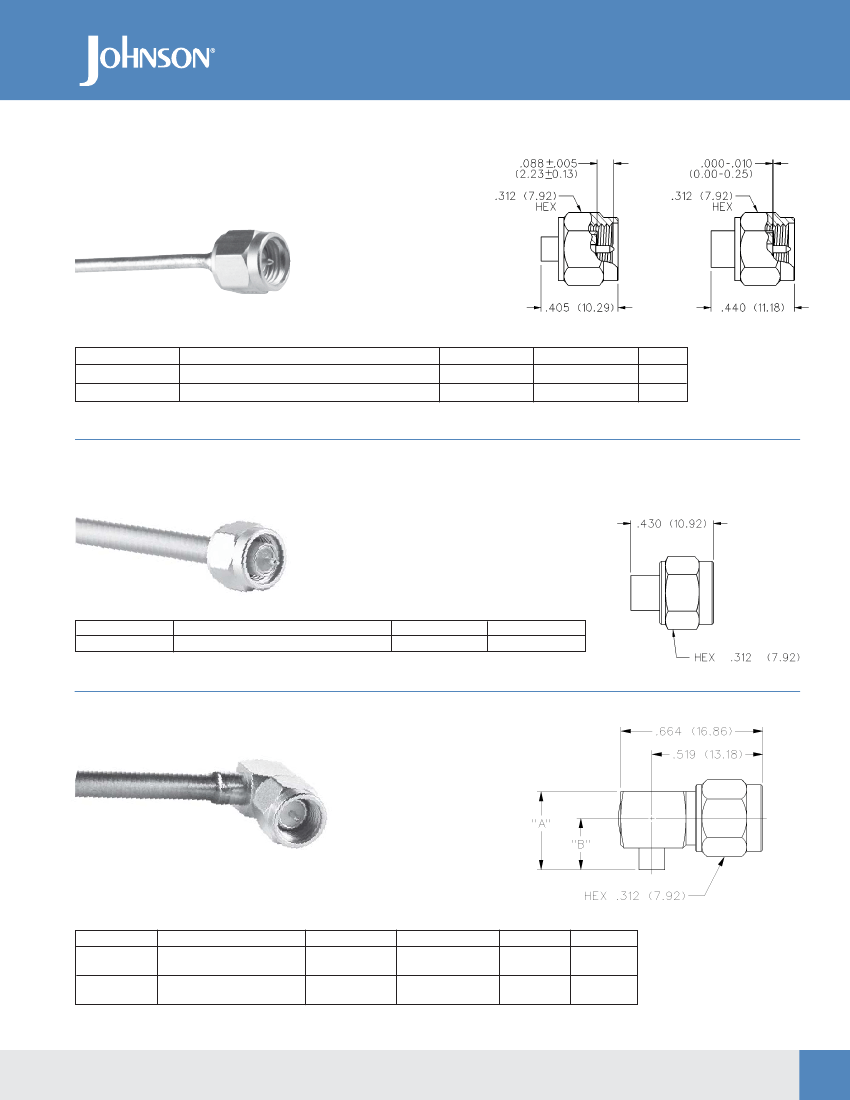

INCHES (MILLIMETERS) • CUSTOMER DRAWINGS AVAILABLE ON REQUEST

Straight Solder Type Plug - with Contact,

Captive Nut Thin Wall Connector

Interface for .141 Cable

FIG. 1

FIG. 2.

CABLE TYPE

.086 Semi-Rigid

.141 Semi-Rigid

VSWR & FREQ. RANGE

1.07 + .008f (0-18 GHz) 1.35 Max (18-26.5 GHz)

1.05+.008f (0-26.5 GHz)

GOLD PLATED

142-0693-001

142-0694-001*

NICKEL PLATED

142-0693-006

142-0694-006*

FIG.

1

2

Assembly instructions page 222. *Mating torque 8 inch-pounds maximum, coupling proof torque 8 in-lb max.

Straight Solder Type Plug - without Contact, Thread-on Nut

CABLE TYPE

.141 Semi-Rigid

VSWR & FREQ. RANGE

1.035 + .005f (0-26.5 GHz)

GOLD PLATED

142-0694-011

NICKEL PLATED

142-0694-016

Assembly instructions page 223. Center conductor of cable serves as contact.

Right Angle Solder Type Plug (1-piece body)

CABLE TYPE

.086

Semi-Rigid

.141

Semi-Rigid

VSWR & FREQ. RANGE

1.18 +.015f (0-12.4 GHz)

1.15 +.04f (12.4-18 GHz)

1.15 +.015f (0-12.4 GHz)

1.15 +.04f (12.4-18 GHz)

GOLD PLATED

142-0693-101

142-0694-101

NICKEL PLATED

142-0693-106

142-0694-106

“A”

.336 (8.53)

.462 (11.73)

“B”

.253 (6.43)

.306 (7.77)

Assembly instructions page 221.

Connectivity Solutions

Tel: 800-247-8256

•

Fax: 507-833-6287

•

www.EmersonNetworkPower.com/connectivity

41

142-0694-016 Related Products

	142-0694-016	142-0694-011
Description	CONNECTOR, CABLE TERMINATED, MALE, SMA CONNECTOR, SOLDER, PLUG	CONNECTOR, CABLE TERMINATED, MALE, SMA CONNECTOR, SOLDER, PLUG
Maker	Artysen Embedded Technologies	Artysen Embedded Technologies
Reach Compliance Code	unknown	unknown
Is Samacsys	N	N
Other features	INSERTION LOSS MAX AT 16 GHZ	INSERTION LOSS MAX AT 16 GHZ
Body/casing type	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)
Contact completed and terminated	GOLD (30)	GOLD (30)
Contact point gender	MALE	MALE
Coupling type	THREADED	THREADED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
Insertion loss	0.12 dB	0.12 dB
insulator material	PTFE FLUOROCARBON/PFA	PTFE FLUOROCARBON/PFA
JESD-609 code	e4	e4
MIL compliance	NO	NO
Manufacturer's serial number	SMA	SMA
Plug information	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE
Maximum operating frequency	26.5 GHz	26.5 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Termination type	SOLDER	SOLDER
voltage standing wave ratio	1.17	1.17
Base Number Matches	1	1
