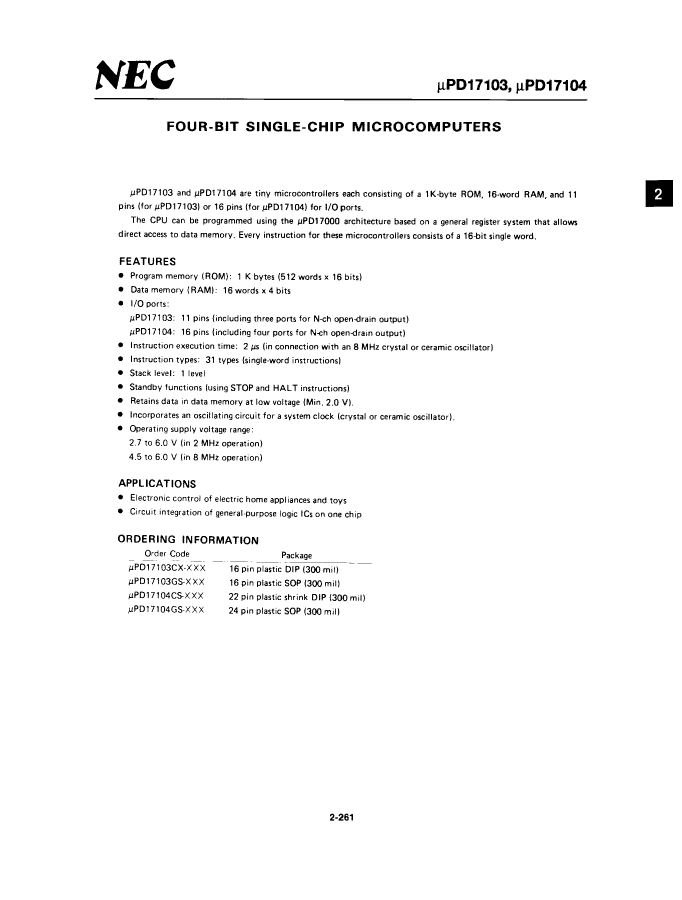

Microcontroller, 4-Bit, MROM, 8MHz, CMOS, PDIP16, 0.300 INCH, PLASTIC, DIP-16

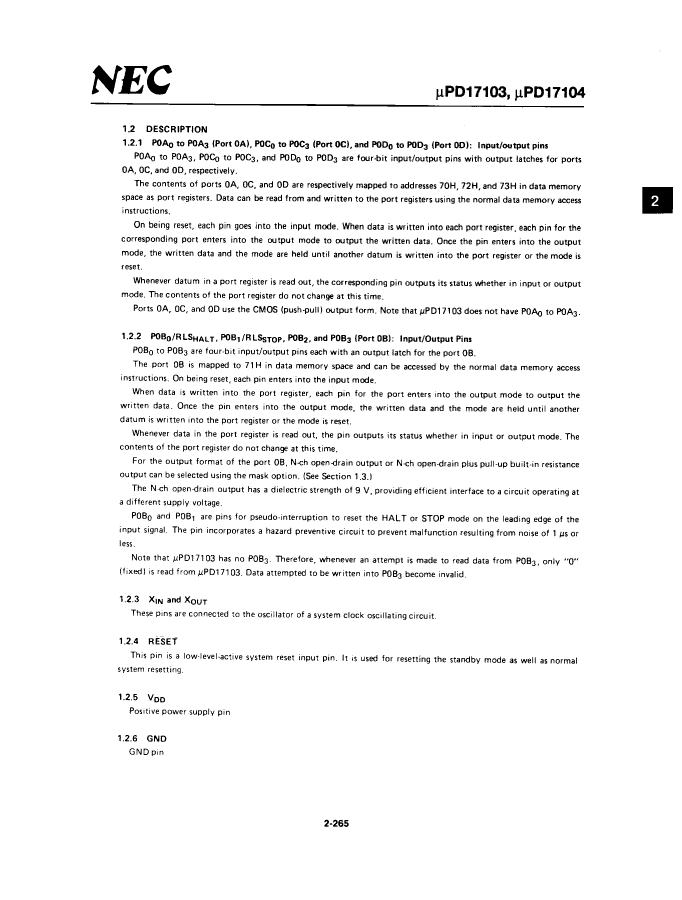

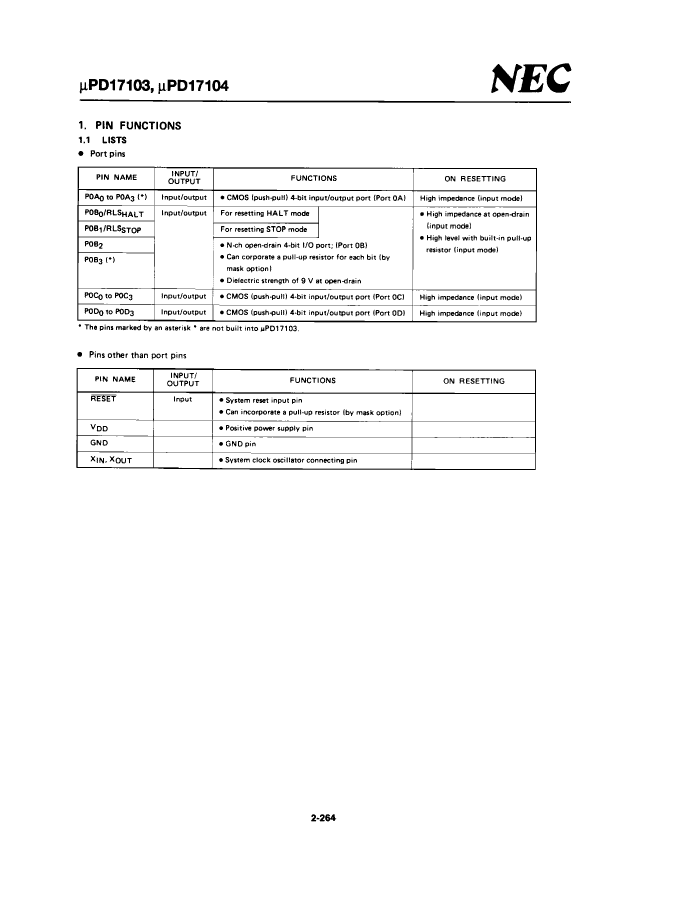

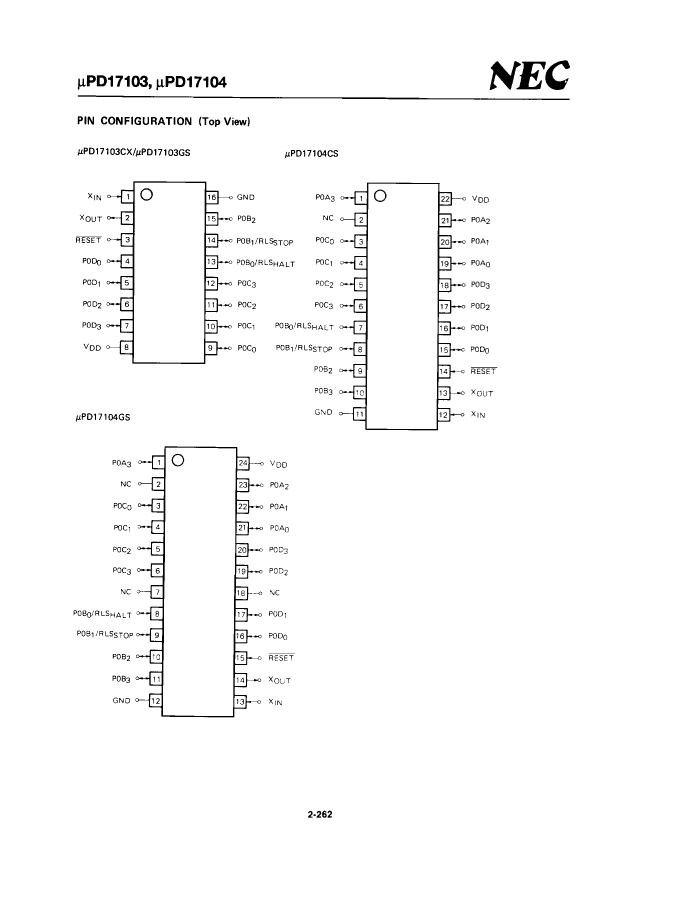

| Parameter Name | Attribute value |
| Maker | NEC Electronics |
| package instruction | 0.300 INCH, PLASTIC, DIP-16 |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Has ADC | NO |
| Address bus width | |
| bit size | 4 |
| boundary scan | NO |
| maximum clock frequency | 8 MHz |
| DAC channel | NO |
| DMA channel | NO |
| External data bus width | |
| Format | FIXED POINT |
| Integrated cache | NO |
| JESD-30 code | R-PDIP-T16 |
| low power mode | YES |
| Number of DMA channels | |
| Number of external interrupt devices | |
| Number of I/O lines | 11 |
| Number of serial I/Os | |
| Number of terminals | 16 |
| Number of timers | |
| On-chip data RAM width | 4 |
| On-chip program ROM width | 16 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| PWM channel | NO |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| RAM (number of words) | 16 |
| rom(word) | 512 |
| ROM programmability | MROM |
| Maximum seat height | 5.08 mm |
| speed | 8 MHz |
| Maximum slew rate | 4.5 mA |
| Maximum supply voltage | 6 V |
| Minimum supply voltage | 2.7 V |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 7.62 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER |
| Base Number Matches | 1 |
| UPD17103CX | UPD17104GS | UPD17103GS | |
|---|---|---|---|
| Description | Microcontroller, 4-Bit, MROM, 8MHz, CMOS, PDIP16, 0.300 INCH, PLASTIC, DIP-16 | Microcontroller, 4-Bit, MROM, 8MHz, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOP-24 | Microcontroller, 4-Bit, MROM, 8MHz, CMOS, PDSO16, 0.300 INCH, PLASTIC, SOP-16 |
| Maker | NEC Electronics | NEC Electronics | NEC Electronics |
| package instruction | 0.300 INCH, PLASTIC, DIP-16 | 0.300 INCH, PLASTIC, SOP-24 | 0.300 INCH, PLASTIC, SOP-16 |
| Reach Compliance Code | unknown | unknown | unknown |
| Has ADC | NO | NO | NO |
| bit size | 4 | 4 | 4 |
| boundary scan | NO | NO | NO |
| maximum clock frequency | 8 MHz | 8 MHz | 8 MHz |
| DAC channel | NO | NO | NO |
| DMA channel | NO | NO | NO |
| Format | FIXED POINT | FIXED POINT | FIXED POINT |
| Integrated cache | NO | NO | NO |
| JESD-30 code | R-PDIP-T16 | R-PDSO-G24 | R-PDSO-G16 |
| low power mode | YES | YES | YES |
| Number of I/O lines | 11 | 16 | 11 |
| Number of terminals | 16 | 24 | 16 |
| On-chip data RAM width | 4 | 4 | 4 |
| On-chip program ROM width | 16 | 16 | 16 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C |
| PWM channel | NO | NO | NO |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| RAM (number of words) | 16 | 16 | 16 |
| rom(word) | 512 | 512 | 512 |
| ROM programmability | MROM | MROM | MROM |
| Maximum seat height | 5.08 mm | 1.8 mm | 1.8 mm |
| speed | 8 MHz | 8 MHz | 8 MHz |
| Maximum slew rate | 4.5 mA | 4.5 mA | 4.5 mA |
| Maximum supply voltage | 6 V | 6 V | 6 V |
| Minimum supply voltage | 2.7 V | 2.7 V | 2.7 V |
| Nominal supply voltage | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES |
| technology | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | THROUGH-HOLE | GULL WING | GULL WING |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL |
| width | 7.62 mm | 5.6 mm | 5.6 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER |
