Mosorb devices are designed to protect voltage sensitive components from high volt-
age, high energy transients. They have excellent clamping capability, high surge capabili-
ty, low zener impedance and fast response time. These devices are Motorola’s exclusive,
cost-effective, highly reliable Surmetic axial leaded package and are ideally-suited for use
in communication systems, numerical controls, process controls, medical equipment,
business machines, power supplies and many other industrial/consumer applications, to
protect CMOS, MOS and Bipolar integrated circuits.
Specification Features:
•
Standard Voltage Range — 6.2 to 250 V
•
Peak Power — 1500 Watts @ 1 ms
•
Maximum Clamp Voltage @ Peak Pulse Current
•
Low Leakage < 5
µA
Above 10 V
•
UL Recognition
•
Response Time is Typically < 1 ns
Mechanical Characteristics:
CASE:
Void-free, transfer-molded, thermosetting plastic
FINISH:
All external surfaces are corrosion resistant and leads are readily solderable
POLARITY:
Cathode indicated by polarity band. When operated in zener mode, will be
positive with respect to anode
MOUNTING POSITION:
Any
WAFER FAB LOCATION:
Phoenix, Arizona
ASSEMBLY/TEST LOCATION:
Guadalajara, Mexico
MAXIMUM RATINGS
Rating
Peak Power Dissipation (1)
@ TL
≤
25°C
Steady State Power Dissipation
@ TL
≤
75°C, Lead Length = 3/8″
Derated above TL = 75°C
Forward Surge Current (2)
@ TA = 25°C
Operating and Storage Temperature Range
Lead temperature not less than 1/16″ from the case for 10 seconds: 230°C
NOTES: 1. Nonrepetitive current pulse per Figure 5 and derated above TA = 25°C per Figure 2.
NOTES:
2. 1/2 sine wave (or equivalent square wave), PW = 8.3 ms, duty cycle = 4 pulses per minute maximum.
CASE 41A
PLASTIC
Symbol
PPK
PD
Value
1500
5
50
Unit
Watts
Watts
mW/°C
Amps
°C
IFSM
TJ, Tstg
200
– 65 to +175
Devices listed in bold, italic are Motorola preferred devices.
Motorola TVS/Zener Device Data
500 Watt Peak Power Data Sheet
4-1
*ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted) VF = 3.5 V max, IF** = 100 A
Breakdown Voltage
Device
Note 1
VBR
{{
(Volts)
Min
6
@ IT
(mA)
1
Maximum
M i
Reverse
Stand-Off
Voltage VRWM***
(Volts)
5
Clamping Voltage
Maximum
M i
Reverse Voltage
Peak Pulse
Peak Pulse
@ IRSM
{
= 120 A
Current @
Current @
(Clamping Voltage) IPP1
{
= 30 A
IPP2
{
= 60 A
VRSM (Volts)
VC1 (Volts max) VC2 (Volts max)
8.5
7.6
8
Maximum
M i
Reverse Leakage
@ VRWM
IR (µA)
300
1N5908
NOTE 1: The 1N5908 is JEDEC registered as a unidirectional device only (no bidirectional option).
***
Indicates JEDEC registered data.
***
1/2 sine wave (or equivalent square wave), PW = 8.3 ms, duty cycle = 4 pulses per minute maximum.
*** A transient suppressor is normally selected according to the maximum reverse stand-off voltage (VRWM), which should be equal to or greater than the dc or continuous peak operating
***
voltage level.
{
{
Surge current waveform per Figure 5 and derate per Figure 2 of the General Data — 1500 W at the beginning of this group.
{ {
VBR measured at pulse test current IT at an ambient temperature of 25°C.
500 Watt Peak Power Data Sheet
4-2
Motorola TVS/Zener Device Data
100
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT @ TA= 25
°
C
NONREPETITIVE
PULSE WAVEFORM
SHOWN IN FIGURE 5
PP , PEAK POWER (kW)
100
80
60
40
20
0
0
25
50
75
100 125 150 175 200
TA, AMBIENT TEMPERATURE (°C)
10
1
µs
0.1
1
µs
10
µs
100
µs
1 ms
10 ms
tP, PULSE WIDTH
Figure 1. Pulse Rating Curve
Figure 2. Pulse Derating Curve
1N6373, ICTE-5, MPTE-5,
through
1N6389, ICTE-45, C, MPTE-45, C
10,000
MEASURED @
ZERO BIAS
10,000
1N6267A/1.5KE6.8A
through
1N6303A/1.5KE200A
MEASURED @
ZERO BIAS
C, CAPACITANCE (pF)
1000
MEASURED @
STAND-OFF
VOLTAGE (VR)
C, CAPACITANCE (pF)
1000
MEASURED @
STAND-OFF
VOLTAGE (VR)
100
100
10
1
10
100
1000
BV, BREAKDOWN VOLTAGE (VOLTS)
10
1
10
100
1000
BV, BREAKDOWN VOLTAGE (VOLTS)
Figure 3. Capacitance versus Breakdown Voltage
PD , STEADY STATE POWER DISSIPATION (WATTS)
3/8″
5
4
3
2
1
0
0
25
50
75
100 125 150 175
TL, LEAD TEMPERATURE (°C)
200
0
0
3/8″
VALUE (%)
100
tr
PEAK VALUE — IRSM
PULSE WIDTH (tP) IS DEFINED
AS THAT POINT WHERE THE
PEAK CURRENT DECAYS TO 50%
OF IRSM.
tr
≤
10
µs
IRSM
2
HALF VALUE –
50
tP
1
2
t, TIME (ms)
3
4
Figure 4. Steady State Power Derating
Devices listed in bold, italic are Motorola preferred devices.
Figure 5. Pulse Waveform
Motorola TVS/Zener Device Data
500 Watt Peak Power Data Sheet
4-3
1N6373, ICTE-5, MPTE-5,
through
1N6389, ICTE-45, C, MPTE-45, C

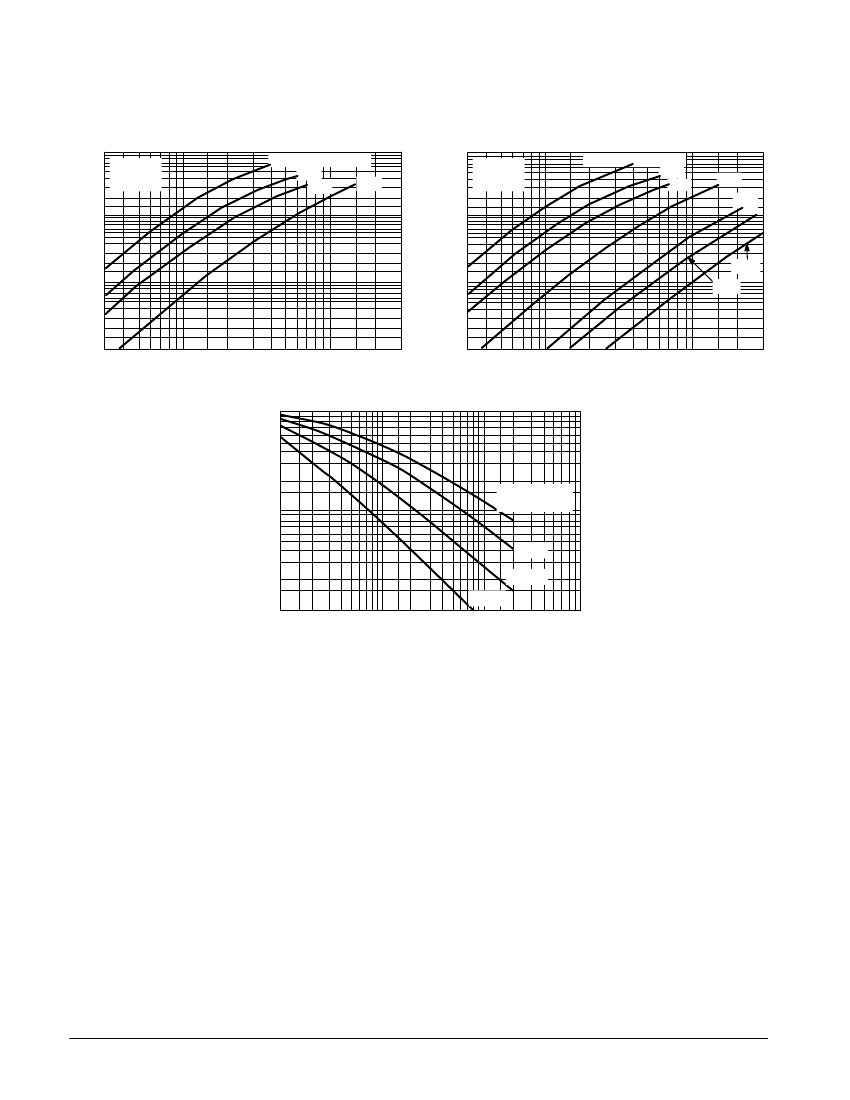

1000
500
I Z, ZENER CURRENT (AMPS)
200
100
50
20
10
5
2
1
0.3
0.5 0.7 1
2
3
5 7 10
20 30
∆V
Z, INSTANTANEOUS INCREASE IN VZ ABOVE VZ(NOM) (VOLTS)
1
0.7
0.5
0.3
DERATING FACTOR
0.2
0.1
0.07
0.05
0.03
0.02
10
µs
0.01
0.1
0.2
0.5
1
2
5
10
D, DUTY CYCLE (%)
20
TL = 25°C
tP = 10
µs
VZ(NOM) = 6.8 to 13 V
20 V
43 V
24 V
1000
500
I Z, ZENER CURRENT (AMPS)
200
100
50
20
10
5
2
1
TL = 25°C
tP = 10
µs
1N6267A/1.5KE6.8A
through
1N6303A/1.5KE200A
VZ(NOM) = 6.8 to 13 V
20 V
24 V
43 V
75 V
180 V
120 V
0.3
0.5 0.7 1
2
3
5 7 10
20 30
∆V
Z, INSTANTANEOUS INCREASE IN VZ ABOVE VZ(NOM) (VOLTS)
Figure 6. Dynamic Impedance
PULSE WIDTH
10 ms
1 ms
100
µs
50
100
Figure 7. Typical Derating Factor for Duty Cycle
APPLICATION NOTES
RESPONSE TIME
In most applications, the transient suppressor device is
placed in parallel with the equipment or component to be pro-
tected. In this situation, there is a time delay associated with
the capacitance of the device and an overshoot condition as-
sociated with the inductance of the device and the inductance
of the connection method. The capacitance effect is of minor
importance in the parallel protection scheme because it only
produces a time delay in the transition from the operating volt-
age to the clamp voltage as shown in Figure A.
The inductive effects in the device are due to actual turn-on
time (time required for the device to go from zero current to full
current) and lead inductance. This inductive effect produces
an overshoot in the voltage across the equipment or
component being protected as shown in Figure B. Minimizing
this overshoot is very important in the application, since the
main purpose for adding a transient suppressor is to clamp
voltage spikes. These devices have excellent response time,
typically in the picosecond range and negligible inductance.
However, external inductive effects could produce unaccept-
able overshoot. Proper circuit layout, minimum lead lengths
500 Watt Peak Power Data Sheet
4-4
and placing the suppressor device as close as possible to the
equipment or components to be protected will minimize this
overshoot.
Some input impedance represented by Zin is essential to
prevent overstress of the protection device. This impedance
should be as high as possible, without restricting the circuit op-
eration.
DUTY CYCLE DERATING
The data of Figure 1 applies for non-repetitive conditions
and at a lead temperature of 25°C. If the duty cycle increases,
the peak power must be reduced as indicated by the curves of
Figure 7. Average power must be derated as the lead or
ambient temperature rises above 25°C. The average power
derating curve normally given on data sheets may be
normalized and used for this purpose.
At first glance the derating curves of Figure 7 appear to be in
error as the 10 ms pulse has a higher derating factor than the
10
µs
pulse. However, when the derating factor for a given
pulse of Figure 7 is multiplied by the peak power value of
Figure 1 for the same pulse, the results follow the expected
trend.
Motorola TVS/Zener Device Data
TYPICAL PROTECTION CIRCUIT
Zin
Vin
LOAD
VL
V
Vin (TRANSIENT)
VL
V
OVERSHOOT DUE TO
INDUCTIVE EFFECTS
Vin (TRANSIENT)
VL
Vin
td
tD = TIME DELAY DUE TO CAPACITIVE EFFECT
t
t
Figure 8.
Figure 9.
UL RECOGNITION*
The entire series has
Underwriters Laboratory Recognition
for the classification of protectors (QVGV2) under the UL
standard for safety 497B and File #116110. Many competitors
only have one or two devices recognized or have recognition
in a non-protective category. Some competitors have no
recognition at all. With the UL497B recognition, our parts
successfully passed several tests including Strike Voltage
Breakdown test, Endurance Conditioning, Temperature test,
Dielectric Voltage-Withstand test, Discharge test and several
more.
Whereas, some competitors have only passed a flammabil-
ity test for the package material, we have been recognized for
much more to be included in their Protector category.
*Applies to 1.5KE6.8A, CA thru 1.5KE250A, CA
Devices listed in bold, italic are Motorola preferred devices.
