Tip Jack
Insulated Deluxe
SPECIFICATIONS
Contact:
Brass per QQ-B-626D with wrap around
beryllium copper spring per QQ-C-533
Finish:
Silver
Body:
Nylon 6/6 per ASTM D4066
Hardware:
Nickel plated nut (unassembled)
Body Thread Stripping Torque:
0.4 lb. in (4.5 kg. cm.)
Panel Thickness:
Up to .437 (11.10)
RATINGS
Current:
10 amps
Breakdown Voltage:
5700 Vrms minimum
Contact Resistance:
0.010 ohms maximum
Contact-To-Panel C:
2 pF nominal
INCHES (MILLIMETERS)

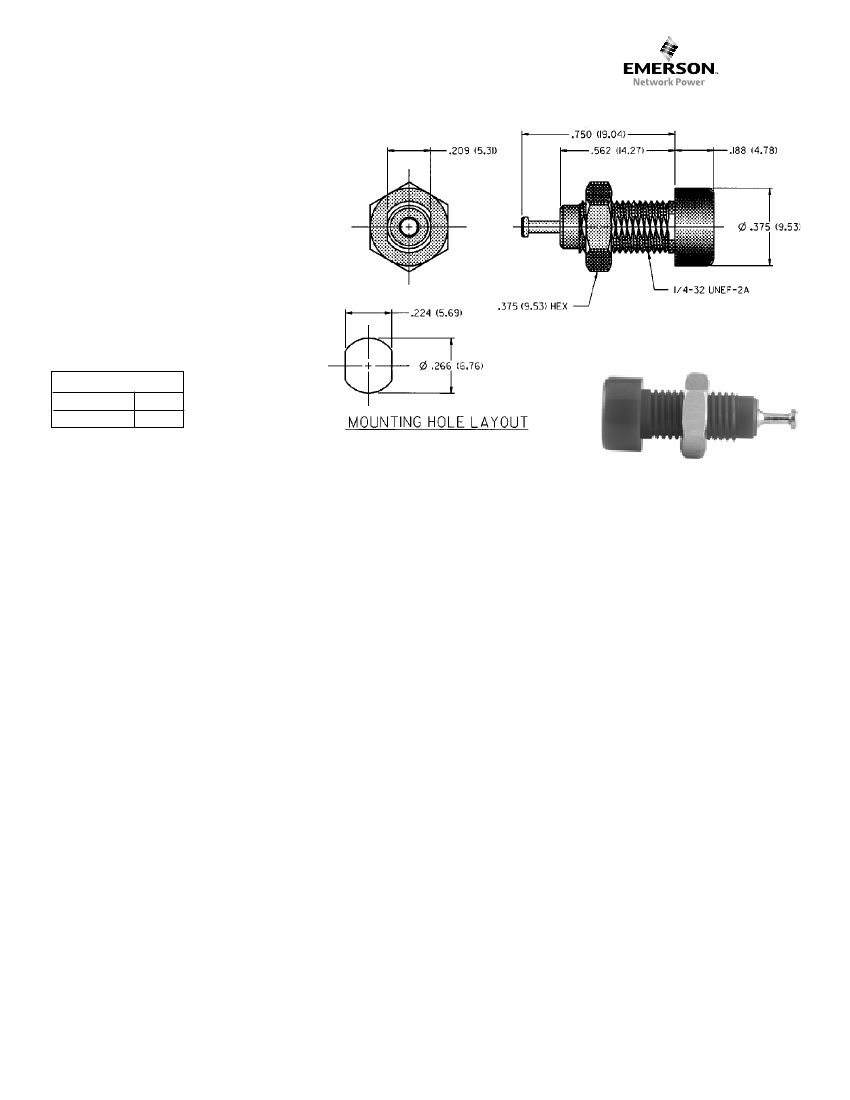

CUSTOMER DRAWINGS AVAILABLE UPON REQUEST
SILVER PLATING
PART NO.
105-0607-001
COLOR
Yellow
For Standard Tip Plug: .080 (2.00) Diameter
FEATURES:
•
Machined contact with turret terminal
•
Hex socket head .188 (4.77) for ease in mounting
•
Closed entry blocks access of probes greater than .085 (2.16)
•
Nylon UL approved for self extinguishing
