Part Number

Search

B69813-N1847-C476

Description
1842.5 MHz, CERAMIC BPF
CategoryAnalog mixed-signal IC    filter
File Size82KB,4 Pages
ManufacturerEPCOS (TDK)
Environmental Compliance
Download Datasheet Parametric View All

B69813-N1847-C476 Overview

1842.5 MHz, CERAMIC BPF

B69813-N1847-C476 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerEPCOS (TDK)
Reach Compliance Codecompliant
Is SamacsysN
Other featuresTAPE AND REEL
Maximum attenuation frequency (+/- delta f)57500 kHz
Attenuation at maximum frequency11 dB
average input power15 W
Center frequency or cutoff frequency (fo/fc)1842.5 MHz
filter typeCERAMIC BPF
high1.8 mm
Input/output impedance50 OHM
Maximum insertion loss3.2 dB
JESD-609 codee3/e4
length4.2 mm
Manufacturer's serial numberB69813-N1847-C476
Installation typeSURFACE MOUNT
Maximum operating temperature80 °C
Minimum operating temperature-20 °C
physical sizeL4.2XB4XH1.8 (mm)
Terminal surfaceTIN/SILVER
voltage standing wave ratio2.2
width4 mm
Base Number Matches1
Preliminary Data Sheet
Microwave Ceramics
3-Pole Filter for PCN RX
1842.5 MHz
SMD
B69813-N1847-C476
Index
Page 2
Page 3
Page 4
l
l
l
l
l
l
l
l
l
l
Application
Features

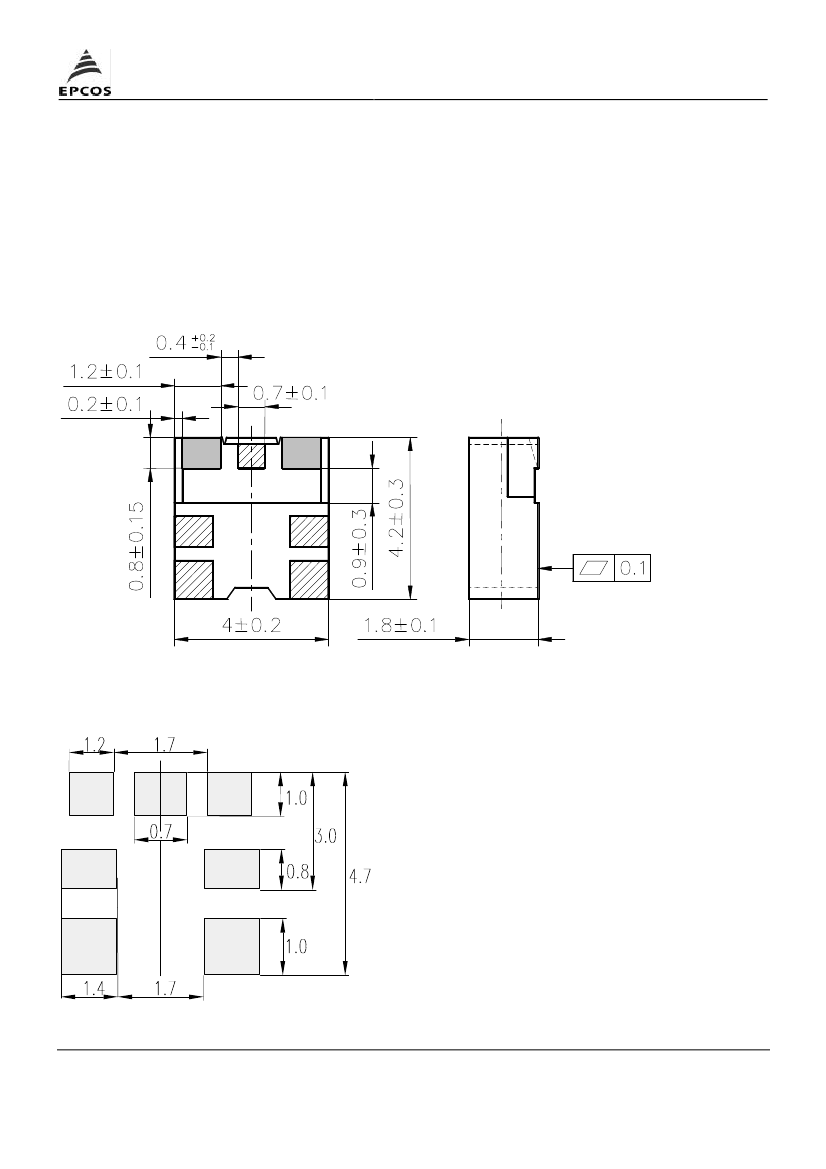

Component drawing
Recommended footprint
Characteristics
Maximum ratings
Typical passband characteristic

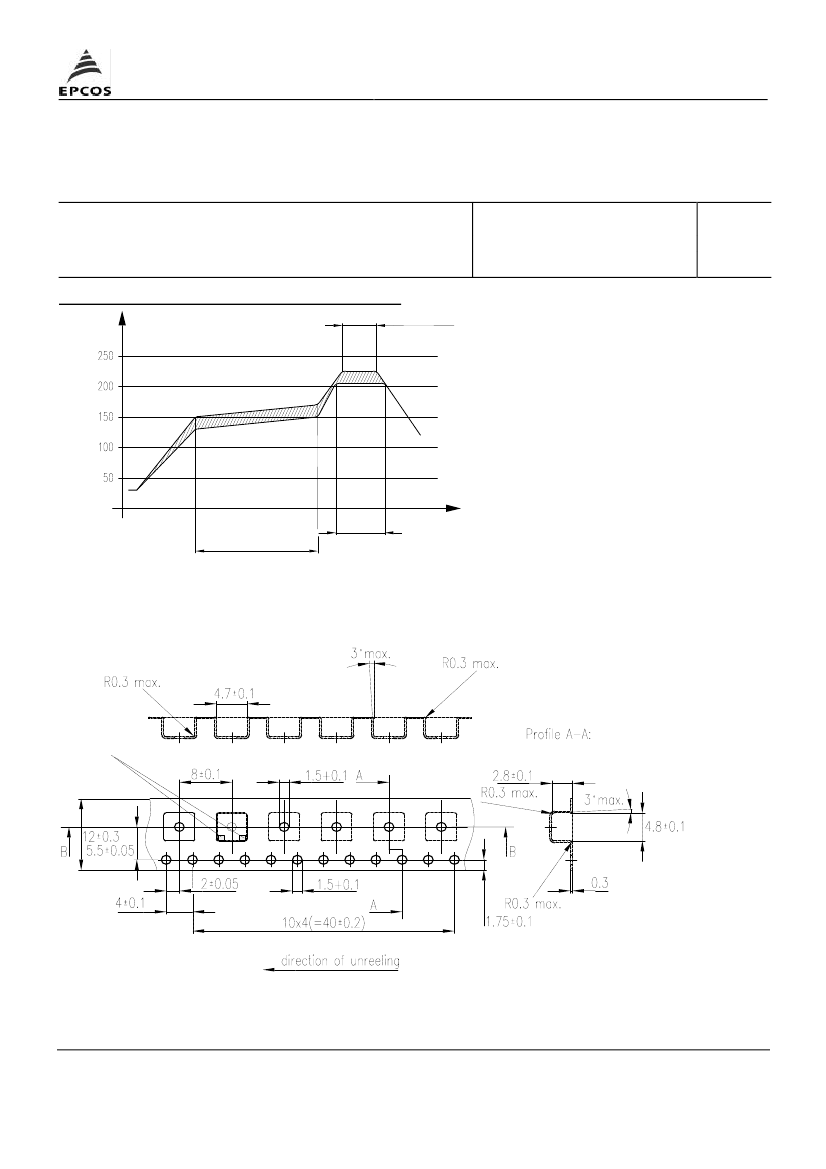

Processing information
Soldering requirements
Delivery mode
Revision History
Issue
P1
P2
Detail of change
update of drawing, attenuation
Date
10.08.00
15.12.00
Name
Stadler
Stadler
1/4
