ACT-S128K32C-025P7Q datasheet, PDF

Datasheet> All Categories > storage> storage> ACT-S128K32C-025P7Q

ACT-S128K32C-025P7Q: DescriptionCache SRAM Module, 128KX32, 25ns, CMOS, CPGA66, 1.085 X 1.085 INCH, 0.160 INCH HEIGHT, HERMETIC SEALED, PGA-66; Categorystorage storage; File Size414KB，10 Pages; ManufacturerCobham PLC

Download Datasheet Parametric View All

ACT-S128K32C-025P7Q Overview

Cache SRAM Module, 128KX32, 25ns, CMOS, CPGA66, 1.085 X 1.085 INCH, 0.160 INCH HEIGHT, HERMETIC SEALED, PGA-66

ACT-S128K32C-025P7Q Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Cobham PLC
package instruction	PGA, PGA66,11X11
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Is Samacsys	N
Maximum access time	25 ns
Other features	CONFIGURABLE AS 512K X 8
Spare memory width	16
I/O type	COMMON
JESD-30 code	S-CPGA-P66
JESD-609 code	e0
memory density	4194304 bit
Memory IC Type	CACHE SRAM MODULE
memory width	32
Number of functions	1
Number of terminals	66
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	128KX32
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA66,11X11
Package shape	SQUARE
Package form	GRID ARRAY
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Filter level	MIL-PRF-38534
Maximum seat height	4.699 mm
Maximum standby current	0.0104 A
Minimum standby current	2 V
Maximum slew rate	0.5 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
Base Number Matches	1

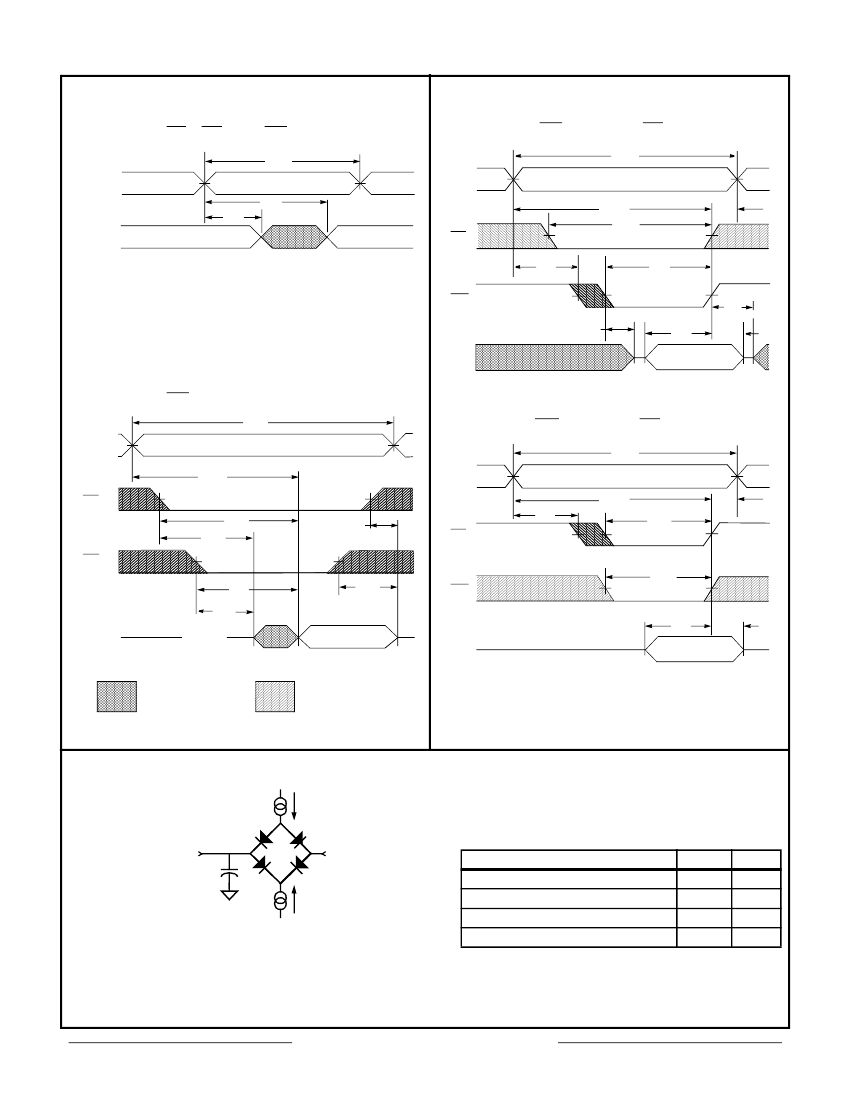

Preview

Download Datasheet

View All

ACT-S128K32 High Speed

4 Megabit SRAM Multichip Module

Features

■

4 Low Power CMOS 128K x 8 SRAMs in one MCM

■

Overall configuration as 128K x 32

■

Input and Output TTL Compatible

■

17, 20, 25, 35, 45 & 55ns Access Times, 15ns Available by Special Order

■

Full Military (-55°C to +125°C) Temperature Range

■

+5V Power Supply

■

Choice of 7 Hermetically sealed Co-fired Packages:

●

68–Lead, Low Profile CQFP (F1), 1.56"SQ x .140"max

●

68–Lead, Dual-Cavity CQFP (F2), .88"SQ x .20"max (.18"max thickness

available, contact factory for details)

(Drops into the 68 Lead JEDEC .99"SQ

CQFJ footprint)

●

68–Lead, Single-Cavity CQFP (F18), .94"SQ x .140"max

(Drops into the 68

Lead JEDEC .99"SQ CQFJ footprint)

●

66–Lead, PGA-Type (P2,P6 with/without shoulders), 1.185"SQ x .245"max

●

66–Lead, PGA-Type (P7,P3 with/without shoulders), 1.08"SQ x .160"max

■

Internal Decoupling Capacitors

■

DESC SMD# 5962–93187 Released (P2,P3,P6,P7)

CIRCUIT TECHNOLOGY

www.aeroflex.com

General Description

The ACT–S128K32 is a High

Speed 4 megabit CMOS SRAM

Multichip

Module

(MCM)

designed for full temperature

range, military, space, or high

reliability mass memory and

fast cache applications.

The MCM can be organized

as a 128K x 32 bits, 256K x 16

bits or 512k x 8 bits device and

is input and output TTL

compatible. Writing is executed

when the write enable (WE)

and chip enable (CE) inputs are

low. Reading is accomplished

when WE is high and CE and

output enable (OE) are both

low. Access time grades of

17ns, 20ns, 25ns, 35ns, 45ns

and 55ns maximum are

standard.

The +5 Volt power supply

version is standard and the

+3.3 Volt low power model is

available (See ACT-S128K32V

data sheet).

The products are designed for

operation over the temperature

range of -55°C to +125°C and

screened under the full military

environment. DESC Standard

Military Drawing (SMD) part

numbers are released and

available.

The

ACT-S128K32

manufactured in Aeroflex’s

80,000ft

MIL-PRF-38534

certified facility in Plainview,

N.Y.

5962–95595 Released (F1,F2,F18)

Block Diagram – PGA Type Package(P2,P7) & CQFP(F2,F18)

Pin Description

I/O

0-31

– A

128Kx8

0–16

1–4

I/O

0-7

I/O

8-15

I/O

16-23

I/O

24-31

GND

Data I/O

Address Inputs

Write Enables

Chip Enables

Output Enable

Power Supply

Ground

Not Connected

Block Diagram – CQFP(F1)

Pin Description

– A

128Kx8

I/O

0-31

0–16

1–4

I/O

0-7

I/O

8-15

I/O

16-23

I/O

24-31

GND

Data I/O

Address Inputs

Write Enable

Chip Enables

Output Enable

Power Supply

Ground

Not Connected
