Industrial Operations now introduces its
Amphe-PD
™
connector series. The Amphe-PD
™
series
features RADSOK
®
technology, a terminal that features a
stamped hyperbolic grid providing low insertion force, high
amperage, high reliability, and a longer cycle life. The
Amphe-PD
™
connector series is ideally suited for the
datacom industry, as well as many other applications.
The Amphe-PD
™
connectors generate more processing
power with less heat than a similar-sized connector. The
series produces greater amperage without wasting valuable
space, offering a compact solution for datacom applications,
which require small, yet powerful connectors.
The
Amphe-PD
™
solution is UL listed at 69A and CSA
listed at 55A. Amphe-PD
™
features a single position
®
RADSOK with molded socket shell or a dual-position TUV
®
“touch-proof” with a V0 rating. In addition, the RADSOK in
the Amphe-PD
™
supports a 50A to 70A continuous duty
rating. Amphenol’s Amphe-PD
™
series was developed with
the ability to connect to wires, busbars, as well as circuit
boards. This flexibility allows the Amphe-PD
™
to be used in
a wide variety of applications. Several different plastic
receptacle-mounting variations are also available.
In addition to the two position, 3.6mm RADSOK
®
rated at
55A, Amphenol now has introduced a two position 5.7mm
version capable of carrying 120A continuously. This design
has crimp contacts in the plug and receptacle with a crimp
barrel for 4 awg wire. Contact Amphenol for more product
details.
www.amphenol-industrial.com
With millions of parts in the field, the RADSOK
®
electrical connection has proven to be extremely stable, with almost no reported
®
®
connection failures in Amphenol-RADSOK -designed applications. RADSOK utilizes the tensile strength properties of the flat, high
conductivity alloy grid for the high normal forces required for conductivity, while providing a large conductive surface area. This results
in a correspondingly low voltage drop and low temperature rise while maintaining low insertion forces.
Additional benefits of the Amphe-PD
™
product include:
• Low cost, 100% molded housings
• Integrated latching mechanism
• Easy, Tool-less assembly
• Low Insertion Force
• High Reliability
• High Cycle Durability
• High Ampacity
• Tactile and audible locking
• Proven metal clip contact retention on receptacles
• TPA device on plug to insure socket locking
Technical Specifications:
3.6mm is UL rated 69 amps (6 AWG). CSA rated 55 Amps (6 AWG). 5.7mm (non-UL) is rated for
120 amps. Molded from UL94V-0 thermoplastic (self extinguishing). Meets RoHS and UL-94V-0 guidelines. 2-pole DC Power
interconnect in about 1 square inch (3.6mm version) and 1.75 inch square (5.7mm version). Passes UL and TUV finger proof
design standards.

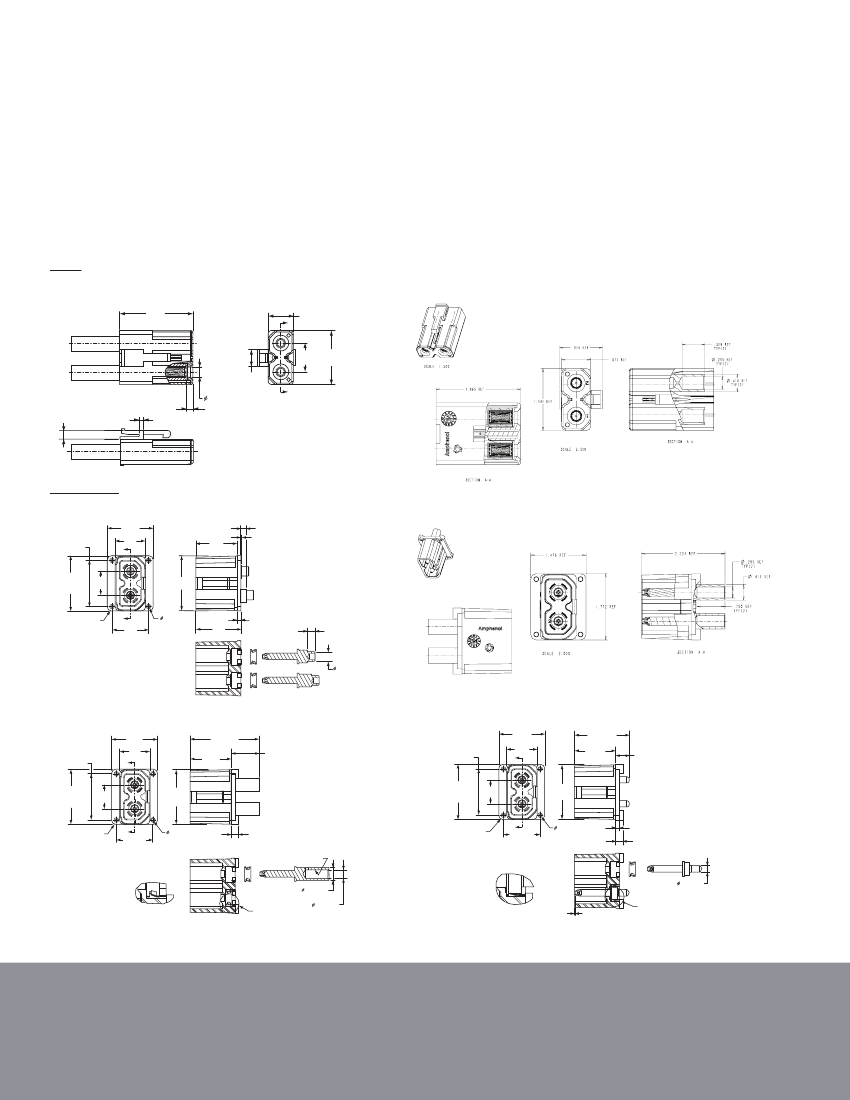

Plugs
10-638974-000 3.6mm RADSOK Plug
1.310
(33.27) REF
A
1
.512
(13.0)
.290
(7.366)
SECTION A-A
.150
(3.81)
.180 (4.572) REF
.123 (3.112) REF
.070
(1.778)
2
A
.961 REF
(24.4)
.449 REF
(11.4)
®
10-685188-000 5.7mm RADSOK® Plug
Receptacles
10-638975-000 3.6mm Busbar Receptacle
.984
(25.0)
.984 ±.005
(25.0 ± 0.127)
.650
(16.5)
W
.113 REF
(2.88)
.884
(22.45)
.010 REF
(0.263)
10-685189-000 5.7mm Receptacle
1.181 +.000
–.019
(30.0 + 0.0
– 0.5)
1
.512
(13.0)
2
1.161
(29.5)
R .098
(2.5)
W
.787
(20.0)
.079 (2.0)
FOR
M 2.5 THREAD
FORMING
SCREWS
.963
(24.45)
.079 REF
(2.0)
.160
(4.064)
.203 ± .002
(5.156 ± 0.051)
SECTION W-W
10-638977-000 3.6mm PCB Tail
.984
(25.0)
.650
(16.5)
W
1.180 REF
(29.972)
.884
(22.45)
.296 REF
(7.522)
10-638976-000 3.6mm Receptacle
.984 ±.005
(25.0 ± 0.127)
.984
(25.0)
.650
(16.5)
W
1.476 REF
(37.49)
.884
(22.45)
.592 REF
(15.04)
.984 ±.005
(25.0 ± 0.127)
1.181 +.000
–.019
(30.0 + 0.0
– 0.5)
1
.512
(13.0)
2
1.161
(29.5)
1.181 +.000
–.019
(30.0 + 0.0
– 0.5)
1
.512
(13.0)
2
1.161
(29.5)
R .098
(2.5)
W
.787±.005
(20.0 ± 0.127)
.079 (2.0)
FOR
M 2.5 THREAD
FORMING SCREWS
.157 (4.0)
BOSS
4 PLACES
#8 AWG CRIMP BARREL
R .098
(2.5)
W
.787 ±.005
(20.0 ± 0.127)
.079 (2.0)
FOR
M 2.5 THREAD
FORMING SCREWS
.079 REF
(2.0)
.157 (4.0)
BOSS
4 PLACES
.264 REF
(6.706)
DETAIL R
SCALE 6.0
SEE DETAIL R
SECTION W-W
.182 REF
(4.623)
DETAIL R
SCALE 6.0
SEE DETAIL R
.010 REF
(0.254)
PIN RECESS
.141 REF
(3.581)
