Attenuators
Specifications
0-9 dB
in 1 dB steps
Step
Deviation
0
0.5
+ 0.5
1
2
+ 0.5
+ 0.5
3
4
+ 0.5
5
+ 0.5
+ 0.5
6
7
+ 0.5
+ 0.5
8
9
+ 0.5
0-60 dB
in 10 dB steps
Step
Deviation
0
0.5
10
+ 0.5
20
+ 0.7
30
+ 0.9
40
+ 1.0
50
+ 1.3
60
+ 1.5

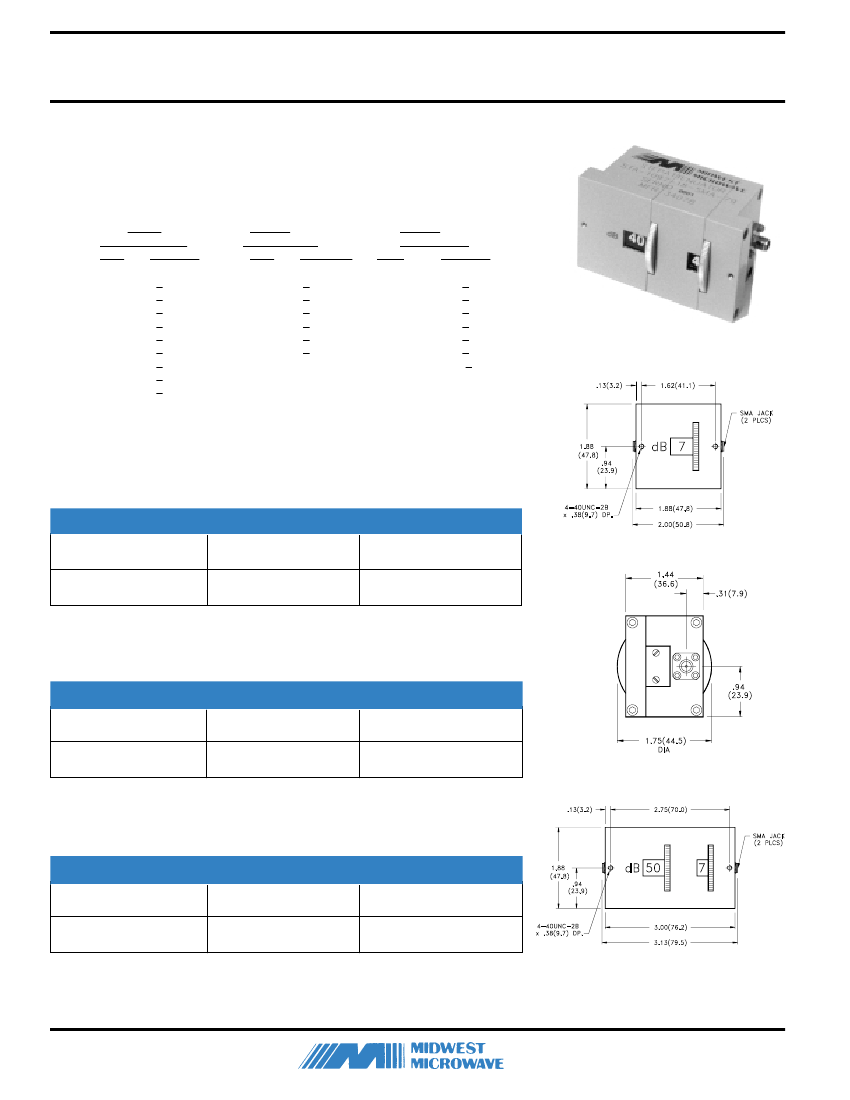

Step Attenuators - Thumbwheel Type
Thumbwheel - Panel Mount - 0 to 69 dB in 1 dB Steps
Frequency:
DC-18.0 GHz
Attenuation Values:
0 -9 dB, 0-60 dB, and 0-69 dB Models available
Attenuation Accuracy:
0-69 dB
in 1 dB steps
Step
Deviation
0
0.5
1-9
+ 0.5
10-19
+ 1.0
20-29
+ 1.2
30-39
+ 1.4
40-49
+ 1.5
50-59
+ 1.9
60-69
+ 2.0
Switching Repeatability:
<0.05 dB
Switching Life:
1,000,000 cycles
VSWR:
1.65 max
Impedance:
50 Ohms
Power:
2 Watts average
Connectors:
SMA, 7mm, or N Female* with Passivated Stainless Steel Finish
0 - 9 dB in 1 dB Steps
SMA
STA-1095-18-SMA-79
N
STA-1095-18-NNN-79
DC - 18.0 GHz
7mm Precision
STA-1095-18-7MM-79
0 - 60 dB in 10 dB Steps
SMA
STA-1096-18-SMA-79
N
STA-1096-18-NNN-79
DC - 18.0 GHz
7mm Precision
STA-1096-18-7MM-79
0 - 69 dB in 1 dB Steps
SMA
STA-1097-18-SMA-79
N
STA-1097-18-NNN-79
DC - 18.0 GHz
7mm Precision
STA-1097-18-7MM-79
*Note: TNC Connectors and or Male or Male/Female Connector combinations are available upon special request.
